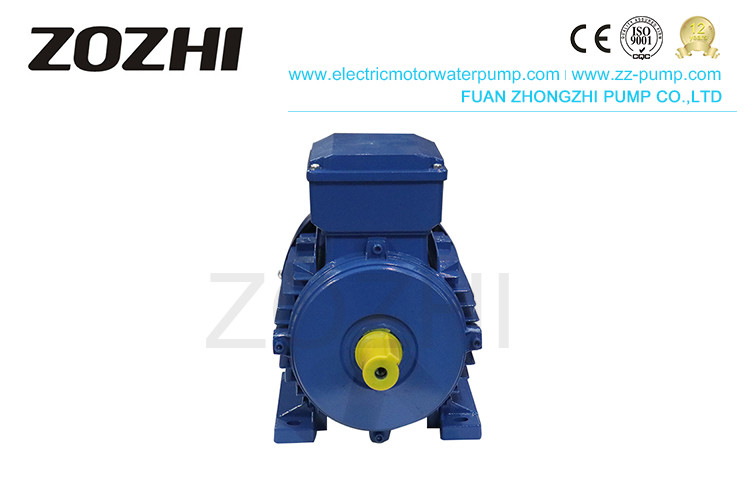

Aluminum 5.5KW 7.5HP IP44 IE3 AC Asynchronous Motor
| Place of Origin | FUAN CHINA |
|---|---|
| Brand Name | ZOZHI |
| Certification | CE,ISO |
| Model Number | IE3 MS132S-4 |
| Minimum Order Quantity | 10PCS |
| Price | $170 |
| Packaging Details | Packed in cartons,veneer case or wooden case. |
| Delivery Time | 25 working days after received your payment |
| Payment Terms | L/C, T/T |
| Supply Ability | 10000pcs/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | IE3 Motor | Application | Drivng |
|---|---|---|---|
| Power | 5.5KW/7.5HP | Pole | 4 |
| Phase | Three Phase | Housing | Aluminum |
| Insulation Class | B,F | Protection | IP44 / IP54 |
| Rated Voltage | 380V | Duty | S1(continuous) |
| High Light | IE3 AC Asynchronous Motor,IP44 AC Asynchronous Motor,7.5HP IE3 Electric Motor |
||
Product Description
IE3 Motor Descriptions
IE3 high-efficiency energy-saving high-quality electric motor C.E. certificated IE3 high-efficiency energy-saving high-quality electric motors have the advantage of high efficiency, long working life, energy-saving, high starting torque, low noise, small vibration, big breakaway torque, reliable
-
IE1 (Standard Efficiency)
-
IE2 (High Efficiency)
-
IE3 (Premium Efficiency)
-
IE4 (Super Premium Efficiency)
| Model | Power | (V) | (A) |
Spee d r/min |
Eff. (%) | P.F. | Tstart/Tn | Ist/In | Tmax/Tn | N.W. (kg) | |||
| Kw | HP | 50% | 75% | 100% | |||||||||
| IE3 MS801-2 | 0.75 | 1 | 230/400 | 2.82/1.63 | 2820 | 79.7 | 81.0 | 80.7 | 0.831 | 2.3 | 6.0 | 2.3 | 9.5 |
| IE3 MS802-2 | 1.1 | 1.5 | 4.0/2.3 | 2820 | 81.5 | 82.9 | 82.7 | 0.836 | 2.3 | 7.5 | 2.3 | 11 | |
| IE3 MS90S-2 | 1.5 | 2 | 5.23/3.02 | 2840 | 84.0 | 85.0 | 84.2 | 0.857 | 2.4 | 7.5 | 2.4 | 15 | |
| IE3 MS90L-2 | 2.2 | 3 | 7.44/4.3 | 2840 | 86.0 | 86.5 | 85.9 | 0.865 | 2.4 | 7.5 | 2.4 | 18 | |
| IE3 MS100L-2 | 3 | 4 | 9.9/5.72 | 2850 | 88.2 | 87.3 | 87.1 | 0.873 | 2.4 | 8.0 | 2.4 | 25 | |
| IE3 MS112M-2 | 4 | 5.5 | 400/690 | 7.48/4.32 | 2870 | 88.0 | 88.4 | 88.1 | 0.880 | 2.4 | 8.5 | 2.4 | 28.5 |
| IE3 MS132S1-2 | 5.5 | 7.5 | 10/5.8 | 2900 | 89.1 | 89.6 | 89.2 | 0.890 | 2.2 | 7.5 | 2.4 | 41 | |
| IE3 MS132S2-2 | 7.5 | 10 | 13.5/7.8 | 2900 | 90.0 | 90.5 | 90.1 | 0.892 | 2.2 | 7.5 | 2.4 | 46.5 | |
| IE3 MS160M1-2 | 11 | 15 | 19.5/11.3 | 2920 | 89.8 | 91.3 | 91.2 | 0.896 | 2.2 | 8.5 | 2.4 | 81 | |
| IE3 MS160M2-2 | 15 | 20 | 26.2/15.1 | 2920 | 91.6 | 92.0 | 91.9 | 0.805 | 2.2 | 8.5 | 2.4 | 93 | |
| IE3 MS160L-2 | 18.5 | 25 | 31.9/18.4 | 2920 | 92.1 | 92.5 | 92.4 | 0.910 | 2.2 | 8.5 | 2.4 | 104 | |
| IE3 MS802-4 | 0.75 | 1 | 230/400 | 2.97/1.72 | 1400 | 81.0 | 82.7 | 82.5 | 0.770 | 2.4 | 7.0 | 2.4 | 12 |
| IE3 MS90S-4 | 1.1 | 1.5 | 4.25/2.45 | 1420 | 82.6 | 84.3 | 84.1 | 0.775 | 2.4 | 7.5 | 2.4 | 16 | |
| IE3 MS90L-4 | 1.5 | 2 | 5.68/3.28 | 1420 | 83.8 | 85.4 | 85.3 | 0.778 | 2.4 | 8.0 | 2.4 | 20 | |
| IE3 MS100L1-4 | 2.2 | 3 | 8.0/4.62 | 1440 | 84.3 | 86.7 | 86.7 | 0.798 | 2.4 | 8.0 | 2.4 | 26 | |
| IE3 MS100L2-4 | 3 | 4 | 10.8/6.2 | 1440 | 86.0 | 87.6 | 87.7 | 0.801 | 2.4 | 8.0 | 2.4 | 30 | |
| IE3 MS112M-4 | 4 | 5.5 | 400/690 | 7.97/4.6 | 1450 | 88.3 | 88.8 | 88.6 | 0.821 | 2.4 | 7.5 | 2.4 | 38 |
| IE3 MS132S-4 | 5.5 | 7.5 | 10.8/6.2 | 1450 | 89.0 | 89.7 | 89.6 | 0.825 | 2.3 | 7.5 | 2.4 | 46 | |
| IE3 MS132M-4 | 7.5 | 10 | 14.4/8.32 | 1450 | 90.1 | 90.6 | 90.4 | 0.834 | 2.3 | 7.5 | 2.4 | 54 | |
| IE3 MS160M-4 | 11 | 15 | 20.8/12.0 | 1460 | 90.5 | 91.5 | 91.4 | 0.838 | 2.2 | 7.0 | 2.4 | 88 | |
| IE3 MS160L-4 | 15 | 20 | 27.9/16.1 | 1460 | 91.5 | 92.5 | 92.1 | 0.847 | 2.2 | 7.0 | 2.4 | 103 | |
| IE3 MS90S-6 | 0.75 | 1 | 230/400 | 3.42/1.97 | 910 | 77.5 | 94.4 | 78.9 | 0.700 | 2 | 4.0 | 2.3 | 15 |
| IE3 MS90L-6 | 1.1 | 1.5 | 4.8/2.78 | 910 | 80.2 | 81.3 | 81.0 | 0.710 | 2 | 4.0 | 2.3 | 20 | |
| IE3 MS100L1-6 | 1.5 | 2 | 6.35/3.66 | 930 | 81.3 | 82.6 | 82.5 | 0.720 | 2 | 5.0 | 2.3 | 25 | |
| IE3 MS112M-6 | 2.2 | 3 | 8.98/5.2 | 940 | 83.2 | 85.0 | 84.3 | 0.730 | 2 | 5.0 | 2.3 | 30 | |
| IE3 MS132S-6 | 3 | 4 | 11.9/6.87 | 960 | 84.5 | 85.8 | 85.6 | 0.740 | 2.2 | 6.5 | 2.3 | 38.5 | |
| IE3 MS132M1-6 | 4 | 5.5 | 400/690 | 9.0/5.2 | 960 | 85.3 | 86.9 | 86.8 | 0.745 | 2.2 | 7.0 | 2.3 | 47.5 |
| IE3 MS132M2-6 | 5.5 | 7.5 | 12.1/7.0 | 960 | 86.9 | 88.2 | 88.0 | 0.750 | 2.2 | 7.0 | 2.3 | 58 | |
| IE3 MS160M-6 | 7.5 | 10 | 16.1/9.3 | 970 | 87.5 | 89.0 | 89.1 | 0.760 | 2.2 | 7.0 | 2.3 | 83 | |
| IE3 MS160L-6 | 11 | 15 | 22.9/13.2 | 970 | 89.0 | 90.2 | 90.3 | 0.770 | 2.2 | 7.0 | 2.3 | 99 | |
Reviews from the client:
Shipping:
after 25~30days, we will deliver the goods, for loose goods better packed by the pallet for avoiding destroy
