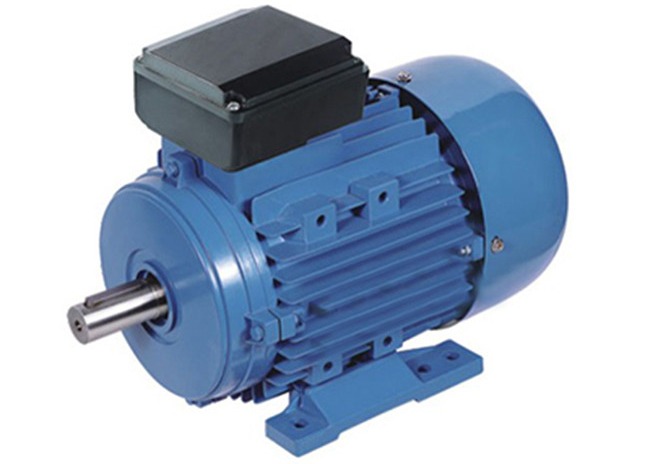

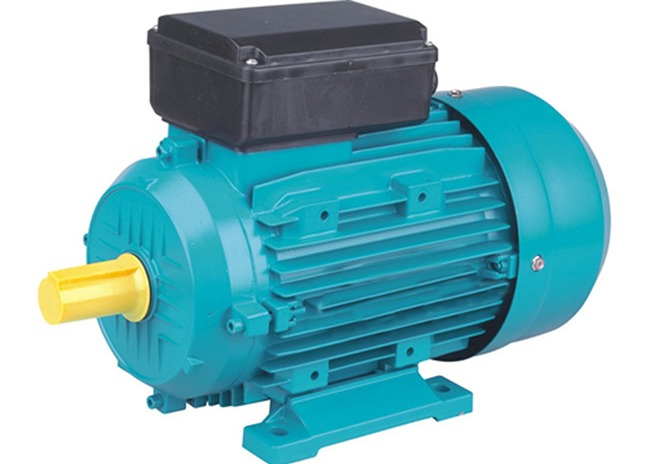

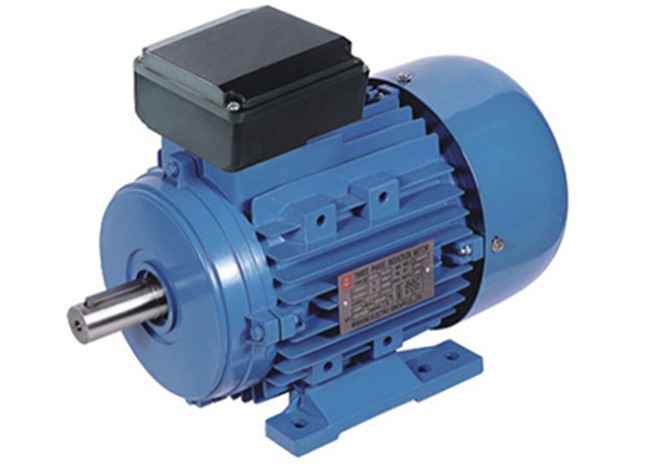

2 Poles IP54 2800rpm AC Asynchronous Motor For Water Pump

large.img.alt
small.img.alt small.img.alt small.img.alt

Large Image :  2 Poles IP54 2800rpm AC Asynchronous Motor For Water Pump

Product Details:
Place of Origin: Fuan, Fujian
Brand Name: ZOZHI
Certification: CE
Model Number: MY
Payment & Shipping Terms:
Minimum Order Quantity: 1CBM
Price: negotiated
Packaging Details: Packed in boxes And Pallet
Delivery Time: 30 days after payment
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 30000 pcs per month
Detailed Product Description
Type: Single Phase Induction Motor Protect Feature:: Totally Enclosed
Efficiency: IE1 2 3 Protection: IP44/IP54/IP55
Duty: S1 (continuous) Cooling Method:: ICO141
Housing: Aluminium Above Sea Level:: Not Exceed 1000m
Insulation Class:: B/F/H Ambient Temperature:: -15 ℃-40℃
AC Voltage:: 220-240V Frequency:: 50/60Hz
High Light:

2800rpm AC Asynchronous Motor

,

IP54 AC Asynchronous Motor

,

Water Pump Induction Motor

2 Poles IP54 2800rpm AC Asynchronous Motor For Water Pump

Single Phase Induction Motor

1. Good performance, safe and reliable operation
2. Low noise, little vibration, and lightweight
3. Used for household appliances, swimming pool pumps, fans, and recording meters
4. MY series aluminum housing single-phase capacitor run motor
5. MY series single-phase motor with low noise, low-temperature characteristics, protection class IP54
6. Insulation class F
7. B temperature rise assessment
8. Mounting dimensions conform to IEC standards
9. Conditions of Use: Ambient temperature: -15-40 ℃
10. Altitude:≤1000 m







Technical Parameters



Model Power Voltage Current Power Eff Speed Tst/Tn Tmax/Tn
  (A) Factor (%) (r/min)
KW HP Frequency
MY631-2 0.18 0.25 220V/50HZ 1.62 0.9 56 2800 0.8 1.7
MY632-2 0.25 0.33 2.06 0.92 60 2800 0.8 1.7
MY711-2 0.37 0.5 2.86 0.95 67 2800 0.7 1.7
MY712-2 0.55 0.75 4.05 0.95 70 2800 0.7 1.7
MY801-2 0.75 1 5.07 0.96 71 2800 0.65 1.7
MY802-2 1.1 1.5 7.16 0.97 75 2800 0.6 1.7
MY90S-2 1.5 2 9.57 0.99 76 2800 0.6 1.7
MY631-4 0.12 0.16 1.17 0.9 54 1400 0.9 1.7
MY632-4 0.18 0.25 1.65 0.92 58 1400 0.8 1.7
MY711-4 0.25 0.33 2.04 0.93 62 1400 0.8 1.7
MY712-4 0.37 0.5 2.96 0.93 65 1400 0.7 1.7
MY801-4 0.55 0.75 4.05 0.95 68 1400 0.7 1.7
MY802-4 0.75 1 5.52 0.95 71 1400 0.65 1.7
MY90S-4 1.1 1.5 7.29 0.98 73 1400 0.6 1.7
MY90L-4 1.5 2 7.55 0.99 75 1400 0.6 1.7





2 Poles IP54 2800rpm AC Asynchronous Motor For Water Pump 0

2 Poles IP54 2800rpm AC Asynchronous Motor For Water Pump 1

Our Customer

2 Poles IP54 2800rpm AC Asynchronous Motor For Water Pump 2

Guarantee:

Guarantee for one year from shipped on board date. During the guarantee period, our company will provide free easy-damaged spare parts for problems caused by our quality of production or raw material, except the damageable spare parts caused by customer's incorrect artificial operation. In addition, after expiration, our company provides cost spare parts for maintenance.



Our Service:
1. Free maintenance within 12 months guarantee.
2. We cooperate with customers to design and develop a new product.
3. We'd like to assist you in arranging delivery things, test things, or others on your request.
4. Customize production.
1. We are a professional manufacturer with more than 13 years experience in Electric motor
2. We are Made in China Gold Supplier
3. we test the material before production and three to four times when producing to ensure the goods in good quality, also we make according to request
4. we can be your OEM manufacturer with your authorization of the brand.



FAQ:
Q: What's the MOQ?
A: We accept one piece.

Q: Are you a factory or trading company?
A: We are a manufacturer.

Q: Can you accept to use our logo?
A: Yes, we can do OEM for you.

Q: What's the warranty period?
A: 1 year.

Q: What are the terms of payment?
A: T/T. 30% deposit and 70% against the BL copy or 100% LC at sight.
