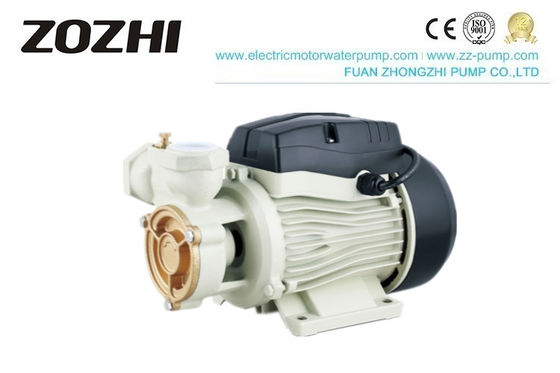

DB 2850 RPM 0.37kw 0.55hp Self Priming Peripheral Pump

China Fuan Zhongzhi Pump Co., Ltd. certification
China Fuan Zhongzhi Pump Co., Ltd. certification
Zhongzhi does really good on the design and manufacturing of the products. Experienced engineers service us very nice.

—— Vadim Zabiiaka

Good quality, great manufacturers, we are happy with your products.

—— Mr.Reuben kimwolo

Have been working together for more than 3 years very professional. all products work fine in our types of equipment. Thank you.

—— Mr.Yılmaz Türkoğlu

Thank you so much for Zhongzhi company to make our project run smoothly.

—— Mehmet Sefa KEÇİK

Technical issues resolved, reputation is very good.

—— Mr.ANTONIS GKANIS

I'm Online Chat Now

DB 2850 RPM 0.37kw 0.55hp Self Priming Peripheral Pump

DB 2850 RPM 0.37kw 0.55hp Self Priming Peripheral Pump
DB 2850 RPM 0.37kw 0.55hp Self Priming Peripheral Pump DB 2850 RPM 0.37kw 0.55hp Self Priming Peripheral Pump

Large Image :  DB 2850 RPM 0.37kw 0.55hp Self Priming Peripheral Pump

Product Details:

Place of Origin: FUAN CHINA
Brand Name: zozhi
Certification: CE,ISO
Model Number: DB-370

Payment & Shipping Terms:

Minimum Order Quantity: 10pcs
Price: negotiated
Packaging Details: Packed in cartons,veneer case or wooden case.
Delivery Time: 25 working days after received your payment
Payment Terms: L/C, T/T
Supply Ability: 10000pcs/month
Detailed Product Description
Model NO: DB-330 Power: 0.37kw/0.55hp
Q.Max: 35 H.Max: 35
Suct.Max: 9m Rpm: 2850
Inlet/Outlet: 1"x1" Insulation: Class B/F
High Light:

2850 RPM Self Priming Peripheral Pump

,

0.37kw Self Priming Peripheral Pump

,

0.55hp Electric Peripheral Pump

0.37kw Self-Priming DB Series Peripheral Pump



TECHNICAL DATA(220-240V/50Hz)
Power: 0.37KW/ 055. HP
H. MAX: 30M
Q. MAX: 35L/min
SUCT. MAX: 9M
DNA: 1"
DNM: 1"



APPLICATION
1. The pump has a compact size and simple to use.
2. Heavy-duty continuous work.
3. Ambient temperature up to 40º C.
4. The thermal protector is installed if required.
5. The shaft is 45# steel or stainless steel and not easy to rust.
6. 220-240V 50Hz power which is safer for your use.
7. The stator is 100% copper wire with high quality.

OPERATING CONDITION
1. Liquid temperature up to 60
2. Ambient temper up to 40
3. Total suction lift to 9m
4. Continuous duty

CONSTRUCT
PUMP
Pump body: Cast Iron
Impeller: Brass
Mechanical seal: Carbon/ceramic/Stainless Steel

MOTOR
Single Phase
Heavy-Duty Continuous Work
Motor Housing: Aluminum
Shaft: Carbon Steel/ Stainless steel
Insulation class: B and F
Protection class: IP44 or IP54
Cooling: Externally ventilation



DB 2850 RPM 0.37kw 0.55hp Self Priming Peripheral Pump 0



DB 2850 RPM 0.37kw 0.55hp Self Priming Peripheral Pump 1

Vortex Pump

Shipping:

after 25~30days, we will delivery the goods, for loose goods better packed by the pallet for avoiding destroy
