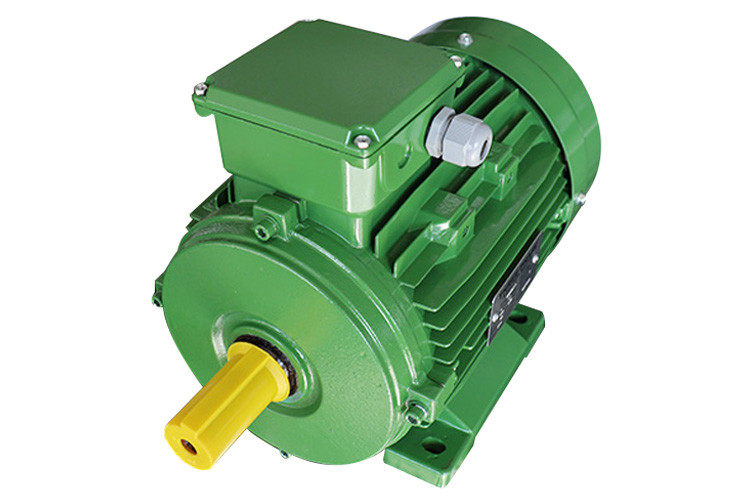

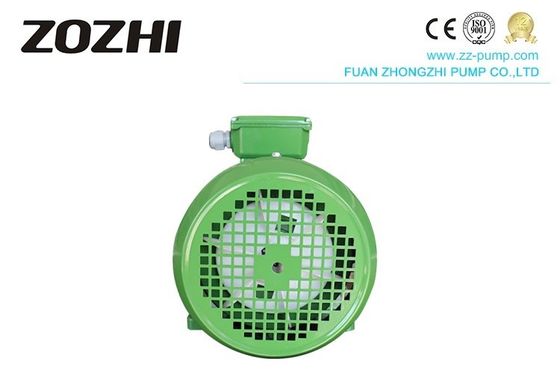

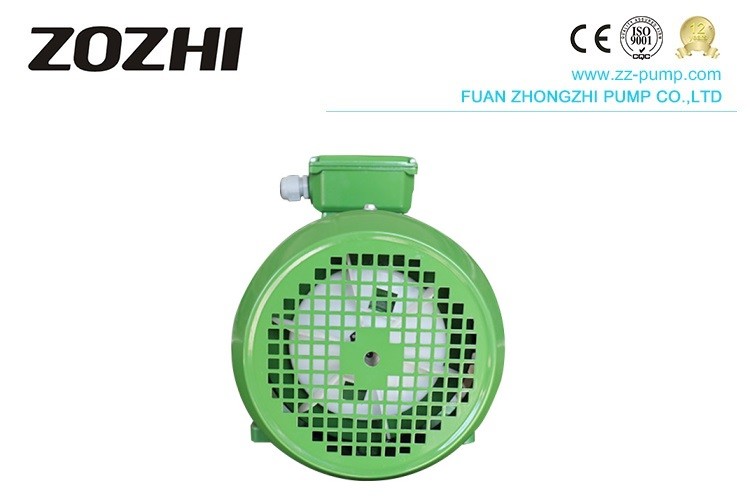

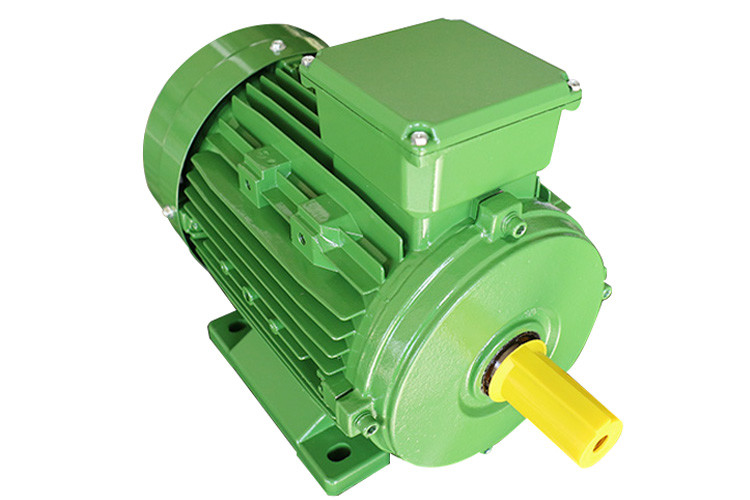

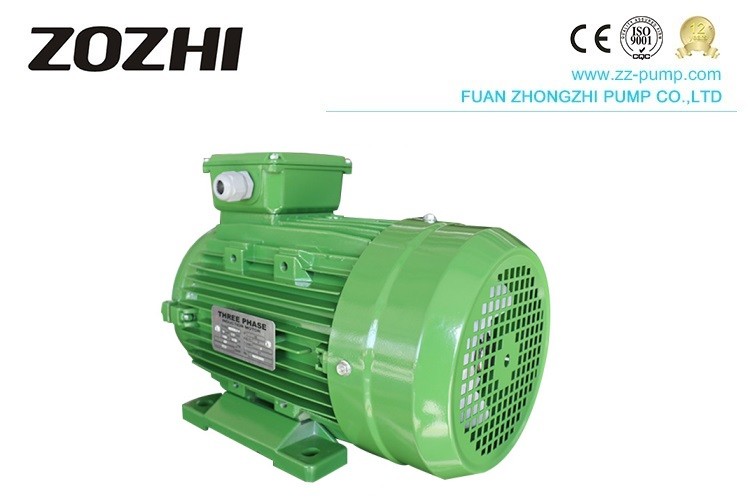

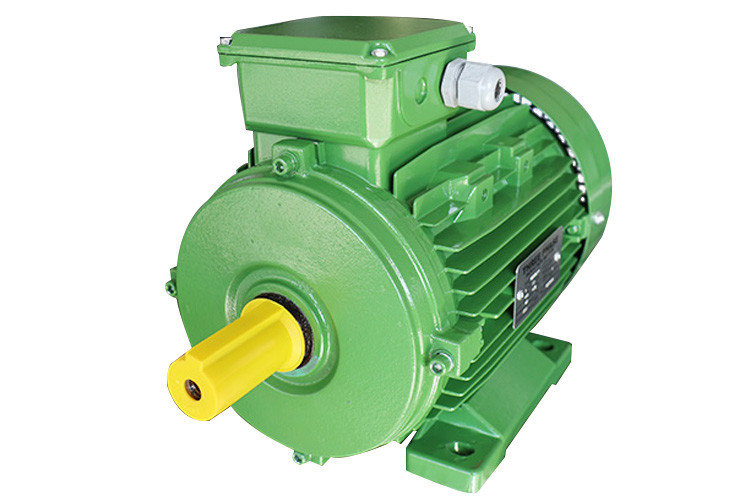

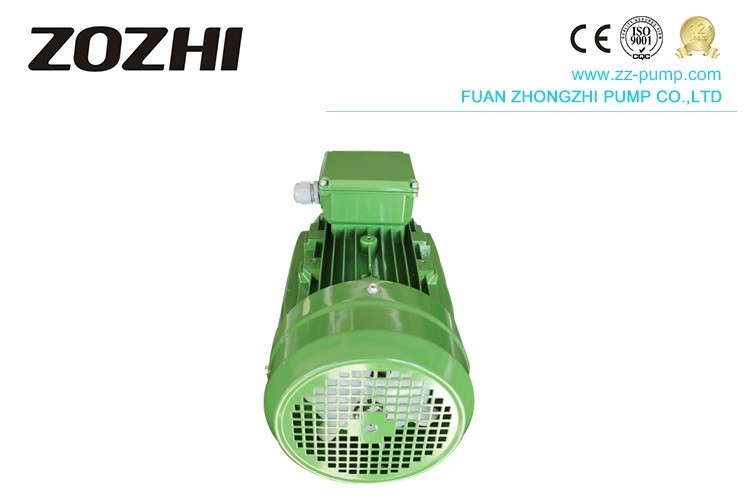

50Hz 3kw 3000rpm Squirrel Cage AC Induction Motor

Place of Origin FUAN CHINA
Brand Name ZOZHI
Certification CE,ISO
Model Number IE2 MS100L2-4
Minimum Order Quantity 10pcs
Price negotiated
Packaging Details Packed in cartons,veneer case or wooden case.
Delivery Time 25 working days after received your payment
Payment Terms T/T
Supply Ability 10000pcs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name IE2 Motor Output 3kw/4Hp
Voltage 230/400V/60HZ Winding Material 100% Copper Wire
Standard IEC 2 Housing Aluminum
Pole 4 Phase 3 Phase
High Light

3000rpm AC Induction Motor

,

3kw AC Induction Motor

,

Squirrel Cage IE2 Electric Motor

Leave a Message
Product Description

IE2 MS Asynchronous Motor, 0.75KW-11KW A.C. Motor 3 Phase Electric Motor



IE2 Motor  Description



Output Range: 0.75KW~11KW
Voltage: 415V/380V/660V/as required
Frequency: 50Hz/60Hz/as required
No. of Poles: 2, 4, 6
Speed: 1000rpm~3000rpm
Protection class: IP44 / IP54 / IP55
Insulation class: B / F
Connection: Y/D
Altitude: less than 1000 meters
Working temperature: -15°C~40°C
Duty type: S1
Cooling method: IC411

Mounting styles: B3 / B5 / B35

*B3 Frame with foot end, shield without flange

*B35 Frame with foot end, shield with flange
*B5 Frame without foot end, shield with flange. workshop



Features of 3 phase
asynchronous
induction motor
Self-starting, Robust in construction
Economical, Easier to maintain.
Less armature reaction and brush sparking because of the absence of commutators and bushes that may cause sparks.






IE2 Motor Operating conditions
Ambient temperature: -15°C~40°C
Altitude: Altitude should be higher than 1000 meters above sea level.
Rated voltage: 380V,400V,415V,440V. Rated frequency: 50Hz,60Hz.
Connection: Y Star-connection for 3kw or less whereas and delta-connection.
Duty/Rating: Continuous (S1)
Insulation class: F, the temperature rise of the stator winding is examined at 80K
(by resistance method).
Protection class: IP55.
Cooling method: IC411.






IE2 Motor Technical Data



Model Power (V) (A) (r/min) Eff. (%) P.F. Ist/In Tmax/Tn
Kw HP 50% 75% 100%
IE2 MS801-2 0.75 1 230/400 3.0/1.73 2800 76.5 77.3 77.4 0.813 2.2 2.3
IE2 MS802-2 1.1 1.5 4.2/2.43 2800 79 80 79.6 0.825 2.2 2.3
IE2 MS90S-2 1.5 2 5.53/3.19 2820 80.2 81.5 81.3 0.837 2.2 2.3
IE2 MS90L-2 2.2 3 7.93/4.58 2820 82.2 83.5 83.2 0.837 2.2 2.3
IE2 MS100L-2 3 4 10.5/6.06 2830 84 85.1 84.6 0.848 2.2 2.3
IE2 MS112M-2 4 5.5 400/690 7.97/4.6 2850 85.4 86.8 85.8 0.848 2.2 2.3
IE2 MS132S1-2 5.5 7.5 10.65/6.15 2870 86.7 87.3 87 0.86 2 2.3
IE2 MS132S2-2 7.5 10 14.35/8.28 2870 87.6 88.3 88.1 0.86 2 2.3
IE2 MS160M1-2 11 15 20.74/11.97 2900 89 89.8 89.4 0.86 2 2.3
IE2 MS160M2-2 15 20 27.99/16.16 2900 90 90.5 90.3 0.86 2 2.3
IE2 MS160L-2 18.5 25 33.83/19.53 2900 90.3 91 90.9 0.872 2 2.2
IE2 MS802-4 0.75 1 230/400 3.28/1.9 1380 77.3 79.8 79.6 0.72 2.3 2.3
IE2 MS90S-4 1.1 1.5 4.57/2.64 1400 79.9 81.7 81.4 0.743 2.3 2.3
IE2 MS90L-4 1.5 2 6.02/3.48 1400 82.1 83.5 82.8 0.755 2.3 2.3
IE2 MS100L1-4 2.2 3 8.42/4.86 1420 82.6 84.5 84.3 0.778 2.2 2.3
IE2 MS100L2-4 3 4 11.32/6.54 1420 84.2 85.7 85.5 0.778 2.2 2.3
IE2 MS112M-4 4 5.5 400/690 8.47/4.89 1430 85.8 87 86.6 0.79 2.2 2.3
IE2 MS132S-4 5.5 7.5 11.18/6.45 1450 87.4 88.3 87.7 0.813 2.2 2.3
IE2 MS132M-4 7.5 10 14.85/8.58 1450 88.2 89 88.7 0.825 2.2 2.3
IE2 MS160M-4 11 15 21.84/12.61 1460 89.1 90 89.8 0.813 2.2 2.3
IE2 MS160L-4 15 20 29.08/16.79 1460 90.2 91.1 90.6 0.825 2.2 2.3
IE2 MS90S-6 0.75 1 230/400 3.82/2.2 910 73.4 76.3 75.9 0.65 2 2.2
IE2 MS90L-6 1.1 1.5 5.25/3.03 910 77 78.8 78.1 0.673 2 2.2
IE2 MS100L-6 1.5 2 6.77/3.91 940 79.6 80.8 79.8 0.697 2 2.2
IE2 MS112M-6 2.2 3 9.69/5.59 940 80.4 81.6 81.8 0.697 2 2.2
IE2 MS132S-6 3 4 12.56/7.25 960 81 83.4 83.3 0.72 2 2.2
IE2 MS132M1-6 4 5.5 400/690 9.36/5.4 960 82.7 84.5 84.6 0.732 2 2.2
IE2 MS132M2-6 5.5 7.5 12.47/7.2 960 84.8 86.2 86 0.743 2 2.2
IE2 MS160M-6 7.5 10 16.78/9.69 970 86.4 87.5 87.2 0.743 2 2
IE2 MS160L-6 11 15 24.19/13.97 970 88.2 89.2 88.7 0.743 2 2




Performance comparison chart:

ELECTRIC MOTOR EFFICIENCY VALUES-4POLES 1500 RPM
Power(kw) eff2 (nominal) eff1 (nominal) IE2 (nominal) IE3 (nominal)
0.75 - - 79.6 82.5
1.1 76.2 83.8 81.4 84.1
1.5 78.5 85.0 82.8 85.3
2.2 81 86.4 84.3 86.7
3.0 82.6 87.4 85.5 87.7
4.0 84.2 88.3 86.6 88.6
5.5 85.7 89.2 87.7 89.6
7.5 87 90.1 88.7 90.4
11 88.4 91.0 89.8 91.4
15 89.4 91.8 90.6 92.1
18.5 90 92.2 91.2 92.6
22 90.5 82.6 91.6 93.0
30 91.4 93.2 92.3 93.8
37 92 93.6 92.7 93.9
45 92.5 93.9 93.1 94.2
55 93 94.2 93.5 94.6
75 93.6 94.7 94.0 95.0
90 93.9 95.0 94.2 95.2
110     94.5 95.4
132     94.7 95.6
160     94.9 95.8
200...375     95.1 96.0



Common Faults With AC Motors



We often see the same faults with A.C. motors, below and some of the most common faults with A.C. motors and how you can identify them.



Fault Notice
Open Circuit on Windings Motor Buzzes or Hums and won’t work
Earth Fault Motor Dead and won’t work
Bearing Failing Noise, Vibration, Excess Heat on Drive End or Non-Drive End
Bearing Collapse Shaft Damage, Core Damage, Winding Damage
Rotor Problems Movement in Shaft, Bearing Journals undersized.
Misalignment Premature Coupling Failures, Vibration of Motor
Bent Shaft Early Bearing Failures, Vibration






Production Line
three phase induction motor


Application

Three-phase asynchronous motors have higher operating efficiency and better working characteristics. They run at a nearly constant speed from no-load to the full-load range and can meet the transmission requirements of most industrial and agricultural production machinery. Asynchronous motors are widely used in machine tools, water pumps, blowers, and compressors.

three phase induction motor

asynchronous motor

50Hz 3kw 3000rpm Squirrel Cage AC Induction Motor 3



Features of 3 phase
asynchronous
induction motor
Self-starting, Robust in construction
Economical, Easier to maintain.
Less armature reaction and brush sparking because of the absence of commutators and bushes that may cause sparks.
