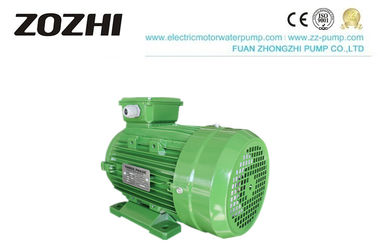

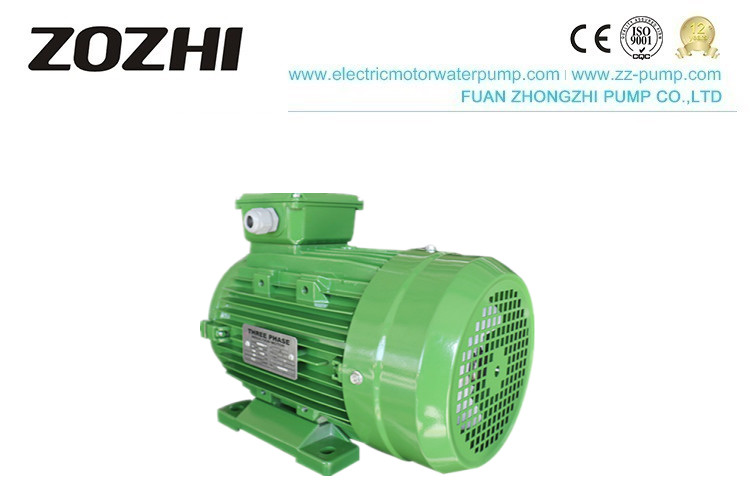

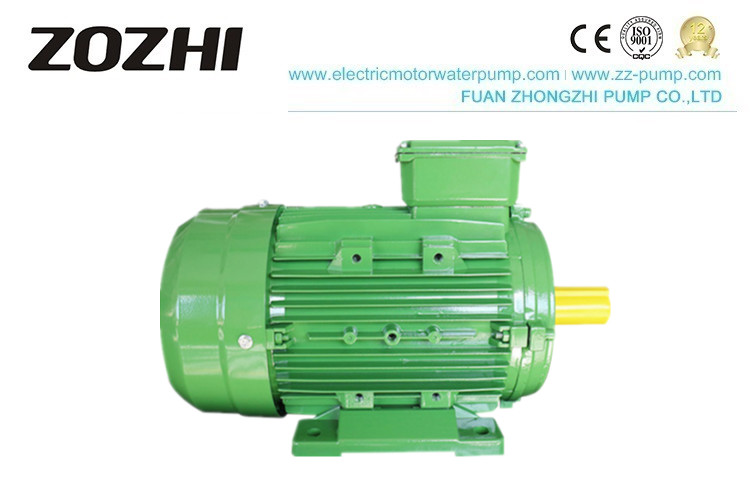

MS802-4 1400rpm 0.75kw 1.0hp 3 Phase Electric Motor

  • MS802-4 1400rpm 0.75kw 1.0hp 3 Phase Electric Motor
  • MS802-4 1400rpm 0.75kw 1.0hp 3 Phase Electric Motor
  • MS802-4 1400rpm 0.75kw 1.0hp 3 Phase Electric Motor
Place of Origin FUAN CHINA
Brand Name ZOZHI
Certification CE,ISO
Model Number MS802-4
Minimum Order Quantity 1pc
Price $37.3~$45.5
Packaging Details Packed in cartons,veneer case or wooden case.
Delivery Time 25 working days after received your payment
Payment Terms L/C, T/T
Supply Ability 10000pcs/month
Product Details
Product Name 3 Phase Induction Motor Application Drivng
Power 1.1kw/1.5Hp Pole 4
Phase Three Phase Housing Aluminum
Insulation Class B,F Protection IP44 / IP54
Rated Voltage 380V Duty S1(continuous)
Highlight

MS802-4

,

1400rpm Asynchronous Induction Motor
Leave a Message
Product Description

3 Phase Induction Motor

MS Series Three Phase Induction Motor
Model MS802-4
Rated Power 0.75kw/1.0Hp
Service Factor 0.75
Supply Voltage 380V
Rate Frequency 60Hz/50Hz
Structure IP54, IP55
Insulation Grade B/F
Bearing NSK OR C&U
Efficiency IE1
Color Customizable
Ambient temperature -15. C ~40 . C
Weight 9.8kgs
Measure 33x19x21.5cm



Introduction:
Conform to the IEC standard, be made of selected quality materials, the latest design in entirety, Good performance, low noise, little vibration, safety, reliable operation, nice appearance, light-weight. Be maintained very conveniently, simple construction, Be used for general drive.
Customer Benefits:
Utilize IP55 enclosures, other requests
Multiple feet locations
Aluminum frame, end shields, and base
High strength cable gland
Shaft key and protector supplied
Superior paint finish
Motors made to heavy-duty service factors Can be made with stainless steel shafts.
Motors made for continuous S1 duty.
Utilize Vacuum impregnated Class B or Class F insulation
Other insulation on request
Excellent performance and efficiency.



MS802-4 1400rpm 0.75kw 1.0hp 3 Phase Electric Motor 0



Technical data


Model Power (V) (HZ) Current (A) Power Factor

Eff

(%)

 Speed (r/min)

Tstart/

Tn

Tmax/

Tn

Ist/

In
HP KW
MS561-2 0.12 0.09 380 50 0.3 0.76 60 2750 2.3 2.4 6
MS562-2 0.16 0.12 0.37 0.78 63 2750 2.3 2.4 6
MS631-2 0.25 0.18 0.53 0.75 69 2800 2.2 2.4 4.5
MS632-2 0.33 0.25 0.68 0.78 72 2800 2.2 2.4 4.5
MS711-2 0.5 0.37 0.98 0.8 73 2800 2.2 2.4 4.5
MS712-2 0.75 0.55 1.35 0.82 75 2800 2.2 2.4 4.5
MS801-2 1 0.75 1.75 0.85 76 2800 2.2 2.4 4.5
MS802-2 1.5 1.1 2.55 0.85 77 2800 2.2 2.4 4.5
MS90S-2 2 1.5 3.36 0.87 78 2800 2.2 2.4 4.5
MS90L-2 3 2.2 4.93 0.87 78 2800 2.2 2.4 5
MS100L-2 4 3 6.31 0.87 83 2880 2.3 2.4 7
MS112M-2 5.5 4 8.12 0.88 85 2890 2.3 2.4 7
MS132S1-2 7.5 5.5 11 0.88 86 2900 2.3 2.4 7
MS132S2-2 10 7.5 14.9 0.88 87 2900 2.3 2.4 7
MS160L-2 25 18.5 34.7 0.9 90 2930 2.3 2.4 7
MS561-4 0.08 0.06 0.27 0.68 50 1300 2.2 2.3 5.5
MS562-4 0.12 0.09 0.36 0.7 54 1300 2.2 2.3 5.5
MS631-4 0.16 0.12 0.48 0.63 60 1400 2.2 2.4 4.5
MS632-4 0.25 0.18 0.65 0.66 64 1400 2.2 2.4 4.5
MS711-4 0.33 0.25 0.83 0.68 67 1400 2.2 2.4 4.5
MS712-4 0.5 0.37 1.12 0.72 69 1400 2.2 2.4 4.5
MS801-4 0.75 0.55 1.56 0.73 73 1400 2.2 2.4 4.5
MS802-4 1 0.75 2.01 0.75 75 1400 2.2 2.4 4.5
MS90S-4 1.5 1.1 2.83 0.78 76 1400 2.3 2.4 5
MS90L-4 2 1.5 3.84 0.78 76 1400 2.2 2.4 5
MS100L1-4 3 2.2 4.2 0.75 75 1400 2.2 2.4 5
MS100L2-4 4 3 6.78 0.82 82 1410 2.3 2.4 7
MS112M-4 5.5 4 8.82 0.82 84 1435 2.3 2.4 7
MS132S-4 7.5 5.5 11.8 0.83 85.5 1445 2.3 2.4 7
MS132M-4 10 7.5 15.6 0.84 87 1445 2.3 2.4 7
MS711-6 0.24 0.18 0.74 0.66 56 900 2 2.2 5.5
MS712-6 0.33 0.25 0.95 0.68 59 900 2 2.2 5.5
MS801-6 0.5 0.37 1.3 0.7 62 900 2 2.2 5.5
MS802-6 0.75 0.55 1.79 0.72 65 900 2 2.2 5.5
MS90S-6 1 0.75 2.29 0.72 69 910 2.1 2.2 5.5
MS90L-6 1.5 1.1 3.18 0.73 72 910 2.1 2.2 5.5
MS100L-6 2 1.5 3.89 0.76 76 940 2.1 2.2 5.5
MS112M-6 3 2.2 5.57 0.76 79 940 2.2 2.3 6.5
MS132S-6 4 3 7.4 0.76 81 960 2.2 2.3 6.5
MS132M1-6 5.5 4 9.75 0.76 82 960 2.2 2.3 6.5
MS132M2-6 7.5 5.5 12.9 0.77 84 960 2.2 2.3 6.5




Reviews from the client:

MS802-4 1400rpm 0.75kw 1.0hp 3 Phase Electric Motor 1



Shipping:

after 25~30days, we will deliver the goods, for loose goods better packed by the pallet for avoiding destroy

MS802-4 1400rpm 0.75kw 1.0hp 3 Phase Electric Motor 2









​



MS802-4 1400rpm 0.75kw 1.0hp 3 Phase Electric Motor 3

MS802-4 1400rpm 0.75kw 1.0hp 3 Phase Electric Motor 4

MS802-4 1400rpm 0.75kw 1.0hp 3 Phase Electric Motor 5



MS802-4 1400rpm 0.75kw 1.0hp 3 Phase Electric Motor 6

MS802-4 1400rpm 0.75kw 1.0hp 3 Phase Electric Motor 7
