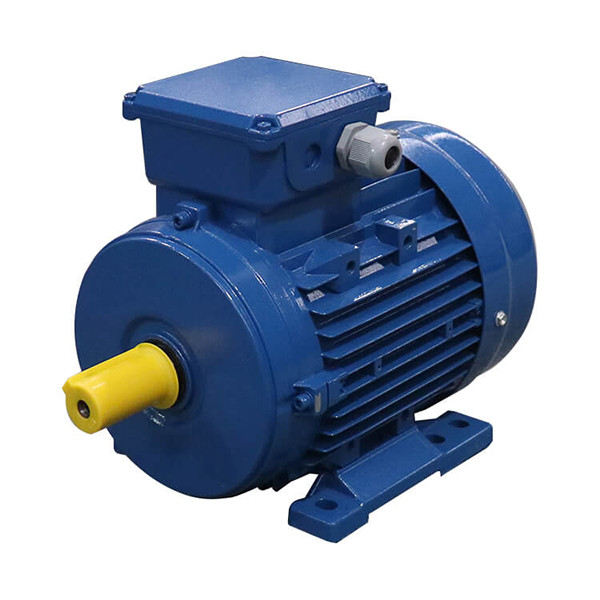

IE1 Energy Saving 1.1KW 15HP Three Phase Electric Motor

Place of Origin FUAN CHINA
Brand Name ZOZHI
Certification CE,ISO
Model Number MS802-2
Minimum Order Quantity 1pc
Price $35.3~$45.5
Packaging Details Packed in cartons,veneer case or wooden case.
Delivery Time 25 working days after received your payment
Payment Terms L/C, T/T
Supply Ability 10000pcs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name 3 Phase Induction Motor Application Drivng
Power 1.1kw/1.5Hp Pole 2
Phase Three Phase Housing Aluminum
Insulation Class B,F Protection IP44 / IP54
Rated Voltage 380V Duty S1(continuous)
High Light

1.1KW 3 Phase Electric Motor

,

15HP Asynchronous Induction Motor

Leave a Message
Product Description

3 Phase Induction Motor

3-Phase Electric Motor
Output range 0.12HP to 7.5 HP
15 Years of Manufacturing Experience
Cast Iron or Aluminum Frame





Our electric motor make according to the IEC standard.







IE1 ENERGY SAVEING,IE2 - HIGH EFFICIENCY,IE3 PREMIUM EFFICIENCY



THREE-PHASE ELECTRIC MOTOR



Induction-motor








ELECTRIC MOTOR FEATURES







Electric motor frame from 56 – 132, output range from 0.12HP to 7.5HP

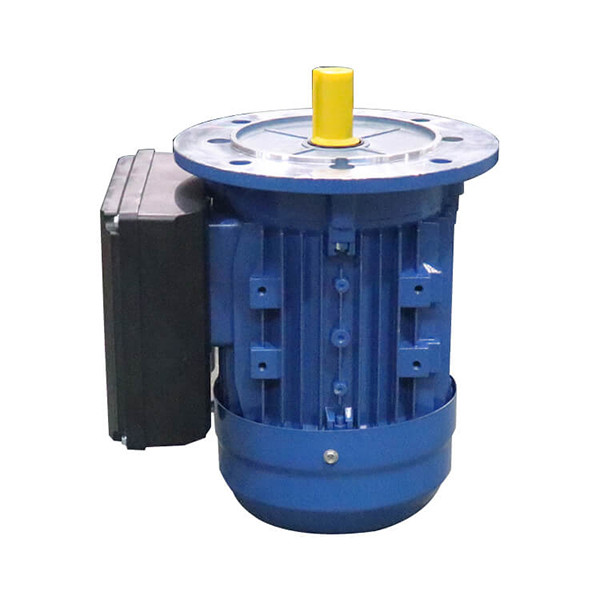

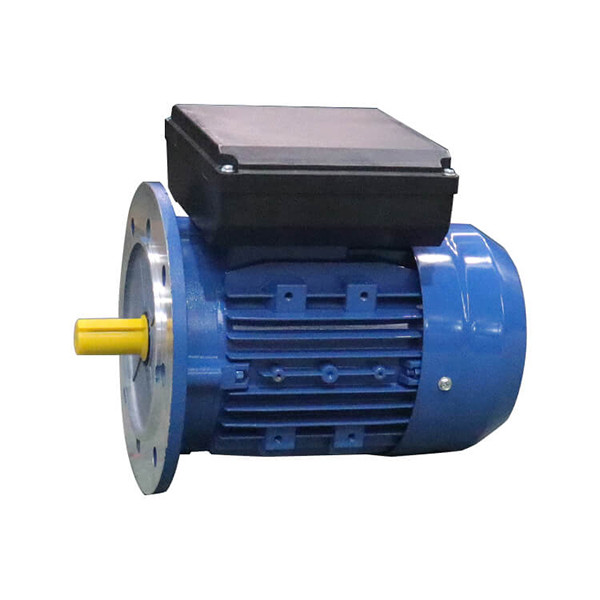

Motor mounting type B3, B35, B5, B14, B34

Optional voltage 380V 50HZ



Protection type IP44, IP54, IP55 on request



Multiple mounting arrangements for optional
Aluminum frame


Electric motor continuous duty S1



High performance and IE1, IE2, IE3 efficiency







OUR ELECTRIC MOTOR FOR CUSTOMER BENEFITS



Electricity saving and quiet operation
An electric motor can
withstand
water, dust, and vermin
Electric motor very easy installation
Electric motor dependable Corrosion resistant and long life to work
Reliability
performance and very competitive price.



HOW TO MAKE MOTOR ON JET COMPANY



1. Silicon steel DR510, 800, 600, 360 standard use stamping of lamination stator and rotor die-casting



2. 100% copper winding and inserting stator (manual and semi-automatically)



3. Stator Vacuum impregnation and drying



4. CNC machining motor shaft, frame, end shields, etc



5. Professional workman inspecting spare parts every processing



6. Electric motor assembly product line



7. Electric motor will 100% test before painting.



8. Electric motor spray-paint on motor painting product line



9. Electric motor will 100% check again before packing.



An electric motor from material to finish motor must pass a 15-time check, and 100% testing, output power, voltage, electric current, non-load, 50% load, 75% load, 100% load, and check the nameplate, packing, finally shipping to our customer.



IE1 Energy Saving 1.1KW 15HP Three Phase Electric Motor 0



Technical data


Model Power (V) (HZ) Current (A) Power Factor

Eff

(%)

Speed (r/min)

Tstart/

Tn

Tmax/

Tn

Ist/

In

HP KW
MS561-2 0.12 0.09 380 50 0.3 0.76 60 2750 2.3 2.4 6
MS562-2 0.16 0.12 0.37 0.78 63 2750 2.3 2.4 6
MS631-2 0.25 0.18 0.53 0.75 69 2800 2.2 2.4 4.5
MS632-2 0.33 0.25 0.68 0.78 72 2800 2.2 2.4 4.5
MS711-2 0.5 0.37 0.98 0.8 73 2800 2.2 2.4 4.5
MS712-2 0.75 0.55 1.35 0.82 75 2800 2.2 2.4 4.5
MS801-2 1 0.75 1.75 0.85 76 2800 2.2 2.4 4.5
MS802-2 1.5 1.1 2.55 0.85 77 2800 2.2 2.4 4.5
MS90S-2 2 1.5 3.36 0.87 78 2800 2.2 2.4 4.5
MS90L-2 3 2.2 4.93 0.87 78 2800 2.2 2.4 5
MS100L-2 4 3 6.31 0.87 83 2880 2.3 2.4 7
MS112M-2 5.5 4 8.12 0.88 85 2890 2.3 2.4 7
MS132S1-2 7.5 5.5 11 0.88 86 2900 2.3 2.4 7
MS132S2-2 10 7.5 14.9 0.88 87 2900 2.3 2.4 7
MS160L-2 25 18.5 34.7 0.9 90 2930 2.3 2.4 7
MS561-4 0.08 0.06 0.27 0.68 50 1300 2.2 2.3 5.5
MS562-4 0.12 0.09 0.36 0.7 54 1300 2.2 2.3 5.5
MS631-4 0.16 0.12 0.48 0.63 60 1400 2.2 2.4 4.5
MS632-4 0.25 0.18 0.65 0.66 64 1400 2.2 2.4 4.5
MS711-4 0.33 0.25 0.83 0.68 67 1400 2.2 2.4 4.5
MS712-4 0.5 0.37 1.12 0.72 69 1400 2.2 2.4 4.5
MS801-4 0.75 0.55 1.56 0.73 73 1400 2.2 2.4 4.5
MS802-4 1 0.75 2.01 0.75 75 1400 2.2 2.4 4.5
MS90S-4 1.5 1.1 2.83 0.78 76 1400 2.3 2.4 5
MS90L-4 2 1.5 3.84 0.78 76 1400 2.2 2.4 5
MS100L1-4 3 2.2 4.2 0.75 75 1400 2.2 2.4 5
MS100L2-4 4 3 6.78 0.82 82 1410 2.3 2.4 7
MS112M-4 5.5 4 8.82 0.82 84 1435 2.3 2.4 7
MS132S-4 7.5 5.5 11.8 0.83 85.5 1445 2.3 2.4 7
MS132M-4 10 7.5 15.6 0.84 87 1445 2.3 2.4 7
MS711-6 0.24 0.18 0.74 0.66 56 900 2 2.2 5.5
MS712-6 0.33 0.25 0.95 0.68 59 900 2 2.2 5.5
MS801-6 0.5 0.37 1.3 0.7 62 900 2 2.2 5.5
MS802-6 0.75 0.55 1.79 0.72 65 900 2 2.2 5.5
MS90S-6 1 0.75 2.29 0.72 69 910 2.1 2.2 5.5
MS90L-6 1.5 1.1 3.18 0.73 72 910 2.1 2.2 5.5
MS100L-6 2 1.5 3.89 0.76 76 940 2.1 2.2 5.5
MS112M-6 3 2.2 5.57 0.76 79 940 2.2 2.3 6.5
MS132S-6 4 3 7.4 0.76 81 960 2.2 2.3 6.5
MS132M1-6 5.5 4 9.75 0.76 82 960 2.2 2.3 6.5
MS132M2-6 7.5 5.5 12.9 0.77 84 960 2.2 2.3 6.5




Reviews from the client:

IE1 Energy Saving 1.1KW 15HP Three Phase Electric Motor 1



Shipping:

after 25~30days, we will deliver the goods, for loose goods better packed by the pallet for avoiding destroy
