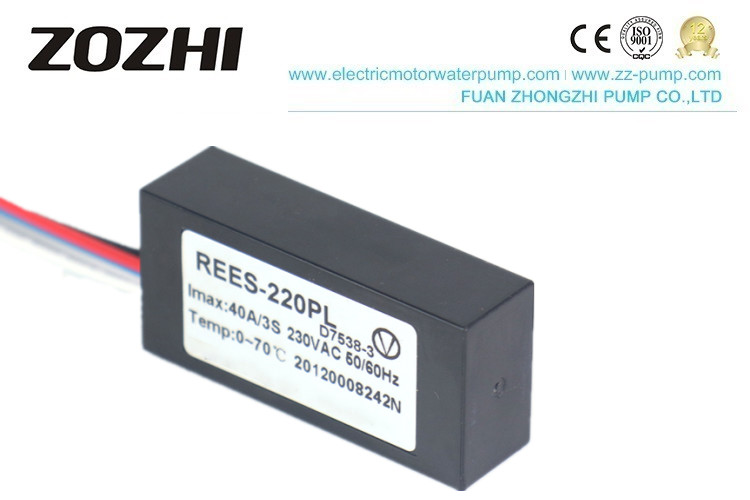

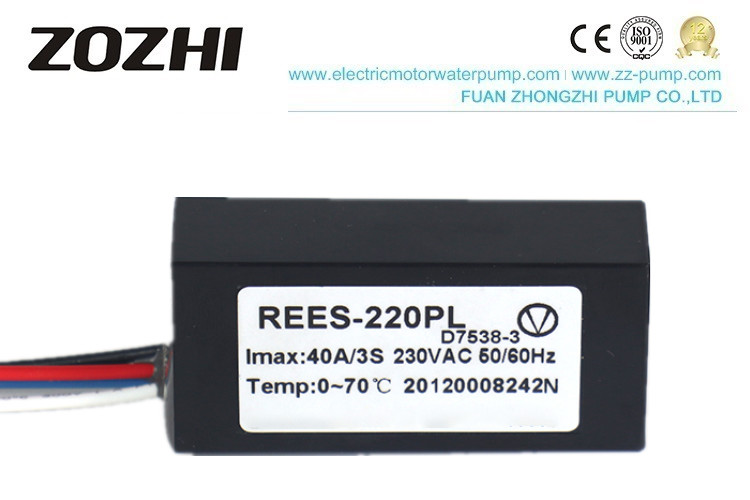

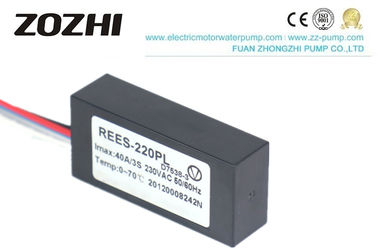

REES-220PL 40A/3S 230VAC Electronic Centrifugal Switch For Pump
| Place of Origin | FUAN CHINA |
|---|---|
| Brand Name | ZOZHI |
| Certification | ISO |
| Model Number | REES-220PL |
| Minimum Order Quantity | 10pcs |
| Price | $4-$15 |
| Packaging Details | Packed in cartons,veneer case or wooden case. |
| Delivery Time | 2 working days after received your payment |
| Payment Terms | T/T, L/C |
| Supply Ability | 10000pcs/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Voltage | 230V | Frequency | 50/60HZ |
|---|---|---|---|
| Plastic Case | 72L*31W*23H | Max. Current | 40A/3S |
Product Description
REES-220PL 40A/3S 230VAC Electronic Centrifugal Switch For Pump
Product model: REES-220PL
Motor voltage: 230Vac 50Hz/60Hz
Motor power: 550 - 2200W
Maximum current: 40A /3S
Applicable models: Single-phase AC motors of YL, YC, ML, and MC series
Motor voltage: 230Vac 50Hz/60Hz
Motor power: 550 - 2200W
Maximum current: 40A /3S
Applicable models: Single-phase AC motors of YL, YC, ML, and MC series
The setting of the motor's disconnecting rotating speed (namely, the set of RECS series electronic centrifugal switch):
Please ensure that the electronic centrifugal switch is connected correctly, the details of which are shown in the above corresponding wiring diagram of an electronic centrifugal switch;
Please make sure that the motor is provided with the rated voltage and rated frequency, which shall conform to the chosen voltage range of the electronic centrifugal switch;
Please make sure that the pressure drop when the motor starts is not over 5% (it is better to use a high-power variable-frequency power source);
Please make sure that the motor has no load;
Power the motor on to run it for 5 seconds to complete the setting (which means the electronic centrifugal switch can automatically read the electrical parameters of the motor, set the motor's disconnecting rotating speed as about 75%, and save it permanently). During the setting process, it is expected that the motor vibrates obviously. Please do not power it off;
After the above setting process is finished, the motor can usually be used.
Please ensure that the electronic centrifugal switch is connected correctly, the details of which are shown in the above corresponding wiring diagram of an electronic centrifugal switch;
Please make sure that the motor is provided with the rated voltage and rated frequency, which shall conform to the chosen voltage range of the electronic centrifugal switch;
Please make sure that the pressure drop when the motor starts is not over 5% (it is better to use a high-power variable-frequency power source);
Please make sure that the motor has no load;
Power the motor on to run it for 5 seconds to complete the setting (which means the electronic centrifugal switch can automatically read the electrical parameters of the motor, set the motor's disconnecting rotating speed as about 75%, and save it permanently). During the setting process, it is expected that the motor vibrates obviously. Please do not power it off;
After the above setting process is finished, the motor can usually be used.
Features
Small Package
Long Life(1M cycle)
General Switch,
Auto-Match different Motor
Wide Voltage Range 115V(90V-137V) 230V(198V-264V)
50Hz/60Hz applicable
Neither switching noise nor trembling of contacts
High compatibility with general-purpose motors as well as application-specific motors
Easy installation and maintenance, mounted on inside/outside standard motor frames.
Sealed with epoxy resin or silicon rub, insensitive to dirt, dust, moisture, and vibration
Discharges starting capacitors
ROHS/CE/UL
Small Package
Long Life(1M cycle)
General Switch,
Auto-Match different Motor
Wide Voltage Range 115V(90V-137V) 230V(198V-264V)
50Hz/60Hz applicable
Neither switching noise nor trembling of contacts
High compatibility with general-purpose motors as well as application-specific motors
Easy installation and maintenance, mounted on inside/outside standard motor frames.
Sealed with epoxy resin or silicon rub, insensitive to dirt, dust, moisture, and vibration
Discharges starting capacitors
ROHS/CE/UL
Applications
Refrigerators
Pumps
Shredders
Grinders
Hoists
Washing machines
Ice makers
Mixers
Sprayers
Drill/Tapping machines
Pumps
Shredders
Grinders
Hoists
Washing machines
Ice makers
Mixers
Sprayers
Drill/Tapping machines
Description:
|
Product List
| P/N | Voltage(V) | Max Start Current (3s TC=25) (A) | Package |
| RECS-105P | 115 | 30 | Plastic Case 72L*31W*23H |
| RECS-120P | 115 | 60 | Plastic Case 72L*31W*23H |
| RECS-120S | 115 | 60 | Plastic Case 52L*50W*24H |
| RECS-140P | 115 | 120 | Plastic Case 72L*31W*23H |
| RECS-160C | 115 | 180 | CAP Case 46Dia*86long |
| RECS-205P | 230 | 30 | Plastic Case 72L*31W*23H |
| RECS-220P | 230 | 60 | Plastic Case 72L*31W*23H |
| RECS-240P | 230 | 120 | Plastic Case 72L*31W*23H |
| RECS-260C | 230 | 180 | CAP Case 46Dia*86long |
