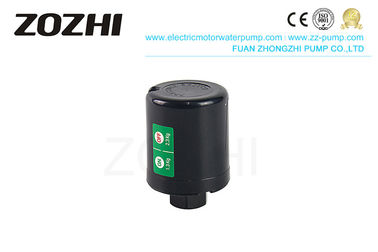

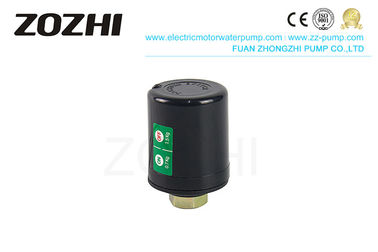

ZPS-2 Female Male Water Pump Pressure Switch Controller

Large Image : ZPS-2 Female Male Water Pump Pressure Switch Controller

Product Details:

Place of Origin:	FUAN CHINA
Brand Name:	ZOZHI
Certification:	CE,ISO
Model Number:	ZPS-2

Payment & Shipping Terms:

Minimum Order Quantity:	10PCS
Price:	$1.1-1.4
Packaging Details:	Packed in cartons,veneer case or wooden case.
Delivery Time:	2 working days after received your payment
Payment Terms:	L/C, T/T
Supply Ability:	10000pcs/month

Contact Now

Detailed Product Description

Max. Working Pressure::	Low Pressure	Rated Voltage:	230V;110V
Material:	Plastic Base	Max. Current::	10A
Frequency:	50/60HZ	Pressure Range:	1.1-1.8kg
Max. Voltage:	230V
High Light:	ZPS-2 Mechanical Pressure Switch , Water Pump Pressure Switch

ZPS-2 Technical Parameters
Rated Voltage	230V; 110V
Frequency	50/60HZ
Rated Current	5A;10A
Min.cut-in	12PSI
Min.cut-out	45PSI
Pressure range	1.1-1.8Bar (according to requirements of customers)
Bases	Zin alloy
Contacts	Double
Screw type	Female/Male
Screw size	1/4"; 3/8"

mechanical seal

Mechanical pressure switch type
Pressure 0.8-1.5kg	Suitable for 100w booster pump
Pressure 1.1-1.8kg	Suitable for 120w/125w/150w booster pump
Pressure 1.3-2.3kg	Suitable for 250w/300w/370w booster pump
Pressure 2.0-3.0kg	Suitable for 550w booster pump
Pressure 2.5-3.5kg	Suitable for 550w/750w booster pump
Pressure 3.0-4.0kg	Suitable for 750w booster pump

. mechanical seal

mechanical seal

ZPS-2 Female Male Water Pump Pressure Switch Controller 7

Model	ZPS-2
Dimension	5226.519CM
Quantity	100PCS/CTN
N.W(kg)	17KGS
G.W(kg)	19KGS

Model	Pressure Range	Screw Type	Base Material
ZPS-2A-0.8	0.8-1.5kg	Female 3/8"	Plastic
ZPS-2B-0.8	0.8-1.5kg	Female 3/8"	Zin alloy
ZPS-2C-0.8	0.8-1.5kg	Male 1/4"	Plastic
ZPS-2A-1.1	1.1-1.8kg	Female 3/8"	Zin alloy
ZPS-2B-1.1	1.1-1.8kg	Female 3/8"	Plastic
ZPS-2C-1.1	1.1-1.8kg	Male 1/4"	Zin alloy
ZPS-2A-1.3	1.3-2.3kg	Female 3/8"	Plastic
ZPS-2B-1.3	1.3-2.3kg	Female 3/8"	Zin alloy
ZPS-2C-1.3	1.3-2.3kg	Male 1/4"	Plastic
ZPS-2A-2.0	2.0-3.0kg	Female 3/8"	Zin alloy
ZPS-2B-2.0	2.0-3.0kg	Female 3/8"	Plastic
ZPS-2C-2.0	2.0-3.0kg	Male 1/4"	Zin alloy
ZPS-2A-2.5	2.5-3.5kg	Female 3/8"	Plastic
ZPS-2B-2.5	2.5-3.5kg	Female 3/8"	Zin alloy
ZPS-2C-2.5	2.5-3.5kg	Male 1/4"	Plastic
ZPS-2A-3.0	3.0-4.0kg	Female 3/8"	Zin alloy
ZPS-2B-3.0	3.0-4.0kg	Female 3/8"	Plastic
ZPS-2C-3.0	3.0-4.0kg	Male 1/4"	Zin alloy
