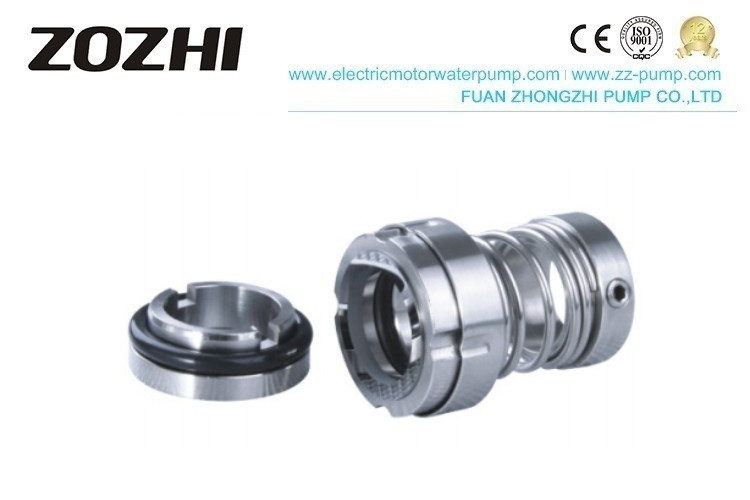

Unbalanced Structure 103U-16 Single Face Mechanical Spring

Unbalanced Structure 103U-16 Single Face Mechanical Spring
Unbalanced Structure 103U-16 Single Face Mechanical Spring

Large Image :  Unbalanced Structure 103U-16 Single Face Mechanical Spring

Product Details:
Place of Origin: FUAN CHINA
Brand Name: ZOZHI
Certification: CE,ISO
Model Number: ZZ103U-16
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: $0.18-2.0/PCS
Packaging Details: PE bag+paper box+outer carton+wooden box+pallet
Delivery Time: 2-5 days if in stock,7-15 days if not stock
Supply Ability: 10000pcs/month
Detailed Product Description
Pressure: ≤ 0~0.8MPa Speeds: ≤13m/sec
Rotating Ring: DD Stationary Ring: Ceramic/Sic/TC
Auxiliary Seal: NBR/Viton/EPDM Spring&Other Parts: SUS304/SUS316/S.S
High Light:

103U-16 Mechanical Seals

,

Unbalanced Mechanical Seals

Single Face Unbalanced Structure Mechanical Seals / Spring 103U-16



Design Features

- Internally mounted, singe face, unbalanced structure, single spring and driven by the abreast would ring on both ends of the spring, driven by brace ear and claw transmission


- The spring rotating direction is determined by the direction of the shaft rotation

1. Clockwise rotation looking the shaft from "A" side, the spring rotating direction is right-hand

2. Anticlockwise rotation looking the shaft from "A" side, the spring rotating direction is left-hand



Conform to the standard of JB/T 1472-1994





Materials(to DIN24960)

- Rotary Ring: U12, U22,  Q22
- Stationary Ring: B, U12, U22, Q2, Q22
- Auxiliary Seal: P, E, V, T1
- Spring and Other Parts: F, G

Operating limits

- Pressure: ≤ 0~0.8 MPa
- Temperature: -20~200℃
- Speeds: ≤13m/sec

Applications

Used in all types of rotating equipment, pumps, mixers, agitators and  compressors, to suit industries such as general chemical, oil refining, petrochemical, pharmaceutical, food processing, pulp, and paper, and wastewater treatment

Medium

Oil, water organic solvents, and other weak corrosive fluid

Size Information


mechanical 103U

mechanical seal 103u

Unbalanced Structure 103U-16 Single Face Mechanical Spring 2

centrifugal water pump vortex water pump

mechanical seal

Unbalanced Structure 103U-16 Single Face Mechanical Spring 5

Unbalanced Structure 103U-16 Single Face Mechanical Spring 6

Table of material:

Code Materials
U12 Cobalt-base tungsten carbide(inserted)
U22 Nickel-base tungsten carbide(inserted)
Q2 Sic reaction bonded
Q22 SiC reaction bonded (inserted)
P Butadiene-acrylonitrile rubber (-10℃~200℃)
B Butyl rubber(-30℃~150℃)
V Fluorocarbon rubber(-20℃~180℃)
G Pure carbon, foil
T1 PTFE
E Cr-steel: 1Cr13,2Cr13, 4Cr13
G SUS316(1Cr18Ni12Mo2Ti)
