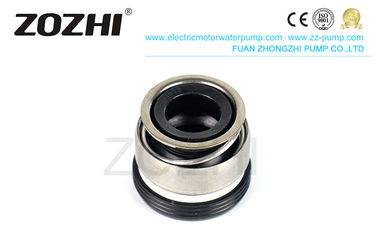

0.5MPa Circulation Pump 301-14 Carbon Mechanical Seal

0.5MPa Circulation Pump 301-14 Carbon Mechanical Seal
0.5MPa Circulation Pump 301-14 Carbon Mechanical Seal 0.5MPa Circulation Pump 301-14 Carbon Mechanical Seal 0.5MPa Circulation Pump 301-14 Carbon Mechanical Seal 0.5MPa Circulation Pump 301-14 Carbon Mechanical Seal

Large Image :  0.5MPa Circulation Pump 301-14 Carbon Mechanical Seal

Product Details:
Place of Origin: FUAN CHINA
Brand Name: ZOZHI
Certification: CE,ISO
Model Number: ZZ 301-14
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: $0.18-0.34/PCS
Packaging Details: PE bag+paper box+outer carton+wooden box+pallet
Delivery Time: 2-5 days if in stock,7-15 days if not stock
Supply Ability: 10000pcs/month
Detailed Product Description
Temperature: -20℃~100℃ Pressure: ≤0.5Mpa
Speeds: ≤ 10m/ Sec Rotating Ring: Carbon /Sic/TC
Stationary Ring: Ceramic/Sic/TC Auxiliary Seal: NBR/Viton/EPDM
Spring&Other Parts: SUS304/SUS316/S.S
High Light:

301-14 Mechanical Seal

,

Ceramic Water Pump Mechanical Seal

Carbon Mechanical Seal For Circulation Pump 301-14

 The 301 seals is a spring-loaded ceramic face with the tradition of the pusher mechanical seals, the competitive price and the wide range of applications have made 155(BT-FN) a successful seal. recommended for submersible pumps. clean water pumps, pumps for domestic appliances and gardening

The wide range of applications has made 155(BT-FN) a successful seal. recommended for submersible pumps. clean water pumps, pumps for domestic appliances, and gardening.



Operating limits

- Pressure: ≤ 0.5MPa
- Temperature: -20~100
- Speeds: 10m/sec

Applications

Used in water pumps, circulation pumps.

Materials(to DIN24960)

- Rotating Ring: Carbon, Sic, TC
- Stationary Ring: Ceramic, Sic, TC
- Auxiliary seal: NBR, Viton, EPDM
- Spring and Other Parts: SUS304, SUS316, S.S

Materials should be selected according to operating conditions.

Medium

Average corrosive mediums, such as water, oil, etc.
ceramic water pump mechanical seal 301-14
Operational Conditions
Size
Material
Temperature:
-20℃ to 100℃ dependent on the elastomer
12mm
Face: Carbon, SiC, TC
Pressure: Up to 5 bar
Seat: Ceramic, SiC, TC
Speed: Up to 10 m/s
Elastomer: NBR, EPDM, FKM, Aflas, FEP, FFKM
End Play /axial float Allowance:±0.1mm
Other Metal Parts: SS304, SS316







mechanical seal

mechanical seal

mechanical seal



Size Information

0.5MPa Circulation Pump 301-14 Carbon Mechanical Seal 3



Model d1 d3 D7 L1 L3 L4
ZZ 301-6 6 18 22 15 11 4
ZZ 301-8 8 18 22 15 11 4
ZZ 301-8L 8 24 26 19 11 8
ZZ 301-9 9 24 26 21 13 8
ZZ 301-10 10 24 26 21 13 8
ZZ 301-11 11 24 26 21 13 8
ZZ 301-12 12 24 26 21 13 8
ZZ 301-13 13 24 26 18.5 13 8/5.5
ZZ 301-14P 14 27.5 28/28.5 21 13 8
ZZ 301-14 14 32 29.5 21 13/13.5 7.5/8
ZZ 301-15P 15 27.5 30 21 13 8
ZZ 301-15 15 32 29.5 21 13/13.5 7.5/8
ZZ 301-16P 16 27.5 30 21 13 8
ZZ 301-16 16 32 29.5 21 13/13.5 7.5/8
ZZ 301-16L 16 39 38/42 21 13 8
ZZ 301-17 17 39 42 21 13 8
ZZ 301-18 18 39 42 21 13 8
ZZ 301-19 19 39 42 21 13 8
ZZ 301-20P 20 35 38 21 13 8
ZZ 301-20 20 39 42 21 13 8
ZZ 301-20L 20 42 45 23 13 10
ZZ 301-22P 22 39 42 21 13 8
ZZ 301-22 22 42 45 23 13 10
ZZ 301-23 23 47 50 23.5 13.5 10
ZZ 301-24 24 47 50 23.5 13.5 10
ZZ 301-25P 25 42 45 23 13 10
ZZ 301-25 25 47 50 23.5 13.5 10
ZZ 301-26 26 47 50 23.5 13.5 10
ZZ 301-27 27 47 50 23.5 13.5 10
ZZ 301-28 28 54 57 25 15 10
ZZ 301-30 30 54 57 25 15 10
ZZ 301-32 32 54 57 25 15 10
ZZ 301-35 35 60 63 26 16 10
ZZ 301-38 38 65 68 30 18 12
ZZ 301-40 40 65 68 30 18 12
ZZ 301-45 45 70 73 32 20 12
ZZ 301-50 50 85 88 38 23 15
ZZ 301-55 55 85 88 38 23 15
ZZ 301-60 60 105 110 45 30 15
ZZ 301-65 65 105 110 45 30 15
ZZ 301-70 70 105 110 47 32 15



mechanical seal
