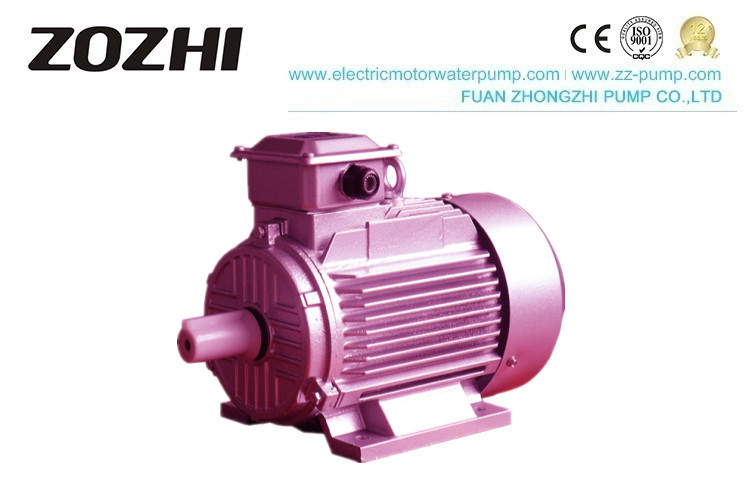

4 Pole Y2 Series 0.75kw 1Hp TEFC 3 Phase Induction Motor

  • 4 Pole Y2 Series 0.75kw 1Hp TEFC 3 Phase Induction Motor
  • 4 Pole Y2 Series 0.75kw 1Hp TEFC 3 Phase Induction Motor
Place of Origin FUAN CHINA
Brand Name ZOZHI
Certification CE,ISO
Model Number Y2-802-4
Minimum Order Quantity 1pc
Price $32.2~$40.5
Packaging Details Packed in cartons,veneer case or wooden case.
Delivery Time 25 working days after received your payment
Payment Terms L/C, T/T
Supply Ability 10000pcs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name 3 Phase Induction Motor Application Drivng
Power 0.75kw/1Hp Pole 4
Phase Three Phase Housing Cast Iron
Insulation Class B,F Protection IP44 / IP54
Rated Voltage 380V Duty S1(continuous)
High Light

TEFC Induction Motor

,

Three Phase TEFC Motor
Leave a Message
Product Description



Y2 Series Motors Enclosed Fan Cooled(TEFC)


3 Phase Induction Motor

squirrel-cage three-phase induction motors, developed with a new technique.


They are renewal and upgrading products of the Y series. The mounting dimension is fully confirmed with the IEC standard.
The motors have the merits of beautiful modeling, compact structure, low noise, high efficiency, large starting torque, easy serving, etc.

The motors are adopted with F class insulation and designed with assessing method for insulation practice, it enhances
greatly motor's safety and reliability.

These motors have reached an advanced international level Y2 series motors can be widely used in various machines and equipment, such as drilling machines, blowers, pumps, compressors, transporters, agricultural and food processing machines.
3 Phase Ac Induction Motor is made of high-quality cast iron. With optimized construction design, they can ensure
structural rigidity and intensity. Silicon steel plate is used in stator core and rotor core. It has good surface insulation and low loss, which ensures higher efficiency.



Y2 Series Three Phase Induction Motor
Model Y2-802-4
Rated Power 0.75kw/1.0Hp
Service Factor 0.77
Supply Voltage 380V
Rate Frequency 60Hz/50Hz
Structure IP54, IP55
Insulation Grade B/F
Bearing NSK OR C&U
Efficiency IE1
Color Customizable
Ambient temperature -15. C ~40 . C
Weight 18kgs
Measure 35x29x21cm



4 Pole Y2 Series 0.75kw 1Hp TEFC 3 Phase Induction Motor 0

4 Pole Y2 Series 0.75kw 1Hp TEFC 3 Phase Induction Motor 1



Ist/In Power (A) Power Eff. (%) Speed Tstart/Tn Ist/In Tmax/Tn
(kw) Factor (r/min)
Speed 1500 r/min (4 Poles)
Y2-631-4 0.12 0.44 0.72 57 1400 2.2 4.5 2.2
Y2-632-4 0.18 0.62 0.73 60 1400 2.2 4.5 2.2
Y2-711-4 0.25 0.79 0.74 65 1400 2.2 5.5 2.2
Y2-712-4 0.37 1.12 0.75 67 1400 2.2 5.5 2.2
Y2-801-4 0.55 1.6 0.75 71 1400 2.2 5.5 2.2
Y2-802-4 0.75 2 0.77 73 1400 2.2 6 2.2
Y2-90S-4 1.1 2.9 0.77 750 1400 2.2 6 2.2
Y2-90L-4 1.5 3.7 0.79 78 1400 2.2 6 2.2
Y2-100L1-4 2.2 5.1 0.81 80 1420 2.2 7 2.2
Y2-100L2-4 3 6.8 0.82 82 1420 2.2 7 2.2
Y2-112M-4 4 8.8 0.82 84 1440 2.2 7 2.2
Y2-132S-4 5.5 11.8 0.83 85 1440 2.2 7 2.2
Y2-132M-4 7.5 15.5 0.84 87 1440 2 7 2.2
Y2-160M-4 11 22.3 0.85 88 1460 2 7 2.2
Y2-160L-4 15 30 0.85 89 1460 2 7 2.2
Y2-180M-4 18.5 36.4 0.85 90.5 1470 2.2 7.5 2.2
Y2-180L-4 22 43.1 0.85 91 1470 2.2 7.5 2.2
Y2-200L-4 30 58.4 0.86 92 1470 2.2 7.5 2.2
Y2-225S-4 37 69.9 0.87 92.5 1480 2.2 7.5 2.2
Y2-225M-4 45 84.7 0.87 92.8 1480 2.2 7.5 2.2
Y2-250M-4 55 103 0.89 93 1480 2.2 7 2.2
Y2-280S-4 75 140 0.86 93.8 1480 2.2 7 2.2
Y2-280M-4 90 167 0.86 94.2 1490 2.2 7 2.2
Y2-315S-4 110 201 0.87 94.5 1490 2.1 6.9 2.2
Y2-315M-4 132 240 0.87 94.8 1490 2.1 6.9 2.2
Y2-315L1-4 160 287 0.88 94.9 1490 2.1 6.9 2.2
Y2-315L2-4 200 359 0.88 95 1490 2.3 6.9 2.2
Y2-355M-4 250 443 0.88 95.3 1485 2.3 6.8 2.2
Y2-355L-4 315 556 0.89 95.6 1485 2.2 6.9 2.2



Reviews from the client:

4 Pole Y2 Series 0.75kw 1Hp TEFC 3 Phase Induction Motor 2



Shipping:

after 25~30days, we will deliver the goods, for loose goods better packed by the pallet for avoiding destroy
