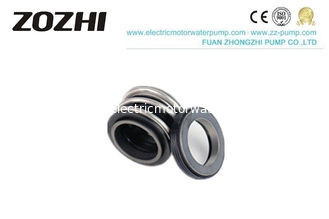

Graphite Unbalanced Burgmann MG1 Single Face Rubber Spring

  • Graphite Unbalanced Burgmann MG1 Single Face Rubber Spring
  • Graphite Unbalanced Burgmann MG1 Single Face Rubber Spring
  • Graphite Unbalanced Burgmann MG1 Single Face Rubber Spring
  • Graphite Unbalanced Burgmann MG1 Single Face Rubber Spring
Place of Origin FUAN CHINA
Brand Name ZOZHI
Certification CE,ISO
Model Number ZZ 301-12
Minimum Order Quantity 1pc
Price $0.18-0.34/PCS
Packaging Details PE bag+paper box+outer carton+wooden box+pallet
Delivery Time it is 2-5 days if in stock,7-15 days if not stock
Supply Ability 10000pcs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Temperature -20~140℃ Pressure ≤ 1.6MPa
Speeds ≤ 10m/ Sec Rotating Ring Carbon /Sic/TC
Auxiliary Seal NBR/Viton/EPDM Texture Graphite
High Light

1.6mpa mechanical seal spring

,

10m/ sec unbalanced rubber spring
Leave a Message
Product Description

Burgmann MG1 Mechanical Seal Unbalance Single Face Single Spring Rubber For Water Pumps



Mechanical Seal MG1 Design Features

- Single face, single spring, unbalanced, rubber bellows structure.
- The seal face is driven through the spring, and spring seat, good floating.

- Suitable for many specifications and designs which conform to ISO3069, DI24960, AND GB6556.

Mechanical Seal MG1 Materials(to DIN24960)

- Rotary Ring: B, Q2, U1, U2
- Stationary Ring: Q2, U1, U2, V1
- Spring and Other Parts: F, G



Mechanical Seal MG1Operating limits

- Pressure: ≤ 1.6MPa
- Temperature: -20~140℃
- Speeds: ≤10m/sec
- Viscosity: ≤ 1.0Pa.s(1000cp)(Soft VS Hard); ≤ 3.5Pa.s(3500cp)(Hard VS Hard)



Mechanical Seal MG1 Applications

Used in centrifugal pumps, mixers, and other rotating equipment.



Mechanical Seal MG1 Medium

Liquid waste of grains, sewage water, oil, etc.



Mechanical Seal MG1 Advantage

1. Fine workmanship
The product is exquisitely manufactured, and production is strictly in accordance with international standards. Any non-conforming product is prohibited from leaving the factory.


2.Energy-saving and environmental protection


When the double-end mechanical seal is running, the sealing cooling water is recovered and reused through the water inlet and outlet holes. When the seal is a single end face, the set can be used as a water-free seal, thereby fully achieving the effect of energy-saving and environmental protection.


3.No leakage
There will be no start-up leakage during use, and the seals are tested before going out of the factory.


4. Structural characteristics
Easy to install, no need to measure the working length of the seal during installation; easy to remove, take out seals for cleaning and inspection without disassembling the pump equipment


Mechanical Seal MG1 Size Information

mechanical seal MG1
Model Shaft d1 d3 D4 db L
MG1-20 20 20 37 38 33 21.5
MG1-22 22 22 37 38 33 21.5
MG1-24 24 24 42.5 44 38 22.5
MG1-25 25 25 42.5 44 38 23
MG1-28 28 28 49 50 44 26.5
MG1-30 30 30 49 50 44 26.5
MG1-32 32 32 53.5 55 46 27.5
MG1-35 35 35 57 59 50 28.5
MG1-38 38 38 59 61 53 30
MG1-40 40 40 62 64 55 30
MG1-45 45 45 68 70 60 30
MG1-48 48 48 70.5 74 63 30.5
MG1-50 50 50 74 77 65 30.5
MG1-55 55 55 81 83 72 35
MG1-60 60 60 88.5 91 79 38



Graphite Unbalanced Burgmann MG1 Single Face Rubber Spring 1

centrifugal water pump vortex water pump

centrifugal electric water pump

Graphite Unbalanced Burgmann MG1 Single Face Rubber Spring 4

Graphite Unbalanced Burgmann MG1 Single Face Rubber Spring 5
