ACAVR Current 3 Phase Avr MX341 Automatic Voltage Regulator

ACAVR Current 3 Phase Avr MX341 Automatic Voltage Regulator
ACAVR Current 3 Phase Avr MX341 Automatic Voltage Regulator ACAVR Current 3 Phase Avr MX341 Automatic Voltage Regulator ACAVR Current 3 Phase Avr MX341 Automatic Voltage Regulator

Large Image :  ACAVR Current 3 Phase Avr MX341 Automatic Voltage Regulator

Product Details:
Place of Origin: FUAN CHINA
Brand Name: ZOZHI
Certification: CE,ISO
Model Number: MX341
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: $30-$50
Packaging Details: Packed in cartons
Delivery Time: it is 2-5 days if in stock,7-15 days if not stock
Payment Terms: L/C, T/T
Supply Ability: 10000pcs/month
Detailed Product Description
Model Number: MX341 Phase: Three Phase, Three Phase And Single Phase
Current Type: AC Product Name: Generator AVR MX341
Generator Brand: AVR For Generator MX341 Function: For Generator Avr
GUM Type: Hard Gum, Soft For Option Capacitor Color: Blue Capacitor, Red For Option
Quality Class: A Class High Quality Stock: Stock Supply For AVR MX341
Certificate: CE,RoHS,ISO9001 Warranty: 1 Year
High Light:

120v dc AVR MX341generator

,

30kva generator avr 3 phase

ACAVR Current 3 Phase Avr MX341 Automatic Voltage Regulator

Generator AVR MX341



Generator AVR 3 Phase MX341
Sensing Input 190-264V ac max, 1 phase, 2 wire
Frequency 50-60 Hz nominal
Power Input(PMG) 170-220V ac max, 3 phase, 3 wire
Current 3A/phase
Frequency 100-200 Hz nominal
Output Voltage Max 120V dc
Current Continuous 2.7 A Intermittent 6A for 10 secs
Resistance 15 ohms minimum
Regulation +/- 1%
Generator Power 200-500kw



Features

* Voltage regulation < +/-1%
* Soft start voltage ramping
* Sensing voltage loss protection
* 120 or 240 Vac sensing, jumper selectable
* Under frequency roll-off protection
* With under frequency LED indicator



MX341 AVR



AVR MX341 VOLTAGE REGULATOR is a two-phase sensed Automatic Voltage Regulator and forms part of the excitation system for a brush-less generator.



Automatic Voltage Regulator Sensing Input 120V or 240V



Generator AVR MX341



MODEL SENSING INPUT POWER INPUT MAGNETIC FIELD OUTPUT PRESSURE-REGULATING ACCURACY
      Voltage(max) Current(within 10 sec) with 4% rngine governing
SX460 120(95-132VAC)240(190-264VAC),1phase,2wire, with copper jumper options 90VAD at 207VAC continuous 4A,intermittent 10A <±1%RMS
SX460-A
SX440 190-264VAC,1phase,2wire.
SX440-A
AS440 120(95-132VAC)240(190-264VAC),1phase,2wire, with copper jumper options
AS480
MX341 190-264VAC, 1phase,2wire 170-220VAC, 3Phase,3wire 120VAD continuous 2.7A,intermittent 6A <±0.5%RMS
MX321 190-264VAC, 2phase,3wire 120VAD continuous 3.7A,intermittent 6A
MX450 170-264VAC,1phase,2wire 90VAD continuous 4A,intermittent <±1%RMS



How to choose Stanford Generator AVR
Generator/AVR SA465 SA465 SX460 SX440 SX421 MS341 MX321
BC16     STD
BC182     STD
BC184 AUX WDG OPT STD   LOOSE
UC224     STD OPT OPT OPT(PMG) OPT(PMG)
UC274     STD OPT OPT OPT(PMG) OPT(PMG)
HC4       STD OPT OPT(PMG) OPT(PMG)
HC5       STD OPT OPT(PMG) OPT(PMG)
HC6             STD
HC/MV7             STD

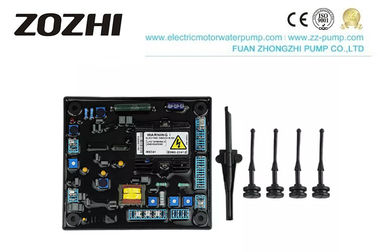

ACAVR Current 3 Phase Avr MX341 Automatic Voltage Regulator 1

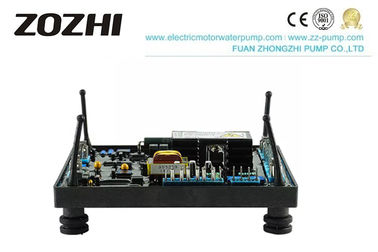

ACAVR Current 3 Phase Avr MX341 Automatic Voltage Regulator 2

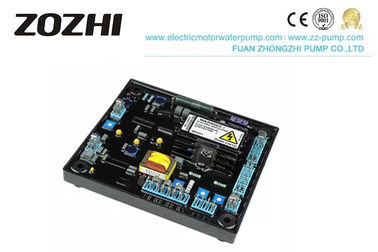

ACAVR Current 3 Phase Avr MX341 Automatic Voltage Regulator 3



ACAVR Current 3 Phase Avr MX341 Automatic Voltage Regulator 4
