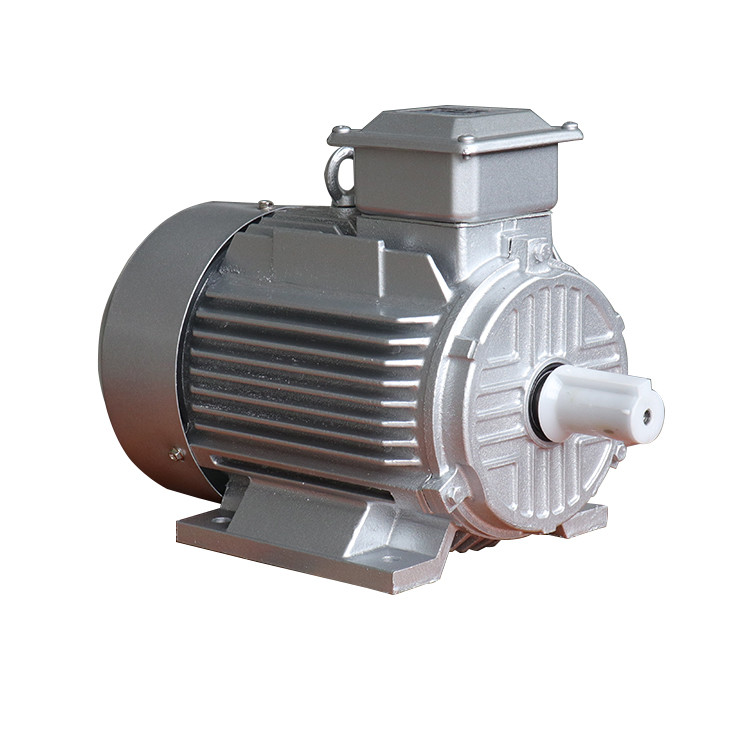

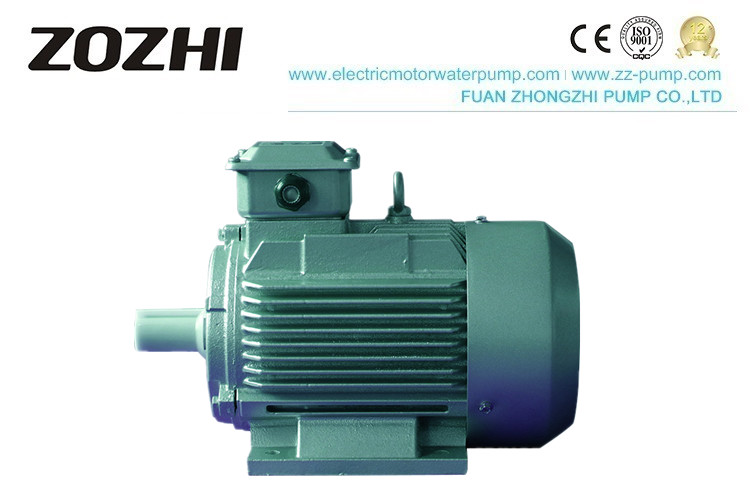

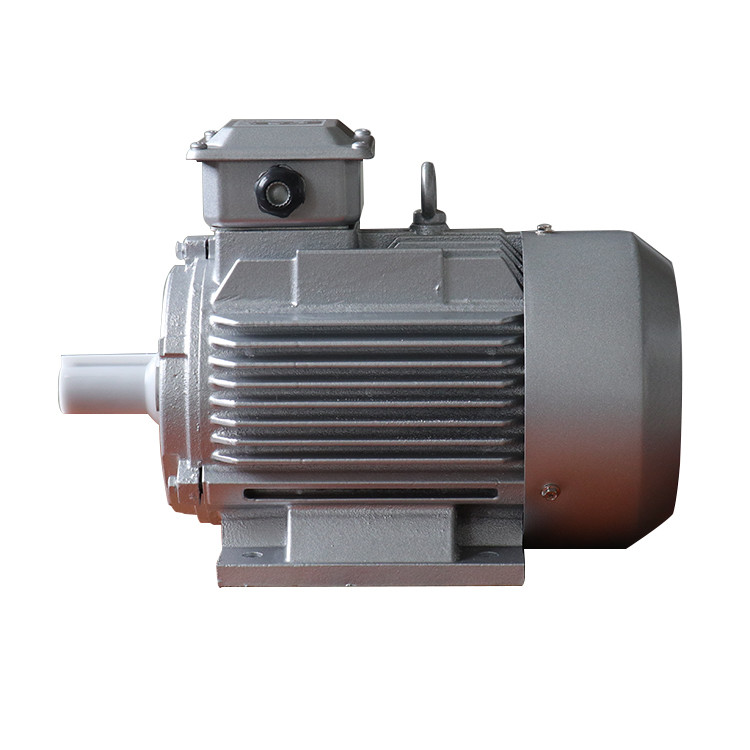

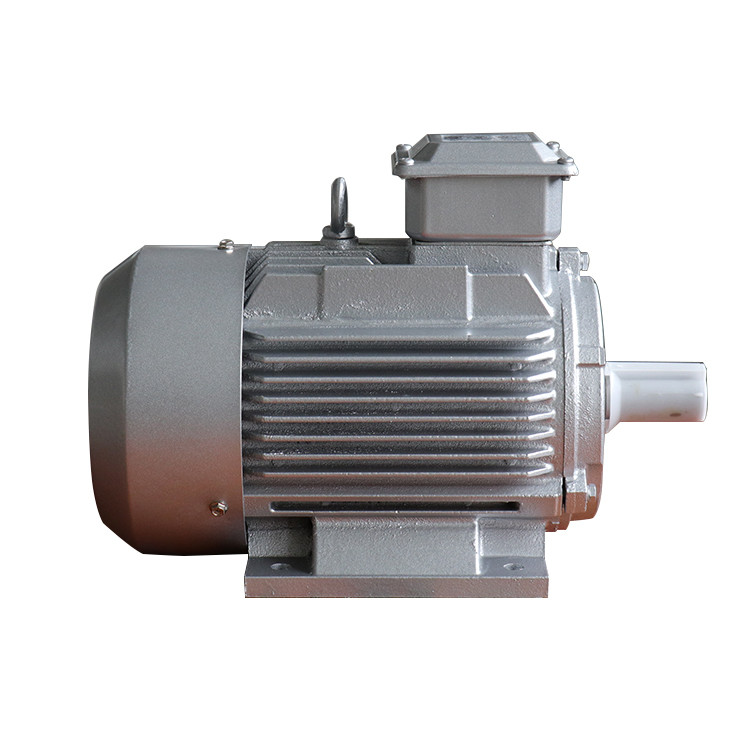

Y2-90S-4 1.1kw 1500RPM 3 Phase Squirrel Cage Motor

  • Y2-90S-4 1.1kw 1500RPM 3 Phase Squirrel Cage Motor
  • Y2-90S-4 1.1kw 1500RPM 3 Phase Squirrel Cage Motor
  • Y2-90S-4 1.1kw 1500RPM 3 Phase Squirrel Cage Motor
  • Y2-90S-4 1.1kw 1500RPM 3 Phase Squirrel Cage Motor
  • Y2-90S-4 1.1kw 1500RPM 3 Phase Squirrel Cage Motor
Place of Origin FUAN CHINA
Brand Name ZOZHI
Certification CE,ISO
Model Number Y2-90S-4
Minimum Order Quantity 1pc
Price $44.6~$58.6
Packaging Details Packed in cartons,veneer case or wooden case.
Delivery Time 25 working days after received your payment
Payment Terms L/C, T/T
Supply Ability 10000pcs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name 3 Phase Induction Motor Application Drivng
Power 1.1kw Pole 4
Phase Three Phase Housing Cast Iron
Insulation Class B,F Protection IP44 / IP54
Rated Voltage 380V Duty S1(continuous)
Highlight

4 pole 3 phase synchronous motor

,

1.1kw three phase electric motor
Leave a Message
Product Description

3 Phase Induction Motor



Y2 Series Three Phase Induction Motor
Model Y2-90S-4
Rated Power 1.1kw/1.5Hp
Service Factor 0.77
Supply Voltage 380V
Rate Frequency 60Hz/50Hz
Structure IP54, IP55
Insulation Grade B/F
Bearing NSK OR C&U
Efficiency IE1
Color Customizable
Ambient temperature -15oC≤θ≤40oC
Weight 26kgs
Measure 40x30x23Cm



Y2 series three-phase asynchronous motors, developed with new techniques, are renewed and upgrading products based on Y series motors.



Y2 series motors are enclosed, fan-cooled, squirrel cage types. They are noted for their novel design, beautiful model, compact structure, low noise, high efficiency, ample torque, excellent starting performance, easy maintenance, etc. In addition, the motors adopt F class insulation and are designed with assessing methods for the insulation system according to international practice.



Y2 series motors can be widely applied to driving equipment such as machine tools, blowers pumps, gearboxes, compressors, transporters, agricultural machines,  etc. Pedestal installation size, center height, and other motor indexes are ultimately measured by Y series three-phase asynchronous motor.











Y2-90S-4 1.1kw 1500RPM 3 Phase Squirrel Cage Motor 0



Ist/In Power (A) Power Eff. (%) Speed Tstart/Tn Ist/In Tmax/Tn
(kw) Factor (r/min)
Speed 1500 r/min (4 Poles)
Y2-631-4 0.12 0.44 0.72 57 1400 2.2 4.5 2.2
Y2-632-4 0.18 0.62 0.73 60 1400 2.2 4.5 2.2
Y2-711-4 0.25 0.79 0.74 65 1400 2.2 5.5 2.2
Y2-712-4 0.37 1.12 0.75 67 1400 2.2 5.5 2.2
Y2-801-4 0.55 1.6 0.75 71 1400 2.2 5.5 2.2
Y2-802-4 0.75 2 0.77 73 1400 2.2 6 2.2
Y2-90S-4 1.1 2.9 0.77 750 1400 2.2 6 2.2
Y2-90L-4 1.5 3.7 0.79 78 1400 2.2 6 2.2
Y2-100L1-4 2.2 5.1 0.81 80 1420 2.2 7 2.2
Y2-100L2-4 3 6.8 0.82 82 1420 2.2 7 2.2
Y2-112M-4 4 8.8 0.82 84 1440 2.2 7 2.2
Y2-132S-4 5.5 11.8 0.83 85 1440 2.2 7 2.2
Y2-132M-4 7.5 15.5 0.84 87 1440 2 7 2.2
Y2-160M-4 11 22.3 0.85 88 1460 2 7 2.2
Y2-160L-4 15 30 0.85 89 1460 2 7 2.2
Y2-180M-4 18.5 36.4 0.85 90.5 1470 2.2 7.5 2.2
Y2-180L-4 22 43.1 0.85 91 1470 2.2 7.5 2.2
Y2-200L-4 30 58.4 0.86 92 1470 2.2 7.5 2.2
Y2-225S-4 37 69.9 0.87 92.5 1480 2.2 7.5 2.2
Y2-225M-4 45 84.7 0.87 92.8 1480 2.2 7.5 2.2
Y2-250M-4 55 103 0.89 93 1480 2.2 7 2.2
Y2-280S-4 75 140 0.86 93.8 1480 2.2 7 2.2
Y2-280M-4 90 167 0.86 94.2 1490 2.2 7 2.2
Y2-315S-4 110 201 0.87 94.5 1490 2.1 6.9 2.2
Y2-315M-4 132 240 0.87 94.8 1490 2.1 6.9 2.2
Y2-315L1-4 160 287 0.88 94.9 1490 2.1 6.9 2.2
Y2-315L2-4 200 359 0.88 95 1490 2.3 6.9 2.2
Y2-355M-4 250 443 0.88 95.3 1485 2.3 6.8 2.2
Y2-355L-4 315 556 0.89 95.6 1485 2.2 6.9 2.2



Reviews from the client:

Y2-90S-4 1.1kw 1500RPM 3 Phase Squirrel Cage Motor 1



Shipping:

after 25~30days, we will deliver the goods, for loose goods better packed by the pallet for avoiding destroy

Y2-90S-4 1.1kw 1500RPM 3 Phase Squirrel Cage Motor 2









​



Y2-90S-4 1.1kw 1500RPM 3 Phase Squirrel Cage Motor 3

Y2-90S-4 1.1kw 1500RPM 3 Phase Squirrel Cage Motor 4

Y2-90S-4 1.1kw 1500RPM 3 Phase Squirrel Cage Motor 5



Y2-90S-4 1.1kw 1500RPM 3 Phase Squirrel Cage Motor 6

Y2-90S-4 1.1kw 1500RPM 3 Phase Squirrel Cage Motor 7
