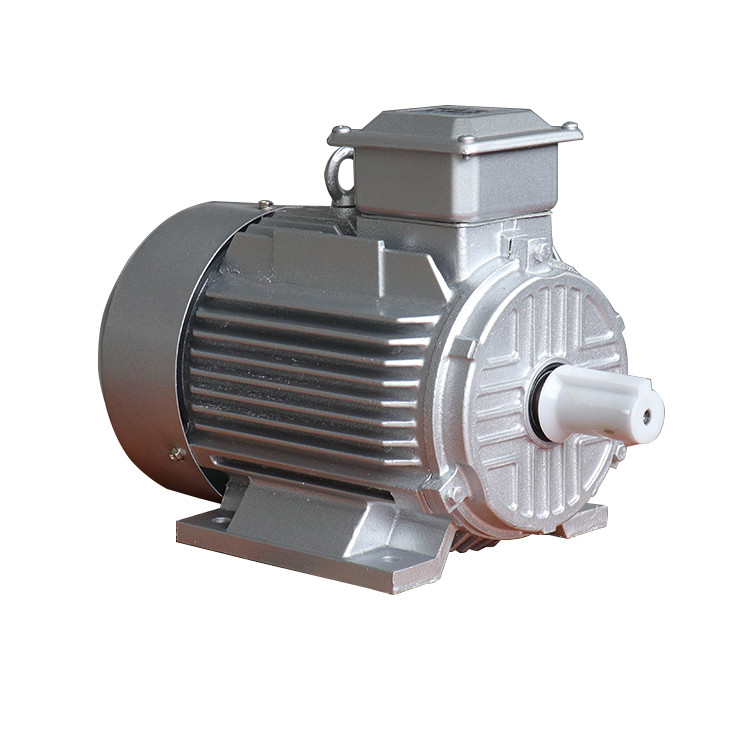

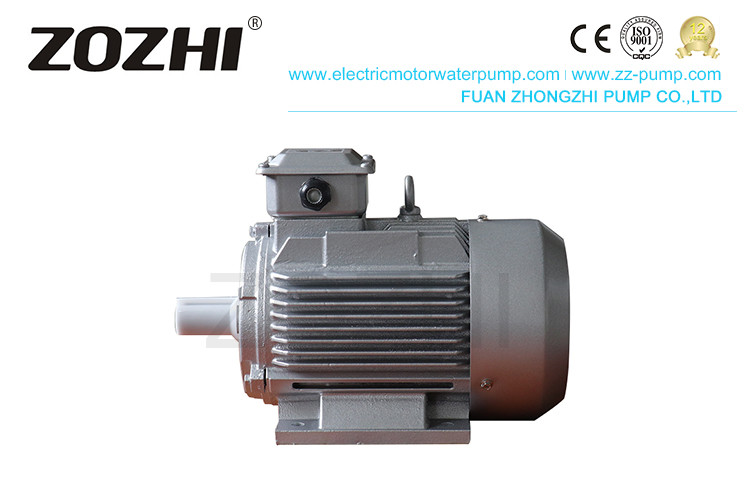

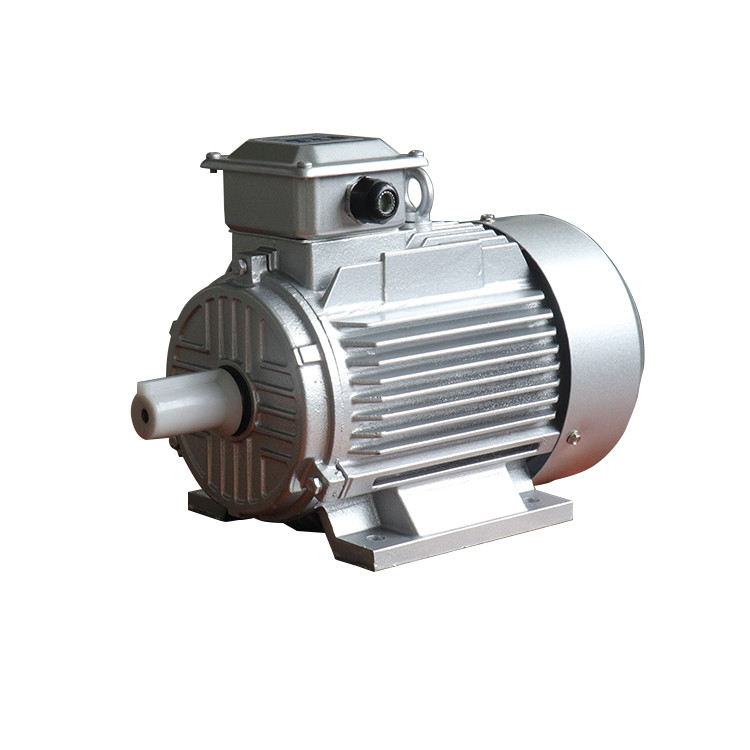

380V Y2-90L-4 1.5kw Three Phase Asynchronous Motor

  • 380V Y2-90L-4 1.5kw Three Phase Asynchronous Motor
  • 380V Y2-90L-4 1.5kw Three Phase Asynchronous Motor
  • 380V Y2-90L-4 1.5kw Three Phase Asynchronous Motor
  • 380V Y2-90L-4 1.5kw Three Phase Asynchronous Motor
Place of Origin FUAN CHINA
Brand Name ZOZHI
Certification CE,ISO
Model Number Y2-90L-4
Minimum Order Quantity 1pc
Price $44.6~$58.6
Packaging Details Packed in cartons,veneer case or wooden case.
Delivery Time 25 working days after received your payment
Payment Terms L/C, T/T
Supply Ability 10000pcs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name 3 Phase Induction Motor Application Drivng
Power 1.5kw/2Hp Pole 4
Phase Three Phase Housing Cast Iron
Insulation Class B,F Protection IP44 / IP54
Rated Voltage 380V Duty S1(continuous)
Highlight

1.5kw 3 phase ac motor

,

2hp capacitor run induction motor
Leave a Message
Product Description

3 Phase Induction Motor



Y2 Series Three Phase Induction Motor
Model Y2-90L-4
Rated Power 1.5kw/2.0Hp
Service Factor 0.79
Supply Voltage 380V
Rate Frequency 60Hz/50Hz
Structure IP54, IP55
Insulation Grade B/F
Bearing NSK OR C&U
Efficiency IE1
Color Customizable
Ambient temperature -15. C ~40 . C
Weight 28kgs
Measure 40x30x23cm



The Y2 series of heavy-duty single-phase motors incorporate the latest design, fully enclosed and fan-cooled. They are newly designed to comply with the relevant requirements/rules of the IEC standard. Y2 electric motor has the advantages of high efficiency, long life, energy-saving, large starting torque, low noise, low vibration, low -temperature rise, reliable operation, and simple and convenient maintenance. The fixed measurement and power levels are fully compliant with the IEC standard.



Y2 motor has a beautiful appearance, superior performance, and convenient maintenance. In addition, it has the advantages of large starting torque and stable rotation. Applicable to all kinds of machinery, such as pumps, transportation machinery, fans, mixers, food machinery, engineering machinery, CNC machinery, mining machinery, compressors, forging machinery, etc.





380V Y2-90L-4 1.5kw Three Phase Asynchronous Motor 0



Ist/In Power (A) Power Eff. (%) Speed Tstart/Tn Ist/In Tmax/Tn
(kw) Factor (r/min)
Speed 1500 r/min (4 Poles)
Y2-631-4 0.12 0.44 0.72 57 1400 2.2 4.5 2.2
Y2-632-4 0.18 0.62 0.73 60 1400 2.2 4.5 2.2
Y2-711-4 0.25 0.79 0.74 65 1400 2.2 5.5 2.2
Y2-712-4 0.37 1.12 0.75 67 1400 2.2 5.5 2.2
Y2-801-4 0.55 1.6 0.75 71 1400 2.2 5.5 2.2
Y2-802-4 0.75 2 0.77 73 1400 2.2 6 2.2
Y2-90S-4 1.1 2.9 0.77 750 1400 2.2 6 2.2
Y2-90L-4 1.5 3.7 0.79 78 1400 2.2 6 2.2
Y2-100L1-4 2.2 5.1 0.81 80 1420 2.2 7 2.2
Y2-100L2-4 3 6.8 0.82 82 1420 2.2 7 2.2
Y2-112M-4 4 8.8 0.82 84 1440 2.2 7 2.2
Y2-132S-4 5.5 11.8 0.83 85 1440 2.2 7 2.2
Y2-132M-4 7.5 15.5 0.84 87 1440 2 7 2.2
Y2-160M-4 11 22.3 0.85 88 1460 2 7 2.2
Y2-160L-4 15 30 0.85 89 1460 2 7 2.2
Y2-180M-4 18.5 36.4 0.85 90.5 1470 2.2 7.5 2.2
Y2-180L-4 22 43.1 0.85 91 1470 2.2 7.5 2.2
Y2-200L-4 30 58.4 0.86 92 1470 2.2 7.5 2.2
Y2-225S-4 37 69.9 0.87 92.5 1480 2.2 7.5 2.2
Y2-225M-4 45 84.7 0.87 92.8 1480 2.2 7.5 2.2
Y2-250M-4 55 103 0.89 93 1480 2.2 7 2.2
Y2-280S-4 75 140 0.86 93.8 1480 2.2 7 2.2
Y2-280M-4 90 167 0.86 94.2 1490 2.2 7 2.2
Y2-315S-4 110 201 0.87 94.5 1490 2.1 6.9 2.2
Y2-315M-4 132 240 0.87 94.8 1490 2.1 6.9 2.2
Y2-315L1-4 160 287 0.88 94.9 1490 2.1 6.9 2.2
Y2-315L2-4 200 359 0.88 95 1490 2.3 6.9 2.2
Y2-355M-4 250 443 0.88 95.3 1485 2.3 6.8 2.2
Y2-355L-4 315 556 0.89 95.6 1485 2.2 6.9 2.2



Reviews from the client:

380V Y2-90L-4 1.5kw Three Phase Asynchronous Motor 1



Shipping:

after 25~30days, we will deliver the goods, for loose goods better packed by the pallet for avoiding destroy
