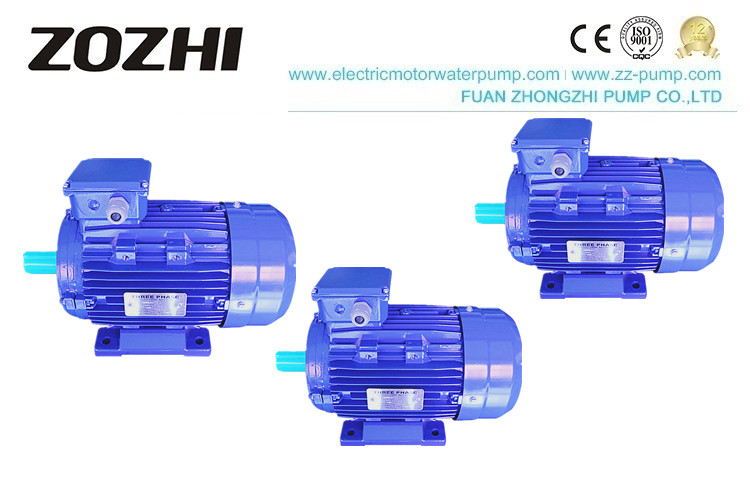

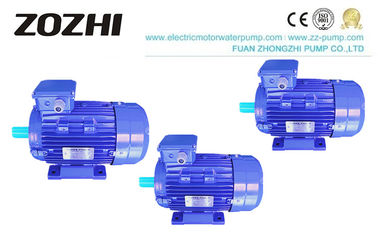

Aluminum 0.75kw Squirrel Cage 3 Phase Induction Motor
Place of Origin | China |
---|---|
Brand Name | ZOZHI |
Certification | ISO |
Model Number | MS802-4 |
Minimum Order Quantity | 10PCS |
Price | negotiated |
Packaging Details | Packed in cartons,veneer case or wooden case. |
Delivery Time | 25 working days after received your payment |
Payment Terms | T/T, L/C, Western Union, E-checking |
Supply Ability | 10000pcs/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xOutput | 0.75KW/1HP | Pole | 4 |
---|---|---|---|
Motor Bearing | C&U (SKF For Choice) | Efficiency | IE1 IE2 IE3 |
Motor Housing | Aluminum | Protection Class | IP54/IP55 |
Insulation Class | F Class | Color | Customizable |
Product Name | 3 Phase Induction Motor | ||
High Light | 0.75kw asynchronous induction motor,1hp electrical induction motor |
Squirrel Cage 3 phase Induction Motor MS802-4 0.75kw
3 Phase Induction Motor
MS series is a TEFC squirrel cage 3-phase induction motor. Mounting dimensions and rated outputs are conformed with IEC standard, IP44 degree of protection, IC411 method of cooling, continuous duty S1.
MS series motor can drive various kinds of mechanical equipment without special requirements, such as machine tools, pumps, blowers, mixers, conveying machinery, agricultural machinery, food machinery, etc.
Working Condition
1. Ambient Working Temperature: Ambient temperature varying with seasons should be between 40℃ and -15℃.
2. Altitude: Not over 1000m above sea level.
3. The average relative humidity in the most moisture month is 90%. And meanwhile, the average lowest temperature should not be over 25℃.
4. Termination: Y connection below 3KW. Delta connection if over 4KW.
5. Operation Mode(duty): S1.
Technical data
Model | Power | (V) | (HZ) | Current (A) | Power Factor |
Eff (%) |
Speed (r/min) |
Tstart/ Tn |
Tmax/ Tn |
Ist/ In |
||||||||||||||
HP | KW | |||||||||||||||||||||||
MS561-2 | 0.12 | 0.09 | 380 | 50 | 0.3 | 0.76 | 60 | 2750 | 2.3 | 2.4 | 6 | |||||||||||||
MS562-2 | 0.16 | 0.12 | 0.37 | 0.78 | 63 | 2750 | 2.3 | 2.4 | 6 | |||||||||||||||
MS631-2 | 0.25 | 0.18 | 0.53 | 0.75 | 69 | 2800 | 2.2 | 2.4 | 4.5 | |||||||||||||||
MS632-2 | 0.33 | 0.25 | 0.68 | 0.78 | 72 | 2800 | 2.2 | 2.4 | 4.5 | |||||||||||||||
MS711-2 | 0.5 | 0.37 | 0.98 | 0.8 | 73 | 2800 | 2.2 | 2.4 | 4.5 | |||||||||||||||
MS712-2 | 0.75 | 0.55 | 1.35 | 0.82 | 75 | 2800 | 2.2 | 2.4 | 4.5 | |||||||||||||||
MS801-2 | 1 | 0.75 | 1.75 | 0.85 | 76 | 2800 | 2.2 | 2.4 | 4.5 | |||||||||||||||
MS802-2 | 1.5 | 1.1 | 2.55 | 0.85 | 77 | 2800 | 2.2 | 2.4 | 4.5 | |||||||||||||||
MS90S-2 | 2 | 1.5 | 3.36 | 0.87 | 78 | 2800 | 2.2 | 2.4 | 4.5 | |||||||||||||||
MS90L-2 | 3 | 2.2 | 4.93 | 0.87 | 78 | 2800 | 2.2 | 2.4 | 5 | |||||||||||||||
MS100L-2 | 4 | 3 | 6.31 | 0.87 | 83 | 2880 | 2.3 | 2.4 | 7 | |||||||||||||||
MS112M-2 | 5.5 | 4 | 8.12 | 0.88 | 85 | 2890 | 2.3 | 2.4 | 7 | |||||||||||||||
MS132S1-2 | 7.5 | 5.5 | 11 | 0.88 | 86 | 2900 | 2.3 | 2.4 | 7 | |||||||||||||||
MS132S2-2 | 10 | 7.5 | 14.9 | 0.88 | 87 | 2900 | 2.3 | 2.4 | 7 | |||||||||||||||
MS160L-2 | 25 | 18.5 | 34.7 | 0.9 | 90 | 2930 | 2.3 | 2.4 | 7 | |||||||||||||||
MS561-4 | 0.08 | 0.06 | 0.27 | 0.68 | 50 | 1300 | 2.2 | 2.3 | 5.5 | |||||||||||||||
MS562-4 | 0.12 | 0.09 | 0.36 | 0.7 | 54 | 1300 | 2.2 | 2.3 | 5.5 | |||||||||||||||
MS631-4 | 0.16 | 0.12 | 0.48 | 0.63 | 60 | 1400 | 2.2 | 2.4 | 4.5 | |||||||||||||||
MS632-4 | 0.25 | 0.18 | 0.65 | 0.66 | 64 | 1400 | 2.2 | 2.4 | 4.5 | |||||||||||||||
MS711-4 | 0.33 | 0.25 | 0.83 | 0.68 | 67 | 1400 | 2.2 | 2.4 | 4.5 | |||||||||||||||
MS712-4 | 0.5 | 0.37 | 1.12 | 0.72 | 69 | 1400 | 2.2 | 2.4 | 4.5 | |||||||||||||||
MS801-4 | 0.75 | 0.55 | 1.56 | 0.73 | 73 | 1400 | 2.2 | 2.4 | 4.5 | |||||||||||||||
MS802-4 | 1 | 0.75 | 2.01 | 0.75 | 75 | 1400 | 2.2 | 2.4 | 4.5 | |||||||||||||||
MS90S-4 | 1.5 | 1.1 | 2.83 | 0.78 | 76 | 1400 | 2.3 | 2.4 | 5 | |||||||||||||||
MS90L-4 | 2 | 1.5 | 3.84 | 0.78 | 76 | 1400 | 2.2 | 2.4 | 5 | |||||||||||||||
MS100L1-4 | 3 | 2.2 | 4.2 | 0.75 | 75 | 1400 | 2.2 | 2.4 | 5 | |||||||||||||||
MS100L2-4 | 4 | 3 | 6.78 | 0.82 | 82 | 1410 | 2.3 | 2.4 | 7 | |||||||||||||||
MS112M-4 | 5.5 | 4 | 8.82 | 0.82 | 84 | 1435 | 2.3 | 2.4 | 7 | |||||||||||||||
MS132S-4 | 7.5 | 5.5 | 11.8 | 0.83 | 85.5 | 1445 | 2.3 | 2.4 | 7 | |||||||||||||||
MS132M-4 | 10 | 7.5 | 15.6 | 0.84 | 87 | 1445 | 2.3 | 2.4 | 7 | |||||||||||||||
MS711-6 | 0.24 | 0.18 | 0.74 | 0.66 | 56 | 900 | 2 | 2.2 | 5.5 | |||||||||||||||
MS712-6 | 0.33 | 0.25 | 0.95 | 0.68 | 59 | 900 | 2 | 2.2 | 5.5 | |||||||||||||||
MS801-6 | 0.5 | 0.37 | 1.3 | 0.7 | 62 | 900 | 2 | 2.2 | 5.5 | |||||||||||||||
MS802-6 | 0.75 | 0.55 | 1.79 | 0.72 | 65 | 900 | 2 | 2.2 | 5.5 | |||||||||||||||
MS90S-6 | 1 | 0.75 | 2.29 | 0.72 | 69 | 910 | 2.1 | 2.2 | 5.5 | |||||||||||||||
MS90L-6 | 1.5 | 1.1 | 3.18 | 0.73 | 72 | 910 | 2.1 | 2.2 | 5.5 | |||||||||||||||
MS100L-6 | 2 | 1.5 | 3.89 | 0.76 | 76 | 940 | 2.1 | 2.2 | 5.5 | |||||||||||||||
MS112M-6 | 3 | 2.2 | 5.57 | 0.76 | 79 | 940 | 2.2 | 2.3 | 6.5 | |||||||||||||||
MS132S-6 | 4 | 3 | 7.4 | 0.76 | 81 | 960 | 2.2 | 2.3 | 6.5 | |||||||||||||||
MS132M1-6 | 5.5 | 4 | 9.75 | 0.76 | 82 | 960 | 2.2 | 2.3 | 6.5 | |||||||||||||||
MS132M2-6 | 7.5 | 5.5 | 12.9 | 0.77 | 84 | 960 | 2.2 | 2.3 | 6.5 |
