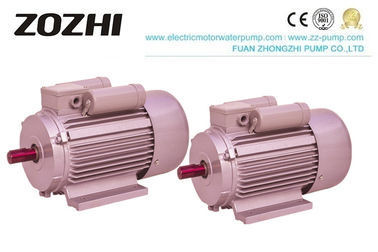

Cast Iron Single Phase Electric Motor Double Capacitor YC Series 0.33HP 4 Pole

China Cast Iron Single Phase Electric Motor Double Capacitor YC Series  0.33HP 4 Pole supplier
Cast Iron Single Phase Electric Motor Double Capacitor YC Series  0.33HP 4 Pole supplier

Large Image :  Cast Iron Single Phase Electric Motor Double Capacitor YC Series 0.33HP 4 Pole

Product Details:

Place of Origin: China
Brand Name: ZOZHI
Certification: ISO
Model Number: YC90S-4

Payment & Shipping Terms:

Minimum Order Quantity: 1pc
Price: negotiated
Packaging Details: Packed in cartons,veneer case or wooden case.
Delivery Time: 25 working days after received your payment
Payment Terms: T/T, L/C
Supply Ability: 10000pcs/month
Contact Now
Detailed Product Description
Product Name: Induction Motor Application: General Driving
Output: 0.75KW/1HP Pole: 4
Protection Class: IP54 Insulation Class: B
High Light:

single phase capacitor start motor

,

single phase asynchronous motor

3 Phase Double Capacitor YC Series Cast Iron Electric Motor 0.33HP 4Pole



Application:



Three Phase Motor Heavy is made of high quality cast iron. With optimized construction design, they can ensure the requirement of structural rigidity and intensity. Silicon steel plate is used in stator core and rotor core, it has good insulation on the surface, a low loss which ensures higher efficiency. High-quality insulation material combines the perfect insulation system which makes the insulation completely without clearance, high rigidity of the winding end, it can endure switching and reversing intensity, F class insulation makes the motor with higher heat stability and longer life.







Technical Data:



Model Output HP KW Voltage
(V)
Current
(A)
Speed
(r/min)
Eff
(%)
Power
Factor
Tstart/Tn Ist/In Tmax/Tn
YC80A-4 0.33 0.25 220 3.4 1450 56 0.6 2.8 6.0

1.8



Advantages:

1. High efficiency, low noise ac motor
2. 100% copper wire & 100% output.
3. Nice painting after installing a motor
4. Reasonable price with high quality and kind service.
5. Used for machinery without special requirements.
6. Longer working life, easy construction, convenient installation and repairmen





Performance Chart:



Model    Output     HP    KW Voltage
(V)
Current
(A)
Speed
(r/min)
Eff
(%)
Power
Factor
Tstart/Tn Ist/In Tmax/Tn
220V 5OHz Synchronous Speed 3000r/min (2 Poles)
YC80A-2 0.5 0.37 220 3.5 2880 62 73.8 2.8 6.2 1.8
YC80B-2 0.75 0.55 220 5.3 2880 65 76.5 2.8 6.5 1.8
YC80C-2 1 0.75 220 6.7 2880 68 77.5 2.8 6.5 1.8
YC90S-2 1.5 1.1 220 9.1 2880 71 79.7 2.4 7.0 1.8
YC100L-2 2 1.5 220 11.4 2900 72 81.3 2.4 7.0 1.8
Y-112M-2 3 2.2 220 16.5 2900 74 84.8 2.1 7.0 1.8
YC112M1-2 4 3 220 21.4 2900 76 84.9 2.2 7.0 1.8
YC112M2-2 5 3.7 220 24.8 2900 79 85.5 2.2 7.0 1.8
220V 5OHz Synchronous Speed 1500r/min (4 Poles)
YC80A-4 0.33 0.25 220 3.4 1450 56 0.6 2.8 6.0 1.8
YC80B-4 0.5 0.37 220 4.5 1450 60 0.62 2.8 6.0 1.8
YC80C-4 0.75 0.55 220 6 1450 64 0.65 2.8 6.0 1.8
YC90S-4 1 0.75 220 7.7 1450 67 0.66 2.4 6.5 1.8
YC90L-4 1.5 1.1 220 10.4 1450 70 0.68 2.4 6.5 2.8
YC100L-4 2 1.5 220 13.5 1450 72 0.7 2.4 6.5 1.8
YC112M1-4 3 2.2 220 18.5 1450 72 0.72 2.4 6.5 1.8
YC132SA-4 4 3 220 22.4 1450 74 0.73 2.1 6.5 1.8
YC132SB-4 5 3.7 220 26 1450 75 0.74 2.1 6.5 1.8
YC132M-4 7.5 5 220 30.5 1450 81 0.95 2.1 6.5 1.8







electric motor data

Picture:



YC motor



Guarantee:



Guarantee for one year from shipped on board date. During the guarantee period, our company will provide the free easy-damaged spare part for problems caused by our quality of production or raw material, except the damageable spare parts caused by customer's incorrect man-made operation. After expiration, our company provides cost spare parts for maintenance.





Our Service:

1. Directly factory sale
2. Quick response to 2-8hours, response rates over 92%
3. 24 hours phone call is available, feel free to contact us.
4. All goods produced by ourselves, we provide one-stop services from designing, printing to processing. Customers can provide the design according to your request and samples making, also we can advise how to make the products according to customers' target prices.


FAQ:


1. Q: What’s the MOQ?
A: We accept one piece.

2. Q: Are you a factory or trading company?
A: We are a manufacturer.

3. Q: Can you accept to use our logo?
A: Yes, we can do OEM for you.

4. Q: What’s the warranty period?
A: 1 year.



5. Q: What are the terms of payment?

A: T/T. 30% deposit and 70% against the BL copy or 100% LC at sight.
