750W Three Phase Asynchronous Induction Motor Aluminum 4 Pole 380V MS Series

China 750W Three Phase Asynchronous Induction Motor Aluminum 4 Pole 380V MS Series supplier

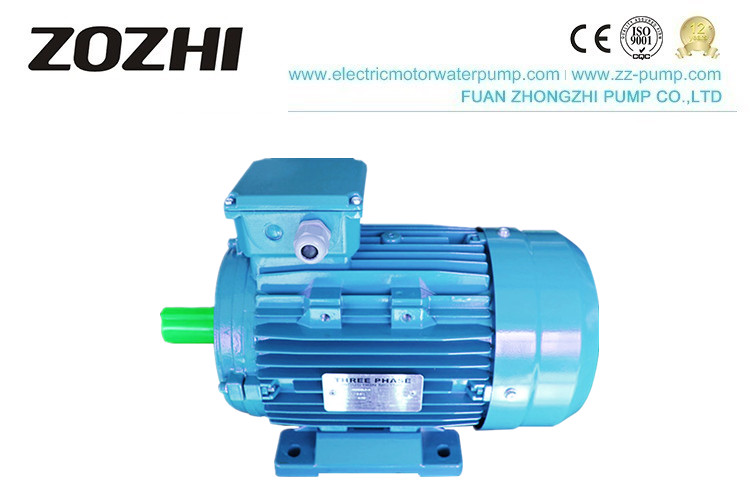

Large Image :  750W Three Phase Asynchronous Induction Motor Aluminum 4 Pole 380V MS Series

Product Details:

Place of Origin: China
Brand Name: ZOZHI
Certification: ISO
Model Number: MS802-4

Payment & Shipping Terms:

Minimum Order Quantity: 10PCS
Price: negotiated
Packaging Details: Packed in cartons,veneer case or wooden case.
Delivery Time: 25 working days after received your payment
Payment Terms: T/T, L/C, Western Union, E-checking
Supply Ability: 10000pcs/month
Contact Now
Detailed Product Description
Output: 0.75KW/1HP Pole: 4
Motor Bearing:: C&U (SKF For Choice) Efficiency:: IE1 IE2 IE3
Motor Housing:: Aluminum Protection Class:: IP54/IP55
Insulation Class:: F Class Color: Customizable
High Light:

squirrel cage electric motor

,

three phase induction motor

MS Series High-Quality 750W Three-Phase Asynchronous Motor 4Pole 380V





MS series three-phase asynchronous motor with aluminum shell meets the relevant regulations of IEC of National Electrotechnical


Association. It adopts high-quality raw materials for the latest overall design. It has good performance, low noise and low
vibration.



It is widely used in air compressors, water pumps, water machines, refrigeration, medical equipment,and small instruments. It is especially suitable for a single-phase power supply.



The product is popular in various countries all over the world, according to different countries to customize different voltages to meet the needs of each customer.

750W Three Phase Asynchronous Induction Motor Aluminum 4 Pole 380V MS Series 0

Main Features

Ambient temperature: -15 degrees centigrade ~40 degrees centigrade

Altitude: not more than 1000 meters

Rated voltage: 380V, 400V, 415V, 660V

Rated power: 50HZ, 60HZ

Connection: the rated power is 3KW and the following motor is Y connected. The rated power is 4KW and the motor is triangular connection.

Working system: continuous working system (S1)

Protection grade: IP54/IP55

Insulation grade: F grade

Center height of the seat: 80mm-400mm

Product weight: 70Kg-700Kg



Application

750W Three Phase Asynchronous Induction Motor Aluminum 4 Pole 380V MS Series 1



Technical data


Model Power (V) (HZ) Current (A) Power Factor

Eff

(%)

Speed (r/min)

Tstart/

Tn

Tmax/

Tn

Ist/

In

HP KW
MS561-2 0.12 0.09 380 50 0.3 0.76 60 2750 2.3 2.4 6
MS562-2 0.16 0.12 0.37 0.78 63 2750 2.3 2.4 6
MS631-2 0.25 0.18 0.53 0.75 69 2800 2.2 2.4 4.5
MS632-2 0.33 0.25 0.68 0.78 72 2800 2.2 2.4 4.5
MS711-2 0.5 0.37 0.98 0.8 73 2800 2.2 2.4 4.5
MS712-2 0.75 0.55 1.35 0.82 75 2800 2.2 2.4 4.5
MS801-2 1 0.75 1.75 0.85 76 2800 2.2 2.4 4.5
MS802-2 1.5 1.1 2.55 0.85 77 2800 2.2 2.4 4.5
MS90S-2 2 1.5 3.36 0.87 78 2800 2.2 2.4 4.5
MS90L-2 3 2.2 4.93 0.87 78 2800 2.2 2.4 5
MS100L-2 4 3 6.31 0.87 83 2880 2.3 2.4 7
MS112M-2 5.5 4 8.12 0.88 85 2890 2.3 2.4 7
MS132S1-2 7.5 5.5 11 0.88 86 2900 2.3 2.4 7
MS132S2-2 10 7.5 14.9 0.88 87 2900 2.3 2.4 7
MS160L-2 25 18.5 34.7 0.9 90 2930 2.3 2.4 7
MS561-4 0.08 0.06 0.27 0.68 50 1300 2.2 2.3 5.5
MS562-4 0.12 0.09 0.36 0.7 54 1300 2.2 2.3 5.5
MS631-4 0.16 0.12 0.48 0.63 60 1400 2.2 2.4 4.5
MS632-4 0.25 0.18 0.65 0.66 64 1400 2.2 2.4 4.5
MS711-4 0.33 0.25 0.83 0.68 67 1400 2.2 2.4 4.5
MS712-4 0.5 0.37 1.12 0.72 69 1400 2.2 2.4 4.5
MS801-4 0.75 0.55 1.56 0.73 73 1400 2.2 2.4 4.5
MS802-4 1 0.75 2.01 0.75 75 1400 2.2 2.4 4.5
MS90S-4 1.5 1.1 2.83 0.78 76 1400 2.3 2.4 5
MS90L-4 2 1.5 3.84 0.78 76 1400 2.2 2.4 5
MS100L1-4 3 2.2 4.2 0.75 75 1400 2.2 2.4 5
MS100L2-4 4 3 6.78 0.82 82 1410 2.3 2.4 7
MS112M-4 5.5 4 8.82 0.82 84 1435 2.3 2.4 7
MS132S-4 7.5 5.5 11.8 0.83 85.5 1445 2.3 2.4 7
MS132M-4 10 7.5 15.6 0.84 87 1445 2.3 2.4 7
MS711-6 0.24 0.18 0.74 0.66 56 900 2 2.2 5.5
MS712-6 0.33 0.25 0.95 0.68 59 900 2 2.2 5.5
MS801-6 0.5 0.37 1.3 0.7 62 900 2 2.2 5.5
MS802-6 0.75 0.55 1.79 0.72 65 900 2 2.2 5.5
MS90S-6 1 0.75 2.29 0.72 69 910 2.1 2.2 5.5
MS90L-6 1.5 1.1 3.18 0.73 72 910 2.1 2.2 5.5
MS100L-6 2 1.5 3.89 0.76 76 940 2.1 2.2 5.5
MS112M-6 3 2.2 5.57 0.76 79 940 2.2 2.3 6.5
MS132S-6 4 3 7.4 0.76 81 960 2.2 2.3 6.5
MS132M1-6 5.5 4 9.75 0.76 82 960 2.2 2.3 6.5
MS132M2-6 7.5 5.5 12.9 0.77 84 960 2.2 2.3 6.5

750W Three Phase Asynchronous Induction Motor Aluminum 4 Pole 380V MS Series 2



750W Three Phase Asynchronous Induction Motor Aluminum 4 Pole 380V MS Series 3
