MS IE2 Motor , 7.5kw Three Phase Asynchronous Electric Motor For General Drive

China MS IE2 Motor , 7.5kw Three Phase Asynchronous Electric Motor For General Drive supplier
MS IE2 Motor , 7.5kw Three Phase Asynchronous Electric Motor For General Drive supplier

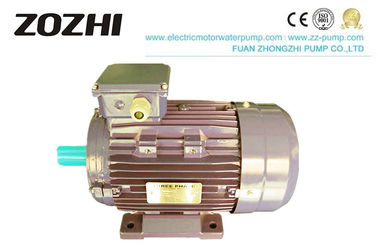

Large Image :  MS IE2 Motor , 7.5kw Three Phase Asynchronous Electric Motor For General Drive

Product Details:

Place of Origin: FUAN CHINA
Brand Name: ZOZHI
Certification: CE,ISO
Model Number: IE2 MS132S2-2

Payment & Shipping Terms:

Minimum Order Quantity: 10pcs
Price: negotiated
Packaging Details: Packed in cartons,veneer case or wooden case.
Delivery Time: 25 working days after received your payment
Payment Terms: T/T
Supply Ability: 10000pcs/month
Contact Now
Detailed Product Description
Name: IE2 Motor Output: 7.5kw/10Hp
Voltage: 230/400V/60HZ Winding Material: 100% Copper Wire
Standard: IEC 2 Housing: Aluminum
Pole: 4 Phase: 3 Phase

Aluminum Housing MS Motor 7.5kw Three-Phase Asynchronous Electric Motor For General Drive


Description



MS series aluminum housing three-phase asynchronous motors with the latest design entirely, are made of selected quality materials and conform to the IEC standard,

MS motors have good performance, safety and reliable operation, nice appearance, and can be maintained very conveniently.

MS series motors with low noise, little vibration,and at the same time light weight,and simple construction.

MS motors can be used for general drive.



Operating Conditions:

Ambient temperature:-15C-40C

Altitude: not exceed 1000M

Rated voltage:380V

rated frequency;50HZ or 60HZ

Protection type: Ip54 or IP55

Insulation class: B or F

Cooling method: IC411 Duty: S1(continuous)



Operating Limits

  • Ambient temperature:-15℃≦0≦40℃

  • Protection:IP44/IP54/IP55

  • Insulation Class: B/F/H

  • Rated voltage:380V or any voltage between 220-760V

  • Frequency:50HZ/60HZ

  • Duty: S1(continuous)

  • Above sea level: not exceed 1000m

  • Cooling method: ICO141

  • Connection:star-connection for up to 4HP,

  • delta-connection for 5HP and above.





Application

Suitable for all kinds of machinery, such as fast stop, accurate positioning, reciprocating operation, frequent start and prevent sliding. Such as water pump, transport machinery, fan blower, mixer, food machinery, construction machinery, CNC machinery, mining machinery, compressor, forging machinery, etc

MS IE2 Motor , 7.5kw Three Phase Asynchronous Electric Motor For General Drive



Production Line
three phase induction motor



Technical Data



Model Power (V) (A) (r/min) Eff.(%) P.F. Ist/In Tmax/Tn
Kw HP 50% 75% 100%
IE2 MS801-2 0.75 1 230/400 3.0/1.73 2800 76.5 77.3 77.4 0.813 2.2 2.3
IE2 MS802-2 1.1 1.5 4.2/2.43 2800 79 80 79.6 0.825 2.2 2.3
IE2 MS90S-2 1.5 2 5.53/3.19 2820 80.2 81.5 81.3 0.837 2.2 2.3
IE2 MS90L-2 2.2 3 7.93/4.58 2820 82.2 83.5 83.2 0.837 2.2 2.3
IE2 MS100L-2 3 4 10.5/6.06 2830 84 85.1 84.6 0.848 2.2 2.3
IE2 MS112M-2 4 5.5 400/690 7.97/4.6 2850 85.4 86.8 85.8 0.848 2.2 2.3
IE2 MS132S1-2 5.5 7.5 10.65/6.15 2870 86.7 87.3 87 0.86 2 2.3
IE2 MS132S2-2 7.5 10 14.35/8.28 2870 87.6 88.3 88.1 0.86 2 2.3
IE2 MS160M1-2 11 15 20.74/11.97 2900 89 89.8 89.4 0.86 2 2.3
IE2 MS160M2-2 15 20 27.99/16.16 2900 90 90.5 90.3 0.86 2 2.3
IE2 MS160L-2 18.5 25 33.83/19.53 2900 90.3 91 90.9 0.872 2 2.2
IE2 MS802-4 0.75 1 230/400 3.28/1.9 1380 77.3 79.8 79.6 0.72 2.3 2.3
IE2 MS90S-4 1.1 1.5 4.57/2.64 1400 79.9 81.7 81.4 0.743 2.3 2.3
IE2 MS90L-4 1.5 2 6.02/3.48 1400 82.1 83.5 82.8 0.755 2.3 2.3
IE2 MS100L1-4 2.2 3 8.42/4.86 1420 82.6 84.5 84.3 0.778 2.2 2.3
IE2 MS100L2-4 3 4 11.32/6.54 1420 84.2 85.7 85.5 0.778 2.2 2.3
IE2 MS112M-4 4 5.5 400/690 8.47/4.89 1430 85.8 87 86.6 0.79 2.2 2.3
IE2 MS132S-4 5.5 7.5 11.18/6.45 1450 87.4 88.3 87.7 0.813 2.2 2.3
IE2 MS132M-4 7.5 10 14.85/8.58 1450 88.2 89 88.7 0.825 2.2 2.3
IE2 MS160M-4 11 15 21.84/12.61 1460 89.1 90 89.8 0.813 2.2 2.3
IE2 MS160L-4 15 20 29.08/16.79 1460 90.2 91.1 90.6 0.825 2.2 2.3
IE2 MS90S-6 0.75 1 230/400 3.82/2.2 910 73.4 76.3 75.9 0.65 2 2.2
IE2 MS90L-6 1.1 1.5 5.25/3.03 910 77 78.8 78.1 0.673 2 2.2
IE2 MS100L-6 1.5 2 6.77/3.91 940 79.6 80.8 79.8 0.697 2 2.2
IE2 MS112M-6 2.2 3 9.69/5.59 940 80.4 81.6 81.8 0.697 2 2.2
IE2 MS132S-6 3 4 12.56/7.25 960 81 83.4 83.3 0.72 2 2.2
IE2 MS132M1-6 4 5.5 400/690 9.36/5.4 960 82.7 84.5 84.6 0.732 2 2.2
IE2 MS132M2-6 5.5 7.5 12.47/7.2 960 84.8 86.2 86 0.743 2 2.2
IE2 MS160M-6 7.5 10 16.78/9.69 970 86.4 87.5 87.2 0.743 2 2
IE2 MS160L-6 11 15 24.19/13.97 970 88.2 89.2 88.7 0.743 2 2




Performance comparison chart:

ELECTRIC MOTOR EFFICIENCY VALUES-4POLES 1500 RPM
Power(kw) eff2 (nominal) eff1 (nominal) IE2 (nominal) IE3 (nominal)
0.75 - - 79.6 82.5
1.1 76.2 83.8 81.4 84.1
1.5 78.5 85.0 82.8 85.3
2.2 81 86.4 84.3 86.7
3.0 82.6 87.4 85.5 87.7
4.0 84.2 88.3 86.6 88.6
5.5 85.7 89.2 87.7 89.6
7.5 87 90.1 88.7 90.4
11 88.4 91.0 89.8 91.4
15 89.4 91.8 90.6 92.1
18.5 90 92.2 91.2 92.6
22 90.5 82.6 91.6 93.0
30 91.4 93.2 92.3 93.8
37 92 93.6 92.7 93.9
45 92.5 93.9 93.1 94.2
55 93 94.2 93.5 94.6
75 93.6 94.7 94.0 95.0
90 93.9 95.0 94.2 95.2
110     94.5 95.4
132     94.7 95.6
160     94.9 95.8
200...375     95.1 96.0



asynchronous motor
