Aluminum Housing Asynchronous AC Motor MS Series 1400rpm 380V 750KW Customizable

  • Aluminum Housing Asynchronous AC Motor MS Series 1400rpm 380V 750KW Customizable
  • Aluminum Housing Asynchronous AC Motor MS Series 1400rpm 380V 750KW Customizable
  • Aluminum Housing Asynchronous AC Motor MS Series 1400rpm 380V 750KW Customizable
Place of Origin China
Brand Name ZOZHI
Certification ISO
Model Number MS802-4
Minimum Order Quantity 10PCS
Price negotiated
Packaging Details Packed in cartons,veneer case or wooden case.
Delivery Time 25 working days after received your payment
Payment Terms T/T, L/C, Western Union, E-checking
Supply Ability 10000pcs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Output 0.75KW/1HP Pole 4
Motor Bearing C&U (SKF For Choice) Efficiency IE1 IE2 IE3
Motor Housing Aluminum Protection Class IP54/IP55
Insulation Class F Class Color Customizable
Product Name 3 Phase Induction Motor
Highlight

squirrel cage electric motor

,

three phase induction motor
Leave a Message
Product Description

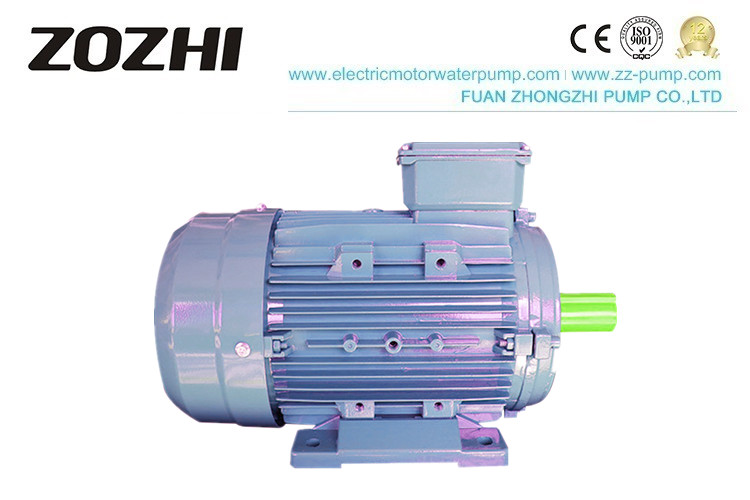

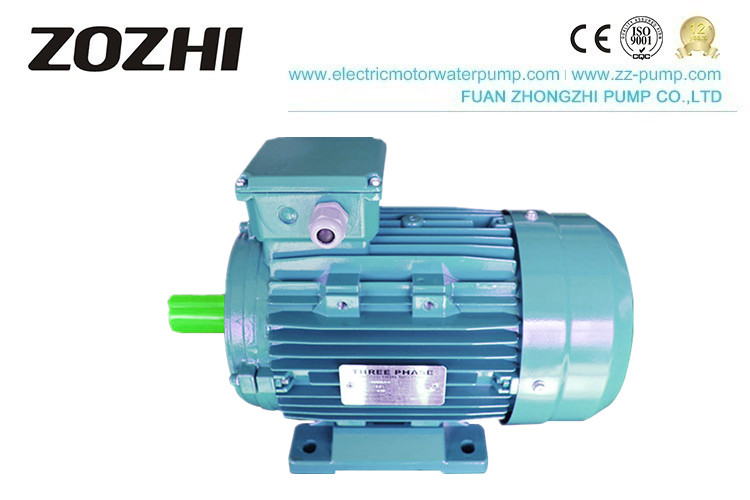

MS Series Asynchronous AC Motor Aluminum Housing 1400rpm 380V 750KW

3 Phase Induction Motor

MS series motor can be used as a variety of single and double girder bridge, gantry crane cart, car operating mechanism of the poser, because of its power level, the installation size and the original crane ZD-type conical rotor motor can directly change, it is also suitable for electric hoist car to do motor, But not suitable for use as a hoising mechanism motor.



This series motor has such characteristics as a new structure—model, low noise level and vibration, compact structure easy maintenance. Comply with international conventions, standard engines have Class F insulation, with a Class B temperature rise to offer more reliability and security in operation.

Aluminum Housing Asynchronous AC Motor MS Series 1400rpm 380V 750KW Customizable 0





Aluminum Housing Asynchronous AC Motor MS Series 1400rpm 380V 750KW Customizable 1



Technical data


Model Power (V) (HZ) Current (A) Power Factor

Eff

(%)

 Speed (r/min)

Tstart/

Tn

Tmax/

Tn

Ist/

In
HP KW
MS561-2 0.12 0.09 380 50 0.3 0.76 60 2750 2.3 2.4 6
MS562-2 0.16 0.12 0.37 0.78 63 2750 2.3 2.4 6
MS631-2 0.25 0.18 0.53 0.75 69 2800 2.2 2.4 4.5
MS632-2 0.33 0.25 0.68 0.78 72 2800 2.2 2.4 4.5
MS711-2 0.5 0.37 0.98 0.8 73 2800 2.2 2.4 4.5
MS712-2 0.75 0.55 1.35 0.82 75 2800 2.2 2.4 4.5
MS801-2 1 0.75 1.75 0.85 76 2800 2.2 2.4 4.5
MS802-2 1.5 1.1 2.55 0.85 77 2800 2.2 2.4 4.5
MS90S-2 2 1.5 3.36 0.87 78 2800 2.2 2.4 4.5
MS90L-2 3 2.2 4.93 0.87 78 2800 2.2 2.4 5
MS100L-2 4 3 6.31 0.87 83 2880 2.3 2.4 7
MS112M-2 5.5 4 8.12 0.88 85 2890 2.3 2.4 7
MS132S1-2 7.5 5.5 11 0.88 86 2900 2.3 2.4 7
MS132S2-2 10 7.5 14.9 0.88 87 2900 2.3 2.4 7
MS160L-2 25 18.5 34.7 0.9 90 2930 2.3 2.4 7
MS561-4 0.08 0.06 0.27 0.68 50 1300 2.2 2.3 5.5
MS562-4 0.12 0.09 0.36 0.7 54 1300 2.2 2.3 5.5
MS631-4 0.16 0.12 0.48 0.63 60 1400 2.2 2.4 4.5
MS632-4 0.25 0.18 0.65 0.66 64 1400 2.2 2.4 4.5
MS711-4 0.33 0.25 0.83 0.68 67 1400 2.2 2.4 4.5
MS712-4 0.5 0.37 1.12 0.72 69 1400 2.2 2.4 4.5
MS801-4 0.75 0.55 1.56 0.73 73 1400 2.2 2.4 4.5
MS802-4 1 0.75 2.01 0.75 75 1400 2.2 2.4 4.5
MS90S-4 1.5 1.1 2.83 0.78 76 1400 2.3 2.4 5
MS90L-4 2 1.5 3.84 0.78 76 1400 2.2 2.4 5
MS100L1-4 3 2.2 4.2 0.75 75 1400 2.2 2.4 5
MS100L2-4 4 3 6.78 0.82 82 1410 2.3 2.4 7
MS112M-4 5.5 4 8.82 0.82 84 1435 2.3 2.4 7
MS132S-4 7.5 5.5 11.8 0.83 85.5 1445 2.3 2.4 7
MS132M-4 10 7.5 15.6 0.84 87 1445 2.3 2.4 7
MS711-6 0.24 0.18 0.74 0.66 56 900 2 2.2 5.5
MS712-6 0.33 0.25 0.95 0.68 59 900 2 2.2 5.5
MS801-6 0.5 0.37 1.3 0.7 62 900 2 2.2 5.5
MS802-6 0.75 0.55 1.79 0.72 65 900 2 2.2 5.5
MS90S-6 1 0.75 2.29 0.72 69 910 2.1 2.2 5.5
MS90L-6 1.5 1.1 3.18 0.73 72 910 2.1 2.2 5.5
MS100L-6 2 1.5 3.89 0.76 76 940 2.1 2.2 5.5
MS112M-6 3 2.2 5.57 0.76 79 940 2.2 2.3 6.5
MS132S-6 4 3 7.4 0.76 81 960 2.2 2.3 6.5
MS132M1-6 5.5 4 9.75 0.76 82 960 2.2 2.3 6.5
MS132M2-6 7.5 5.5 12.9 0.77 84 960 2.2 2.3 6.5

Aluminum Housing Asynchronous AC Motor MS Series 1400rpm 380V 750KW Customizable 2



Aluminum Housing Asynchronous AC Motor MS Series 1400rpm 380V 750KW Customizable 3



Aluminum Housing Asynchronous AC Motor MS Series 1400rpm 380V 750KW Customizable 4 Aluminum Housing Asynchronous AC Motor MS Series 1400rpm 380V 750KW Customizable 5 Aluminum Housing Asynchronous AC Motor MS Series 1400rpm 380V 750KW Customizable 6
Aluminum Housing Asynchronous AC Motor MS Series 1400rpm 380V 750KW Customizable 7 Aluminum Housing Asynchronous AC Motor MS Series 1400rpm 380V 750KW Customizable 8 Aluminum Housing Asynchronous AC Motor MS Series 1400rpm 380V 750KW Customizable 9
Aluminum Housing Asynchronous AC Motor MS Series 1400rpm 380V 750KW Customizable 10 Aluminum Housing Asynchronous AC Motor MS Series 1400rpm 380V 750KW Customizable 11 Aluminum Housing Asynchronous AC Motor MS Series 1400rpm 380V 750KW Customizable 12
