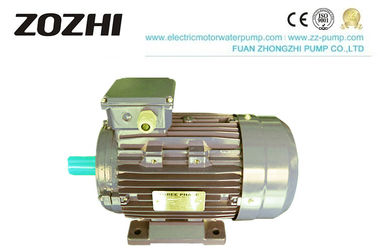

MS Series Three Phase Induction Motor MS132S2-2 7.5kw/10hp 100% Copper Wire

China MS Series Three Phase Induction Motor MS132S2-2 7.5kw/10hp 100% Copper Wire supplier
MS Series Three Phase Induction Motor MS132S2-2 7.5kw/10hp 100% Copper Wire supplier MS Series Three Phase Induction Motor MS132S2-2 7.5kw/10hp 100% Copper Wire supplier

Large Image :  MS Series Three Phase Induction Motor MS132S2-2 7.5kw/10hp 100% Copper Wire

Product Details:

Place of Origin: FUAN CHINA
Brand Name: ZOZHI
Certification: CE,ISO
Model Number: IE2 MS132S2-2

Payment & Shipping Terms:

Minimum Order Quantity: 10pcs
Price: negotiated
Packaging Details: Packed in cartons,veneer case or wooden case.
Delivery Time: 25 working days after received your payment
Payment Terms: T/T
Supply Ability: 10000pcs/month
Contact Now
Detailed Product Description
Name: IE2 Motor Output: 7.5kw/10Hp
Voltage: 230/400V/60HZ Winding Material: 100% Copper Wire
Standard: IEC 2 Housing: Aluminum
Pole: 4 Phase: 3 Phase

MS Series Three Phase Induction Motor Aluminum Housing MS132S2-2 7.5kw/10hp


Description



1.MS Series Aluminum Housing Three Phase Induction Motor adopts the latest design and high-quality material and conforms to the IEC standard in function, appearance, output,and other requirements.


2. The efficiency of MS motor meets the EFF2 standard in E. U. and can reach the EFF1 standard if requested. MS motor has a lot of advantages including high efficiency, energy saving, low noise, little vibration, lightweight, small volume, reliable operation, up-to-date appearance, convenient operation,and maintenance.


3.MS motor is died cast into mounding shape by aluminum-alloy. The base foot can be removable. Various mounting types are available for MS motor.


4.MS motor is suitable for a common working environment and machinery without special requirements, like air-compressor, pump, fan, medical apparatus and instruments, small machines, etc



Operating Limits

  • Ambient temperature:-15℃≦0≦40℃

  • Protection:IP44/IP54/IP55

  • Insulation Class: B/F/H

  • Rated voltage:380V or any voltage between 220-760V

  • Frequency:50HZ/60HZ

  • Duty: S1(continuous)

  • Above sea level: not exceed 1000m

  • Cooling method: ICO141

  • Connection:star-connection for up to 4HP,

  • delta-connection for 5HP and above.





Application

Suitable for all kinds of machinery, such as fast stop, accurate positioning, reciprocating operation, frequent start and prevent sliding. Such as water pump, transport machinery, fan blower, mixer, food machinery, construction machinery, CNC machinery, mining machinery, compressor, forging machinery, etc

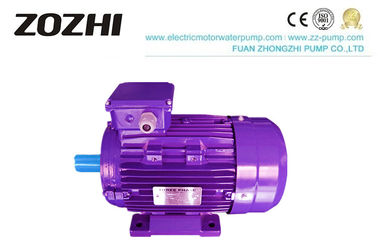

MS Series Three Phase Induction Motor MS132S2-2 7.5kw/10hp 100% Copper Wire



Production Line
three phase induction motor



Technical Data



Model Power (V) (A) (r/min) Eff.(%) P.F. Ist/In Tmax/Tn
Kw HP 50% 75% 100%
IE2 MS801-2 0.75 1 230/400 3.0/1.73 2800 76.5 77.3 77.4 0.813 2.2 2.3
IE2 MS802-2 1.1 1.5 4.2/2.43 2800 79 80 79.6 0.825 2.2 2.3
IE2 MS90S-2 1.5 2 5.53/3.19 2820 80.2 81.5 81.3 0.837 2.2 2.3
IE2 MS90L-2 2.2 3 7.93/4.58 2820 82.2 83.5 83.2 0.837 2.2 2.3
IE2 MS100L-2 3 4 10.5/6.06 2830 84 85.1 84.6 0.848 2.2 2.3
IE2 MS112M-2 4 5.5 400/690 7.97/4.6 2850 85.4 86.8 85.8 0.848 2.2 2.3
IE2 MS132S1-2 5.5 7.5 10.65/6.15 2870 86.7 87.3 87 0.86 2 2.3
IE2 MS132S2-2 7.5 10 14.35/8.28 2870 87.6 88.3 88.1 0.86 2 2.3
IE2 MS160M1-2 11 15 20.74/11.97 2900 89 89.8 89.4 0.86 2 2.3
IE2 MS160M2-2 15 20 27.99/16.16 2900 90 90.5 90.3 0.86 2 2.3
IE2 MS160L-2 18.5 25 33.83/19.53 2900 90.3 91 90.9 0.872 2 2.2
IE2 MS802-4 0.75 1 230/400 3.28/1.9 1380 77.3 79.8 79.6 0.72 2.3 2.3
IE2 MS90S-4 1.1 1.5 4.57/2.64 1400 79.9 81.7 81.4 0.743 2.3 2.3
IE2 MS90L-4 1.5 2 6.02/3.48 1400 82.1 83.5 82.8 0.755 2.3 2.3
IE2 MS100L1-4 2.2 3 8.42/4.86 1420 82.6 84.5 84.3 0.778 2.2 2.3
IE2 MS100L2-4 3 4 11.32/6.54 1420 84.2 85.7 85.5 0.778 2.2 2.3
IE2 MS112M-4 4 5.5 400/690 8.47/4.89 1430 85.8 87 86.6 0.79 2.2 2.3
IE2 MS132S-4 5.5 7.5 11.18/6.45 1450 87.4 88.3 87.7 0.813 2.2 2.3
IE2 MS132M-4 7.5 10 14.85/8.58 1450 88.2 89 88.7 0.825 2.2 2.3
IE2 MS160M-4 11 15 21.84/12.61 1460 89.1 90 89.8 0.813 2.2 2.3
IE2 MS160L-4 15 20 29.08/16.79 1460 90.2 91.1 90.6 0.825 2.2 2.3
IE2 MS90S-6 0.75 1 230/400 3.82/2.2 910 73.4 76.3 75.9 0.65 2 2.2
IE2 MS90L-6 1.1 1.5 5.25/3.03 910 77 78.8 78.1 0.673 2 2.2
IE2 MS100L-6 1.5 2 6.77/3.91 940 79.6 80.8 79.8 0.697 2 2.2
IE2 MS112M-6 2.2 3 9.69/5.59 940 80.4 81.6 81.8 0.697 2 2.2
IE2 MS132S-6 3 4 12.56/7.25 960 81 83.4 83.3 0.72 2 2.2
IE2 MS132M1-6 4 5.5 400/690 9.36/5.4 960 82.7 84.5 84.6 0.732 2 2.2
IE2 MS132M2-6 5.5 7.5 12.47/7.2 960 84.8 86.2 86 0.743 2 2.2
IE2 MS160M-6 7.5 10 16.78/9.69 970 86.4 87.5 87.2 0.743 2 2
IE2 MS160L-6 11 15 24.19/13.97 970 88.2 89.2 88.7 0.743 2 2




Performance comparison chart:

ELECTRIC MOTOR EFFICIENCY VALUES-4POLES 1500 RPM
Power(kw) eff2 (nominal) eff1 (nominal) IE2 (nominal) IE3 (nominal)
0.75 - - 79.6 82.5
1.1 76.2 83.8 81.4 84.1
1.5 78.5 85.0 82.8 85.3
2.2 81 86.4 84.3 86.7
3.0 82.6 87.4 85.5 87.7
4.0 84.2 88.3 86.6 88.6
5.5 85.7 89.2 87.7 89.6
7.5 87 90.1 88.7 90.4
11 88.4 91.0 89.8 91.4
15 89.4 91.8 90.6 92.1
18.5 90 92.2 91.2 92.6
22 90.5 82.6 91.6 93.0
30 91.4 93.2 92.3 93.8
37 92 93.6 92.7 93.9
45 92.5 93.9 93.1 94.2
55 93 94.2 93.5 94.6
75 93.6 94.7 94.0 95.0
90 93.9 95.0 94.2 95.2
110     94.5 95.4
132     94.7 95.6
160     94.9 95.8
200...375     95.1 96.0



asynchronous motor
