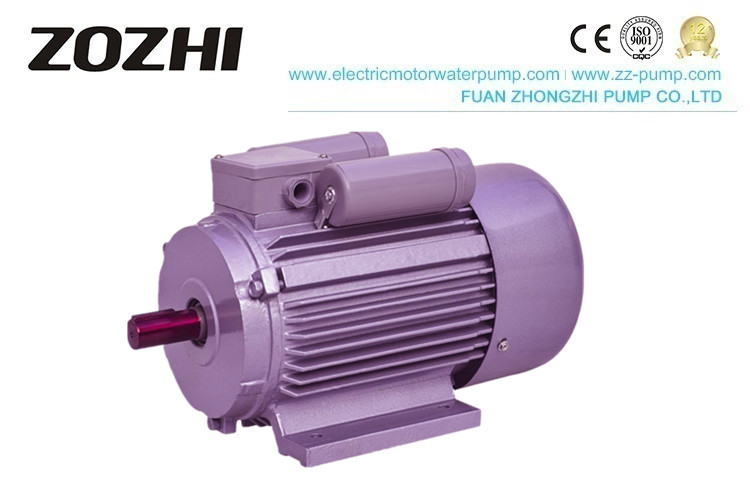

Single Phase 3kw Asynchronous Electric Motor 4HP 100% Copper Wire IEC Standard

China Single Phase 3kw Asynchronous Electric Motor 4HP 100% Copper Wire IEC Standard supplier
Single Phase 3kw Asynchronous Electric Motor 4HP 100% Copper Wire IEC Standard supplier Single Phase 3kw Asynchronous Electric Motor 4HP 100% Copper Wire IEC Standard supplier

Large Image :  Single Phase 3kw Asynchronous Electric Motor 4HP 100% Copper Wire IEC Standard

Product Details:

Place of Origin: China
Brand Name: ZOZHI
Certification: ISO
Model Number: YC132SA-4

Payment & Shipping Terms:

Minimum Order Quantity: 1pc
Price: negotiated
Packaging Details: Packed in cartons,veneer case or wooden case.
Delivery Time: 25 working days after received your payment
Payment Terms: T/T, L/C
Supply Ability: 10000pcs/month
Contact Now
Detailed Product Description
Product Name: Induction Motor Application: Flatting Mill Machine
Output: 3KW/4HP Pole: 4
Protection Class: IP54 Insulation Class: B

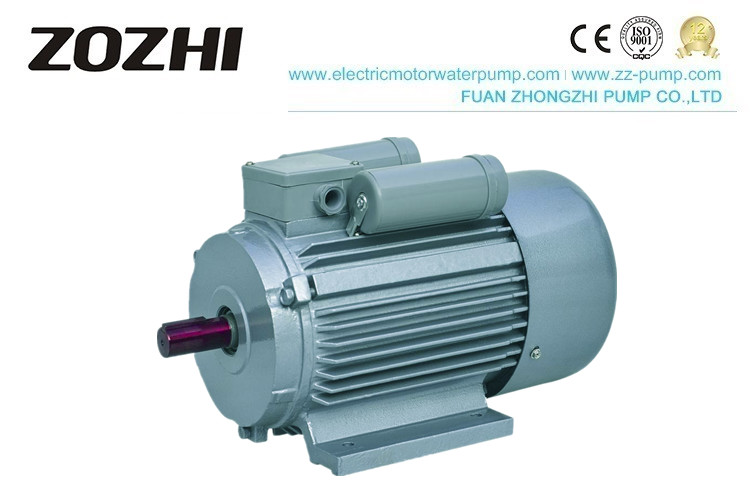

Single Phase 3kw Asynchronous Electric Motor 4HP 100% Copper Wire IEC Standard



YC series heavy-duty single-phase motors are suitable for small size machine tools and water pumps, especially for family workshops where only single-phase power supply is best quality materials, possess the features of pleasant-looking appearance and meet the IEC standard.

YC series motors are of IP44 totally enclosed fan cooling type, rated outputs is 3HP or below, capacitor start, Within rated voltage and 50HZ, the starting torque is three times motor and run type. It has concentrated the advantages of high starting torque, smooth running, low temperature rising, low noise, and greater overload performance. The designation number and nominative valves are all in conformity with IEC standards





Models
YC132SA-4
Single Phase 3kw Asynchronous Electric Motor 4HP 100% Copper Wire IEC Standard
Brand Name:
ZOZHI
Output Power:
3KW/4HP
Phase:
Single-phase
Protect Feature:
Totally Enclosed
Housing:
Cast Iron housing
Winding:
100% Copper Wire
Insulation class:
Class B, Class F
Protection class:
IP44, IP54, IP55
Cooling Method:
IC0141
Application  Grain Flatting Machine




Single Phase 3kw Asynchronous Electric Motor 4HP 100% Copper Wire IEC Standard



What is grain flattening machine

♦ The grain flattening machine can press wheat, barley, soybeans, beans, coffee bean, peanut into a thin sheet or crushed into small particles, It will be easy for porridge or soup, easy to mature, digest and absorb.

♦ It is widely used in the food industry, chemical industry, wine-making industry, beer factory, medicine manufacturer.

♦ It retains the original taste and nutrients,  improves the utilization rate of the grain feed, it also used for large and medium-sized farm.



Performance Chart:



Model    Output     HP    KW Voltage
(V)
Current
(A)
Speed
(r/min)
Eff
(%)
Power
Factor
Tstart/Tn Ist/In Tmax/Tn
220V 5OHz Synchronous Speed 3000r/min (2 Poles)
YC80A-2 0.5 0.37 220 3.5 2880 62 73.8 2.8 6.2 1.8
YC80B-2 0.75 0.55 220 5.3 2880 65 76.5 2.8 6.5 1.8
YC80C-2 1 0.75 220 6.7 2880 68 77.5 2.8 6.5 1.8
YC90S-2 1.5 1.1 220 9.1 2880 71 79.7 2.4 7.0 1.8
YC100L-2 2 1.5 220 11.4 2900 72 81.3 2.4 7.0 1.8
YC-112M-2 3 2.2 220 16.5 2900 74 84.8 2.1 7.0 1.8
YC112M1-2 4 3 220 21.4 2900 76 84.9 2.2 7.0 1.8
YC112M2-2 5 3.7 220 24.8 2900 79 85.5 2.2 7.0 1.8
220V 5OHz Synchronous Speed 1500r/min (4 Poles)
YC80A-4 0.33 0.25 220 3.4 1450 56 0.6 2.8 6.0 1.8
YC80B-4 0.5 0.37 220 4.5 1450 60 0.62 2.8 6.0 1.8
YC80C-4 0.75 0.55 220 6 1450 64 0.65 2.8 6.0 1.8
YC90S-4 1 0.75 220 7.7 1450 67 0.66 2.4 6.5 1.8
YC90L-4 1.5 1.1 220 10.4 1450 70 0.68 2.4 6.5 2.8
YC100L-4 2 1.5 220 13.5 1450 72 0.7 2.4 6.5 1.8
YC112M1-4 3 2.2 220 18.5 1450 72 0.72 2.4 6.5 1.8
YC132SA-4 4 3 220 22.4 1450 74 0.73 2.1 6.5 1.8
YC132SB-4 5 3.7 220 26 1450 75 0.74 2.1 6.5 1.8
YC132M-4 7.5 5 220 30.5 1450 81 0.95 2.1 6.5 1.8







electric motor data





Guarantee:



Guarantee for one year from shipped on board date. During the guarantee period, our company will provide the free easy-damaged spare part for problems caused by our quality of production or raw material, except the damageable spare parts caused by customer's incorrect man-made operation. After expiration, our company provides cost spare parts for maintenance.





Our Service:

1. Directly factory sale
2. Quick response to 2-8hours, response rates over 92%
3. 24 hours phone call is available, feel free to contact us.
4. All goods produced by ourselves, we provide one-stop services from designing, printing to processing. Customers can provide the design according to your request and samples making, also we can advise how to make the products according to customers' target prices.


FAQ:


1. Q: What’s the MOQ?
A: We accept one piece.

2. Q: Are you a factory or trading company?
A: We are a manufacturer.

3. Q: Can you accept to use our logo?
A: Yes, we can do OEM for you.

4. Q: What’s the warranty period?
A: 1 year.



5. Q: What are the terms of payment?

A: T/T. 30% deposit and 70% against the BL copy or 100% LC at sight.
