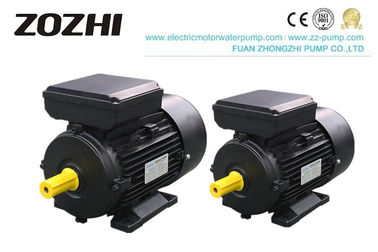

Two Value Capacitor Single Phase Asynchronous Motor ML Series H Insulation Class

China Two Value Capacitor Single Phase Asynchronous Motor ML Series H Insulation Class supplier
Two Value Capacitor Single Phase Asynchronous Motor ML Series H Insulation Class supplier

Large Image :  Two Value Capacitor Single Phase Asynchronous Motor ML Series H Insulation Class

Product Details:

Place of Origin: China
Brand Name: ZOZHI
Certification: ISO
Model Number: ML100L-2

Payment & Shipping Terms:

Minimum Order Quantity: 1pc
Price: negotiated
Packaging Details: Packed in cartons,veneer case or wooden case.
Delivery Time: 25 working days after received your payment
Payment Terms: T/T, L/C
Supply Ability: 10000pcs/month
Contact Now
Detailed Product Description
Product Name: Induction Motor Output: 3KW
Pole: 2 Protection Class: IP54
Frequency: 50Hz Insulation Class: H

Two-value Capacitor Single-Phase Asynchronous Motor  ML Series Induction Motor



ML Series Single-Phase Induction Motor Description



ML Series two-value capacitor single-phase asynchronous motors are run by capacitor Main features mall size high capacity, strong starting torque, high power factor and efficiency, safety and reliability in running, simple construction, and easy maintenance, it possesses frame No and capacity as three-phase asynchronous motors. This series motor is of totally enclosed fan-cooled structure, YL series motors are suitable is suitable for machines and equipment such as full load start.



Conditions of Use:

Ambient temperature: -15 ° C

Altitude: not exceeding 1000m

Rated voltage: 220V

Rated frequency: 50HZ, 60HZ

Protection level: IP44, IP54

Insulation class: B, F

Cooling method: ICO141

Working mode: continuous S1



ML Series Single-Phase Induction Motor Application

ML series aluminum housing motor has good performance and is widely used in electroplating equipment, rice machinery, flour machinery, ceramic machinery, cutting machinery, and other industrial and mechanical industries.

Two Value Capacitor Single Phase Asynchronous Motor ML Series H Insulation Class



ML Series Single-Phase Induction Motor Data



Model Power
(KW)

(V)

(A)
Speed
(r/min)
Eff.
(%)
P.F. Tstart/Tn Tmax/Tn Ist/In (A)
ML711-2 0.37 220 2.73 2800 67 0.92 2.3 1.8 16
ML712-2 0.55 220 3.88 2800 70 0.92 2.5 1.8 21
ML801-2 0.75 220 5.15 2800 72 0.92 2.5 1.8 30
ML802-2 1.10 220 7.02 2800 75 0.95 2.5 1.8 40
ML90S-2 1.50 220 9.44 2800 76 0.95 2.5 1.8 55
ML90L-2 2.20 220 13.67 2800 77 0.95 2.5 1.8 80
ML100L-2 3.00 220 18.2 2800 79 0.95 2.5 1.8 110
ML711-4 0.25 220 1.99 1400 62 0.92 2.5 1.8 12
ML712-4 0.37 220 2.81 1400 65 0.92 2.5 1.8 16
ML801-4 0.55 220 4.0 1400 68 0.92 2.5 1.8 21
ML802-4 0.75 220 5.22 1400 71 0.92 2.5 1.8 30
ML90S-4 1.10 220 7.2 1400 73 0.95 2.5 1.8 40
ML90L-4 1.50 220 9.57 1400 75 0.95 2.5 1.8 55
ML100L1-4 2.20 220 13.9 1400 76 0.95 2.5 1.8 80
ML100L2-4 3.00 220 18.6 1400 77 0.95 2.5 1.8 110



ML Series Single-Phase Induction Motor Feature

utilize IP 54/IP55
multiple feet locations
aluminum frame, end shields, and base
high strength cable gland
shaft key and protector supplied
superior paint finish
motors made to heavy-duty service factors
can be made with stainless steel shaft
motors made for continuous S1 duty
utilize vacuum impregnated Class B or Class F insulation
others insulation on request
high performance and efficiency





GUARANTEE:



Guarantee for one year from shipped on board date. During the guarantee period, our company will provide the free easy-damaged spare part for problems caused by our quality of production or raw material, except the damageable spare parts caused by customer's incorrect man-made operation. After expiration, our company provides cost spare parts for maintenance.





OUR SERVICE:

1. Directly factory sale
2. Quick response to 2-8hours, response rates over 92%
3. 24 hours phone call is available, feel free to contact us.
4. All goods produced by ourselves, we provide one-stop services from designing, printing to processing. Customers can provide the design according to your request and the samples making, also we can advise how to make the products according to customers' target prices.


FAQ:


1. Q: What’s the MOQ?
A: We accept one piece.

2. Q: Are you a factory or trading company?
A: We are a manufacturer.

3. Q: Can you accept to use our logo?
A: Yes, we can do OEM for you.

4. Q: What’s the warranty period?
A: 1 year.



5. Q: What are the terms of payment?

A: T/T. 30% deposit and 70% against the BL copy or 100% LC at sight.
