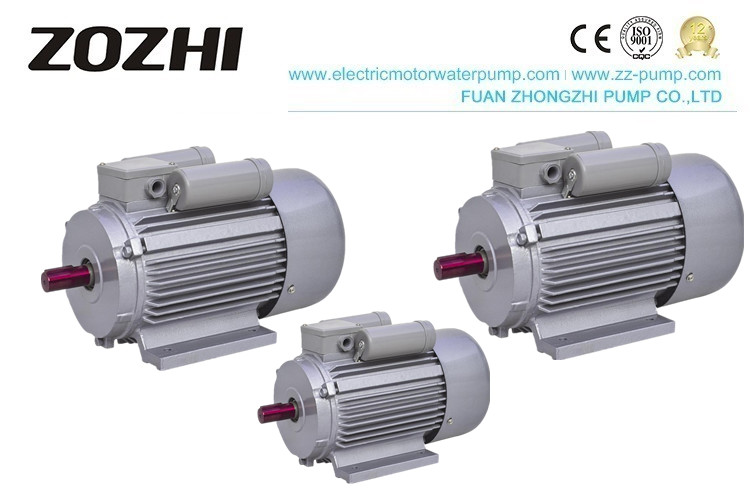

CCC Single Phase Induction Motor 50HZ 220v Cast Iron Housing Totally Enclosed
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Name | Single Phase Induction Motor | Application | Flatting Mill Machine |
---|---|---|---|
Output | 3KW/4HP | Pole | 4 |
Protection Class | IP54 | Insulation Class | B |
High Light | single phase capacitor start motor,single phase asynchronous motor |
CCC Single Phase Induction Motor 50HZ 220v Cast Iron Housing Enclosed
Single Phase Induction Motor
1. Caring has hundreds of intelligent processing equipment.
2. Caring has passed the ISO9001 management system certification. Electric motor obtains the corresponding CCC certificate.
3. Caring Has won over 30 national technology patents and several provincial honors. In addition, cutting pump gains national invention patents.
Models
|
YC132SA-4
|
|
Brand Name:
|
ZOZHI | |
Output Power:
|
3KW/4HP
|
|
Phase:
|
Single-phase
|
|
Protect Feature:
|
|
|
Housing:
|
Cast Iron housing
|
|
Winding:
|
100% Copper Wire
|
|
Insulation class:
|
Class B, Class F
|
|
Protection class:
|
IP44, IP54, IP55
|
|
Cooling Method:
|
IC0141
|
|
Application | Grain Flatting Machine |
What is a grain flattening machine
♦ The grain flattening machine can press wheat, barley, soybeans, beans, coffee beans, and peanuts into a thin sheet or crush small particles. It will be easy for porridge or soup to mature, digest, and absorb.
♦ It is widely used in the food industry, chemical industry, wine-making industry, beer factory, medicine manufacturer.
♦ It retains the original taste and nutrients, improves the utilization rate of the grain feed, it also used for large and medium-sized farms.
Performance Chart:
Model | Output HP KW | Voltage (V) |
Current (A) |
Speed (r/min) |
Eff (%) |
Power Factor |
T start/Tn | Ist/In | Tmax/Tn | |||||||||||||||
220V 5OHz Synchronous Speed 3000r/min (2 Poles) | ||||||||||||||||||||||||
YC80A-2 | 0.5 | 0.37 | 220 | 3.5 | 2880 | 62 | 73.8 | 2.8 | 6.2 | 1.8 | ||||||||||||||
YC80B-2 | 0.75 | 0.55 | 220 | 5.3 | 2880 | 65 | 76.5 | 2.8 | 6.5 | 1.8 | ||||||||||||||
YC80C-2 | 1 | 0.75 | 220 | 6.7 | 2880 | 68 | 77.5 | 2.8 | 6.5 | 1.8 | ||||||||||||||
YC90S-2 | 1.5 | 1.1 | 220 | 9.1 | 2880 | 71 | 79.7 | 2.4 | 7.0 | 1.8 | ||||||||||||||
YC100L-2 | 2 | 1.5 | 220 | 11.4 | 2900 | 72 | 81.3 | 2.4 | 7.0 | 1.8 | ||||||||||||||
YC-112M-2 | 3 | 2.2 | 220 | 16.5 | 2900 | 74 | 84.8 | 2.1 | 7.0 | 1.8 | ||||||||||||||
YC112M1-2 | 4 | 3 | 220 | 21.4 | 2900 | 76 | 84.9 | 2.2 | 7.0 | 1.8 | ||||||||||||||
YC112M2-2 | 5 | 3.7 | 220 | 24.8 | 2900 | 79 | 85.5 | 2.2 | 7.0 | 1.8 | ||||||||||||||
220V 5OHz Synchronous Speed 1500r/min (4 Poles) | ||||||||||||||||||||||||
YC80A-4 | 0.33 | 0.25 | 220 | 3.4 | 1450 | 56 | 0.6 | 2.8 | 6.0 | 1.8 | ||||||||||||||
YC80B-4 | 0.5 | 0.37 | 220 | 4.5 | 1450 | 60 | 0.62 | 2.8 | 6.0 | 1.8 | ||||||||||||||
YC80C-4 | 0.75 | 0.55 | 220 | 6 | 1450 | 64 | 0.65 | 2.8 | 6.0 | 1.8 | ||||||||||||||
YC90S-4 | 1 | 0.75 | 220 | 7.7 | 1450 | 67 | 0.66 | 2.4 | 6.5 | 1.8 | ||||||||||||||
YC90L-4 | 1.5 | 1.1 | 220 | 10.4 | 1450 | 70 | 0.68 | 2.4 | 6.5 | 2.8 | ||||||||||||||
YC100L-4 | 2 | 1.5 | 220 | 13.5 | 1450 | 72 | 0.7 | 2.4 | 6.5 | 1.8 | ||||||||||||||
YC112M1-4 | 3 | 2.2 | 220 | 18.5 | 1450 | 72 | 0.72 | 2.4 | 6.5 | 1.8 | ||||||||||||||
YC132SA-4 | 4 | 3 | 220 | 22.4 | 1450 | 74 | 0.73 | 2.1 | 6.5 | 1.8 | ||||||||||||||
YC132SB-4 | 5 | 3.7 | 220 | 26 | 1450 | 75 | 0.74 | 2.1 | 6.5 | 1.8 | ||||||||||||||
YC132M-4 | 7.5 | 5 | 220 | 30.5 | 1450 | 81 | 0.95 | 2.1 | 6.5 | 1.8 |
Our Service:
1. We promise Guaranteed Quality
2.100% tested for quality before shipment
3. Can be designed according to customers' requirements
4. Sincere and Professional Service
