Dual Capacitor Single Phase Induction Motor 4 Pole YL Low Noise Easy Maintenance

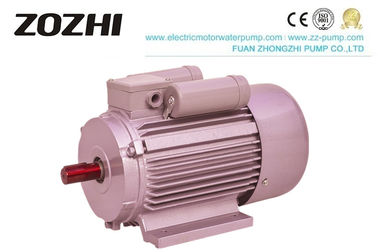

  • Dual Capacitor Single Phase Induction Motor 4 Pole YL Low Noise Easy Maintenance

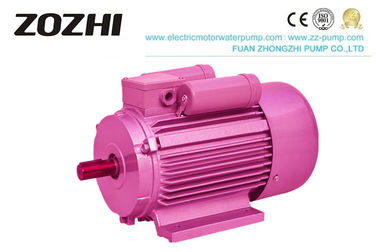

  • Dual Capacitor Single Phase Induction Motor 4 Pole YL Low Noise Easy Maintenance
Place of Origin China
Brand Name ZOZHI
Certification ISO
Model Number YL100L1-4
Minimum Order Quantity 1pc
Price negotiated
Packaging Details Packed in cartons,veneer case or wooden case.
Delivery Time 25 working days after received your payment
Payment Terms T/T, L/C
Supply Ability 10000pcs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Single Phase Induction Motor Application General Driving
Output 2.2KW/3HP Pole 4
Protection Class IP54 Frequency 50Hz
Highlight

single phase capacitor start motor

,

single phase asynchronous motor
Leave a Message
Product Description

Dual Capacitor Single Phase Induction Motor 4 Pole YL Low Noise Easy Maintenance

Single Phase Induction Motor

Product Description
YL series single phase dual-capacitor asynchronous motor is designed and manufactured according to the national standard, newly developed by our company with low noise, compact dimension, lightweight, and easy maintenance. These motors are widely used in air compressors, pumps, fans, refrigeration, medical instruments, and small-size machines, especially for the occasion were only.
A single-phase power supply is available.

YL series single-phase two-value capacitor instruction motor can change within a wide range (180~220V), and at the same time muster the advantages of original YC series and YL series motor.
Product Feature
1. Protection class: IP44
2. Insulation class: B
3. Rated voltage: 220V
4. Cooling type: IC0141
5. Duty: Continuous(S1)
6. Rated frequency: 50HZ,60HZ
Product Specification / Models
Power from 0.5hp to 5hp
Application / Models
This series can be widely used for agricultural machinery (crushers, threshers, and millers), food-processing machines, woodworking machinery, air compressors, fans, pumps, and all kinds of small-sized machines tools.





YL Series single-phase induction motor Data.

Model Power (V)   Speed Eff. P.F. Tstart/Tn Ist/In Tmax/Tn N.W.(kg)
HP KW (A) (r.p.m) (%)
YL711-2 1/2 0.37 220 2.73 2880 67 0.92 1.8 16 1.8 8
YL712-2 3/4 0.55 220 3.88 2880 70 0.92 1.8 21 1.8 9
YL801-2 1 0.75 220 5.15 2800 72 0.92 1.8 29 1.8 11
YL802-2 1.5 1.1 220 7.02 2800 75 0.95 1.8 40 1.8 12
YL90S-2 2 1.5 220 9.44 2820 76 0.95 1.7 55 1.8 13
YL90L-2 3 2.2 220 13.7 2820 77 0.95 1.7 80 1.8 17
YL711-4 1/3 0.25 220 1.99 1400 62 0.92 1.8 12 1.8 8
YL712-4 1/2 0.37 220 2.81 1400 65 0.92 1.8 16 1.8 9
YL801-4 3/4 0.55 220 4 1400 68 0.92 1.8 21 1.8 11
YL802-4 1 0.75 220 5.22 1400 71 0.92 1.8 29 1.8 12
YL90S-4 1.5 1.1 220 7.21 1420 73 0.95 1.7 40 1.8 13
YL90L-4 2 1.5 220 9.57 1420 75 0.95 1.7 55 1.8 17
YL100L1-4 3 2.2 220 13.9 1420 76 0.95 1.7 80 1.8 26
YL100L2-4 4 3 220 18.6 1420 77 0.95 1.7 110 1.8 28
YL112M-4 3 2.2 220 13.9 1440 76 0.95 1.7 80 1.8 31
YL112M1-4 4 3 220 18.6 1440 77 0.95 1.7 110 1.8 34
YL112M2-4 5 3.7 220 23 1440 78 0.95 1.7 138 1.8 38
YL132SA-4 4 3 220 18.6 1440 77 0.95 1.7 110 1.8 55
YL132SB-4 5 3.7 220 23 1440 78 0.95 1.7 138 1.8 60



Dual Capacitor Single Phase Induction Motor 4 Pole YL Low Noise Easy Maintenance 0

What is a feet pellet machine?



The feed pellet machine is a feed processing machine that directly crushes pellets from crushed materials such as corn, soybean meal, straw, grass, and rice husks. The feed pellet machine is widely used in large, medium, and small aquaculture, food feed processing plants, livestock farms, poultry farms, individual farmers, and large, medium, and small feed processing plants in small and medium-sized farms.
