Fan Cooled 4 Pole 3 Phase Induction Motor 220V 380V 440V Y2 For Conveyor Belt

China Fan Cooled 4 Pole 3 Phase Induction Motor 220V 380V 440V Y2 For Conveyor Belt supplier
Fan Cooled 4 Pole 3 Phase Induction Motor 220V 380V 440V Y2 For Conveyor Belt supplier

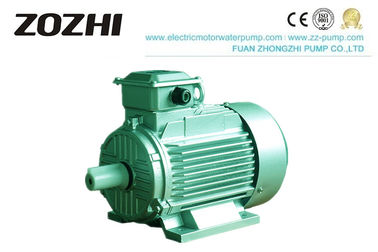

Large Image :  Fan Cooled 4 Pole 3 Phase Induction Motor 220V 380V 440V Y2 For Conveyor Belt

Product Details:

Place of Origin: China
Brand Name: ZOZHI
Certification: ISO
Model Number: Y2-132S2-4

Payment & Shipping Terms:

Minimum Order Quantity: 1pc
Price: negotiated
Packaging Details: Packed in cartons,veneer case or wooden cases
Delivery Time: 25 working days after received your payment
Payment Terms: T/T, L/C
Supply Ability: 10000pcs/month
Contact Now
Detailed Product Description
Product Name: AC Motor Application: Driving
Power: 5.5kw/7.5hp Pole: 4
Phase: 3 Phase Insulation Classtion Class: F
Voltage: 380v Type: Asynchronous Motor

3 Phase Electric Motors 220V 380V 440V Induction Motors Y2 For Conveyor Belt



   Description

1. Y2 series ac 3phase asynchronous induction electric motor.

2. Totally Enclosed Fan Cooled (TEFC) type with squirrel cage.
3. Designed and manufactured in accordance with ISO, IEC, GB standards
4. Renewal and upgrading products of Y series motors
5. Housing material: cast iron





Altitude
Not exceeding 1000m
Ambient temperature
-20℃~+40℃
Cooling method
IC 411
Duty
Continuous (S1)
Connection
Y Star-connection for 3KW and below, Δ Delta-connection for 4KW and above
Terminal box
on Top/ Right/ Left side view from Drive end
Frame Nos.
63-355
Rated Power
0.24HP-420HP (0.18KW-315KW)
Rated voltage
220V, 380V, 400V, 415V, 440V, 460V, 230V/400V, etc
Rated frequency
50HZ/ 60HZ
Constant speed
750rpm, 1000rpm, 1500rpm, 3000rpm
Pole
2p, 4p, 6p, 8p
Insulation class
B/F
Protection class
IP44/ IP54/ IP55
Mounting
B3,B5,B14,B34,V5,V6,V1,V15,etc
Color
blue, green, red, black as your request
Double shaft extension, anti-condensation heater as an option
Winding protection with PTC and PT100 as option



Application

This series of motors are widely used in general agricultural and industrial and mining enterprises to drive machinery with no special requirements on slip rate and other performance, such as water pumps, blowers, transportation machinery, agricultural machinery, mining machinery, metal cutting machine tools, mixers, rice mills, mills Powder machine and so on.

Fan Cooled 4 Pole 3 Phase Induction Motor 220V 380V 440V Y2 For Conveyor Belt



Model Output HP KW Current
(A)
Speed
(r/min)
Eff
(%)
Power
Factor
Eff
(%)
Power
Factor
Eff
(%)
Power
Factor
Tstart/Tn Ist/In Tmax/Tn
380V 5OHz Synchronous Speed 3000r/min (2 Poles)
Y2-631-2 0.25 0.18 0.53 2720 65.0 0.80 63.1 0.75 60.0 0.69 2.2 6.5 2.3
Y2-632-2 0.34 0.25 0.69 2720 68.0 0.81 65.1 0.76 62.0 0.70 2.2 7.0 2.3
Y2-711-2 0.5 0.37 0.99 2740 70.0 0.81 69.0 0.76 66.0 0.71 2.2 7.0 2.3
Y2-712-2 0.75 0.55 1.4 2740 73.0 0.82 71.2 0.70 70.0 0.72 2.2 7.0 2.3
Y2-801-2 1 0.75 1.83 2830 75.0 0.83 73.0 0.77 71.0 0.74 2.2 7.0 2.3
Y2-802-2 1.5 1.1 2.58 2830 77.0 0.84 75.1 0.78 73.0 0.73 2.2 7.0 2.3
Y2-90S-2 2 1.5 3.43 2840 79.0 0.84 77.0 0.78 74.9 0.76 2.0 7.0 2.3
Y2-90L-2 3 2.2 4.85 2840 81.0 0.85 80.0 0.79 79.9 0.76 2.0 7.0 2.3
Y2-100L-2 4 3 6.31 2870 83.0 0.87 82.0 0.80 81.1 0.77 2.0 7.0 2.3
Y2-112M-2 5.5 4 8.1 2890 85.0 0.88 83.9 0.83 82.0 0.80 2.0 7.0 2.2
Y2-132S1-2 7.5 5.5 11 2900 86.0 0.88 84.2 0.83 83.8 0.80 2.0 7.0 2.2
Y2-132S2-2 10 7.5 14.9 2900 87.0 0.88 85.8 0.84 84.9 0.78 2.0 7.0 2.2
Y2-132M1-2 15 11 21.3 2930 88.0 0.89 86.6 0.84 85.1 0.79 2.0 7.0 2.2
Y2-132M2-2 20 15 28.8 2930 89.0 0.89 87.9 0.84 86.4 0.80 2.0 7.0 2.2
Y2-160L-2 25 18.5 34.7 2930 90.0 0.90 89.8 0.86 86.8 0.80 2.0 7.0 2.2
Y2-180M-2 30 22 41 2940 90.0 0.90 88.9 0.86 86.8 0.82 2.0 7.0 2.2
Y2-200L1-2 40 30 55.5 2950 91.2 0.90 89.4 0.85 88.5 0.81 2.0 7.0 2.2
Y2-200L2-2 50 37 67.9 2950 92.0 0.90 91.0 0.86 90.4 0.82 2.0 7.0 2.2
Y2-225M-2 60 45 82.3 2970 92.3 0.90 90.5 0.85 89.7 0.82 1.8 6.8 2.2
Y2-250M-2 75 55 101 2970 92.5 0.90 91.3 0.85 91.0 0.82 1.8 6.8 2.2
Y2-280S-2 100 75 134 2970 93.0 0.90 91.9 0.86 91.5 0.81 1.8 6.8 2.2
Y2-280M-2 125 90 160 2970 93.8 0.91 92.6 0.87 92.2 0.83 1.8 6.8 2.2
Y2-315S-2 150 110 195 2980 94.0 0.91 93.1 0.87 93.0 0.83 1.6 7.0 2.2
Y2-315M-2 180 132 233 2980 94.5 0.91 93.2 0.87 93.1 0.84 1.6 7.1 2.2
Y2-315L1-2 220 160 279 2980 94.6 0.92 93.1 0.88 93.3 0.85 1.6 7.2 2.2
Y2-315L2-2 270 200 348 2980 94.8 0.92 94.0 0.88 93.8 0.85 1.6 7.3 2.2
Y2-355M-2 340 250 433 2980 95.3 0.92 94.8 0.88 94.0 0.85 1.6 7.4 2.2
Y2-355L-2 430 315 544 2980 95.6 0.92 95.0 0.88 94.0 0.85 1.6 7.5 2.2
380V 5OHz Synchronous Speed 1500r/min (4 Poles)
Y2-631-4 0.16 0.12 0.42 1310 57.0 0.72 56.1 0.69 51.9 0.55 2.1 5.2 2.2
Y2-632-4 0.25 0.18 0.62 1310 60.0 0.73 58.5 0.70 56.7 0.59 2.1 5.2 2.2
Y2-711-4 0.34 0.25 0.79 1330 65.0 0.74 62.4 0.73 59.3 0.59 2.1 5.2 2.2
Y2-712-4 0.5 0.37 1.12 1330 67.0 0.75 65.3 0.74 60.1 0.63 2.1 5.2 2.2
Y2-801-4 0.75 0.55 1.57 1390 71.0 0.75 69.2 0.74 68.6 0.64 2.4 5.2 2.3
Y2-802-4 1 0.75 2.03 1390 73.0 0.76 71.7 0.75 70.0 0.67 2.3 6.0 2.3
Y2-90S-4 1.5 1.1 2.89 1400 75.0 0.77 73.1 0.75 72.0 0.67 2.3 6.0 2.3
Y2-90L-4 2 1.5 3.7 1400 78.0 0.79 76.1 0.76 74.1 0.69 2.3 6.0 2.3
Y2-100L1-4 3 2.2 5.16 1430 80.0 0.81 78.0 0.79 75.5 0.69 2.3 7.0 2.3
Y2-100L2-4 4 3 6.78 1430 82.0 0.82 79.9 0.78 78.5 0.70 2.3 7.0 2.3
Y2-112M-4 5.5 4 8.8 1440 84.0 0.82 82.9 0.79 81.1 0.70 2.3 7.0 2.3
Y2-132S-4 7.5 5.5 11.7 1440 85.0 0.83 83.8 0.81 82.2 0.73 2.3 7.0 2.3
Y2-132M-4 10 7.5 15.6 1440 87.0 0.84 85.6 0.82 83.6 0.74 2.3 7.0 2.3
Y2-160M-4 15 11 22.3 1460 88.0 0.84 86.8 0.83 85.9 0.75 2.2 7.5 2.3
Y2-160L-4 20 15 30.1 1460 89.0 0.85 88.9 0.83 88.5 0.75 2.2 7.5 2.3
Y2-180M-4 25 18.5 36.5 1470 90.5 0.86 90.0 0.82 89.5 0.77 2.2 7.5 2.3
Y2-180L-4 30 22 43.2 1470 91.0 0.86 90.2 0.84 89.9 0.76 2.2 7.2 2.3
Y2-200L-4 40 30 57.6 1470 92.0 0.86 91.5 0.84 90.8 0.77 2.2 7.2 2.3
Y2-225S-4 50 37 69.9 1480 92.5 0.87 91.9 0.87 90.3 0.80 2.2 7.2 2.3
Y2-225M-4 60 45 84.7 1480 92.8 0.87 92.4 0.87 90.9 0.80 2.2 7.2 2.3
Y2-250M-4 75 55 103 1480 93.0 0.87 92.7 0.89 91.2 0.81 2.2 7.2 2.3
Y2-280S-4 100 75 140 1480 93.8 0.87 92.4 0.86 91.6 0.80 2.2 7.2 2.3
Y2-280M-4 125 90 167 1490 94.2 0.87 93.0 0.86 92.8 0.78 2.2 7.2 2.3
Y2-315S-4 150 110 201 1490 94.5 0.88 93.3 0.87 92.8 0.81 2.1 6.9 2.2
Y2-315M-4 180 132 240 1490 94.8 0.88 93.8 0.87 93.0 0.81 2.1 6.9 2.2
Y2-315L1-4 220 160 287 1490 94.9 0.89 93.9 0.88 93.1 0.81 2.1 6.9 2.2
Y2-315L2-4 270 200 359 1490 95.0 0.89 94.1 0.88 93.8 0.82 2.1 6.9 2.2
Y2-355M-4 340 250 443 1485 95.3 0.90 94.3 0.88 94.0 0.83 2.1 6.9 2.2
Y2-355L-4 430 315 556 1485 95.6 0.90 94.5 0.89 94.0 0.84 2.1 6.9 2.2

PERFORMANCE CHART
Model Output HP KW Current
(A)
Speed
(r/min)
Eff
(%)
Power
Factor
Tstart/Tn Ist/In Tmax/Tn
380V 5OHz Synchronous Speed 1000r/min (6 Poles)
Y2-711-6 0.25 0.18 0.74 850 56.0 0.66 1.9 4.0 2.0
Y2-712-6 0.34 0.25 0.95 850 59.0 0.68 1.9 4.0 2.0
Y2-801-6 0.5 0.37 1.3 890 62.0 0.70 1.9 4.7 2.0
Y2-802-6 0.75 0.55 1.79 890 65.0 0.72 1.9 4.7 2.1
Y2-90S-6 1 0.75 2.29 910 69.0 0.72 2.0 5.5 2.1
Y2-90L-6 1.5 1.1 3.18 910 72.0 0.73 2.0 5.5 2.1
Y2-100L-6 2 1.5 3.94 940 76.0 0.75 2.0 5.5 2.1
Y2-112M-6 3 2.2 5.6 940 79.0 0.76 2.0 6.5 2.1
Y2-132S-6 4 3 7.4 960 81.0 0.76 2.1 6.5 2.1
Y2-132M1-6 5.5 4 9.8 960 82.0 0.76 2.1 6.5 2.1
Y2-132M2-6 7.5 5.5 12.9 960 84.0 0.77 2.1 6.5 2.1
Y2-160M-6 10 7.5 17 970 86.0 0.77 2.0 6.5 2.1
Y2-160L-6 15 11 24.2 970 87.5 0.78 2.0 6.5 2.1
Y2-180L-6 20 15 31.6 970 89.0 0.81 2.0 7.0 2.1
Y2-200L1-6 25 18.5 38.6 970 90.0 0.81 2.1 7.0 2.1
Y2-200L2-6 30 22 44.7 970 90.0 0.83 2.1 7.0 2.1
Y2-225M-6 40 30 59.3 980 91.5 0.84 2.0 7.0 2.1
Y2-250M-6 50 37 71 980 92.0 0.86 2.1 7.0 2.1
Y2-280S-6 60 45 86 980 92.5 0.86 2.1 7.0 2.0
Y2-280M-6 75 55 105 980 92.8 0.86 2.1 7.0 2.0
Y2-315S-6 100 75 141 990 93.5 0.86 2.0 7.0 2.0
Y2-315M-6 125 90 168 990 93.8 0.86 2.0 7.0 2.0
Y2-315L1-6 150 110 206 990 94.0 0.86 2.0 6.7 2.0
Y2-315L2-6 180 132 244 990 94.2 0.87 2.0 6.7 2.0
Y2-355M1-6 220 160 282 990 94.5 0.88 1.9 6.7 2.0
Y2-355M2-6 270 200 365 990 94.7 0.88 1.9 6.7 2.0
Y2-355L-6 340 250 455 990 94.9 0.88 1.9 6.7 2.0
380V 5OHz Synchronous Speed 750r/min (8 Poles)
Y2-160M1-8 5.5 4 10.3 720 81.0 0.73 2.0 6.0 2.0
Y2-160M2-8 7.5 5.5 13.6 720 83.0 0.74 2.1 6.0 2.0
Y2-160L-8 10 7.5 17.8 720 85.5 0.75 2.1 6.0 2.0
Y2-180L-8 15 11 25.1 730 87.5 0.76 2.1 6.6 2.0
Y2-200L-8 20 15 34.1 730 88.0 0.76 2.0 6.6 2.0
Y2-225S-8 25 18.5 40.6 730 90.0 0.76 2.0 6.6 2.0
Y2-225M-8 30 22 47.4 740 90.5 0.78 2.0 6.6 2.0
Y2-250M-8 40 30 64 740 91.0 0.79 2.0 6.6 2.0
Y2-280S-8 50 37 78 740 91.5 0.79 1.9 6.6 2.0
Y2-280M-8 60 45 94 740 92.0 0.79 1.9 6.6 2.0
Y2-315S-8 75 55 111 740 92.8 0.81 1.9 6.6 2.0
Y2-315M-8 100 75 151 740 93.0 0.81 1.9 6.6 2.0
Y2-315L1-8 125 90 178 740 93.8 0.82 1.9 6.6 2.0
Y2-315L2-8 150 110 217 740 94.0 0.82 2.9 6.4 2.0









Fan Cooled 4 Pole 3 Phase Induction Motor 220V 380V 440V Y2 For Conveyor Belt

GUARANTEE:



Guarantee for one year from shipped on board date. During the guarantee period, our company will provide the free easy-damaged spare part for problems caused by our quality of production or raw material, except the damageable spare parts caused by customer's incorrect man-made operation. After expiration, our company provides cost spare parts for maintenance.







OUR SERVICE:

1. Directly factory sale
2. Quick response to 2-8hours, response rates over 92%
3. 24 hours phone call is available, feel free to contact us.
4. All goods produced by ourselves, we provide one-stop services from designing, printing to processing. Customers can provide the design according to your request and samples making, also we can advise how to make the products according to customers' target prices.


FAQ:


1. Q: What’s the MOQ?
A: We accept one piece.

2. Q: Are you factory or trading company?
A: We are a manufacturer.

3. Q: Can you accept to use our logo?
A: Yes, we can do OEM for you.

4. Q: What’s the warranty period?
A: 1 year.



5. Q: What are the terms of payment?

A: T/T. 30% deposit and 70% against the BL copy or 100% LC at sight.
