2.2kw 3kw 4kw 5.5kw IE3 Motor , High Efficiency Three Phase Induction Motor IP54 IP55

China 2.2kw 3kw 4kw 5.5kw IE3 Motor , High Efficiency Three Phase Induction Motor IP54 IP55 supplier
2.2kw 3kw 4kw 5.5kw IE3 Motor , High Efficiency Three Phase Induction Motor IP54 IP55 supplier 2.2kw 3kw 4kw 5.5kw IE3 Motor , High Efficiency Three Phase Induction Motor IP54 IP55 supplier

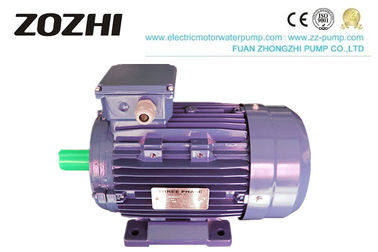

Large Image :  2.2kw 3kw 4kw 5.5kw IE3 Motor , High Efficiency Three Phase Induction Motor IP54 IP55

Product Details:

Place of Origin: China
Brand Name: ZOZHI
Certification: ISO
Model Number: IE3 MS90L-4

Payment & Shipping Terms:

Minimum Order Quantity: 1pc
Price: negotiated
Packaging Details: Packed in cartons,veneer case or wooden case.
Delivery Time: 25 working days after received your payment
Payment Terms: T/T, L/C
Supply Ability: 10000pcs/month
Contact Now
Detailed Product Description
Product Name: IE3 Motor Body Material: Aluminum Or Cast Iron
Output: 0.75kw-11kw Pole: 2, 4 ,6
Protection Class: IP54 , IP55 Frequency: 60Hz Or 50Hz
Rated Voltage: 220V Or 380V Insulation Class: B
Efficiency Class: IE3 Output Speed: 910

IE3 Series High-Efficiency Three Phase Induction Motor 2.2kw 3kw 4kw 5.5kw





Its efficiency improvement design meets the requirements of energy-saving and consumption reduction put forward by the state for the production and manufacturing industry.


The installation dimensions of IE3 series motors conform to the IEC standard. It has a reasonable structure, beautiful appearance, high efficiency, low noise, high level of protection, and insulation. It can be widely used in fan, water pump, machine tool, compressor transport machinery to drive all kinds of general mechanical equipment. It can also be used in petroleum, chemical industry, steel, mining, and other areas where other links are relatively poor.



Product Description
IE3 SERIES HIGH EFFICIENCY THREE PHASE INDUCTION MOTOR
Motor Model
IE3
Power Mode
Alternating current (AC)
Power Supply Phase
Three-phase motor
Function Type
Driving Motor
Working Principle
Asynchronous Motor





E3 Electric Motor Application

As a drive of various kinds of machines, widely applied in industries including mechanical and electro-mechanical industry, food industry, textile industry and so on.



IE3 MOTOR

Features:



IE3 MOTOR



IE3 Electric Motor Data

Model Power (V) (A)

Spee

d r/min

Eff.(%) P.F. Tstart/Tn Ist/In Tmax/Tn N.W. (kg)
Kw HP 50% 75% 100%
IE3 MS801-2 0.75 1 230/400 2.82/1.63 2820 79.7 81.0 80.7 0.831 2.3 6.0 2.3 9.5
IE3 MS802-2 1.1 1.5 4.0/2.3 2820 81.5 82.9 82.7 0.836 2.3 7.5 2.3 11
IE3 MS90S-2 1.5 2 5.23/3.02 2840 84.0 85.0 84.2 0.857 2.4 7.5 2.4 15
IE3 MS90L-2 2.2 3 7.44/4.3 2840 86.0 86.5 85.9 0.865 2.4 7.5 2.4 18
IE3 MS100L-2 3 4 9.9/5.72 2850 88.2 87.3 87.1 0.873 2.4 8.0 2.4 25
IE3 MS112M-2 4 5.5 400/690 7.48/4.32 2870 88.0 88.4 88.1 0.880 2.4 8.5 2.4 28.5
IE3 MS132S1-2 5.5 7.5 10/5.8 2900 89.1 89.6 89.2 0.890 2.2 7.5 2.4 41
IE3 MS132S2-2 7.5 10 13.5/7.8 2900 90.0 90.5 90.1 0.892 2.2 7.5 2.4 46.5
IE3 MS160M1-2 11 15 19.5/11.3 2920 89.8 91.3 91.2 0.896 2.2 8.5 2.4 81
IE3 MS160M2-2 15 20 26.2/15.1 2920 91.6 92.0 91.9 0.805 2.2 8.5 2.4 93
IE3 MS160L-2 18.5 25 31.9/18.4 2920 92.1 92.5 92.4 0.910 2.2 8.5 2.4 104
IE3 MS802-4 0.75 1 230/400 2.97/1.72 1400 81.0 82.7 82.5 0.770 2.4 7.0 2.4 12
IE3 MS90S-4 1.1 1.5 4.25/2.45 1420 82.6 84.3 84.1 0.775 2.4 7.5 2.4 16
IE3 MS90L-4 1.5 2 5.68/3.28 1420 83.8 85.4 85.3 0.778 2.4 8.0 2.4 20
IE3 MS100L1-4 2.2 3 8.0/4.62 1440 84.3 86.7 86.7 0.798 2.4 8.0 2.4 26
IE3 MS100L2-4 3 4 10.8/6.2 1440 86.0 87.6 87.7 0.801 2.4 8.0 2.4 30
IE3 MS112M-4 4 5.5 400/690 7.97/4.6 1450 88.3 88.8 88.6 0.821 2.4 7.5 2.4 38
IE3 MS132S-4 5.5 7.5 10.8/6.2 1450 89.0 89.7 89.6 0.825 2.3 7.5 2.4 46
IE3 MS132M-4 7.5 10 14.4/8.32 1450 90.1 90.6 90.4 0.834 2.3 7.5 2.4 54
IE3 MS160M-4 11 15 20.8/12.0 1460 90.5 91.5 91.4 0.838 2.2 7.0 2.4 88
IE3 MS160L-4 15 20 27.9/16.1 1460 91.5 92.5 92.1 0.847 2.2 7.0 2.4 103
IE3 MS90S-6 0.75 1 230/400 3.42/1.97 910 77.5 94.4 78.9 0.700 2 4.0 2.3 15
IE3 MS90L-6 1.1 1.5 4.8/2.78 910 80.2 81.3 81.0 0.710 2 4.0 2.3 20
IE3 MS100L1-6 1.5 2 6.35/3.66 930 81.3 82.6 82.5 0.720 2 5.0 2.3 25
IE3 MS112M-6 2.2 3 8.98/5.2 940 83.2 85.0 84.3 0.730 2 5.0 2.3 30
IE3 MS132S-6 3 4 11.9/6.87 960 84.5 85.8 85.6 0.740 2.2 6.5 2.3 38.5
IE3 MS132M1-6 4 5.5 400/690 9.0/5.2 960 85.3 86.9 86.8 0.745 2.2 7.0 2.3 47.5
IE3 MS132M2-6 5.5 7.5 12.1/7.0 960 86.9 88.2 88.0 0.750 2.2 7.0 2.3 58
IE3 MS160M-6 7.5 10 16.1/9.3 970 87.5 89.0 89.1 0.760 2.2 7.0 2.3 83
IE3 MS160L-6 11 15 22.9/13.2 970 89.0 90.2 90.3 0.770 2.2 7.0 2.3 99



I

2.2kw 3kw 4kw 5.5kw IE3 Motor , High Efficiency Three Phase Induction Motor IP54 IP55

HOLLOW SHAFT MOTOR SWIMMING POOL PUMP ELECTRIC MOTOR
PRESSURE SWITH PRESSURE SWITCH PRESSURE SWITCH
water pump water pump mechnical seal



Guarantee:



Guarantee for one year from shipped on board date. During the guarantee period, our company will provide the free easy-damaged spare part for problems caused by our quality of production or raw material, except the damageable spare parts caused by the customer's incorrect man-made operation. After expiration, our company provides cost spare parts for maintenance.





Our Service:

1. Free maintenance within 12 months guarantee.
2. We cooperate with customers to design and develop a new product.
3. We'd like to assist you in arranging delivery things, test things or others on your request.
4. Customize production.
1. We are a professional manufacturer with more than 13 years experience in Electric motor
2. We are Made in China Gold Supplier
3.we test the material before production and three to four times when producing to ensure the goods in good quality, also we produce according to request
4.we can be your OEM manufacturer with your authorization of brand.


FAQ:


1. Q: What’s the MOQ?
A: We accept one piece.

2. Q: Are you a factory or trading company?
A: We are a manufacturer.

3. Q: Can you accept to use our logo?
A: Yes, we can do OEM for you.

4. Q: What’s the warranty period?
A: 1 year.



5. Q: What are the terms of payment?

A: T/T. 30% deposit and 70% against the BL copy or 100% LC at sight.
