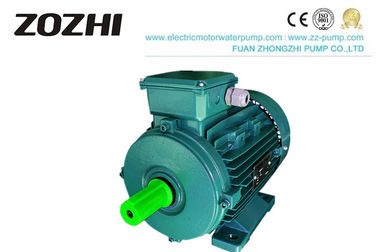

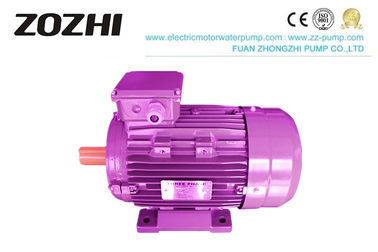

IEC Efficiency 3 Phase Induction Motor 380 Volts IP54 IP55 For Feed Pellet Machine
Place of Origin | China |
---|---|
Brand Name | ZOZHI |
Certification | ISO |
Model Number | MS802-4 |
Minimum Order Quantity | 10PCS |
Price | negotiated |
Packaging Details | Packed in cartons,veneer case or wooden case. |
Delivery Time | 25 working days after received your payment |
Payment Terms | T/T, L/C, Western Union, E-checking |
Supply Ability | 10000pcs/month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xOutput | 0.75KW/1HP | Pole | 4 |
---|---|---|---|
Motor Bearing | C&U (SKF For Choice) | Efficiency | IE1 IE2 IE3 |
Motor Housing | Aluminum | Protection Class | IP54/IP55 |
Insulation Class | F Class | Color | Customizable |
Product Name | 3 Phase Induction Motor | ||
High Light | squirrel cage electric motor,three phase induction motor |
IEC 3Phase Motors 380Volts Three Phase Asynchronous Motor For Feed Pellet Machine
3 Phase Induction Motor
Motor Summary
Rated output: 0.12 ~ 7.5 kW
Frame Size:80 ~ 355
Rated voltage: 380V 50Hz
Cooling method: IC411
Protection degree: IP55
Insulation class: F
Re-greasing device: Frame size 56~132
motor standard Coolant temperature: -15 ~ 40 ºC
Site altitude: Up to 1000 m above sea level
Overview
MS series three-phase asynchronous motors are enclosed fan-cooled structures whose efficiency follows IEC standards.
This series of products have high performance, safe and reliable use, slight vibration, low noise characteristics, and conforms to environmental protection requirements.
Technical Features
- Higher stiffness of mechanical performance
- High-quality bearing and lubrication
- Low noise
- High reliability
- High-quality lamination
Application
Technical data
Model | Power | (V) | (HZ) | Current (A) | Power Factor |
Eff (%) |
Speed (r/min) |
Tstart/ Tn |
Tmax/ Tn |
Ist/ In |
||||||||||||||
HP | KW | |||||||||||||||||||||||
MS561-2 | 0.12 | 0.09 | 380 | 50 | 0.3 | 0.76 | 60 | 2750 | 2.3 | 2.4 | 6 | |||||||||||||
MS562-2 | 0.16 | 0.12 | 0.37 | 0.78 | 63 | 2750 | 2.3 | 2.4 | 6 | |||||||||||||||
MS631-2 | 0.25 | 0.18 | 0.53 | 0.75 | 69 | 2800 | 2.2 | 2.4 | 4.5 | |||||||||||||||
MS632-2 | 0.33 | 0.25 | 0.68 | 0.78 | 72 | 2800 | 2.2 | 2.4 | 4.5 | |||||||||||||||
MS711-2 | 0.5 | 0.37 | 0.98 | 0.8 | 73 | 2800 | 2.2 | 2.4 | 4.5 | |||||||||||||||
MS712-2 | 0.75 | 0.55 | 1.35 | 0.82 | 75 | 2800 | 2.2 | 2.4 | 4.5 | |||||||||||||||
MS801-2 | 1 | 0.75 | 1.75 | 0.85 | 76 | 2800 | 2.2 | 2.4 | 4.5 | |||||||||||||||
MS802-2 | 1.5 | 1.1 | 2.55 | 0.85 | 77 | 2800 | 2.2 | 2.4 | 4.5 | |||||||||||||||
MS90S-2 | 2 | 1.5 | 3.36 | 0.87 | 78 | 2800 | 2.2 | 2.4 | 4.5 | |||||||||||||||
MS90L-2 | 3 | 2.2 | 4.93 | 0.87 | 78 | 2800 | 2.2 | 2.4 | 5 | |||||||||||||||
MS100L-2 | 4 | 3 | 6.31 | 0.87 | 83 | 2880 | 2.3 | 2.4 | 7 | |||||||||||||||
MS112M-2 | 5.5 | 4 | 8.12 | 0.88 | 85 | 2890 | 2.3 | 2.4 | 7 | |||||||||||||||
MS132S1-2 | 7.5 | 5.5 | 11 | 0.88 | 86 | 2900 | 2.3 | 2.4 | 7 | |||||||||||||||
MS132S2-2 | 10 | 7.5 | 14.9 | 0.88 | 87 | 2900 | 2.3 | 2.4 | 7 | |||||||||||||||
MS160L-2 | 25 | 18.5 | 34.7 | 0.9 | 90 | 2930 | 2.3 | 2.4 | 7 | |||||||||||||||
MS561-4 | 0.08 | 0.06 | 0.27 | 0.68 | 50 | 1300 | 2.2 | 2.3 | 5.5 | |||||||||||||||
MS562-4 | 0.12 | 0.09 | 0.36 | 0.7 | 54 | 1300 | 2.2 | 2.3 | 5.5 | |||||||||||||||
MS631-4 | 0.16 | 0.12 | 0.48 | 0.63 | 60 | 1400 | 2.2 | 2.4 | 4.5 | |||||||||||||||
MS632-4 | 0.25 | 0.18 | 0.65 | 0.66 | 64 | 1400 | 2.2 | 2.4 | 4.5 | |||||||||||||||
MS711-4 | 0.33 | 0.25 | 0.83 | 0.68 | 67 | 1400 | 2.2 | 2.4 | 4.5 | |||||||||||||||
MS712-4 | 0.5 | 0.37 | 1.12 | 0.72 | 69 | 1400 | 2.2 | 2.4 | 4.5 | |||||||||||||||
MS801-4 | 0.75 | 0.55 | 1.56 | 0.73 | 73 | 1400 | 2.2 | 2.4 | 4.5 | |||||||||||||||
MS802-4 | 1 | 0.75 | 2.01 | 0.75 | 75 | 1400 | 2.2 | 2.4 | 4.5 | |||||||||||||||
MS90S-4 | 1.5 | 1.1 | 2.83 | 0.78 | 76 | 1400 | 2.3 | 2.4 | 5 | |||||||||||||||
MS90L-4 | 2 | 1.5 | 3.84 | 0.78 | 76 | 1400 | 2.2 | 2.4 | 5 | |||||||||||||||
MS100L1-4 | 3 | 2.2 | 4.2 | 0.75 | 75 | 1400 | 2.2 | 2.4 | 5 | |||||||||||||||
MS100L2-4 | 4 | 3 | 6.78 | 0.82 | 82 | 1410 | 2.3 | 2.4 | 7 | |||||||||||||||
MS112M-4 | 5.5 | 4 | 8.82 | 0.82 | 84 | 1435 | 2.3 | 2.4 | 7 | |||||||||||||||
MS132S-4 | 7.5 | 5.5 | 11.8 | 0.83 | 85.5 | 1445 | 2.3 | 2.4 | 7 | |||||||||||||||
MS132M-4 | 10 | 7.5 | 15.6 | 0.84 | 87 | 1445 | 2.3 | 2.4 | 7 | |||||||||||||||
MS711-6 | 0.24 | 0.18 | 0.74 | 0.66 | 56 | 900 | 2 | 2.2 | 5.5 | |||||||||||||||
MS712-6 | 0.33 | 0.25 | 0.95 | 0.68 | 59 | 900 | 2 | 2.2 | 5.5 | |||||||||||||||
MS801-6 | 0.5 | 0.37 | 1.3 | 0.7 | 62 | 900 | 2 | 2.2 | 5.5 | |||||||||||||||
MS802-6 | 0.75 | 0.55 | 1.79 | 0.72 | 65 | 900 | 2 | 2.2 | 5.5 | |||||||||||||||
MS90S-6 | 1 | 0.75 | 2.29 | 0.72 | 69 | 910 | 2.1 | 2.2 | 5.5 | |||||||||||||||
MS90L-6 | 1.5 | 1.1 | 3.18 | 0.73 | 72 | 910 | 2.1 | 2.2 | 5.5 | |||||||||||||||
MS100L-6 | 2 | 1.5 | 3.89 | 0.76 | 76 | 940 | 2.1 | 2.2 | 5.5 | |||||||||||||||
MS112M-6 | 3 | 2.2 | 5.57 | 0.76 | 79 | 940 | 2.2 | 2.3 | 6.5 | |||||||||||||||
MS132S-6 | 4 | 3 | 7.4 | 0.76 | 81 | 960 | 2.2 | 2.3 | 6.5 | |||||||||||||||
MS132M1-6 | 5.5 | 4 | 9.75 | 0.76 | 82 | 960 | 2.2 | 2.3 | 6.5 | |||||||||||||||
MS132M2-6 | 7.5 | 5.5 | 12.9 | 0.77 | 84 | 960 | 2.2 | 2.3 | 6.5 |
