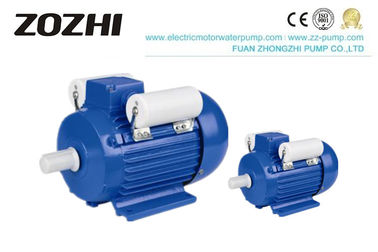

YL Series Single Phase Induction Motor 2.2KW 3HP For Feed Processing System

  • YL Series Single Phase Induction Motor 2.2KW 3HP For Feed Processing System
Place of Origin China
Brand Name ZOZHI
Certification ISO
Model Number YL100L1-4
Minimum Order Quantity 1pc
Price negotiated
Packaging Details Packed in cartons,veneer case or wooden case.
Delivery Time 25 working days after received your payment
Payment Terms T/T, L/C
Supply Ability 10000pcs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Single Phase Induction Motor Application General Driving
Output 2.2KW/3HP Pole 4
Protection Class IP54 Frequency 50Hz
High Light

single phase capacitor start motor

,

single phase asynchronous motor
Leave a Message
Product Description

YL Series Single Phase Asynchronous AC Electric Induction Motor For Feed Processing System

Single Phase Induction Motor

Product Description
1) YL AC motors are totally enclosed fan cooled single phase squirrel cage induction motors.

2) YL AC motor is adopted by modern technology. It has higher starting torque and higher efficiency than the YC series motor.
Product Feature
1. Protection class: IP44
2. Insulation class: B
3. Rated voltage: 220V
4. Cooling type: IC0141
5. Duty: Continuous(S1)
6. Rated frequency: 50HZ,60HZ
Product Specification / Models
Power from 0.5hp to 5hp
Application / Models
This series of capacitor run motors are used in air compressors, pumps, fans, refrigeration, medical instruments,, small machines, etc.., especially for the occasion where only a single-phase power supply is available.





YL Series single-phase induction motor Data..

Model Power (V)   Speed Eff. P.F. Tstart/Tn Ist/In Tmax/Tn N.W.(kg)
HP KW (A) (r.p.m) (%)
YL711-2 1/2 0.37 220 2.73 2880 67 0.92 1.8 16 1.8 8
YL712-2 3/4 0.55 220 3.88 2880 70 0.92 1.8 21 1.8 9
YL801-2 1 0.75 220 5.15 2800 72 0.92 1.8 29 1.8 11
YL802-2 1.5 1.1 220 7.02 2800 75 0.95 1.8 40 1.8 12
YL90S-2 2 1.5 220 9.44 2820 76 0.95 1.7 55 1.8 13
YL90L-2 3 2.2 220 13.7 2820 77 0.95 1.7 80 1.8 17
YL711-4 1/3 0.25 220 1.99 1400 62 0.92 1.8 12 1.8 8
YL712-4 1/2 0.37 220 2.81 1400 65 0.92 1.8 16 1.8 9
YL801-4 3/4 0.55 220 4 1400 68 0.92 1.8 21 1.8 11
YL802-4 1 0.75 220 5.22 1400 71 0.92 1.8 29 1.8 12
YL90S-4 1.5 1.1 220 7.21 1420 73 0.95 1.7 40 1.8 13
YL90L-4 2 1.5 220 9.57 1420 75 0.95 1.7 55 1.8 17
YL100L1-4 3 2.2 220 13.9 1420 76 0.95 1.7 80 1.8 26
YL100L2-4 4 3 220 18.6 1420 77 0.95 1.7 110 1.8 28
YL112M-4 3 2.2 220 13.9 1440 76 0.95 1.7 80 1.8 31
YL112M1-4 4 3 220 18.6 1440 77 0.95 1.7 110 1.8 34
YL112M2-4 5 3.7 220 23 1440 78 0.95 1.7 138 1.8 38
YL132SA-4 4 3 220 18.6 1440 77 0.95 1.7 110 1.8 55
YL132SB-4 5 3.7 220 23 1440 78 0.95 1.7 138 1.8 60



YL Series Single Phase Induction Motor 2.2KW 3HP For Feed Processing System 0

What is a feet pellet machine?



The feed pellet machine is a feed processing machine that directly crushes pellets from crushed materials such as corn, soybean meal, straw, grass, and rice husks. The feed pellet machine is widely used in large, medium, and small aquaculture, food feed processing plants, livestock farms, poultry farms, individual farmers, and large, medium, and small feed processing plants in small and medium-sized farms.
