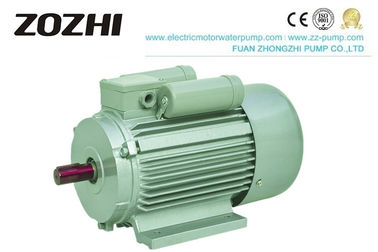

IP44 Water Pump Motor 1.5KW 220 Volt Ac Electric Type YC100L-4 2HP 1400RPM
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Name | Single Phase Induction Motor | Application | Flatting Mill Machine |
---|---|---|---|
Output | 1.5KW/2HP | Pole | 4 |
Protection Class | IP54 | Insulation Class | B |
High Light | single phase capacitor start motor,single phase asynchronous motor |
IP44 Water Pump Motor 1.5KW 220 Volt Ac Electric Motor YC100L-4 2HP 1400RPM
Single Phase Induction Motor
1.ZOZHI has hundreds of intelligent processing equipment.
2.ZOZHI has passed the ISO9001 management system certification. Accordingly, the electric motor obtains the corresponding CCC certificate.
3.ZOZHI Has won more than 30 national technology patents and several provincial honors. In addition, cutting pump gains national invention patents.
4. Our intelligent motor won't burn the machine when it blocks up. The sound and light alarm device can report the failure in time.
Models
|
YC100L-4
|
|
Brand Name:
|
ZOZHI | |
Output Power:
|
1.5KW/2HP
|
|
Phase:
|
Single-phase
|
|
Protect Feature:
|
Totally Enclosed
|
|
Housing:
|
Cast Iron housing
|
|
Winding:
|
100% Copper Wire
|
|
Insulation class:
|
Class B, Class F
|
|
Protection class:
|
IP44, IP54, IP55
|
|
Cooling Method:
|
IC0141
|
|
Application | Grain Flatting Machine |
Performance Chart:
Model | Output HP KW | Voltage (V) |
Current (A) |
Speed (r/min) |
Eff (%) |
Power Factor |
Tstart/Tn | Ist/In | Tmax/Tn | |||||||||||||||
220V 5OHz Synchronous Speed 3000r/min (2 Poles) | ||||||||||||||||||||||||
YC80A-2 | 0.5 | 0.37 | 220 | 3.5 | 2880 | 62 | 73.8 | 2.8 | 6.2 | 1.8 | ||||||||||||||
YC80B-2 | 0.75 | 0.55 | 220 | 5.3 | 2880 | 65 | 76.5 | 2.8 | 6.5 | 1.8 | ||||||||||||||
YC80C-2 | 1 | 0.75 | 220 | 6.7 | 2880 | 68 | 77.5 | 2.8 | 6.5 | 1.8 | ||||||||||||||
YC90S-2 | 1.5 | 1.1 | 220 | 9.1 | 2880 | 71 | 79.7 | 2.4 | 7.0 | 1.8 | ||||||||||||||
YC100L-2 | 2 | 1.5 | 220 | 11.4 | 2900 | 72 | 81.3 | 2.4 | 7.0 | 1.8 | ||||||||||||||
YC-112M-2 | 3 | 2.2 | 220 | 16.5 | 2900 | 74 | 84.8 | 2.1 | 7.0 | 1.8 | ||||||||||||||
YC112M1-2 | 4 | 3 | 220 | 21.4 | 2900 | 76 | 84.9 | 2.2 | 7.0 | 1.8 | ||||||||||||||
YC112M2-2 | 5 | 3.7 | 220 | 24.8 | 2900 | 79 | 85.5 | 2.2 | 7.0 | 1.8 | ||||||||||||||
220V 5OHz Synchronous Speed 1500r/min (4 Poles) | ||||||||||||||||||||||||
YC80A-4 | 0.33 | 0.25 | 220 | 3.4 | 1450 | 56 | 0.6 | 2.8 | 6.0 | 1.8 | ||||||||||||||
YC80B-4 | 0.5 | 0.37 | 220 | 4.5 | 1450 | 60 | 0.62 | 2.8 | 6.0 | 1.8 | ||||||||||||||
YC80C-4 | 0.75 | 0.55 | 220 | 6 | 1450 | 64 | 0.65 | 2.8 | 6.0 | 1.8 | ||||||||||||||
YC90S-4 | 1 | 0.75 | 220 | 7.7 | 1450 | 67 | 0.66 | 2.4 | 6.5 | 1.8 | ||||||||||||||
YC90L-4 | 1.5 | 1.1 | 220 | 10.4 | 1450 | 70 | 0.68 | 2.4 | 6.5 | 2.8 | ||||||||||||||
YC100L-4 | 2 | 1.5 | 220 | 13.5 | 1450 | 72 | 0.7 | 2.4 | 6.5 | 1.8 | ||||||||||||||
YC112M1-4 | 3 | 2.2 | 220 | 18.5 | 1450 | 72 | 0.72 | 2.4 | 6.5 | 1.8 | ||||||||||||||
YC132SA-4 | 4 | 3 | 220 | 22.4 | 1450 | 74 | 0.73 | 2.1 | 6.5 | 1.8 | ||||||||||||||
YC132SB-4 | 5 | 3.7 | 220 | 26 | 1450 | 75 | 0.74 | 2.1 | 6.5 | 1.8 | ||||||||||||||
YC132M-4 | 7.5 | 5 | 220 | 30.5 | 1450 | 81 | 0.95 | 2.1 | 6.5 | 1.8 |
Our Service:
1. We promise Guaranteed Quality
2.100% tested for quality before shipment
3.Can be designed according to customers' requirements
4.Sincere and Professional Service
