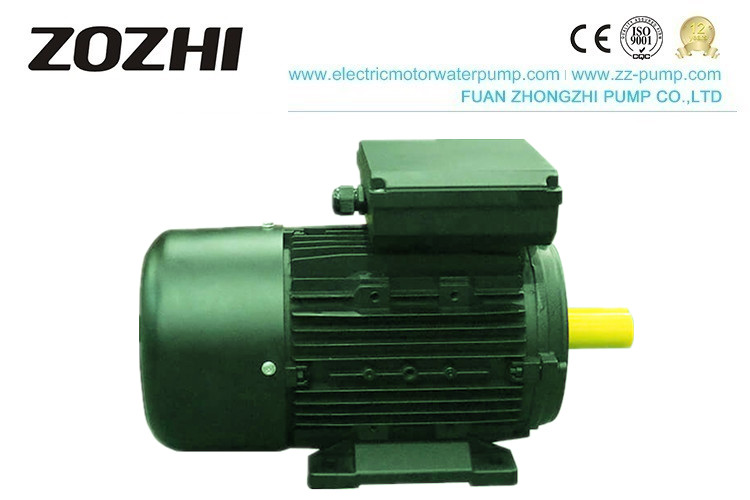

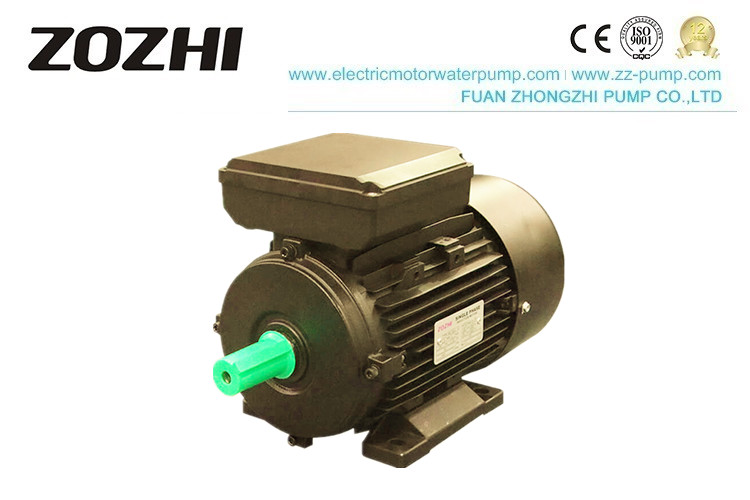

ML 3hp Electric Single Phase Induction Motor 2800rpm 100% Copper IEC Standard

China ML 3hp Electric Single Phase Induction Motor 2800rpm 100% Copper IEC Standard supplier
ML 3hp Electric Single Phase Induction Motor 2800rpm 100% Copper IEC Standard supplier ML 3hp Electric Single Phase Induction Motor 2800rpm 100% Copper IEC Standard supplier

Large Image :  ML 3hp Electric Single Phase Induction Motor 2800rpm 100% Copper IEC Standard

Product Details:

Place of Origin: China
Brand Name: ZOZHI
Certification: ISO
Model Number: ML100L-2

Payment & Shipping Terms:

Minimum Order Quantity: 1pc
Price: negotiated
Packaging Details: Packed in cartons,veneer case or wooden case.
Delivery Time: 25 working days after received your payment
Payment Terms: T/T, L/C
Supply Ability: 10000pcs/month
Contact Now
Detailed Product Description
Product Name: Induction Motor Application: General Driving
Output: 3KW Pole: 2
Protection Class: IP54 Frequency: 50Hz
Insulation Class: H

ML 3hp Electric Motor 2800rpm AC Single Phase Motor With 100% Copper  IEC Standard



ML Series Single-Phase Induction Motor Description



1. ML Series Aluminum housing single-phase dual capacitor asynchronous motors, with the latest design in entirety, is made of quality materials and meets the relative rules of IEC standard.



2. ML motors have good performance, safe and reliable operation, nice appearance, and can be maintained very conveniently, while with low noise, little vibration, lightweight and simple construction. The competitive performance is good, the multiple of starting torque is 1.8-2.5.



3. This series motors are suitable for the occasion where there requirements of big starting torque and high overloads, such as air-compressorspumps, fan's medical apparatus and instruments, and many other small machines.





single phase induction motor

ML Series Single-Phase Induction Motor Application

ML series aluminum housing motor has good performance and is widely used in electroplating equipment, rice machinery, flour machinery, ceramic machinery, cutting machinery, and other industrial and mechanical industries.

single-phase induction motor



ML Series Single-Phase Induction Motor Data



Model Power
(KW)

(V)

(A)
Speed
(r/min)
Eff.
(%)
P.F. Tstart/Tn Tmax/Tn Ist/In (A)
ML711-2 0.37 220 2.73 2800 67 0.92 2.3 1.8 16
ML712-2 0.55 220 3.88 2800 70 0.92 2.5 1.8 21
ML801-2 0.75 220 5.15 2800 72 0.92 2.5 1.8 30
ML802-2 1.10 220 7.02 2800 75 0.95 2.5 1.8 40
ML90S-2 1.50 220 9.44 2800 76 0.95 2.5 1.8 55
ML90L-2 2.20 220 13.67 2800 77 0.95 2.5 1.8 80
ML100L-2 3.00 220 18.2 2800 79 0.95 2.5 1.8 110
ML711-4 0.25 220 1.99 1400 62 0.92 2.5 1.8 12
ML712-4 0.37 220 2.81 1400 65 0.92 2.5 1.8 16
ML801-4 0.55 220 4.0 1400 68 0.92 2.5 1.8 21
ML802-4 0.75 220 5.22 1400 71 0.92 2.5 1.8 30
ML90S-4 1.10 220 7.2 1400 73 0.95 2.5 1.8 40
ML90L-4 1.50 220 9.57 1400 75 0.95 2.5 1.8 55
ML100L1-4 2.20 220 13.9 1400 76 0.95 2.5 1.8 80
ML100L2-4 3.00 220 18.6 1400 77 0.95 2.5 1.8 110



ML Series Single-Phase Induction Motor Feature

utilize IP 54/IP55
multiple feet locations
aluminum frame, end shields, and base
high strength cable gland
shaft key and protector supplied
superior paint finish
motors made to heavy-duty service factors
can be made with stainless steel shaft
motors made for continuous S1 duty
utilize vacuum impregnated Class B or Class F insulation
others insulation on request
high performance and efficiency





GUARANTEE:



Guarantee for one year from shipped on board date. During the guarantee period, our company will provide the free easy-damaged spare part for problems caused by our quality of production or raw material, except the damageable spare parts caused by customer's incorrect man-made operation. After expiration, our company provides cost spare parts for maintenance.





OUR SERVICE:

1. Directly factory sale
2. Quick response to 2-8hours, response rates over 92%
3. 24 hours phone call is available, feel free to contact us.
4. All goods produced by ourselves, we provide one-stop services from designing, printing to processing. Customers can provide the design according to your request and the samples making, also we can advise how to make the products according to customers' target prices.


FAQ:


1. Q: What’s the MOQ?
A: We accept one piece.

2. Q: Are you a factory or trading company?
A: We are a manufacturer.

3. Q: Can you accept to use our logo?
A: Yes, we can do OEM for you.

4. Q: What’s the warranty period?
A: 1 year.



5. Q: What are the terms of payment?

A: T/T. 30% deposit and 70% against the BL copy or 100% LC at sight.
