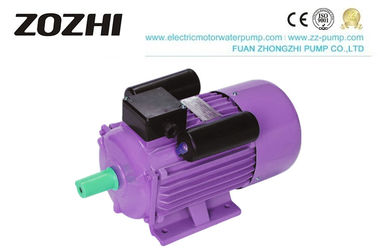

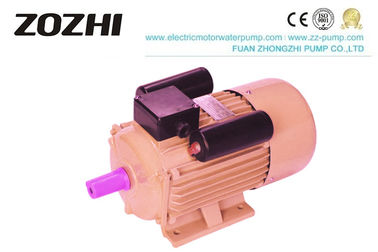

YC Dual Capacitor Single Phase Induction Motor Asynchronous IP54 0.18kw-5kw

  • YC Dual Capacitor Single Phase Induction Motor Asynchronous IP54 0.18kw-5kw
  • YC Dual Capacitor Single Phase Induction Motor Asynchronous IP54 0.18kw-5kw
Place of Origin China
Brand Name ZOZHI
Certification ISO
Model Number YC132SA-4
Minimum Order Quantity 1pc
Price negotiated
Packaging Details Packed in cartons,veneer case or wooden case.
Delivery Time 25 working days after received your payment
Payment Terms T/T, L/C
Supply Ability 10000pcs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Single Phase Induction Motor Application Flatting Mill Machine
Output 3KW/4HP Pole 4
Protection Class IP54 Insulation Class B
High Light

single phase capacitor start motor

,

single phase asynchronous motor
Leave a Message
Product Description

YC Dual Capacitor Single Phase Induction Motor Asynchronous IP54 0.18kw-5kw

Single Phase Induction Motor

Product title
asynchronous motors
Model Number
YC
Type
AC Motor
Frequency
50Hz
Output Power
0.25kw-5kw
Phase
Single-phase
Certification
CE, CCC, ISO9001
Rated voltage
240V
Efficiency
IE1,IE2,IE3
Series
YL Series Motor
Frame
Cast Iron or Aluminum
Poles
2, 4
Ambient temperature
-15° ℃ ≤0 ≤ 40 ℃
Altitude
1000 Meters
Duty
Continuous(S1)
Insulation Class
Class B/F
Protection Class
IP44/IP54/IP55
Cooling Method
IC0141 (total-enclosed fan-cooled type)
Price
USD
Minimum Order Quantity
20 Piece/Pieces, USD
Packaging Details
Foam, carton, and plywood. We can pack according to your requirement.
Delivery Time
15-25 days after received the payment
Payment Terms
L/C,T/T
Supply Ability
10,000 Piece/Pieces per Month
Materials
cast iron(71-112), aluminum (FRAME71 -100)
Mounting types
IMB3, IMB5, IMB35
Connection
"Y" type for 3kW and downwards, "D" type for 3kW and upwards
Relative humidity
not higher than 90%
Special motors can be designed according to customers' requirements.




YC Dual Capacitor Single Phase Induction Motor Asynchronous IP54 0.18kw-5kw 0



What is a grain flattening machine

♦ The grain flattening machine can press wheat, barley, soybeans, beans, coffee bean, peanuts into a thin sheet or crushed into small particles. It will be easy for porridge or soup, easy to mature, digest, and absorb.

♦ It is widely used in the food industry, chemical industry, wine-making industry, beer factory, medicine manufacturer.

♦ It retains the original taste and nutrients, improves the utilization rate of the grain feed, it also used for large and medium-sized farms.



Performance Chart:



Model    Output     HP    KW Voltage
(V)		 Current
(A)		 Speed
(r/min)		 Eff
(%)		 Power
Factor		 Tstart/Tn Ist/In Tmax/Tn
220V 5OHz Synchronous Speed 3000r/min (2 Poles)
YC80A-2 0.5 0.37 220 3.5 2880 62 73.8 2.8 6.2 1.8
YC80B-2 0.75 0.55 220 5.3 2880 65 76.5 2.8 6.5 1.8
YC80C-2 1 0.75 220 6.7 2880 68 77.5 2.8 6.5 1.8
YC90S-2 1.5 1.1 220 9.1 2880 71 79.7 2.4 7.0 1.8
YC100L-2 2 1.5 220 11.4 2900 72 81.3 2.4 7.0 1.8
YC-112M-2 3 2.2 220 16.5 2900 74 84.8 2.1 7.0 1.8
YC112M1-2 4 3 220 21.4 2900 76 84.9 2.2 7.0 1.8
YC112M2-2 5 3.7 220 24.8 2900 79 85.5 2.2 7.0 1.8
220V 5OHz Synchronous Speed 1500r/min (4 Poles)
YC80A-4 0.33 0.25 220 3.4 1450 56 0.6 2.8 6.0 1.8
YC80B-4 0.5 0.37 220 4.5 1450 60 0.62 2.8 6.0 1.8
YC80C-4 0.75 0.55 220 6 1450 64 0.65 2.8 6.0 1.8
YC90S-4 1 0.75 220 7.7 1450 67 0.66 2.4 6.5 1.8
YC90L-4 1.5 1.1 220 10.4 1450 70 0.68 2.4 6.5 2.8
YC100L-4 2 1.5 220 13.5 1450 72 0.7 2.4 6.5 1.8
YC112M1-4 3 2.2 220 18.5 1450 72 0.72 2.4 6.5 1.8
YC132SA-4 4 3 220 22.4 1450 74 0.73 2.1 6.5 1.8
YC132SB-4 5 3.7 220 26 1450 75 0.74 2.1 6.5 1.8
YC132M-4 7.5 5 220 30.5 1450 81 0.95 2.1 6.5 1.8







electric motor data





Guarantee:



Guarantee for one year from shipped on board date. During the guarantee period, our company will provide free easy-damaged spare parts for problems caused by our quality of production or raw material, except the damageable spare parts caused by customer's incorrect artificial operation. In addition, after expiration, our company provides cost spare parts for maintenance.





Our Service:

1. Directly factory sale
2. Quick response to 2-8hours, response rates over 92%
3. 24 hours phone call is available. Feel free to contact us.
4. All goods produced by ourselves, we provide one-stop services from designing, printing to processing. Customers can provide the design according to your request and sample making. Also, we can advise how to make the products according to customers' target prices.


FAQ:


1. Q: What’s the MOQ?
A: We accept one piece.

2. Q: Are you a factory or trading company?
A: We are a manufacturer.

3. Q: Can you accept using our logo?
A: Yes, we can do OEM for you.

4. Q: What’s the warranty period?
A: 1 year.



5. Q: What are the terms of payment?

A: T/T. 30% deposit and 70% against the BL copy or 100% LC at sight.
