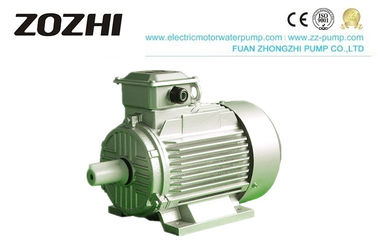

Electrical 3 Phase Induction Motor 3 Hp Y2-100L-2 For Industrial Machinery

  • Electrical 3 Phase Induction Motor 3 Hp Y2-100L-2 For Industrial Machinery
  • Electrical 3 Phase Induction Motor 3 Hp Y2-100L-2 For Industrial Machinery
Place of Origin China
Brand Name ZOZHI
Certification ISO
Model Number Y2-200L-4
Minimum Order Quantity 1pc
Price negotiated
Packaging Details Packed in cartons,veneer case or wooden cases
Delivery Time 25 working days after received your payment
Payment Terms T/T, L/C
Supply Ability 10000pcs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name 3 Phase Induction Motor Application Corn Grits Milling Making Machine
Power 30KW Pole 4
Phase 3 Phase Insulation Classtion Class F
Voltage 380v Type Asynchronous Motor
Highlight

squirrel cage electric motor

,

three phase induction motor
Leave a Message
Product Description

Electrical Motor Suppliers Three Phase 3 hp Ac Motor Y2-100L-2 For Industrial Machinery

3 Phase Induction Motor



What is the motor?
A motor is an electric rotary machine that converts electrical energy into mechanical energy, which mainly includes an electromagnet winding or a distributed stator winding and a rotating armature or rotor for generating a magnetic field. Under the action of the rotating magnetic field of the stator winding, it has a current in the armature squirrel cage aluminum frame. The action of the magnetic field rotates it.





Electrical 3 Phase Induction Motor 3 Hp Y2-100L-2 For Industrial Machinery 0

Electrical 3 Phase Induction Motor 3 Hp Y2-100L-2 For Industrial Machinery 1





Our service



1. Directly factory sale

2. Customized production is available

3. Quick response to 2-8hours, response rates over 92%
4. 24 hours phone call is available. Feel free to contact us.
5. We provide one-stop services for all goods produced by ourselves, from designing printing to processing. Customers can provide the design according to your request and the sample making. Also, we can advise how to make the products according to customers' target prices.





Performance chart:



Model Output HP KW Current
(A)		 Speed
(r/min)		 Eff
(%)		 Power
Factor		 Eff
(%)		 Power
Factor		 Eff
(%)		 Power
Factor		 Tstart/Tn Ist/In Tmax/Tn
380V 5OHz Synchronous Speed 3000r/min (2 Poles)
Y2-631-2 0.25 0.18 0.53 2720 65.0 0.80 63.1 0.75 60.0 0.69 2.2 6.5 2.3
Y2-632-2 0.34 0.25 0.69 2720 68.0 0.81 65.1 0.76 62.0 0.70 2.2 7.0 2.3
Y2-711-2 0.5 0.37 0.99 2740 70.0 0.81 69.0 0.76 66.0 0.71 2.2 7.0 2.3
Y2-712-2 0.75 0.55 1.4 2740 73.0 0.82 71.2 0.70 70.0 0.72 2.2 7.0 2.3
Y2-801-2 1 0.75 1.83 2830 75.0 0.83 73.0 0.77 71.0 0.74 2.2 7.0 2.3
Y2-802-2 1.5 1.1 2.58 2830 77.0 0.84 75.1 0.78 73.0 0.73 2.2 7.0 2.3
Y2-90S-2 2 1.5 3.43 2840 79.0 0.84 77.0 0.78 74.9 0.76 2.0 7.0 2.3
Y2-90L-2 3 2.2 4.85 2840 81.0 0.85 80.0 0.79 79.9 0.76 2.0 7.0 2.3
Y2-100L-2 4 3 6.31 2870 83.0 0.87 82.0 0.80 81.1 0.77 2.0 7.0 2.3
Y2-112M-2 5.5 4 8.1 2890 85.0 0.88 83.9 0.83 82.0 0.80 2.0 7.0 2.2
Y2-132S1-2 7.5 5.5 11 2900 86.0 0.88 84.2 0.83 83.8 0.80 2.0 7.0 2.2
Y2-132S2-2 10 7.5 14.9 2900 87.0 0.88 85.8 0.84 84.9 0.78 2.0 7.0 2.2
Y2-132M1-2 15 11 21.3 2930 88.0 0.89 86.6 0.84 85.1 0.79 2.0 7.0 2.2
Y2-132M2-2 20 15 28.8 2930 89.0 0.89 87.9 0.84 86.4 0.80 2.0 7.0 2.2
Y2-160L-2 25 18.5 34.7 2930 90.0 0.90 89.8 0.86 86.8 0.80 2.0 7.0 2.2
Y2-180M-2 30 22 41 2940 90.0 0.90 88.9 0.86 86.8 0.82 2.0 7.0 2.2
Y2-200L1-2 40 30 55.5 2950 91.2 0.90 89.4 0.85 88.5 0.81 2.0 7.0 2.2
Y2-200L2-2 50 37 67.9 2950 92.0 0.90 91.0 0.86 90.4 0.82 2.0 7.0 2.2
Y2-225M-2 60 45 82.3 2970 92.3 0.90 90.5 0.85 89.7 0.82 1.8 6.8 2.2
Y2-250M-2 75 55 101 2970 92.5 0.90 91.3 0.85 91.0 0.82 1.8 6.8 2.2
Y2-280S-2 100 75 134 2970 93.0 0.90 91.9 0.86 91.5 0.81 1.8 6.8 2.2
Y2-280M-2 125 90 160 2970 93.8 0.91 92.6 0.87 92.2 0.83 1.8 6.8 2.2
Y2-315S-2 150 110 195 2980 94.0 0.91 93.1 0.87 93.0 0.83 1.6 7.0 2.2
Y2-315M-2 180 132 233 2980 94.5 0.91 93.2 0.87 93.1 0.84 1.6 7.1 2.2
Y2-315L1-2 220 160 279 2980 94.6 0.92 93.1 0.88 93.3 0.85 1.6 7.2 2.2
Y2-315L2-2 270 200 348 2980 94.8 0.92 94.0 0.88 93.8 0.85 1.6 7.3 2.2
Y2-355M-2 340 250 433 2980 95.3 0.92 94.8 0.88 94.0 0.85 1.6 7.4 2.2
Y2-355L-2 430 315 544 2980 95.6 0.92 95.0 0.88 94.0 0.85 1.6 7.5 2.2
380V 5OHz Synchronous Speed 1500r/min (4 Poles)
Y2-631-4 0.16 0.12 0.42 1310 57.0 0.72 56.1 0.69 51.9 0.55 2.1 5.2 2.2
Y2-632-4 0.25 0.18 0.62 1310 60.0 0.73 58.5 0.70 56.7 0.59 2.1 5.2 2.2
Y2-711-4 0.34 0.25 0.79 1330 65.0 0.74 62.4 0.73 59.3 0.59 2.1 5.2 2.2
Y2-712-4 0.5 0.37 1.12 1330 67.0 0.75 65.3 0.74 60.1 0.63 2.1 5.2 2.2
Y2-801-4 0.75 0.55 1.57 1390 71.0 0.75 69.2 0.74 68.6 0.64 2.4 5.2 2.3
Y2-802-4 1 0.75 2.03 1390 73.0 0.76 71.7 0.75 70.0 0.67 2.3 6.0 2.3
Y2-90S-4 1.5 1.1 2.89 1400 75.0 0.77 73.1 0.75 72.0 0.67 2.3 6.0 2.3
Y2-90L-4 2 1.5 3.7 1400 78.0 0.79 76.1 0.76 74.1 0.69 2.3 6.0 2.3
Y2-100L1-4 3 2.2 5.16 1430 80.0 0.81 78.0 0.79 75.5 0.69 2.3 7.0 2.3
Y2-100L2-4 4 3 6.78 1430 82.0 0.82 79.9 0.78 78.5 0.70 2.3 7.0 2.3
Y2-112M-4 5.5 4 8.8 1440 84.0 0.82 82.9 0.79 81.1 0.70 2.3 7.0 2.3
Y2-132S-4 7.5 5.5 11.7 1440 85.0 0.83 83.8 0.81 82.2 0.73 2.3 7.0 2.3
Y2-132M-4 10 7.5 15.6 1440 87.0 0.84 85.6 0.82 83.6 0.74 2.3 7.0 2.3
Y2-160M-4 15 11 22.3 1460 88.0 0.84 86.8 0.83 85.9 0.75 2.2 7.5 2.3
Y2-160L-4 20 15 30.1 1460 89.0 0.85 88.9 0.83 88.5 0.75 2.2 7.5 2.3
Y2-180M-4 25 18.5 36.5 1470 90.5 0.86 90.0 0.82 89.5 0.77 2.2 7.5 2.3
Y2-180L-4 30 22 43.2 1470 91.0 0.86 90.2 0.84 89.9 0.76 2.2 7.2 2.3
Y2-200L-4 40 30 57.6 1470 92.0 0.86 91.5 0.84 90.8 0.77 2.2 7.2 2.3
Y2-225S-4 50 37 69.9 1480 92.5 0.87 91.9 0.87 90.3 0.80 2.2 7.2 2.3
Y2-225M-4 60 45 84.7 1480 92.8 0.87 92.4 0.87 90.9 0.80 2.2 7.2 2.3
Y2-250M-4 75 55 103 1480 93.0 0.87 92.7 0.89 91.2 0.81 2.2 7.2 2.3
Y2-280S-4 100 75 140 1480 93.8 0.87 92.4 0.86 91.6 0.80 2.2 7.2 2.3
Y2-280M-4 125 90 167 1490 94.2 0.87 93.0 0.86 92.8 0.78 2.2 7.2 2.3
Y2-315S-4 150 110 201 1490 94.5 0.88 93.3 0.87 92.8 0.81 2.1 6.9 2.2
Y2-315M-4 180 132 240 1490 94.8 0.88 93.8 0.87 93.0 0.81 2.1 6.9 2.2
Y2-315L1-4 220 160 287 1490 94.9 0.89 93.9 0.88 93.1 0.81 2.1 6.9 2.2
Y2-315L2-4 270 200 359 1490 95.0 0.89 94.1 0.88 93.8 0.82 2.1 6.9 2.2
Y2-355M-4 340 250 443 1485 95.3 0.90 94.3 0.88 94.0 0.83 2.1 6.9 2.2
Y2-355L-4 430 315 556 1485 95.6 0.90 94.5 0.89 94.0 0.84 2.1 6.9 2.2

PERFORMANCE CHART
Model Output HP KW Current
(A)		 Speed
(r/min)		 Eff
(%)		 Power
Factor		 Tstart/Tn Ist/In Tmax/Tn
380V 5OHz Synchronous Speed 1000r/min (6 Poles)
Y2-711-6 0.25 0.18 0.74 850 56.0 0.66 1.9 4.0 2.0
Y2-712-6 0.34 0.25 0.95 850 59.0 0.68 1.9 4.0 2.0
Y2-801-6 0.5 0.37 1.3 890 62.0 0.70 1.9 4.7 2.0
Y2-802-6 0.75 0.55 1.79 890 65.0 0.72 1.9 4.7 2.1
Y2-90S-6 1 0.75 2.29 910 69.0 0.72 2.0 5.5 2.1
Y2-90L-6 1.5 1.1 3.18 910 72.0 0.73 2.0 5.5 2.1
Y2-100L-6 2 1.5 3.94 940 76.0 0.75 2.0 5.5 2.1
Y2-112M-6 3 2.2 5.6 940 79.0 0.76 2.0 6.5 2.1
Y2-132S-6 4 3 7.4 960 81.0 0.76 2.1 6.5 2.1
Y2-132M1-6 5.5 4 9.8 960 82.0 0.76 2.1 6.5 2.1
Y2-132M2-6 7.5 5.5 12.9 960 84.0 0.77 2.1 6.5 2.1
Y2-160M-6 10 7.5 17 970 86.0 0.77 2.0 6.5 2.1
Y2-160L-6 15 11 24.2 970 87.5 0.78 2.0 6.5 2.1
Y2-180L-6 20 15 31.6 970 89.0 0.81 2.0 7.0 2.1
Y2-200L1-6 25 18.5 38.6 970 90.0 0.81 2.1 7.0 2.1
Y2-200L2-6 30 22 44.7 970 90.0 0.83 2.1 7.0 2.1
Y2-225M-6 40 30 59.3 980 91.5 0.84 2.0 7.0 2.1
Y2-250M-6 50 37 71 980 92.0 0.86 2.1 7.0 2.1
Y2-280S-6 60 45 86 980 92.5 0.86 2.1 7.0 2.0
Y2-280M-6 75 55 105 980 92.8 0.86 2.1 7.0 2.0
Y2-315S-6 100 75 141 990 93.5 0.86 2.0 7.0 2.0
Y2-315M-6 125 90 168 990 93.8 0.86 2.0 7.0 2.0
Y2-315L1-6 150 110 206 990 94.0 0.86 2.0 6.7 2.0
Y2-315L2-6 180 132 244 990 94.2 0.87 2.0 6.7 2.0
Y2-355M1-6 220 160 282 990 94.5 0.88 1.9 6.7 2.0
Y2-355M2-6 270 200 365 990 94.7 0.88 1.9 6.7 2.0
Y2-355L-6 340 250 455 990 94.9 0.88 1.9 6.7 2.0
380V 5OHz Synchronous Speed 750r/min (8 Poles)
Y2-160M1-8 5.5 4 10.3 720 81.0 0.73 2.0 6.0 2.0
Y2-160M2-8 7.5 5.5 13.6 720 83.0 0.74 2.1 6.0 2.0
Y2-160L-8 10 7.5 17.8 720 85.5 0.75 2.1 6.0 2.0
Y2-180L-8 15 11 25.1 730 87.5 0.76 2.1 6.6 2.0
Y2-200L-8 20 15 34.1 730 88.0 0.76 2.0 6.6 2.0
Y2-225S-8 25 18.5 40.6 730 90.0 0.76 2.0 6.6 2.0
Y2-225M-8 30 22 47.4 740 90.5 0.78 2.0 6.6 2.0
Y2-250M-8 40 30 64 740 91.0 0.79 2.0 6.6 2.0
Y2-280S-8 50 37 78 740 91.5 0.79 1.9 6.6 2.0
Y2-280M-8 60 45 94 740 92.0 0.79 1.9 6.6 2.0
Y2-315S-8 75 55 111 740 92.8 0.81 1.9 6.6 2.0
Y2-315M-8 100 75 151 740 93.0 0.81 1.9 6.6 2.0
Y2-315L1-8 125 90 178 740 93.8 0.82 1.9 6.6 2.0
Y2-315L2-8 150 110 217 740 94.0 0.82 2.9 6.4 2.0
