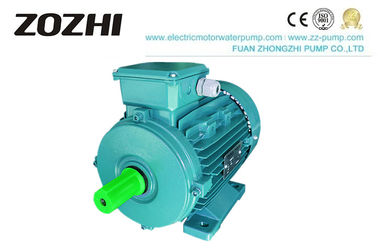

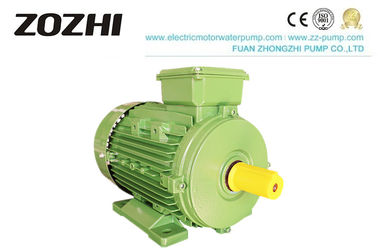

0.09kw-5.5kw Three Phase Asynchronous Motor 100% Copper Wire 220V 380V Durable

  • 0.09kw-5.5kw Three Phase Asynchronous Motor 100% Copper Wire 220V 380V Durable
  • 0.09kw-5.5kw Three Phase Asynchronous Motor 100% Copper Wire 220V 380V Durable
  • 0.09kw-5.5kw Three Phase Asynchronous Motor 100% Copper Wire 220V 380V Durable
Place of Origin China
Brand Name ZOZHI
Certification ISO
Model Number MS802-4
Minimum Order Quantity 10PCS
Price negotiated
Packaging Details Packed in cartons,veneer case or wooden case.
Delivery Time 25 working days after received your payment
Payment Terms T/T, L/C, Western Union, E-checking
Supply Ability 10000pcs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Output 0.75KW/1HP Pole 4
Motor Bearing C&U (SKF For Choice) Efficiency IE1 IE2 IE3
Motor Housing Aluminum Protection Class IP54/IP55
Insulation Class F Class Color Customizable
Product Name 3 Phase Induction Motor
Highlight

squirrel cage electric motor

,

three phase induction motor
Leave a Message
Product Description

Motor Three-Phase Asynchronous 100% Copper Wire 220 / 380V 0.09kw-5.5kw

3 Phase Induction Motor



MS Aluminium shell series motor meets the relative rules of IEC standard, has good performance, safe and reliable operation, nice appearance, and can be maintained very conveniently, has low noise, little vibration, is a lightweight, and simple construction. suitable for driving machines that do not have special requirements, such as machine tools, pumps, blowers,  etc


- Top-mounted terminal box


- Interchangeable foot mounting and flange mounting


- Motor frame Size from H56-H132



3 Phase Induction Motor Main Features

Ambient temperature: -15 degrees centigrade ~40 degrees centigrade

Altitude: not more than 1000 meters

Rated voltage: 380V, 400V, 415V, 660V

Rated power: 50HZ, 60HZ

Connection: the rated power is 3KW, and the following motor is Y connected. The rated power is 4KW, and the motor is a triangular connection.

Working system: continuous working system (S1)

Protection grade: IP54/IP55

Insulation grade: F grade

Center height of the seat: 80mm-400mm

Product weight: 70Kg-700Kg



Application

0.09kw-5.5kw Three Phase Asynchronous Motor 100% Copper Wire 220V 380V Durable 0



Technical data


Model Power (V) (HZ) Current (A) Power Factor

Eff

(%)

 Speed (r/min)

Tstart/

Tn

Tmax/

Tn

Ist/

In
HP KW
MS561-2 0.12 0.09 380 50 0.3 0.76 60 2750 2.3 2.4 6
MS562-2 0.16 0.12 0.37 0.78 63 2750 2.3 2.4 6
MS631-2 0.25 0.18 0.53 0.75 69 2800 2.2 2.4 4.5
MS632-2 0.33 0.25 0.68 0.78 72 2800 2.2 2.4 4.5
MS711-2 0.5 0.37 0.98 0.8 73 2800 2.2 2.4 4.5
MS712-2 0.75 0.55 1.35 0.82 75 2800 2.2 2.4 4.5
MS801-2 1 0.75 1.75 0.85 76 2800 2.2 2.4 4.5
MS802-2 1.5 1.1 2.55 0.85 77 2800 2.2 2.4 4.5
MS90S-2 2 1.5 3.36 0.87 78 2800 2.2 2.4 4.5
MS90L-2 3 2.2 4.93 0.87 78 2800 2.2 2.4 5
MS100L-2 4 3 6.31 0.87 83 2880 2.3 2.4 7
MS112M-2 5.5 4 8.12 0.88 85 2890 2.3 2.4 7
MS132S1-2 7.5 5.5 11 0.88 86 2900 2.3 2.4 7
MS132S2-2 10 7.5 14.9 0.88 87 2900 2.3 2.4 7
MS160L-2 25 18.5 34.7 0.9 90 2930 2.3 2.4 7
MS561-4 0.08 0.06 0.27 0.68 50 1300 2.2 2.3 5.5
MS562-4 0.12 0.09 0.36 0.7 54 1300 2.2 2.3 5.5
MS631-4 0.16 0.12 0.48 0.63 60 1400 2.2 2.4 4.5
MS632-4 0.25 0.18 0.65 0.66 64 1400 2.2 2.4 4.5
MS711-4 0.33 0.25 0.83 0.68 67 1400 2.2 2.4 4.5
MS712-4 0.5 0.37 1.12 0.72 69 1400 2.2 2.4 4.5
MS801-4 0.75 0.55 1.56 0.73 73 1400 2.2 2.4 4.5
MS802-4 1 0.75 2.01 0.75 75 1400 2.2 2.4 4.5
MS90S-4 1.5 1.1 2.83 0.78 76 1400 2.3 2.4 5
MS90L-4 2 1.5 3.84 0.78 76 1400 2.2 2.4 5
MS100L1-4 3 2.2 4.2 0.75 75 1400 2.2 2.4 5
MS100L2-4 4 3 6.78 0.82 82 1410 2.3 2.4 7
MS112M-4 5.5 4 8.82 0.82 84 1435 2.3 2.4 7
MS132S-4 7.5 5.5 11.8 0.83 85.5 1445 2.3 2.4 7
MS132M-4 10 7.5 15.6 0.84 87 1445 2.3 2.4 7
MS711-6 0.24 0.18 0.74 0.66 56 900 2 2.2 5.5
MS712-6 0.33 0.25 0.95 0.68 59 900 2 2.2 5.5
MS801-6 0.5 0.37 1.3 0.7 62 900 2 2.2 5.5
MS802-6 0.75 0.55 1.79 0.72 65 900 2 2.2 5.5
MS90S-6 1 0.75 2.29 0.72 69 910 2.1 2.2 5.5
MS90L-6 1.5 1.1 3.18 0.73 72 910 2.1 2.2 5.5
MS100L-6 2 1.5 3.89 0.76 76 940 2.1 2.2 5.5
MS112M-6 3 2.2 5.57 0.76 79 940 2.2 2.3 6.5
MS132S-6 4 3 7.4 0.76 81 960 2.2 2.3 6.5
MS132M1-6 5.5 4 9.75 0.76 82 960 2.2 2.3 6.5
MS132M2-6 7.5 5.5 12.9 0.77 84 960 2.2 2.3 6.5





0.09kw-5.5kw Three Phase Asynchronous Motor 100% Copper Wire 220V 380V Durable 1



HOLLOW SHAFT MOTOR SWIMMING POOL PUMP ELECTRIC MOTOR
water pump PRESSURE SWITCH 0.09kw-5.5kw Three Phase Asynchronous Motor 100% Copper Wire 220V 380V Durable 7
water pump water pump mechnical seal

0.09kw-5.5kw Three Phase Asynchronous Motor 100% Copper Wire 220V 380V Durable 11



Guarantee:
Guarantee for one year from shipped on board date. During the guarantee period, our company will provide free easy-damaged spare parts for problems caused by our quality of production or raw material, except the damageable spare parts caused by customer's incorrect artificial operation. In addition, after expiration, our company provides cost spare parts for maintenance.



Our service:

1. Directly factory sale
2. Quick response to 2-8hours, response rates over 92%
3. 24 hours phone call is available. Feel free to contact us.
4. We provide one-stop services for all goods produced by ourselves, from designing printing to processing. Customers can provide the design according to your request and sample making. Also, we can advise how to make the products according to customers' target prices.



FAQ:

1. Q: What's the MOQ?
    A: We accept one piece.
2. Q: Are you a factory or trading company?
    A: We are a manufacturer.
3. Q: Can you accept using our logo?
    A: Yes, we can do OEM for you.
4. Q: What's the warranty period?
    A: 1 year.
5. Q: What are the terms of payment?
    A: T/T. 30% deposit and 70% against the BL copy or 100% LC at sight.
