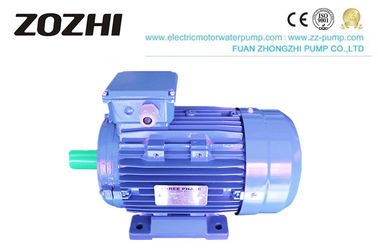

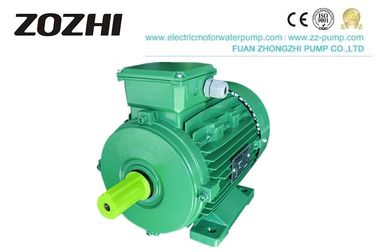

AL Housing 3 Phase Induction Motor IE2 Standard IP54 IP55 0.75kw/1HP Ms Series

  • AL Housing 3 Phase Induction Motor IE2 Standard IP54 IP55 0.75kw/1HP Ms Series
  • AL Housing 3 Phase Induction Motor IE2 Standard IP54 IP55 0.75kw/1HP Ms Series
  • AL Housing 3 Phase Induction Motor IE2 Standard IP54 IP55 0.75kw/1HP Ms Series
Place of Origin China
Brand Name ZOZHI
Certification ISO
Model Number MS802-4
Minimum Order Quantity 10PCS
Price negotiated
Packaging Details Packed in cartons,veneer case or wooden case.
Delivery Time 25 working days after received your payment
Payment Terms T/T, L/C, Western Union, E-checking
Supply Ability 10000pcs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Output 0.75KW/1HP Pole 4
Motor Bearing C&U (SKF For Choice) Efficiency IE1 IE2 IE3
Motor Housing Aluminum Protection Class IP54/IP55
Insulation Class F Class Color Customizable
Product Name 3 Phase Induction Motor
Highlight

squirrel cage electric motor

,

three phase induction motor
Leave a Message
Product Description

MS802-4 0.75KW 1HP High-Efficiency Three-Phase Asynchronous Electric Motor For General Drive

3 Phase Induction Motor

We are very sincerely searching for agents worldwide to sell one of our products or all products, one agent for each country. If you are interested, please get in touch with us in time.



MS series extruded aluminum housing three-phase asynchronous motor:



Ms series AL-housing three asynchronous motors are developed from Ms series three-phase asynchronous motors since aluminum alloy material has been introduced into its housing, windshield, terminal box, and removable feet, Ms series AL-housing motors owns a beautiful appearance s smooth surface. Despite that, the dimensions and rated output of Ms series AL-housing motors are the same as those of Ms series three-phase asynchronous motors.

Operating conditions of Ms series AL-housing, simultaneously, we supply MS series AL-housing mousing motors in conformity with IE2 standard for high-end customers.



Main Features

Ambient temperature: -15 degrees centigrade ~40 degrees centigrade

Altitude: not more than 1000 meters

Rated voltage: 380V, 400V, 415V, 660V

Rated power: 50HZ, 60HZ

Connection: the rated power is 3KW, and the following motor is Y connected. The rated power is 4KW, and the motor is a triangular connection.

Working system: continuous working system (S1)

Protection grade: IP54/IP55

Insulation grade: F grade

Center height of the seat: 80mm-400mm

Product weight: 70Kg-700Kg



Application

AL Housing 3 Phase Induction Motor IE2 Standard IP54 IP55 0.75kw/1HP Ms Series 0



Technical data


Model Power (V) (HZ) Current (A) Power Factor

Eff

(%)

 Speed (r/min)

Tstart/

Tn

Tmax/

Tn

Ist/

In
HP KW
MS561-2 0.12 0.09 380 50 0.3 0.76 60 2750 2.3 2.4 6
MS562-2 0.16 0.12 0.37 0.78 63 2750 2.3 2.4 6
MS631-2 0.25 0.18 0.53 0.75 69 2800 2.2 2.4 4.5
MS632-2 0.33 0.25 0.68 0.78 72 2800 2.2 2.4 4.5
MS711-2 0.5 0.37 0.98 0.8 73 2800 2.2 2.4 4.5
MS712-2 0.75 0.55 1.35 0.82 75 2800 2.2 2.4 4.5
MS801-2 1 0.75 1.75 0.85 76 2800 2.2 2.4 4.5
MS802-2 1.5 1.1 2.55 0.85 77 2800 2.2 2.4 4.5
MS90S-2 2 1.5 3.36 0.87 78 2800 2.2 2.4 4.5
MS90L-2 3 2.2 4.93 0.87 78 2800 2.2 2.4 5
MS100L-2 4 3 6.31 0.87 83 2880 2.3 2.4 7
MS112M-2 5.5 4 8.12 0.88 85 2890 2.3 2.4 7
MS132S1-2 7.5 5.5 11 0.88 86 2900 2.3 2.4 7
MS132S2-2 10 7.5 14.9 0.88 87 2900 2.3 2.4 7
MS160L-2 25 18.5 34.7 0.9 90 2930 2.3 2.4 7
MS561-4 0.08 0.06 0.27 0.68 50 1300 2.2 2.3 5.5
MS562-4 0.12 0.09 0.36 0.7 54 1300 2.2 2.3 5.5
MS631-4 0.16 0.12 0.48 0.63 60 1400 2.2 2.4 4.5
MS632-4 0.25 0.18 0.65 0.66 64 1400 2.2 2.4 4.5
MS711-4 0.33 0.25 0.83 0.68 67 1400 2.2 2.4 4.5
MS712-4 0.5 0.37 1.12 0.72 69 1400 2.2 2.4 4.5
MS801-4 0.75 0.55 1.56 0.73 73 1400 2.2 2.4 4.5
MS802-4 1 0.75 2.01 0.75 75 1400 2.2 2.4 4.5
MS90S-4 1.5 1.1 2.83 0.78 76 1400 2.3 2.4 5
MS90L-4 2 1.5 3.84 0.78 76 1400 2.2 2.4 5
MS100L1-4 3 2.2 4.2 0.75 75 1400 2.2 2.4 5
MS100L2-4 4 3 6.78 0.82 82 1410 2.3 2.4 7
MS112M-4 5.5 4 8.82 0.82 84 1435 2.3 2.4 7
MS132S-4 7.5 5.5 11.8 0.83 85.5 1445 2.3 2.4 7
MS132M-4 10 7.5 15.6 0.84 87 1445 2.3 2.4 7
MS711-6 0.24 0.18 0.74 0.66 56 900 2 2.2 5.5
MS712-6 0.33 0.25 0.95 0.68 59 900 2 2.2 5.5
MS801-6 0.5 0.37 1.3 0.7 62 900 2 2.2 5.5
MS802-6 0.75 0.55 1.79 0.72 65 900 2 2.2 5.5
MS90S-6 1 0.75 2.29 0.72 69 910 2.1 2.2 5.5
MS90L-6 1.5 1.1 3.18 0.73 72 910 2.1 2.2 5.5
MS100L-6 2 1.5 3.89 0.76 76 940 2.1 2.2 5.5
MS112M-6 3 2.2 5.57 0.76 79 940 2.2 2.3 6.5
MS132S-6 4 3 7.4 0.76 81 960 2.2 2.3 6.5
MS132M1-6 5.5 4 9.75 0.76 82 960 2.2 2.3 6.5
MS132M2-6 7.5 5.5 12.9 0.77 84 960 2.2 2.3 6.5





AL Housing 3 Phase Induction Motor IE2 Standard IP54 IP55 0.75kw/1HP Ms Series 1



AL Housing 3 Phase Induction Motor IE2 Standard IP54 IP55 0.75kw/1HP Ms Series 2 AL Housing 3 Phase Induction Motor IE2 Standard IP54 IP55 0.75kw/1HP Ms Series 3 AL Housing 3 Phase Induction Motor IE2 Standard IP54 IP55 0.75kw/1HP Ms Series 4
AL Housing 3 Phase Induction Motor IE2 Standard IP54 IP55 0.75kw/1HP Ms Series 5 AL Housing 3 Phase Induction Motor IE2 Standard IP54 IP55 0.75kw/1HP Ms Series 6 AL Housing 3 Phase Induction Motor IE2 Standard IP54 IP55 0.75kw/1HP Ms Series 7
AL Housing 3 Phase Induction Motor IE2 Standard IP54 IP55 0.75kw/1HP Ms Series 8 AL Housing 3 Phase Induction Motor IE2 Standard IP54 IP55 0.75kw/1HP Ms Series 9 AL Housing 3 Phase Induction Motor IE2 Standard IP54 IP55 0.75kw/1HP Ms Series 10

AL Housing 3 Phase Induction Motor IE2 Standard IP54 IP55 0.75kw/1HP Ms Series 11



3 Phase Induction Motor Guarantee:

Guarantee for one year from shipped on board date. During the guarantee period, our company will provide free easy-damaged spare parts for problems caused by our quality of production or raw material, except the damageable spare parts caused by customer's incorrect artificial operation. In addition, after expiration, our company provides cost spare parts for maintenance.



Our service:

1. Directly factory sale
2. Quick response to 2-8hours, response rates over 92%
3. 24 hours phone call is available. Feel free to contact us.
4. We provide one-stop services for all goods produced by ourselves, from designing printing to processing. Customers can provide the design according to your request and sample making. Also, we can advise how to make the products according to customers' target prices.



FAQ:

1. Q: What's the MOQ?
    A: We accept one piece.
2. Q: Are you a factory or trading company?
    A: We are a manufacturer.
3. Q: Can you accept using our logo?
    A: Yes, we can do OEM for you.
4. Q: What's the warranty period?
    A: 1 year.
5. Q: What are the terms of payment?
    A: T/T. 30% deposit and 70% against the BL copy or 100% LC at sight.
