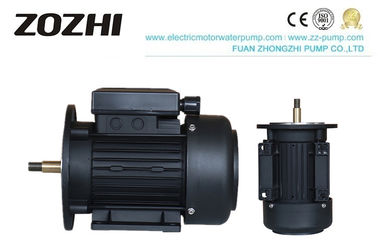

High Reliability Swimming Pool Pump Motor ,Single Phase Spa Pump Motor Aluminium

large.img.alt
large.img.alt
video play

Large Image :  High Reliability Swimming Pool Pump Motor ,Single Phase Spa Pump Motor Aluminium

Product Details:
Place of Origin: China
Brand Name: ZOZHI
Certification: ISO
Model Number: MYT802-2
Payment & Shipping Terms:
Minimum Order Quantity: 1CBM
Price: negotiated
Packaging Details: Packed in cartons,veneer case or wooden case.
Delivery Time: 25 working days after received your payment
Payment Terms: T/T, L/C
Supply Ability: 10000pcs/month
Detailed Product Description
Product Name: Single Phase Induction Motor Application: Swimming Pool Pump
Output: 2HP/1.5KW Pole: 2
Efficiency: IE1,IE2 Performance: High Reliability
Capacitor Type: Capacitor Running Housing: Aluminium
High Light:

High Reliability Swimming Pool Pump Motor

,

1.5KW Swimming Pool Pump Motor

,

Aluminium Spa Pump Motor

Capacitor Running Swimming Pool Pump Motor, Single Phase Spa Pump Motor Aluminium


Description



Model pump MOTOR
Product Name SPA pump motor
Power 0.55-1.5kw
Reversing Brushless
Type Asynchronous Motor
Use

Fan; Home appliance

Feature description

1. Design based on customer requirements

2. Reasonable structure

3. High efficiency

Advantage 1. Low noise

2. Small vibration

3.14 years of motor design and manufacturing experience

Operating Conditions:


1. Ambient temperature: -15℃≦0≦40℃

2. Cooling method: IC0141
3. Rated voltage: 220V
4. Rated frequency: 50Hz/60Hz
5. Duty: Continuous(S1)
6. Insulation class: Class B/F
7. Protection class: IP44/IP54/IP55



Production data



Model Power   Voltage(V) Frequency (HZ) Current (A) Power Factor Eff(%) Speed (r/min) T start/Tn Tmax/Tn
HP KW
MYT711-2 0.75 0.55 220 50 3.88 0.92 70 2800 0.35 1.7
MYT712-2 1 0.75 5.15 0.92 72 2800 0.35 1.7
MYT801-2 1.5 1.1 7.02 0.95 75 2800 0.33 1.7
MYT802-2 2 1.5 9.44 0.95 76 2800 0.33 1.7








General data

Frame size 80
Housing material Aluminum
Install model According to the standard
Type of feet Removable feet
Net weight 8.7kg
Insulation class FH(Standard)(Optional)
Protection degree IP 55IP 56(Standard)(Optional)
Thermal protection WithoutCustomizable(Standard)(Optional)
Rotation direction ClockwiseCounter clockwise(Standard)(Optional)
Service duty S1
Vibration level A
Balance Half-key balanced
Cable glands 1 - M20 × 1.5
Cooling IC 411
Painting color RAL 7024Customizable(Standard)(Optional)
Regulations IEC / DIN / ISO / VDE / EN
Standard IEC 60034
Environmental conditions
Ambient temperature From -20°C to +40°C
Maximum altitude 1000 m above sea level




Application

The Single-phase induction water pump motor has an excellent structure, beautiful appearance, low noise, high efficiency, high protection level, and increased insulation grade. It is the best choice for swimming pool pumps.



The electric motor so is careful while you use the pump that the water should not exceed.



swimming pool pump



Production line

High Reliability Swimming Pool Pump Motor ,Single Phase Spa Pump Motor Aluminium 1





swimming pool pump motor

High Reliability Swimming Pool Pump Motor ,Single Phase Spa Pump Motor Aluminium 3



HOLLOW SHAFT MOTOR SWIMMING POOL PUMP ELECTRIC MOTOR
PRESSURE SWITH PRESSURE SWITCH High Reliability Swimming Pool Pump Motor ,Single Phase Spa Pump Motor Aluminium 9
water pump water pump mechnical seal



High Reliability Swimming Pool Pump Motor ,Single Phase Spa Pump Motor Aluminium 13

Guarantee

Guarantee for one year from shipped on board date. During the guarantee period, our company will provide free easy-damaged spare parts for problems caused by our quality of production or raw material, except the damageable spare parts caused by customer's incorrect artificial operation. In addition, after expiration, our company provides cost spare parts for maintenance.
