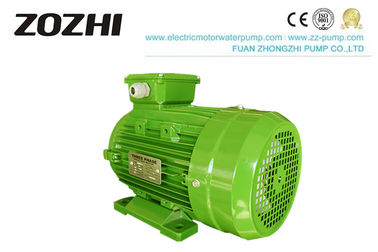

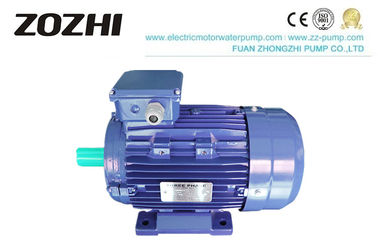

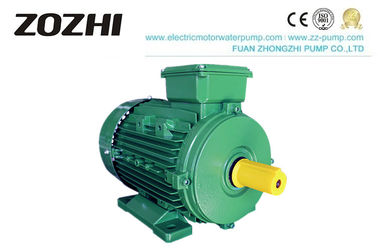

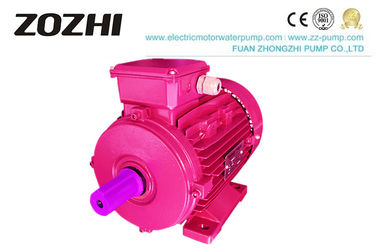

Three Phase Electric Asynchronous Motor 3kw MS100L2-4 Series For Food Machinery

  • Three Phase Electric Asynchronous Motor 3kw MS100L2-4 Series For Food Machinery
  • Three Phase Electric Asynchronous Motor 3kw MS100L2-4 Series For Food Machinery
  • Three Phase Electric Asynchronous Motor 3kw MS100L2-4 Series For Food Machinery
  • Three Phase Electric Asynchronous Motor 3kw MS100L2-4 Series For Food Machinery
  • Three Phase Electric Asynchronous Motor 3kw MS100L2-4 Series For Food Machinery
Place of Origin China
Brand Name ZOZHI
Certification ISO
Model Number MS100L2-4
Minimum Order Quantity 10PCS
Price negotiated
Packaging Details Packed in cartons,veneer case or wooden case.
Delivery Time 25 working days after received your payment
Payment Terms T/T, L/C, Western Union, E-checking
Supply Ability 10000pcs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Output 3kw/4hp Pole 4
Motor Bearing C&U (SKF For Choice) Efficiency IE1
Motor Housing Aluminum Protection Class IP54/IP55
Insulation Class F Class Color Customizable
Product Name 3 Phase Induction Motor
Highlight

squirrel cage electric motor

,

three phase induction motor
Leave a Message
Product Description

MS132M-4 10HP Three Phase Aluminum Induction Motor For Fish Feed Making Machine

3 Phase Induction Motor Description



MS series CE standard high starting torque, high slip ratio three-phase asynchronous motors (D design) have insulation class F, protection class IP54 (IP55), 1.15 of service factor, 230/460V of the voltage rating, frequency 60Hz, -15 ~ 40 ° C of ambient temperature, altitude does not exceed 3300 feet. The motors are especially suitable for machines like injection pumps that require high starting torque soft starting features such as motive power.

This series of motors can be made as per customers’ special requirements.



MS Series
Model MS100L2-4
Rated Power 3kw/4hp
Service Factor 0.75
Supply Voltage 380V
Rate Frequency 60Hz
Structure IP54, IP55
Insulation Grade F



3 Phase Induction Motor Application

Three Phase Electric Asynchronous Motor 3kw MS100L2-4 Series For Food Machinery 0



Technical data


Model Power (V) (HZ) Current (A) Power Factor

Eff

(%)

 Speed (r/min)

Tstart/

Tn

Tmax/

Tn

Ist/

In
HP KW
MS561-2 0.12 0.09 380 50 0.3 0.76 60 2750 2.3 2.4 6
MS562-2 0.16 0.12 0.37 0.78 63 2750 2.3 2.4 6
MS631-2 0.25 0.18 0.53 0.75 69 2800 2.2 2.4 4.5
MS632-2 0.33 0.25 0.68 0.78 72 2800 2.2 2.4 4.5
MS711-2 0.5 0.37 0.98 0.8 73 2800 2.2 2.4 4.5
MS712-2 0.75 0.55 1.35 0.82 75 2800 2.2 2.4 4.5
MS801-2 1 0.75 1.75 0.85 76 2800 2.2 2.4 4.5
MS802-2 1.5 1.1 2.55 0.85 77 2800 2.2 2.4 4.5
MS90S-2 2 1.5 3.36 0.87 78 2800 2.2 2.4 4.5
MS90L-2 3 2.2 4.93 0.87 78 2800 2.2 2.4 5
MS100L-2 4 3 6.31 0.87 83 2880 2.3 2.4 7
MS112M-2 5.5 4 8.12 0.88 85 2890 2.3 2.4 7
MS132S1-2 7.5 5.5 11 0.88 86 2900 2.3 2.4 7
MS132S2-2 10 7.5 14.9 0.88 87 2900 2.3 2.4 7
MS160L-2 25 18.5 34.7 0.9 90 2930 2.3 2.4 7
MS561-4 0.08 0.06 0.27 0.68 50 1300 2.2 2.3 5.5
MS562-4 0.12 0.09 0.36 0.7 54 1300 2.2 2.3 5.5
MS631-4 0.16 0.12 0.48 0.63 60 1400 2.2 2.4 4.5
MS632-4 0.25 0.18 0.65 0.66 64 1400 2.2 2.4 4.5
MS711-4 0.33 0.25 0.83 0.68 67 1400 2.2 2.4 4.5
MS712-4 0.5 0.37 1.12 0.72 69 1400 2.2 2.4 4.5
MS801-4 0.75 0.55 1.56 0.73 73 1400 2.2 2.4 4.5
MS802-4 1 0.75 2.01 0.75 75 1400 2.2 2.4 4.5
MS90S-4 1.5 1.1 2.83 0.78 76 1400 2.3 2.4 5
MS90L-4 2 1.5 3.84 0.78 76 1400 2.2 2.4 5
MS100L1-4 3 2.2 4.2 0.75 75 1400 2.2 2.4 5
MS100L2-4 4 3 6.78 0.82 82 1410 2.3 2.4 7
MS112M-4 5.5 4 8.82 0.82 84 1435 2.3 2.4 7
MS132S-4 7.5 5.5 11.8 0.83 85.5 1445 2.3 2.4 7
MS132M-4 10 7.5 15.6 0.84 87 1445 2.3 2.4 7
MS711-6 0.24 0.18 0.74 0.66 56 900 2 2.2 5.5
MS712-6 0.33 0.25 0.95 0.68 59 900 2 2.2 5.5
MS801-6 0.5 0.37 1.3 0.7 62 900 2 2.2 5.5
MS802-6 0.75 0.55 1.79 0.72 65 900 2 2.2 5.5
MS90S-6 1 0.75 2.29 0.72 69 910 2.1 2.2 5.5
MS90L-6 1.5 1.1 3.18 0.73 72 910 2.1 2.2 5.5
MS100L-6 2 1.5 3.89 0.76 76 940 2.1 2.2 5.5
MS112M-6 3 2.2 5.57 0.76 79 940 2.2 2.3 6.5
MS132S-6 4 3 7.4 0.76 81 960 2.2 2.3 6.5
MS132M1-6 5.5 4 9.75 0.76 82 960 2.2 2.3 6.5
MS132M2-6 7.5 5.5 12.9 0.77 84 960 2.2 2.3 6.5





Three Phase Electric Asynchronous Motor 3kw MS100L2-4 Series For Food Machinery 1



HOLLOW SHAFT MOTOR SWIMMING POOL PUMP ELECTRIC MOTOR
water pump PRESSURE SWITCH Three Phase Electric Asynchronous Motor 3kw MS100L2-4 Series For Food Machinery 7
water pump water pump mechnical seal

Three Phase Electric Asynchronous Motor 3kw MS100L2-4 Series For Food Machinery 11



What is Fish Feed Making Mchine :

The mill is used to reduce the particle size of the greaves after fat extraction. The reduction in the size required at this stage depends on whether the meal is used directly in compound feeds or it will be passed through a further stage of size reduction.

Features

1. The unique crushing chamber that could improve the grinding efficiency

2. Special rotor design program and the hammer sieve gap, which can meet different granularity

Tags:

squirrel cage electric motor

three phase induction motor

3 phase asynchronous motor
