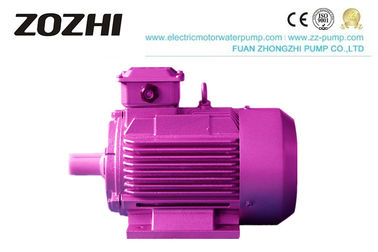

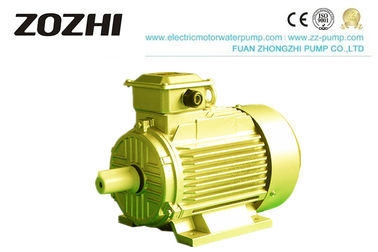

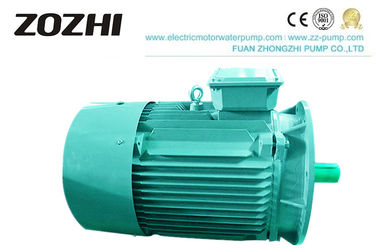

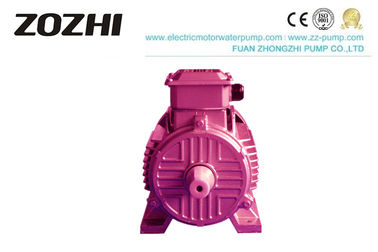

Electric IE2 Motor , Y2 Series High Efficiency Induction Motor 0.16HP / 0.125HP
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Name | IE2 Motor | Application | Driving |
---|---|---|---|
Power | 0.16HP / 0.125HP | Pole | 4 |
Phase | 3 Phase | Insulation Classtion Class | F |
Voltage | 380v | Type | Asynchronous Motor |
High Light | high efficiency induction motor,high efficiency ac motor |
IE2 Motor
Y2 Series Three Phase Asynchronous AC Electric Motor IE2 Standard CE Motor
Temperature and Insulation
The Maters' insulation system is designed by Class F(155ºC), operated with Class B(80K), which increases the motor's useful life and reliability.
Cooling and ventilation
The standard cooling method is Enclosed Fan Cooled (TEFC) following IC411 of IEC60034-6. Standard motors are equipped with radial flow plastic fans.
Protection class
The standard degrees of protection are IP55. The IP55 enclosure means complete hose proof and dustproof protection. A higher degree of protection is available.
Motor protection
Motors can be installed with PTC, PT100, such as winding and bearing temperature measurement, and other kinds of protection on request.
Voltage and frequency
Standard voltage and frequency are 380V 50HZ and can be wound for any single voltage in the range 200-660V at a frequency of 50. The motors will operate satisfactorily with variations of ±5% from the rated voltage.
Vibration
Y2 motors are designed for vibration class A; vibration class B is available on request.
Terminal box location
The terminal box at the top or right of the frame is the standard YE2 motor.
Quality assurance Stringent quality procedures are observed from the first design to finished products following ISO9001 documented quality system.
Structural characteristics:
Model | Output HP KW | Current (A) |
Speed (r/min) |
Eff (%) |
Power Factor |
Eff (%) |
Power Factor |
Eff (%) |
Power Factor |
T start/Tn | Ist/In | Tmax/Tn | ||||||||||||
380V 5OHz Synchronous Speed 3000r/min (2 Poles) | ||||||||||||||||||||||||
Y2-631-2 | 0.25 | 0.18 | 0.53 | 2720 | 65.0 | 0.80 | 63.1 | 0.75 | 60.0 | 0.69 | 2.2 | 6.5 | 2.3 | |||||||||||
Y2-632-2 | 0.34 | 0.25 | 0.69 | 2720 | 68.0 | 0.81 | 65.1 | 0.76 | 62.0 | 0.70 | 2.2 | 7.0 | 2.3 | |||||||||||
Y2-711-2 | 0.5 | 0.37 | 0.99 | 2740 | 70.0 | 0.81 | 69.0 | 0.76 | 66.0 | 0.71 | 2.2 | 7.0 | 2.3 | |||||||||||
Y2-712-2 | 0.75 | 0.55 | 1.4 | 2740 | 73.0 | 0.82 | 71.2 | 0.70 | 70.0 | 0.72 | 2.2 | 7.0 | 2.3 | |||||||||||
Y2-801-2 | 1 | 0.75 | 1.83 | 2830 | 75.0 | 0.83 | 73.0 | 0.77 | 71.0 | 0.74 | 2.2 | 7.0 | 2.3 | |||||||||||
Y2-802-2 | 1.5 | 1.1 | 2.58 | 2830 | 77.0 | 0.84 | 75.1 | 0.78 | 73.0 | 0.73 | 2.2 | 7.0 | 2.3 | |||||||||||
Y2-90S-2 | 2 | 1.5 | 3.43 | 2840 | 79.0 | 0.84 | 77.0 | 0.78 | 74.9 | 0.76 | 2.0 | 7.0 | 2.3 | |||||||||||
Y2-90L-2 | 3 | 2.2 | 4.85 | 2840 | 81.0 | 0.85 | 80.0 | 0.79 | 79.9 | 0.76 | 2.0 | 7.0 | 2.3 | |||||||||||
Y2-100L-2 | 4 | 3 | 6.31 | 2870 | 83.0 | 0.87 | 82.0 | 0.80 | 81.1 | 0.77 | 2.0 | 7.0 | 2.3 | |||||||||||
Y2-112M-2 | 5.5 | 4 | 8.1 | 2890 | 85.0 | 0.88 | 83.9 | 0.83 | 82.0 | 0.80 | 2.0 | 7.0 | 2.2 | |||||||||||
Y2-132S1-2 | 7.5 | 5.5 | 11 | 2900 | 86.0 | 0.88 | 84.2 | 0.83 | 83.8 | 0.80 | 2.0 | 7.0 | 2.2 | |||||||||||
Y2-132S2-2 | 10 | 7.5 | 14.9 | 2900 | 87.0 | 0.88 | 85.8 | 0.84 | 84.9 | 0.78 | 2.0 | 7.0 | 2.2 | |||||||||||
Y2-132M1-2 | 15 | 11 | 21.3 | 2930 | 88.0 | 0.89 | 86.6 | 0.84 | 85.1 | 0.79 | 2.0 | 7.0 | 2.2 | |||||||||||
Y2-132M2-2 | 20 | 15 | 28.8 | 2930 | 89.0 | 0.89 | 87.9 | 0.84 | 86.4 | 0.80 | 2.0 | 7.0 | 2.2 | |||||||||||
Y2-160L-2 | 25 | 18.5 | 34.7 | 2930 | 90.0 | 0.90 | 89.8 | 0.86 | 86.8 | 0.80 | 2.0 | 7.0 | 2.2 | |||||||||||
Y2-180M-2 | 30 | 22 | 41 | 2940 | 90.0 | 0.90 | 88.9 | 0.86 | 86.8 | 0.82 | 2.0 | 7.0 | 2.2 | |||||||||||
Y2-200L1-2 | 40 | 30 | 55.5 | 2950 | 91.2 | 0.90 | 89.4 | 0.85 | 88.5 | 0.81 | 2.0 | 7.0 | 2.2 | |||||||||||
Y2-200L2-2 | 50 | 37 | 67.9 | 2950 | 92.0 | 0.90 | 91.0 | 0.86 | 90.4 | 0.82 | 2.0 | 7.0 | 2.2 | |||||||||||
Y2-225M-2 | 60 | 45 | 82.3 | 2970 | 92.3 | 0.90 | 90.5 | 0.85 | 89.7 | 0.82 | 1.8 | 6.8 | 2.2 | |||||||||||
Y2-250M-2 | 75 | 55 | 101 | 2970 | 92.5 | 0.90 | 91.3 | 0.85 | 91.0 | 0.82 | 1.8 | 6.8 | 2.2 | |||||||||||
Y2-280S-2 | 100 | 75 | 134 | 2970 | 93.0 | 0.90 | 91.9 | 0.86 | 91.5 | 0.81 | 1.8 | 6.8 | 2.2 | |||||||||||
Y2-280M-2 | 125 | 90 | 160 | 2970 | 93.8 | 0.91 | 92.6 | 0.87 | 92.2 | 0.83 | 1.8 | 6.8 | 2.2 | |||||||||||
Y2-315S-2 | 150 | 110 | 195 | 2980 | 94.0 | 0.91 | 93.1 | 0.87 | 93.0 | 0.83 | 1.6 | 7.0 | 2.2 | |||||||||||
Y2-315M-2 | 180 | 132 | 233 | 2980 | 94.5 | 0.91 | 93.2 | 0.87 | 93.1 | 0.84 | 1.6 | 7.1 | 2.2 | |||||||||||
Y2-315L1-2 | 220 | 160 | 279 | 2980 | 94.6 | 0.92 | 93.1 | 0.88 | 93.3 | 0.85 | 1.6 | 7.2 | 2.2 | |||||||||||
Y2-315L2-2 | 270 | 200 | 348 | 2980 | 94.8 | 0.92 | 94.0 | 0.88 | 93.8 | 0.85 | 1.6 | 7.3 | 2.2 | |||||||||||
Y2-355M-2 | 340 | 250 | 433 | 2980 | 95.3 | 0.92 | 94.8 | 0.88 | 94.0 | 0.85 | 1.6 | 7.4 | 2.2 | |||||||||||
Y2-355L-2 | 430 | 315 | 544 | 2980 | 95.6 | 0.92 | 95.0 | 0.88 | 94.0 | 0.85 | 1.6 | 7.5 | 2.2 | |||||||||||
380V 5OHz Synchronous Speed 1500r/min (4 Poles) | ||||||||||||||||||||||||
Y2-631-4 | 0.16 | 0.12 | 0.42 | 1310 | 57.0 | 0.72 | 56.1 | 0.69 | 51.9 | 0.55 | 2.1 | 5.2 | 2.2 | |||||||||||
Y2-632-4 | 0.25 | 0.18 | 0.62 | 1310 | 60.0 | 0.73 | 58.5 | 0.70 | 56.7 | 0.59 | 2.1 | 5.2 | 2.2 | |||||||||||
Y2-711-4 | 0.34 | 0.25 | 0.79 | 1330 | 65.0 | 0.74 | 62.4 | 0.73 | 59.3 | 0.59 | 2.1 | 5.2 | 2.2 | |||||||||||
Y2-712-4 | 0.5 | 0.37 | 1.12 | 1330 | 67.0 | 0.75 | 65.3 | 0.74 | 60.1 | 0.63 | 2.1 | 5.2 | 2.2 | |||||||||||
Y2-801-4 | 0.75 | 0.55 | 1.57 | 1390 | 71.0 | 0.75 | 69.2 | 0.74 | 68.6 | 0.64 | 2.4 | 5.2 | 2.3 | |||||||||||
Y2-802-4 | 1 | 0.75 | 2.03 | 1390 | 73.0 | 0.76 | 71.7 | 0.75 | 70.0 | 0.67 | 2.3 | 6.0 | 2.3 | |||||||||||
Y2-90S-4 | 1.5 | 1.1 | 2.89 | 1400 | 75.0 | 0.77 | 73.1 | 0.75 | 72.0 | 0.67 | 2.3 | 6.0 | 2.3 | |||||||||||
Y2-90L-4 | 2 | 1.5 | 3.7 | 1400 | 78.0 | 0.79 | 76.1 | 0.76 | 74.1 | 0.69 | 2.3 | 6.0 | 2.3 | |||||||||||
Y2-100L1-4 | 3 | 2.2 | 5.16 | 1430 | 80.0 | 0.81 | 78.0 | 0.79 | 75.5 | 0.69 | 2.3 | 7.0 | 2.3 | |||||||||||
Y2-100L2-4 | 4 | 3 | 6.78 | 1430 | 82.0 | 0.82 | 79.9 | 0.78 | 78.5 | 0.70 | 2.3 | 7.0 | 2.3 | |||||||||||
Y2-112M-4 | 5.5 | 4 | 8.8 | 1440 | 84.0 | 0.82 | 82.9 | 0.79 | 81.1 | 0.70 | 2.3 | 7.0 | 2.3 | |||||||||||
Y2-132S-4 | 7.5 | 5.5 | 11.7 | 1440 | 85.0 | 0.83 | 83.8 | 0.81 | 82.2 | 0.73 | 2.3 | 7.0 | 2.3 | |||||||||||
Y2-132M-4 | 10 | 7.5 | 15.6 | 1440 | 87.0 | 0.84 | 85.6 | 0.82 | 83.6 | 0.74 | 2.3 | 7.0 | 2.3 | |||||||||||
Y2-160M-4 | 15 | 11 | 22.3 | 1460 | 88.0 | 0.84 | 86.8 | 0.83 | 85.9 | 0.75 | 2.2 | 7.5 | 2.3 | |||||||||||
Y2-160L-4 | 20 | 15 | 30.1 | 1460 | 89.0 | 0.85 | 88.9 | 0.83 | 88.5 | 0.75 | 2.2 | 7.5 | 2.3 | |||||||||||
Y2-180M-4 | 25 | 18.5 | 36.5 | 1470 | 90.5 | 0.86 | 90.0 | 0.82 | 89.5 | 0.77 | 2.2 | 7.5 | 2.3 | |||||||||||
Y2-180L-4 | 30 | 22 | 43.2 | 1470 | 91.0 | 0.86 | 90.2 | 0.84 | 89.9 | 0.76 | 2.2 | 7.2 | 2.3 | |||||||||||
Y2-200L-4 | 40 | 30 | 57.6 | 1470 | 92.0 | 0.86 | 91.5 | 0.84 | 90.8 | 0.77 | 2.2 | 7.2 | 2.3 | |||||||||||
Y2-225S-4 | 50 | 37 | 69.9 | 1480 | 92.5 | 0.87 | 91.9 | 0.87 | 90.3 | 0.80 | 2.2 | 7.2 | 2.3 | |||||||||||
Y2-225M-4 | 60 | 45 | 84.7 | 1480 | 92.8 | 0.87 | 92.4 | 0.87 | 90.9 | 0.80 | 2.2 | 7.2 | 2.3 | |||||||||||
Y2-250M-4 | 75 | 55 | 103 | 1480 | 93.0 | 0.87 | 92.7 | 0.89 | 91.2 | 0.81 | 2.2 | 7.2 | 2.3 | |||||||||||
Y2-280S-4 | 100 | 75 | 140 | 1480 | 93.8 | 0.87 | 92.4 | 0.86 | 91.6 | 0.80 | 2.2 | 7.2 | 2.3 | |||||||||||
Y2-280M-4 | 125 | 90 | 167 | 1490 | 94.2 | 0.87 | 93.0 | 0.86 | 92.8 | 0.78 | 2.2 | 7.2 | 2.3 | |||||||||||
Y2-315S-4 | 150 | 110 | 201 | 1490 | 94.5 | 0.88 | 93.3 | 0.87 | 92.8 | 0.81 | 2.1 | 6.9 | 2.2 | |||||||||||
Y2-315M-4 | 180 | 132 | 240 | 1490 | 94.8 | 0.88 | 93.8 | 0.87 | 93.0 | 0.81 | 2.1 | 6.9 | 2.2 | |||||||||||
Y2-315L1-4 | 220 | 160 | 287 | 1490 | 94.9 | 0.89 | 93.9 | 0.88 | 93.1 | 0.81 | 2.1 | 6.9 | 2.2 | |||||||||||
Y2-315L2-4 | 270 | 200 | 359 | 1490 | 95.0 | 0.89 | 94.1 | 0.88 | 93.8 | 0.82 | 2.1 | 6.9 | 2.2 | |||||||||||
Y2-355M-4 | 340 | 250 | 443 | 1485 | 95.3 | 0.90 | 94.3 | 0.88 | 94.0 | 0.83 | 2.1 | 6.9 | 2.2 | |||||||||||
Y2-355L-4 | 430 | 315 | 556 | 1485 | 95.6 | 0.90 | 94.5 | 0.89 | 94.0 | 0.84 | 2.1 | 6.9 | 2.2 | |||||||||||
PERFORMANCE CHART | ||||||||||||||||||||||||
Model | Output HP KW | Current (A) |
Speed (r/min) |
Eff (%) |
Power Factor |
T start/Tn | Ist/In | Tmax/Tn | ||||||||||||||||
380V 5OHz Synchronous Speed 1000r/min (6 Poles) | ||||||||||||||||||||||||
Y2-711-6 | 0.25 | 0.18 | 0.74 | 850 | 56.0 | 0.66 | 1.9 | 4.0 | 2.0 | |||||||||||||||
Y2-712-6 | 0.34 | 0.25 | 0.95 | 850 | 59.0 | 0.68 | 1.9 | 4.0 | 2.0 | |||||||||||||||
Y2-801-6 | 0.5 | 0.37 | 1.3 | 890 | 62.0 | 0.70 | 1.9 | 4.7 | 2.0 | |||||||||||||||
Y2-802-6 | 0.75 | 0.55 | 1.79 | 890 | 65.0 | 0.72 | 1.9 | 4.7 | 2.1 | |||||||||||||||
Y2-90S-6 | 1 | 0.75 | 2.29 | 910 | 69.0 | 0.72 | 2.0 | 5.5 | 2.1 | |||||||||||||||
Y2-90L-6 | 1.5 | 1.1 | 3.18 | 910 | 72.0 | 0.73 | 2.0 | 5.5 | 2.1 | |||||||||||||||
Y2-100L-6 | 2 | 1.5 | 3.94 | 940 | 76.0 | 0.75 | 2.0 | 5.5 | 2.1 | |||||||||||||||
Y2-112M-6 | 3 | 2.2 | 5.6 | 940 | 79.0 | 0.76 | 2.0 | 6.5 | 2.1 | |||||||||||||||
Y2-132S-6 | 4 | 3 | 7.4 | 960 | 81.0 | 0.76 | 2.1 | 6.5 | 2.1 | |||||||||||||||
Y2-132M1-6 | 5.5 | 4 | 9.8 | 960 | 82.0 | 0.76 | 2.1 | 6.5 | 2.1 | |||||||||||||||
Y2-132M2-6 | 7.5 | 5.5 | 12.9 | 960 | 84.0 | 0.77 | 2.1 | 6.5 | 2.1 | |||||||||||||||
Y2-160M-6 | 10 | 7.5 | 17 | 970 | 86.0 | 0.77 | 2.0 | 6.5 | 2.1 | |||||||||||||||
Y2-160L-6 | 15 | 11 | 24.2 | 970 | 87.5 | 0.78 | 2.0 | 6.5 | 2.1 | |||||||||||||||
Y2-180L-6 | 20 | 15 | 31.6 | 970 | 89.0 | 0.81 | 2.0 | 7.0 | 2.1 | |||||||||||||||
Y2-200L1-6 | 25 | 18.5 | 38.6 | 970 | 90.0 | 0.81 | 2.1 | 7.0 | 2.1 | |||||||||||||||
Y2-200L2-6 | 30 | 22 | 44.7 | 970 | 90.0 | 0.83 | 2.1 | 7.0 | 2.1 | |||||||||||||||
Y2-225M-6 | 40 | 30 | 59.3 | 980 | 91.5 | 0.84 | 2.0 | 7.0 | 2.1 | |||||||||||||||
Y2-250M-6 | 50 | 37 | 71 | 980 | 92.0 | 0.86 | 2.1 | 7.0 | 2.1 | |||||||||||||||
Y2-280S-6 | 60 | 45 | 86 | 980 | 92.5 | 0.86 | 2.1 | 7.0 | 2.0 | |||||||||||||||
Y2-280M-6 | 75 | 55 | 105 | 980 | 92.8 | 0.86 | 2.1 | 7.0 | 2.0 | |||||||||||||||
Y2-315S-6 | 100 | 75 | 141 | 990 | 93.5 | 0.86 | 2.0 | 7.0 | 2.0 | |||||||||||||||
Y2-315M-6 | 125 | 90 | 168 | 990 | 93.8 | 0.86 | 2.0 | 7.0 | 2.0 | |||||||||||||||
Y2-315L1-6 | 150 | 110 | 206 | 990 | 94.0 | 0.86 | 2.0 | 6.7 | 2.0 | |||||||||||||||
Y2-315L2-6 | 180 | 132 | 244 | 990 | 94.2 | 0.87 | 2.0 | 6.7 | 2.0 | |||||||||||||||
Y2-355M1-6 | 220 | 160 | 282 | 990 | 94.5 | 0.88 | 1.9 | 6.7 | 2.0 | |||||||||||||||
Y2-355M2-6 | 270 | 200 | 365 | 990 | 94.7 | 0.88 | 1.9 | 6.7 | 2.0 | |||||||||||||||
Y2-355L-6 | 340 | 250 | 455 | 990 | 94.9 | 0.88 | 1.9 | 6.7 | 2.0 | |||||||||||||||
380V 5OHz Synchronous Speed 750r/min (8 Poles) | ||||||||||||||||||||||||
Y2-160M1-8 | 5.5 | 4 | 10.3 | 720 | 81.0 | 0.73 | 2.0 | 6.0 | 2.0 | |||||||||||||||
Y2-160M2-8 | 7.5 | 5.5 | 13.6 | 720 | 83.0 | 0.74 | 2.1 | 6.0 | 2.0 | |||||||||||||||
Y2-160L-8 | 10 | 7.5 | 17.8 | 720 | 85.5 | 0.75 | 2.1 | 6.0 | 2.0 | |||||||||||||||
Y2-180L-8 | 15 | 11 | 25.1 | 730 | 87.5 | 0.76 | 2.1 | 6.6 | 2.0 | |||||||||||||||
Y2-200L-8 | 20 | 15 | 34.1 | 730 | 88.0 | 0.76 | 2.0 | 6.6 | 2.0 | |||||||||||||||
Y2-225S-8 | 25 | 18.5 | 40.6 | 730 | 90.0 | 0.76 | 2.0 | 6.6 | 2.0 | |||||||||||||||
Y2-225M-8 | 30 | 22 | 47.4 | 740 | 90.5 | 0.78 | 2.0 | 6.6 | 2.0 | |||||||||||||||
Y2-250M-8 | 40 | 30 | 64 | 740 | 91.0 | 0.79 | 2.0 | 6.6 | 2.0 | |||||||||||||||
Y2-280S-8 | 50 | 37 | 78 | 740 | 91.5 | 0.79 | 1.9 | 6.6 | 2.0 | |||||||||||||||
Y2-280M-8 | 60 | 45 | 94 | 740 | 92.0 | 0.79 | 1.9 | 6.6 | 2.0 | |||||||||||||||
Y2-315S-8 | 75 | 55 | 111 | 740 | 92.8 | 0.81 | 1.9 | 6.6 | 2.0 | |||||||||||||||
Y2-315M-8 | 100 | 75 | 151 | 740 | 93.0 | 0.81 | 1.9 | 6.6 | 2.0 | |||||||||||||||
Y2-315L1-8 | 125 | 90 | 178 | 740 | 93.8 | 0.82 | 1.9 | 6.6 | 2.0 | |||||||||||||||
Y2-315L2-8 | 150 | 110 | 217 | 740 | 94.0 | 0.82 | 2.9 | 6.4 |
IE2 Motor GUARANTEE:
Guarantee for one year from shipped on board date. During the guarantee period, our company will provide free easy-damaged spare parts for problems caused by our quality of production or raw material, except the damageable spare parts caused by the customer's incorrect artificial operation. In addition, after expiration, our company provides cost spare parts for maintenance.
IE2 Motor OUR SERVICE:
1. Directly factory sale
2. Quick response to 2-8hours, response rates over 92%
3. 24 hours phone call is available. Feel free to contact us.
4. We provide one-stop services for all goods produced by ourselves, from designing, printing to processing. Customers can provide the design according to your request and sample making. Also, we can advise how to make the products according to customers' target prices.
FAQ:
1. Q: What's the MOQ?
A: We accept one piece.
2. Q: Are you a factory or trading company?
A: We are a manufacturer.
3. Q: Can you accept using our logo?
A: Yes, we can do OEM for you.
4. Q: What's the warranty period?
A: 1 year.
5. Q: What are the terms of payment?
A: T/T, 30% deposit, and 70% against the BL copy or 100% LC at sight.
