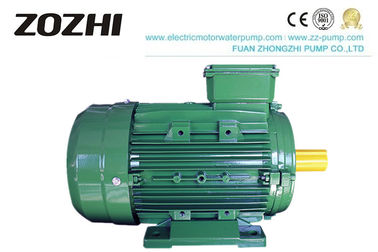

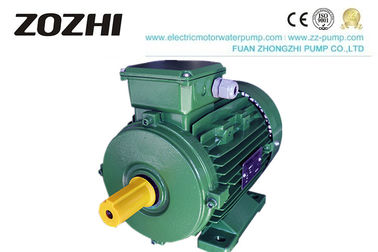

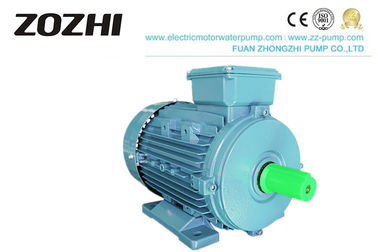

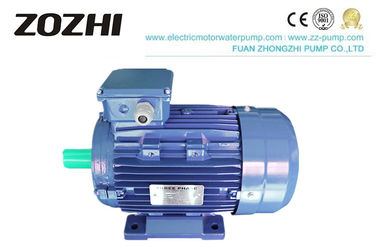

High Efficiency 3 Phase Induction Motor 0.75KW 1HP MS802-4 For General Drive

  • High Efficiency 3 Phase Induction Motor 0.75KW 1HP MS802-4 For General Drive
  • High Efficiency 3 Phase Induction Motor 0.75KW 1HP MS802-4 For General Drive
  • High Efficiency 3 Phase Induction Motor 0.75KW 1HP MS802-4 For General Drive
  • High Efficiency 3 Phase Induction Motor 0.75KW 1HP MS802-4 For General Drive
  • High Efficiency 3 Phase Induction Motor 0.75KW 1HP MS802-4 For General Drive
Place of Origin China
Brand Name ZOZHI
Certification ISO
Model Number MS802-4
Minimum Order Quantity 10PCS
Price negotiated
Packaging Details Packed in cartons,veneer case or wooden case.
Delivery Time 25 working days after received your payment
Payment Terms T/T, L/C, Western Union, E-checking
Supply Ability 10000pcs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Output 0.75KW/1HP Pole 4
Motor Bearing C&U (SKF For Choice) Efficiency IE1 IE2 IE3
Motor Housing Aluminum Protection Class IP54/IP55
Insulation Class F Class Color Customizable
Product Name 3 Phase Induction Motor
Highlight

squirrel cage electric motor

,

three phase induction motor
Leave a Message
Product Description

MS802-4 0.75KW 1HP High-Efficiency Three-Phase Asynchronous Electric Motor For General Drive

3 Phase Induction Motor



High-efficiency three-phase asynchronous electric motor 0.75kw 1hp

1. High-quality cold-rolled silicon steel sheet, national standard copper wire, low-temperature rise, environmental protection, and durability.

2. Fine steel rotor, intelligent processing

3. famous Chinese brand, human-oriented bearing

4. It is widely used in general occasions without flammable, explosive, or corrosive gases and in machinery and equipment without special needs, such as metal cutting machines, pumps, fans, transport machinery, agitators, agricultural machinery, and food machinery.

High Efficiency 3 Phase Induction Motor 0.75KW 1HP MS802-4 For General Drive 0

3 Phase Induction Motor Main Features

Ambient temperature: -15 degrees centigrade ~40 degrees centigrade

Altitude: not more than 1000 meters

Rated voltage: 380V, 400V, 415V, 660V

Rated power: 50HZ, 60HZ

Connection: the rated power is 3KW, and the following motor is Y connected. The rated power is 4KW, and the motor is a triangular connection.

Working system: continuous working system (S1)

Protection grade: IP54/IP55

Insulation grade: F grade

Center height of the seat: 80mm-400mm

Product weight: 70Kg-700Kg



Application

High Efficiency 3 Phase Induction Motor 0.75KW 1HP MS802-4 For General Drive 1



Technical data


Model Power (V) (HZ) Current (A) Power Factor

Eff

(%)

 Speed (r/min)

Tstart/

Tn

Tmax/

Tn

Ist/

In
HP KW
MS561-2 0.12 0.09 380 50 0.3 0.76 60 2750 2.3 2.4 6
MS562-2 0.16 0.12 0.37 0.78 63 2750 2.3 2.4 6
MS631-2 0.25 0.18 0.53 0.75 69 2800 2.2 2.4 4.5
MS632-2 0.33 0.25 0.68 0.78 72 2800 2.2 2.4 4.5
MS711-2 0.5 0.37 0.98 0.8 73 2800 2.2 2.4 4.5
MS712-2 0.75 0.55 1.35 0.82 75 2800 2.2 2.4 4.5
MS801-2 1 0.75 1.75 0.85 76 2800 2.2 2.4 4.5
MS802-2 1.5 1.1 2.55 0.85 77 2800 2.2 2.4 4.5
MS90S-2 2 1.5 3.36 0.87 78 2800 2.2 2.4 4.5
MS90L-2 3 2.2 4.93 0.87 78 2800 2.2 2.4 5
MS100L-2 4 3 6.31 0.87 83 2880 2.3 2.4 7
MS112M-2 5.5 4 8.12 0.88 85 2890 2.3 2.4 7
MS132S1-2 7.5 5.5 11 0.88 86 2900 2.3 2.4 7
MS132S2-2 10 7.5 14.9 0.88 87 2900 2.3 2.4 7
MS160L-2 25 18.5 34.7 0.9 90 2930 2.3 2.4 7
MS561-4 0.08 0.06 0.27 0.68 50 1300 2.2 2.3 5.5
MS562-4 0.12 0.09 0.36 0.7 54 1300 2.2 2.3 5.5
MS631-4 0.16 0.12 0.48 0.63 60 1400 2.2 2.4 4.5
MS632-4 0.25 0.18 0.65 0.66 64 1400 2.2 2.4 4.5
MS711-4 0.33 0.25 0.83 0.68 67 1400 2.2 2.4 4.5
MS712-4 0.5 0.37 1.12 0.72 69 1400 2.2 2.4 4.5
MS801-4 0.75 0.55 1.56 0.73 73 1400 2.2 2.4 4.5
MS802-4 1 0.75 2.01 0.75 75 1400 2.2 2.4 4.5
MS90S-4 1.5 1.1 2.83 0.78 76 1400 2.3 2.4 5
MS90L-4 2 1.5 3.84 0.78 76 1400 2.2 2.4 5
MS100L1-4 3 2.2 4.2 0.75 75 1400 2.2 2.4 5
MS100L2-4 4 3 6.78 0.82 82 1410 2.3 2.4 7
MS112M-4 5.5 4 8.82 0.82 84 1435 2.3 2.4 7
MS132S-4 7.5 5.5 11.8 0.83 85.5 1445 2.3 2.4 7
MS132M-4 10 7.5 15.6 0.84 87 1445 2.3 2.4 7
MS711-6 0.24 0.18 0.74 0.66 56 900 2 2.2 5.5
MS712-6 0.33 0.25 0.95 0.68 59 900 2 2.2 5.5
MS801-6 0.5 0.37 1.3 0.7 62 900 2 2.2 5.5
MS802-6 0.75 0.55 1.79 0.72 65 900 2 2.2 5.5
MS90S-6 1 0.75 2.29 0.72 69 910 2.1 2.2 5.5
MS90L-6 1.5 1.1 3.18 0.73 72 910 2.1 2.2 5.5
MS100L-6 2 1.5 3.89 0.76 76 940 2.1 2.2 5.5
MS112M-6 3 2.2 5.57 0.76 79 940 2.2 2.3 6.5
MS132S-6 4 3 7.4 0.76 81 960 2.2 2.3 6.5
MS132M1-6 5.5 4 9.75 0.76 82 960 2.2 2.3 6.5
MS132M2-6 7.5 5.5 12.9 0.77 84 960 2.2 2.3 6.5





High Efficiency 3 Phase Induction Motor 0.75KW 1HP MS802-4 For General Drive 2



High Efficiency 3 Phase Induction Motor 0.75KW 1HP MS802-4 For General Drive 3 High Efficiency 3 Phase Induction Motor 0.75KW 1HP MS802-4 For General Drive 4 High Efficiency 3 Phase Induction Motor 0.75KW 1HP MS802-4 For General Drive 5
High Efficiency 3 Phase Induction Motor 0.75KW 1HP MS802-4 For General Drive 6 High Efficiency 3 Phase Induction Motor 0.75KW 1HP MS802-4 For General Drive 7 High Efficiency 3 Phase Induction Motor 0.75KW 1HP MS802-4 For General Drive 8
High Efficiency 3 Phase Induction Motor 0.75KW 1HP MS802-4 For General Drive 9 High Efficiency 3 Phase Induction Motor 0.75KW 1HP MS802-4 For General Drive 10 High Efficiency 3 Phase Induction Motor 0.75KW 1HP MS802-4 For General Drive 11

High Efficiency 3 Phase Induction Motor 0.75KW 1HP MS802-4 For General Drive 12



3 Phase Induction Motor Guarantee:
Guarantee for one year from shipped on board date. During the guarantee period, our company will provide free easy-damaged spare parts for problems caused by our quality of production or raw material, except the damageable spare parts caused by customer's incorrect artificial operation. In addition, after expiration, our company provides cost spare parts for maintenance.



Our service:

1. Directly factory sale
2. Quick response to 2-8hours, response rates over 92%
3. 24 hours phone call is available. Feel free to contact us.
4. We provide one-stop services for all goods produced by ourselves, from designing printing to processing. Customers can provide the design according to your request and sample making. Also, we can advise how to make the products according to customers' target prices.



FAQ:

1. Q: What's the MOQ?
    A: We accept one piece.
2. Q: Are you a factory or trading company?
    A: We are a manufacturer.
3. Q: Can you accept using our logo?
    A: Yes, we can do OEM for you.
4. Q: What's the warranty period?
    A: 1 year.
5. Q: What are the terms of payment?
    A: T/T. 30% deposit and 70% against the BL copy or 100% LC at sight.



Tags:

squirrel cage electric motor

three phase induction motor

3 phase asynchronous motor
