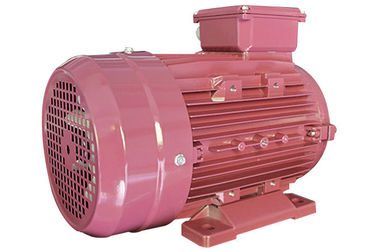

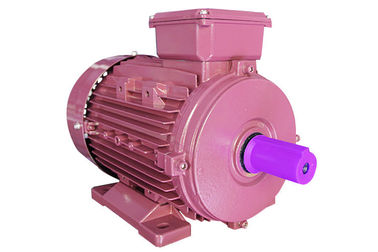

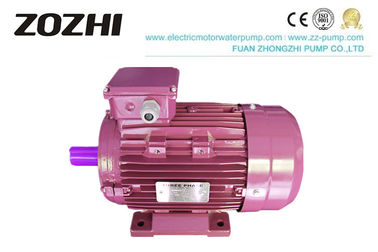

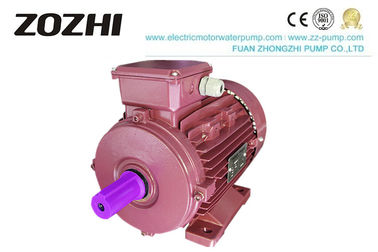

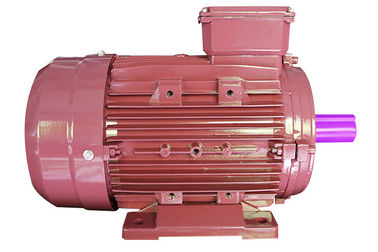

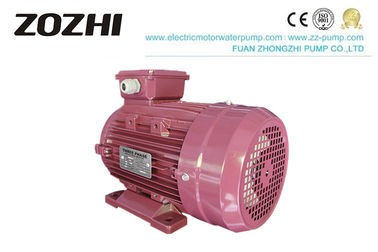

2.2KW Three Phase Induction Motor IE1/IE2 MS100L1-4 For Corn Grits Milling Machine

Place of Origin China
Brand Name ZOZHI
Certification ISO
Model Number MS100L1-4
Minimum Order Quantity 10PCS
Price negotiated
Packaging Details Packed in cartons,veneer case or wooden case.
Delivery Time 25 working days after received your payment
Payment Terms T/T, L/C, Western Union, E-checking
Supply Ability 10000pcs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Output 2.2kw/3hp Pole 4
Motor Bearing C&U (SKF For Choice) Efficiency IE1/IE2
Motor Housing Aluminum Protection Class IP54/IP55
Insulation Class F Class Color Customizable
Application Food Processing Equipment Product Name 3 Phase Induction Motor
High Light

3 phase asynchronous motor

,

squirrel cage electric motor

Leave a Message
Product Description

MS100L1-4 2.2KW Three Phase Induction Motor For Corn Grits Milling Machine

3 Phase Induction Motor



MS100L1-4 asynchronous induction motor good performance, safety, and reliable operation, nice appearance, and can be maintained very conveniently while with low noise. Little vibration, at the same time, lightweight and simple construction. These motors can be used for general drive.

1. Customized Production is available.

2. Supply for OEM and After Markets.

3. 100% tested for quality before shipment

4. Certificate and Guarantee: ISO 9001:2008 / one year

5. package: carton&pallet





BRAND ZOZHI PRODUCT CATEGORY ASYNCHRONOUS MOTOR
MODEL MS100L1-4 OUTPUT 2.2KW/3KW
RATED VOLTAGE: 380V RATED FREQUENCY 60HZ
PROTECTION CLASS IP54(IP55) INSULATION CLASS: B, F, H
AMBIENT TEMPERATURE -15 ℃ <θ<40 ℃ WORK SYSTEM S1
APPLICATION CORN GRITS MILLING MACHINE



Technical data


Model Power (V) (HZ) Current (A) Power Factor

Eff

(%)

Speed (r/min)

Tstart/

Tn

Tmax/

Tn

Ist/

In

HP KW
MS561-2 0.12 0.09 380 50 0.3 0.76 60 2750 2.3 2.4 6
MS562-2 0.16 0.12 0.37 0.78 63 2750 2.3 2.4 6
MS631-2 0.25 0.18 0.53 0.75 69 2800 2.2 2.4 4.5
MS632-2 0.33 0.25 0.68 0.78 72 2800 2.2 2.4 4.5
MS711-2 0.5 0.37 0.98 0.8 73 2800 2.2 2.4 4.5
MS712-2 0.75 0.55 1.35 0.82 75 2800 2.2 2.4 4.5
MS801-2 1 0.75 1.75 0.85 76 2800 2.2 2.4 4.5
MS802-2 1.5 1.1 2.55 0.85 77 2800 2.2 2.4 4.5
MS90S-2 2 1.5 3.36 0.87 78 2800 2.2 2.4 4.5
MS90L-2 3 2.2 4.93 0.87 78 2800 2.2 2.4 5
MS100L-2 4 3 6.31 0.87 83 2880 2.3 2.4 7
MS112M-2 5.5 4 8.12 0.88 85 2890 2.3 2.4 7
MS132S1-2 7.5 5.5 11 0.88 86 2900 2.3 2.4 7
MS132S2-2 10 7.5 14.9 0.88 87 2900 2.3 2.4 7
MS160L-2 25 18.5 34.7 0.9 90 2930 2.3 2.4 7
MS561-4 0.08 0.06 0.27 0.68 50 1300 2.2 2.3 5.5
MS562-4 0.12 0.09 0.36 0.7 54 1300 2.2 2.3 5.5
MS631-4 0.16 0.12 0.48 0.63 60 1400 2.2 2.4 4.5
MS632-4 0.25 0.18 0.65 0.66 64 1400 2.2 2.4 4.5
MS711-4 0.33 0.25 0.83 0.68 67 1400 2.2 2.4 4.5
MS712-4 0.5 0.37 1.12 0.72 69 1400 2.2 2.4 4.5
MS801-4 0.75 0.55 1.56 0.73 73 1400 2.2 2.4 4.5
MS802-4 1 0.75 2.01 0.75 75 1400 2.2 2.4 4.5
MS90S-4 1.5 1.1 2.83 0.78 76 1400 2.3 2.4 5
MS90L-4 2 1.5 3.84 0.78 76 1400 2.2 2.4 5
MS100L1-4 3 2.2 4.2 0.75 75 1400 2.2 2.4 5
MS100L2-4 4 3 6.78 0.82 82 1410 2.3 2.4 7
MS112M-4 5.5 4 8.82 0.82 84 1435 2.3 2.4 7
MS132S-4 7.5 5.5 11.8 0.83 85.5 1445 2.3 2.4 7
MS132M-4 10 7.5 15.6 0.84 87 1445 2.3 2.4 7
MS711-6 0.24 0.18 0.74 0.66 56 900 2 2.2 5.5
MS712-6 0.33 0.25 0.95 0.68 59 900 2 2.2 5.5
MS801-6 0.5 0.37 1.3 0.7 62 900 2 2.2 5.5
MS802-6 0.75 0.55 1.79 0.72 65 900 2 2.2 5.5
MS90S-6 1 0.75 2.29 0.72 69 910 2.1 2.2 5.5
MS90L-6 1.5 1.1 3.18 0.73 72 910 2.1 2.2 5.5
MS100L-6 2 1.5 3.89 0.76 76 940 2.1 2.2 5.5
MS112M-6 3 2.2 5.57 0.76 79 940 2.2 2.3 6.5
MS132S-6 4 3 7.4 0.76 81 960 2.2 2.3 6.5
MS132M1-6 5.5 4 9.75 0.76 82 960 2.2 2.3 6.5
MS132M2-6 7.5 5.5 12.9 0.77 84 960 2.2 2.3 6.5



3 Phase Induction Motor Quality Standard



100% tested for the quality before shipment:


a) Mechanical inspection: Check whether the motor rotates steadily, check whether the parts are complete, correct, and free from knocking and rust, and the surface of the motor is dry and complete, even, free from fouling, bumps, cracks, etc.
b) Determination of the insulation resistance of the stator winding to the casing and the windings

c) Measurement of DC resistance of stator windings under actual cold conditions

d) Determination of no-load current and loss



What is corn grits milling machine?



The corn grits milling machine uses corn kernels as raw materials, which can clean, peel, remove embryos, remove roots, remove black navel, crush, take grits, classify, polish all the processes at once, and produce different grain sizes. The corn grits of different sizes and cornmeal of different meshes produce the finished corn kernels with bright color and no navel, which can be directly entered into supermarkets and grain and oil wholesale markets.

three phase induction motor



Our service

1. Directly factory sale

2. Customized production is available

3. Supply for OEM and After Markets.

4. Quick response TO 2-8hours, response rates over 92%

5. 24 hours phone call is available. Feel free to contact us.
6 . We provide one-stop services for all goods produced by ourselves, from designing printing to processing. Customers can provide the design according to your request and the sample making. Also, we can advise how to make the products according to customers' target prices.
