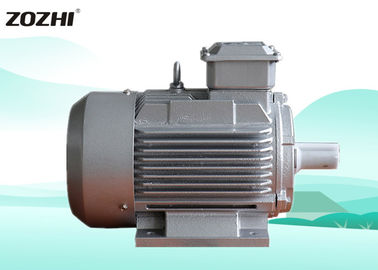

IEC Standard 3 Phase Induction Motor Aluminum 12-15HP 380V With 100% Copper Wire

  • IEC Standard 3 Phase Induction Motor Aluminum 12-15HP 380V With 100% Copper Wire
  • IEC Standard 3 Phase Induction Motor Aluminum 12-15HP 380V With 100% Copper Wire
Place of Origin China
Brand Name ZOZHI
Certification ISO
Model Number Y2-160M-4
Minimum Order Quantity 1pc
Price negotiated
Packaging Details Packed in cartons,veneer case or wooden cases
Delivery Time 25 working days after received your payment
Payment Terms T/T, L/C
Supply Ability 10000pcs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name 3 Phase Induction Motor Application Biomass Pellet Machine
Power 11KW /15HP Pole 4
Phase 3 Phase Insulation Classtion Class F
Voltage 380v Type Asynchronous Motor
Highlight

3 phase asynchronous motor

,

squirrel cage electric motor
Leave a Message
Product Description



Y Series Y2 Series Three Phase Induction Motor For Biomass Pellet Machine 12-15HP 380V

3 Phase Induction Motor

HIGH-QUALITY AC THREE-PHASE ELECTRIC MOTORS



Y2 series 3 phase induction motors/ motor with aluminum housing and 100% power.



1.Y2 series asynchronous aluminum motor with 100% copper wire, the latest design in its entirety.

2.Y2 motors are made of good quality materials and have the IEC standard.

3.Y2 motors have good performance, safety, and reliable operation.

4.Y2 motors can be maintained very conveniently, with low noises, little vibration, and lightweight.


While with low noise, little vibration, lightweight, and simple construction.
This series of motors can be used for air compressors, pumps, refrigerators, medical apparatus
and instruments, and many other small-size machines.
*IEC standard
*Superior finish
*Externally ventilated
*Lightweight construction
*IP55 protection
*Choice of foot or flange mounting
*Motor frame size from MEC71-112
*Class F insulation
*CE approval
Operating conditions
Ambient temperature: -15≤θ≤40
Above sea level: not exceed 1000m
Rated voltage: ±5%





Data



Model Output HP KW Current
(A)		 Speed
(r/min)		 Eff
(%)		 Power
Factor		 Eff
(%)		 Power
Factor		 Eff
(%)		 Power
Factor		 Tstart/Tn Ist/In Tmax/Tn
380V 5OHz Synchronous Speed 3000r/min (2 Poles)
Y2-631-2 0.25 0.18 0.53 2720 65.0 0.80 63.1 0.75 60.0 0.69 2.2 6.5 2.3
Y2-632-2 0.34 0.25 0.69 2720 68.0 0.81 65.1 0.76 62.0 0.70 2.2 7.0 2.3
Y2-711-2 0.5 0.37 0.99 2740 70.0 0.81 69.0 0.76 66.0 0.71 2.2 7.0 2.3
Y2-712-2 0.75 0.55 1.4 2740 73.0 0.82 71.2 0.70 70.0 0.72 2.2 7.0 2.3
Y2-801-2 1 0.75 1.83 2830 75.0 0.83 73.0 0.77 71.0 0.74 2.2 7.0 2.3
Y2-802-2 1.5 1.1 2.58 2830 77.0 0.84 75.1 0.78 73.0 0.73 2.2 7.0 2.3
Y2-90S-2 2 1.5 3.43 2840 79.0 0.84 77.0 0.78 74.9 0.76 2.0 7.0 2.3
Y2-90L-2 3 2.2 4.85 2840 81.0 0.85 80.0 0.79 79.9 0.76 2.0 7.0 2.3
Y2-100L-2 4 3 6.31 2870 83.0 0.87 82.0 0.80 81.1 0.77 2.0 7.0 2.3
Y2-112M-2 5.5 4 8.1 2890 85.0 0.88 83.9 0.83 82.0 0.80 2.0 7.0 2.2
Y2-132S1-2 7.5 5.5 11 2900 86.0 0.88 84.2 0.83 83.8 0.80 2.0 7.0 2.2
Y2-132S2-2 10 7.5 14.9 2900 87.0 0.88 85.8 0.84 84.9 0.78 2.0 7.0 2.2
Y2-132M1-2 15 11 21.3 2930 88.0 0.89 86.6 0.84 85.1 0.79 2.0 7.0 2.2
Y2-132M2-2 20 15 28.8 2930 89.0 0.89 87.9 0.84 86.4 0.80 2.0 7.0 2.2
Y2-160L-2 25 18.5 34.7 2930 90.0 0.90 89.8 0.86 86.8 0.80 2.0 7.0 2.2
Y2-180M-2 30 22 41 2940 90.0 0.90 88.9 0.86 86.8 0.82 2.0 7.0 2.2
Y2-200L1-2 40 30 55.5 2950 91.2 0.90 89.4 0.85 88.5 0.81 2.0 7.0 2.2
Y2-200L2-2 50 37 67.9 2950 92.0 0.90 91.0 0.86 90.4 0.82 2.0 7.0 2.2
Y2-225M-2 60 45 82.3 2970 92.3 0.90 90.5 0.85 89.7 0.82 1.8 6.8 2.2
Y2-250M-2 75 55 101 2970 92.5 0.90 91.3 0.85 91.0 0.82 1.8 6.8 2.2
Y2-280S-2 100 75 134 2970 93.0 0.90 91.9 0.86 91.5 0.81 1.8 6.8 2.2
Y2-280M-2 125 90 160 2970 93.8 0.91 92.6 0.87 92.2 0.83 1.8 6.8 2.2
Y2-315S-2 150 110 195 2980 94.0 0.91 93.1 0.87 93.0 0.83 1.6 7.0 2.2
Y2-315M-2 180 132 233 2980 94.5 0.91 93.2 0.87 93.1 0.84 1.6 7.1 2.2
Y2-315L1-2 220 160 279 2980 94.6 0.92 93.1 0.88 93.3 0.85 1.6 7.2 2.2
Y2-315L2-2 270 200 348 2980 94.8 0.92 94.0 0.88 93.8 0.85 1.6 7.3 2.2
Y2-355M-2 340 250 433 2980 95.3 0.92 94.8 0.88 94.0 0.85 1.6 7.4 2.2
Y2-355L-2 430 315 544 2980 95.6 0.92 95.0 0.88 94.0 0.85 1.6 7.5 2.2
380V 5OHz Synchronous Speed 1500r/min (4 Poles)
Y2-631-4 0.16 0.12 0.42 1310 57.0 0.72 56.1 0.69 51.9 0.55 2.1 5.2 2.2
Y2-632-4 0.25 0.18 0.62 1310 60.0 0.73 58.5 0.70 56.7 0.59 2.1 5.2 2.2
Y2-711-4 0.34 0.25 0.79 1330 65.0 0.74 62.4 0.73 59.3 0.59 2.1 5.2 2.2
Y2-712-4 0.5 0.37 1.12 1330 67.0 0.75 65.3 0.74 60.1 0.63 2.1 5.2 2.2
Y2-801-4 0.75 0.55 1.57 1390 71.0 0.75 69.2 0.74 68.6 0.64 2.4 5.2 2.3
Y2-802-4 1 0.75 2.03 1390 73.0 0.76 71.7 0.75 70.0 0.67 2.3 6.0 2.3
Y2-90S-4 1.5 1.1 2.89 1400 75.0 0.77 73.1 0.75 72.0 0.67 2.3 6.0 2.3
Y2-90L-4 2 1.5 3.7 1400 78.0 0.79 76.1 0.76 74.1 0.69 2.3 6.0 2.3
Y2-100L1-4 3 2.2 5.16 1430 80.0 0.81 78.0 0.79 75.5 0.69 2.3 7.0 2.3
Y2-100L2-4 4 3 6.78 1430 82.0 0.82 79.9 0.78 78.5 0.70 2.3 7.0 2.3
Y2-112M-4 5.5 4 8.8 1440 84.0 0.82 82.9 0.79 81.1 0.70 2.3 7.0 2.3
Y2-132S-4 7.5 5.5 11.7 1440 85.0 0.83 83.8 0.81 82.2 0.73 2.3 7.0 2.3
Y2-132M-4 10 7.5 15.6 1440 87.0 0.84 85.6 0.82 83.6 0.74 2.3 7.0 2.3
Y2-160M-4 15 11 22.3 1460 88.0 0.84 86.8 0.83 85.9 0.75 2.2 7.5 2.3
Y2-160L-4 20 15 30.1 1460 89.0 0.85 88.9 0.83 88.5 0.75 2.2 7.5 2.3
Y2-180M-4 25 18.5 36.5 1470 90.5 0.86 90.0 0.82 89.5 0.77 2.2 7.5 2.3
Y2-180L-4 30 22 43.2 1470 91.0 0.86 90.2 0.84 89.9 0.76 2.2 7.2 2.3
Y2-200L-4 40 30 57.6 1470 92.0 0.86 91.5 0.84 90.8 0.77 2.2 7.2 2.3
Y2-225S-4 50 37 69.9 1480 92.5 0.87 91.9 0.87 90.3 0.80 2.2 7.2 2.3
Y2-225M-4 60 45 84.7 1480 92.8 0.87 92.4 0.87 90.9 0.80 2.2 7.2 2.3
Y2-250M-4 75 55 103 1480 93.0 0.87 92.7 0.89 91.2 0.81 2.2 7.2 2.3
Y2-280S-4 100 75 140 1480 93.8 0.87 92.4 0.86 91.6 0.80 2.2 7.2 2.3
Y2-280M-4 125 90 167 1490 94.2 0.87 93.0 0.86 92.8 0.78 2.2 7.2 2.3
Y2-315S-4 150 110 201 1490 94.5 0.88 93.3 0.87 92.8 0.81 2.1 6.9 2.2
Y2-315M-4 180 132 240 1490 94.8 0.88 93.8 0.87 93.0 0.81 2.1 6.9 2.2
Y2-315L1-4 220 160 287 1490 94.9 0.89 93.9 0.88 93.1 0.81 2.1 6.9 2.2
Y2-315L2-4 270 200 359 1490 95.0 0.89 94.1 0.88 93.8 0.82 2.1 6.9 2.2
Y2-355M-4 340 250 443 1485 95.3 0.90 94.3 0.88 94.0 0.83 2.1 6.9 2.2
Y2-355L-4 430 315 556 1485 95.6 0.90 94.5 0.89 94.0 0.84 2.1 6.9 2.2

PERFORMANCE CHART
Model Output HP KW Current
(A)		 Speed
(r/min)		 Eff
(%)		 Power
Factor		 Tstart/Tn Ist/In Tmax/Tn
380V 5OHz Synchronous Speed 1000r/min (6 Poles)
Y2-711-6 0.25 0.18 0.74 850 56.0 0.66 1.9 4.0 2.0
Y2-712-6 0.34 0.25 0.95 850 59.0 0.68 1.9 4.0 2.0
Y2-801-6 0.5 0.37 1.3 890 62.0 0.70 1.9 4.7 2.0
Y2-802-6 0.75 0.55 1.79 890 65.0 0.72 1.9 4.7 2.1
Y2-90S-6 1 0.75 2.29 910 69.0 0.72 2.0 5.5 2.1
Y2-90L-6 1.5 1.1 3.18 910 72.0 0.73 2.0 5.5 2.1
Y2-100L-6 2 1.5 3.94 940 76.0 0.75 2.0 5.5 2.1
Y2-112M-6 3 2.2 5.6 940 79.0 0.76 2.0 6.5 2.1
Y2-132S-6 4 3 7.4 960 81.0 0.76 2.1 6.5 2.1
Y2-132M1-6 5.5 4 9.8 960 82.0 0.76 2.1 6.5 2.1
Y2-132M2-6 7.5 5.5 12.9 960 84.0 0.77 2.1 6.5 2.1
Y2-160M-6 10 7.5 17 970 86.0 0.77 2.0 6.5 2.1
Y2-160L-6 15 11 24.2 970 87.5 0.78 2.0 6.5 2.1
Y2-180L-6 20 15 31.6 970 89.0 0.81 2.0 7.0 2.1
Y2-200L1-6 25 18.5 38.6 970 90.0 0.81 2.1 7.0 2.1
Y2-200L2-6 30 22 44.7 970 90.0 0.83 2.1 7.0 2.1
Y2-225M-6 40 30 59.3 980 91.5 0.84 2.0 7.0 2.1
Y2-250M-6 50 37 71 980 92.0 0.86 2.1 7.0 2.1
Y2-280S-6 60 45 86 980 92.5 0.86 2.1 7.0 2.0
Y2-280M-6 75 55 105 980 92.8 0.86 2.1 7.0 2.0
Y2-315S-6 100 75 141 990 93.5 0.86 2.0 7.0 2.0
Y2-315M-6 125 90 168 990 93.8 0.86 2.0 7.0 2.0
Y2-315L1-6 150 110 206 990 94.0 0.86 2.0 6.7 2.0
Y2-315L2-6 180 132 244 990 94.2 0.87 2.0 6.7 2.0
Y2-355M1-6 220 160 282 990 94.5 0.88 1.9 6.7 2.0
Y2-355M2-6 270 200 365 990 94.7 0.88 1.9 6.7 2.0
Y2-355L-6 340 250 455 990 94.9 0.88 1.9 6.7 2.0
380V 5OHz Synchronous Speed 750r/min (8 Poles)
Y2-160M1-8 5.5 4 10.3 720 81.0 0.73 2.0 6.0 2.0
Y2-160M2-8 7.5 5.5 13.6 720 83.0 0.74 2.1 6.0 2.0
Y2-160L-8 10 7.5 17.8 720 85.5 0.75 2.1 6.0 2.0
Y2-180L-8 15 11 25.1 730 87.5 0.76 2.1 6.6 2.0
Y2-200L-8 20 15 34.1 730 88.0 0.76 2.0 6.6 2.0
Y2-225S-8 25 18.5 40.6 730 90.0 0.76 2.0 6.6 2.0
Y2-225M-8 30 22 47.4 740 90.5 0.78 2.0 6.6 2.0
Y2-250M-8 40 30 64 740 91.0 0.79 2.0 6.6 2.0
Y2-280S-8 50 37 78 740 91.5 0.79 1.9 6.6 2.0
Y2-280M-8 60 45 94 740 92.0 0.79 1.9 6.6 2.0
Y2-315S-8 75 55 111 740 92.8 0.81 1.9 6.6 2.0
Y2-315M-8 100 75 151 740 93.0 0.81 1.9 6.6 2.0
Y2-315L1-8 125 90 178 740 93.8 0.82 1.9 6.6 2.0
Y2-315L2-8 150 110 217 740 94.0 0.82 2.9 6.4 2.0



Application

Y2 series three phase induction motor





Biomass Pellet Machine Main performance characteristics:



1. Simple structure, wide applicability, small footprint,  and low noise.



2, powdered feed grass powder can be granulated without (or a little) liquid addition. Therefore, the moisture content of pellet feed is the moisture content of the material before pelleting, which is more conducive to storage.



3. The granules made by this machine have high hardness, a smooth surface, and sufficient internal maturity, which can improve the digestion and absorption of nutrients and kill general pathogenic microorganisms and parasites. It is suitable for raising rabbits, fish, ducks, and experimental animals—higher economic benefits than mixed powdered feed.



4. This model is equipped with 1.5 ---- 20 kinds of aperture dies, which can adapt to the granulation of different materials and achieve excellent results.



5. Adapt to different materials to ensure the binding effect. The compression molding of wood chips and corn stalks requires a lot of pressure. In similar granulation equipment, the roller component is the central component of the entire kit, and high-quality alloy steel is used to increase the service life of the roller.
