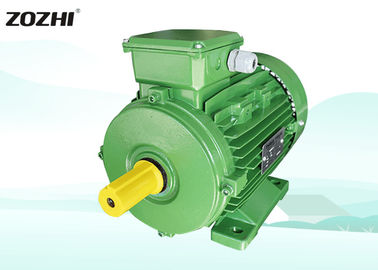

10HP Three Phase Aluminum Induction Motor MS132M-4 For Fish Feed Making Machine

  • 10HP Three Phase Aluminum Induction Motor MS132M-4 For Fish Feed Making Machine
Place of Origin China
Brand Name ZOZHI
Certification ISO
Model Number MS132S-4
Minimum Order Quantity 10PCS
Price negotiated
Packaging Details Packed in cartons,veneer case or wooden case.
Delivery Time 25 working days after received your payment
Payment Terms T/T, L/C, Western Union, E-checking
Supply Ability 10000pcs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Output 5.5KW /7.5HP Pole 4
Motor Bearing C&U (SKF For Choice) Efficiency IE1
Motor Housing Aluminum Protection Class IP54/IP55
Insulation Class F Class Color Customizable
Product Name 3 Phase Induction Motor
High Light

3 phase asynchronous motor

,

squirrel cage electric motor
Leave a Message
Product Description

MS132M-4 10HP Three Phase Aluminum Induction Motor For Fish Feed Making Machine

3 Phase Induction Motor Description



MS series aluminum housing three-phase asynchronous motors, in line with the relevant provisions of the International Electrotechnical Commission IEC, made of high-quality raw materials, latest design, owning good performance, low noise, small vibration, safe and reliable operation, nice appearance, small size, lightweight, simple structure, easy maintenance, etc. It applies in Fish Feed Making Machine.



1.BRAND: ZOZHI

2.MODEL:MS series

3.PRODUCT CATAGORY: electric motor

4.AMBIENT TEMPERATURE: -15 ℃ <θ<40 ℃

5.POWER RANGE: 0.09-5.5kw

6.RATED VOLTAGE: 380V

7.RATED FREQUENCY: 50Hz (or 60Hz)

8.PROTECTION CLASS: IP54(IP55)

9.INSULATION CLASS:B, F,H

10.WORK SYSTEM: S1


3 Phase Induction Motor Advantage

1. Superior finish

2. Externally Ventilated

3. Lightweight construction

4. Top-mounted terminal box

5. IP55 Protection

6. Interchangeable foot mounting and flange mounting



3 Phase Induction Motor Application

10HP Three Phase Aluminum Induction Motor MS132M-4 For Fish Feed Making Machine 0



Technical data


Model Power (V) (HZ) Current (A) Power Factor

Eff

(%)

 Speed (r/min)

Tstart/

Tn

Tmax/

Tn

Ist/

In
HP KW
MS561-2 0.12 0.09 380 50 0.3 0.76 60 2750 2.3 2.4 6
MS562-2 0.16 0.12 0.37 0.78 63 2750 2.3 2.4 6
MS631-2 0.25 0.18 0.53 0.75 69 2800 2.2 2.4 4.5
MS632-2 0.33 0.25 0.68 0.78 72 2800 2.2 2.4 4.5
MS711-2 0.5 0.37 0.98 0.8 73 2800 2.2 2.4 4.5
MS712-2 0.75 0.55 1.35 0.82 75 2800 2.2 2.4 4.5
MS801-2 1 0.75 1.75 0.85 76 2800 2.2 2.4 4.5
MS802-2 1.5 1.1 2.55 0.85 77 2800 2.2 2.4 4.5
MS90S-2 2 1.5 3.36 0.87 78 2800 2.2 2.4 4.5
MS90L-2 3 2.2 4.93 0.87 78 2800 2.2 2.4 5
MS100L-2 4 3 6.31 0.87 83 2880 2.3 2.4 7
MS112M-2 5.5 4 8.12 0.88 85 2890 2.3 2.4 7
MS132S1-2 7.5 5.5 11 0.88 86 2900 2.3 2.4 7
MS132S2-2 10 7.5 14.9 0.88 87 2900 2.3 2.4 7
MS160L-2 25 18.5 34.7 0.9 90 2930 2.3 2.4 7
MS561-4 0.08 0.06 0.27 0.68 50 1300 2.2 2.3 5.5
MS562-4 0.12 0.09 0.36 0.7 54 1300 2.2 2.3 5.5
MS631-4 0.16 0.12 0.48 0.63 60 1400 2.2 2.4 4.5
MS632-4 0.25 0.18 0.65 0.66 64 1400 2.2 2.4 4.5
MS711-4 0.33 0.25 0.83 0.68 67 1400 2.2 2.4 4.5
MS712-4 0.5 0.37 1.12 0.72 69 1400 2.2 2.4 4.5
MS801-4 0.75 0.55 1.56 0.73 73 1400 2.2 2.4 4.5
MS802-4 1 0.75 2.01 0.75 75 1400 2.2 2.4 4.5
MS90S-4 1.5 1.1 2.83 0.78 76 1400 2.3 2.4 5
MS90L-4 2 1.5 3.84 0.78 76 1400 2.2 2.4 5
MS100L1-4 3 2.2 4.2 0.75 75 1400 2.2 2.4 5
MS100L2-4 4 3 6.78 0.82 82 1410 2.3 2.4 7
MS112M-4 5.5 4 8.82 0.82 84 1435 2.3 2.4 7
MS132S-4 7.5 5.5 11.8 0.83 85.5 1445 2.3 2.4 7
MS132M-4 10 7.5 15.6 0.84 87 1445 2.3 2.4 7
MS711-6 0.24 0.18 0.74 0.66 56 900 2 2.2 5.5
MS712-6 0.33 0.25 0.95 0.68 59 900 2 2.2 5.5
MS801-6 0.5 0.37 1.3 0.7 62 900 2 2.2 5.5
MS802-6 0.75 0.55 1.79 0.72 65 900 2 2.2 5.5
MS90S-6 1 0.75 2.29 0.72 69 910 2.1 2.2 5.5
MS90L-6 1.5 1.1 3.18 0.73 72 910 2.1 2.2 5.5
MS100L-6 2 1.5 3.89 0.76 76 940 2.1 2.2 5.5
MS112M-6 3 2.2 5.57 0.76 79 940 2.2 2.3 6.5
MS132S-6 4 3 7.4 0.76 81 960 2.2 2.3 6.5
MS132M1-6 5.5 4 9.75 0.76 82 960 2.2 2.3 6.5
MS132M2-6 7.5 5.5 12.9 0.77 84 960 2.2 2.3 6.5





10HP Three Phase Aluminum Induction Motor MS132M-4 For Fish Feed Making Machine 1



HOLLOW SHAFT MOTOR SWIMMING POOL PUMP ELECTRIC MOTOR
water pump PRESSURE SWITCH 10HP Three Phase Aluminum Induction Motor MS132M-4 For Fish Feed Making Machine 7
water pump water pump mechnical seal

10HP Three Phase Aluminum Induction Motor MS132M-4 For Fish Feed Making Machine 11



What is Fish Feed Making Mchine :

The mill is used to reduce the particle size of the greaves after fat extraction. The reduction in the size required at this stage depends on whether the meal is used directly in compound feeds or passed through a further set of size reduction.

Features

1. The unique crushing chamber that could improve the grinding efficiency

2. Special rotor design program and the hammer sieve gap, which can meet different granularity
