Premium Efficiency IE3 Motor Three Phase Aluminum Induction Asynchronous 1.1kw

China Premium Efficiency IE3 Motor Three Phase Aluminum Induction Asynchronous 1.1kw supplier
Premium Efficiency IE3 Motor Three Phase Aluminum Induction Asynchronous 1.1kw supplier Premium Efficiency IE3 Motor Three Phase Aluminum Induction Asynchronous 1.1kw supplier Premium Efficiency IE3 Motor Three Phase Aluminum Induction Asynchronous 1.1kw supplier Premium Efficiency IE3 Motor Three Phase Aluminum Induction Asynchronous 1.1kw supplier

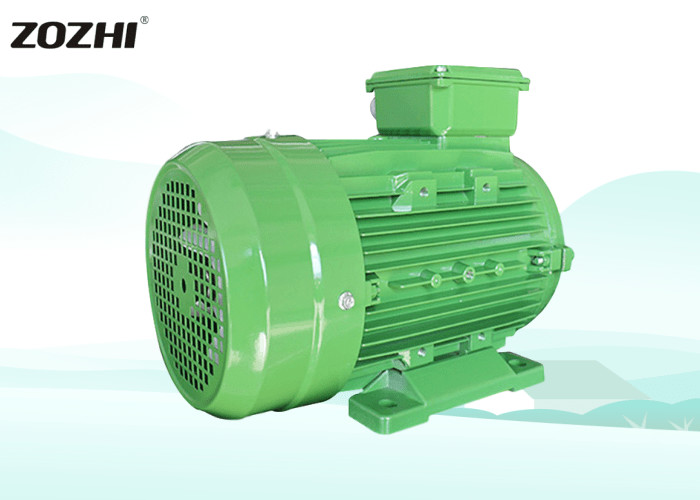

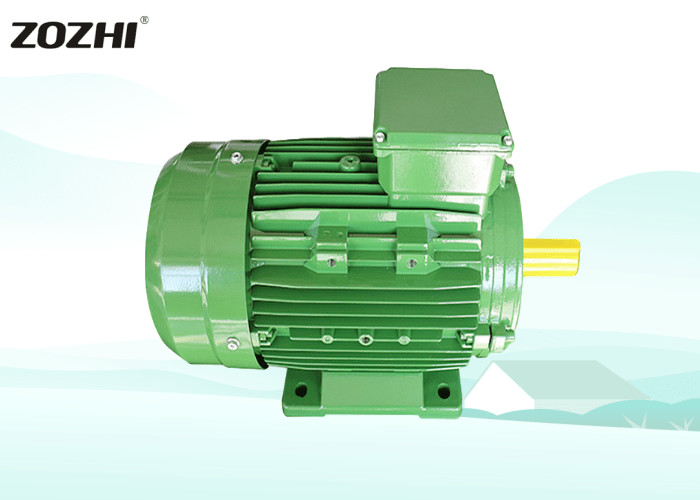

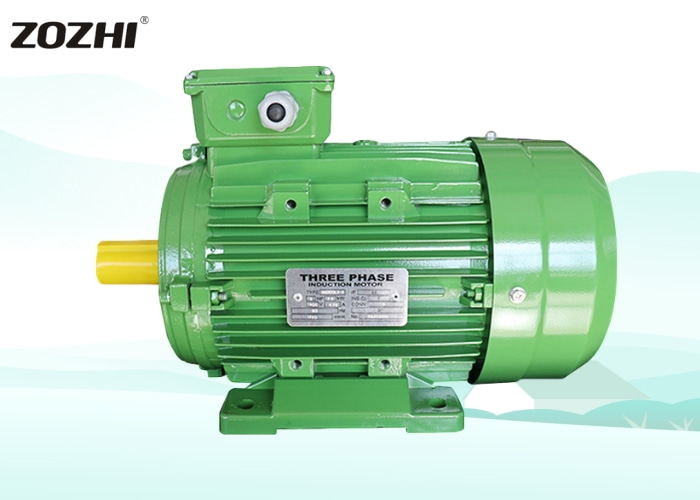

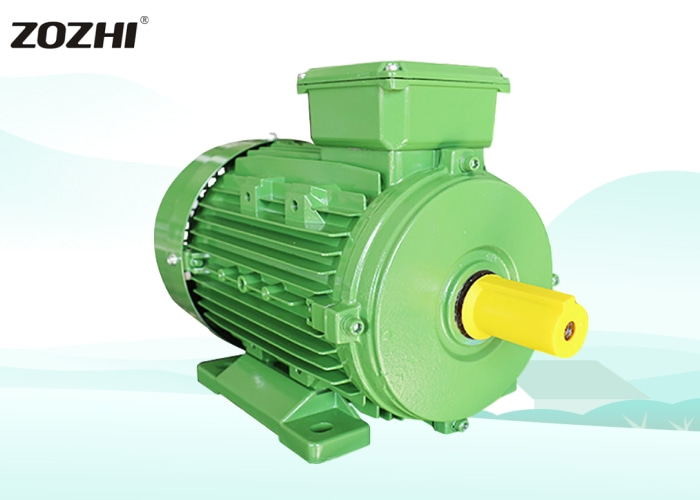

Large Image :  Premium Efficiency IE3 Motor Three Phase Aluminum Induction Asynchronous 1.1kw

Product Details:

Place of Origin: China
Brand Name: ZOZHI
Certification: ISO
Model Number: IE3 MS90L-6

Payment & Shipping Terms:

Minimum Order Quantity: 1pc
Price: negotiated
Packaging Details: Packed in cartons,veneer case or wooden case.
Delivery Time: 25 working days after received your payment
Payment Terms: T/T, L/C
Supply Ability: 10000pcs/month
Contact Now
Detailed Product Description
Product Name: IE3 Motor Body Material: Cast Iron
Output: 1.1kw Pole: 6
Protection Class: IP54 Frequency: 60Hz
Rated Voltage: 400V Insulation Class: B
Efficiency Class: IE3 Output Speed: 910

IE3 Premium Efficiency Motor Three Phase Aluminum Induction Asynchronous Motors



Place of Origin: FUAN, China
Brand Name: ZOZHI
Model Number: MS 4 poles series
Type: Asynchronous Motor
Frequency: 50HZ/60HZ
Phase: Three-phase
Certification: CCC, CE
Protect Feature: IP 54, Ip55
AC Voltage: 380v
Efficiency: IE3
Product Name: IE3 Three Phase Motor
Housing: aluminiun
Output Power: 0.75 – 11 kw
voltage: 380v
Protection class: IP54, IP55
Ambient temperature: -15 to 40 C
Mounting type: B3 B5 B35
Poles: 4
Color: Blue or customized
Warranty: 12 months



IE3 series motor has much higher efficiency. Beautiful appearance, energy saving, large starting torque, excellent performance, low noise, low vibration, and high reliability.



Site conditions Motors are suitable for most working environment at a temperature from -15°C t0 +40°C and altitude below 1000 meters
Insulation The motors' insulation system is set to Class F(105K), examined by Class B(80K), which ensures the life span and reliability of the motors.
Motor protection Motors can be installed with PTC, PT100 used as winding and bearing temperature measurement on request.
Voltage and frequency Standard voltage and frequency is 380V 50HZ and can be set to any single voltage in the range of 200-660V at a frequency of 50 or 60HZ. The motors work well within variations of ±5% from the rated voltage.
Vibration Motors are designed to vibration class A, vibration class B is available on request.
Duty Continuous(S1)
Cooling and ventilation The standard cooling method is totally enclosed fan cooled(TEFC) in accordance with IC411 of IEC60034-6. Standard motors are equipped with auxiliary plastic fans.
Winding 100% Copper Wire
Protection class The standard protection class is IP54/IP55, which can be used in a humid and dusty environment. Higher degrees of protection are available.
Quality assurance From the first line of production designing till the finishing procedure, obey ISO9001 documented quality system.



E3 Electric Motor Application

As a drive of various kinds of machines, widely applied in industries including mechanical and electro-mechanical industry, food industry, textile industry and so on.



IE3 MOTOR

Features:



IE3 MOTOR



IE3 Electric Motor Data

Model Power (V) (A)

Spee

d r/min

Eff.(%) P.F. Tstart/Tn Ist/In Tmax/Tn N.W. (kg)
Kw HP 50% 75% 100%
IE3 MS801-2 0.75 1 230/400 2.82/1.63 2820 79.7 81.0 80.7 0.831 2.3 6.0 2.3 9.5
IE3 MS802-2 1.1 1.5 4.0/2.3 2820 81.5 82.9 82.7 0.836 2.3 7.5 2.3 11
IE3 MS90S-2 1.5 2 5.23/3.02 2840 84.0 85.0 84.2 0.857 2.4 7.5 2.4 15
IE3 MS90L-2 2.2 3 7.44/4.3 2840 86.0 86.5 85.9 0.865 2.4 7.5 2.4 18
IE3 MS100L-2 3 4 9.9/5.72 2850 88.2 87.3 87.1 0.873 2.4 8.0 2.4 25
IE3 MS112M-2 4 5.5 400/690 7.48/4.32 2870 88.0 88.4 88.1 0.880 2.4 8.5 2.4 28.5
IE3 MS132S1-2 5.5 7.5 10/5.8 2900 89.1 89.6 89.2 0.890 2.2 7.5 2.4 41
IE3 MS132S2-2 7.5 10 13.5/7.8 2900 90.0 90.5 90.1 0.892 2.2 7.5 2.4 46.5
IE3 MS160M1-2 11 15 19.5/11.3 2920 89.8 91.3 91.2 0.896 2.2 8.5 2.4 81
IE3 MS160M2-2 15 20 26.2/15.1 2920 91.6 92.0 91.9 0.805 2.2 8.5 2.4 93
IE3 MS160L-2 18.5 25 31.9/18.4 2920 92.1 92.5 92.4 0.910 2.2 8.5 2.4 104
IE3 MS802-4 0.75 1 230/400 2.97/1.72 1400 81.0 82.7 82.5 0.770 2.4 7.0 2.4 12
IE3 MS90S-4 1.1 1.5 4.25/2.45 1420 82.6 84.3 84.1 0.775 2.4 7.5 2.4 16
IE3 MS90L-4 1.5 2 5.68/3.28 1420 83.8 85.4 85.3 0.778 2.4 8.0 2.4 20
IE3 MS100L1-4 2.2 3 8.0/4.62 1440 84.3 86.7 86.7 0.798 2.4 8.0 2.4 26
IE3 MS100L2-4 3 4 10.8/6.2 1440 86.0 87.6 87.7 0.801 2.4 8.0 2.4 30
IE3 MS112M-4 4 5.5 400/690 7.97/4.6 1450 88.3 88.8 88.6 0.821 2.4 7.5 2.4 38
IE3 MS132S-4 5.5 7.5 10.8/6.2 1450 89.0 89.7 89.6 0.825 2.3 7.5 2.4 46
IE3 MS132M-4 7.5 10 14.4/8.32 1450 90.1 90.6 90.4 0.834 2.3 7.5 2.4 54
IE3 MS160M-4 11 15 20.8/12.0 1460 90.5 91.5 91.4 0.838 2.2 7.0 2.4 88
IE3 MS160L-4 15 20 27.9/16.1 1460 91.5 92.5 92.1 0.847 2.2 7.0 2.4 103
IE3 MS90S-6 0.75 1 230/400 3.42/1.97 910 77.5 94.4 78.9 0.700 2 4.0 2.3 15
IE3 MS90L-6 1.1 1.5 4.8/2.78 910 80.2 81.3 81.0 0.710 2 4.0 2.3 20
IE3 MS100L1-6 1.5 2 6.35/3.66 930 81.3 82.6 82.5 0.720 2 5.0 2.3 25
IE3 MS112M-6 2.2 3 8.98/5.2 940 83.2 85.0 84.3 0.730 2 5.0 2.3 30
IE3 MS132S-6 3 4 11.9/6.87 960 84.5 85.8 85.6 0.740 2.2 6.5 2.3 38.5
IE3 MS132M1-6 4 5.5 400/690 9.0/5.2 960 85.3 86.9 86.8 0.745 2.2 7.0 2.3 47.5
IE3 MS132M2-6 5.5 7.5 12.1/7.0 960 86.9 88.2 88.0 0.750 2.2 7.0 2.3 58
IE3 MS160M-6 7.5 10 16.1/9.3 970 87.5 89.0 89.1 0.760 2.2 7.0 2.3 83
IE3 MS160L-6 11 15 22.9/13.2 970 89.0 90.2 90.3 0.770 2.2 7.0 2.3 99



I

Premium Efficiency IE3 Motor Three Phase Aluminum Induction Asynchronous 1.1kw

HOLLOW SHAFT MOTOR SWIMMING POOL PUMP ELECTRIC MOTOR
PRESSURE SWITH PRESSURE SWITCH PRESSURE SWITCH
water pump water pump mechnical seal



Guarantee:



Guarantee for one year from shipped on board date. During the guarantee period, our company will provide the free easy-damaged spare part for problems caused by our quality of production or raw material, except the damageable spare parts caused by the customer's incorrect man-made operation. After expiration, our company provides cost spare parts for maintenance.





Our Service:

1. Free maintenance within 12 months guarantee.
2. We cooperate with customers to design and develop a new product.
3. We'd like to assist you in arranging delivery things, test things or others on your request.
4. Customize production.
1. We are a professional manufacturer with more than 13 years experience in Electric motor
2. We are Made in China Gold Supplier
3.we test the material before production and three to four times when producing to ensure the goods in good quality, also we produce according to request
4.we can be your OEM manufacturer with your authorization of brand.


FAQ:


1. Q: What’s the MOQ?
A: We accept one piece.

2. Q: Are you a factory or trading company?
A: We are a manufacturer.

3. Q: Can you accept to use our logo?
A: Yes, we can do OEM for you.

4. Q: What’s the warranty period?
A: 1 year.



5. Q: What are the terms of payment?

A: T/T. 30% deposit and 70% against the BL copy or 100% LC at sight.
