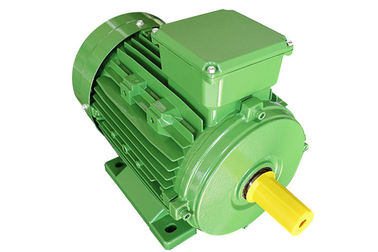

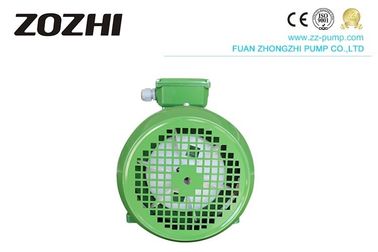

IEC Standard 380V Three Phase Electric Motor Aluminum 5.5KW 7.5HP MS132S-4

  • IEC Standard 380V Three Phase Electric Motor Aluminum 5.5KW 7.5HP MS132S-4
  • IEC Standard 380V Three Phase Electric Motor Aluminum 5.5KW 7.5HP MS132S-4
  • IEC Standard 380V Three Phase Electric Motor Aluminum 5.5KW 7.5HP MS132S-4
Place of Origin China
Brand Name ZOZHI
Certification ISO
Model Number MS132S-4
Minimum Order Quantity 10PCS
Price negotiated
Packaging Details Packed in cartons,veneer case or wooden case.
Delivery Time 25 working days after received your payment
Payment Terms T/T, L/C, Western Union, E-checking
Supply Ability 10000pcs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Output 5.5KW /7.5HP Pole 4
Motor Bearing C&U (SKF For Choice) Efficiency IE1
Motor Housing Aluminum Protection Class IP54/IP55
Insulation Class F Class Color Customizable
Product Name 3 Phase Induction Motor
Highlight

3 phase asynchronous motor

,

squirrel cage electric motor
Leave a Message
Product Description

MS IEC standard 380V Three Phase Electric Motor Powerful Induction Motor

3 Phase Induction Motor



Description



  • Rated outputs and frame sizes following IEC60034 standards
  • Duty type S1(continuous duty)with sufficient thermal margin to withstand short overload
  • Enclosure protection IP55
  • Insulation class F, temperature rise class B
  • Maximum ambient 40°C
  • Altitude≤1000m a.s.l.



  • Terminal box rotates 4x90°
  • Removable feet, multi mount-terminal box left or right-hand side
  • Enclosed shaft key



  • Frame – Aluminium
  • End shields- Aluminium/Cast iron
  • Fan cowl- steel
  • Fan-Plastic
  • Shaft- Medium carbon steel(stainless available on request)
  • Terminal box – Aluminium



IEC Standard 380V Three Phase Electric Motor Aluminum 5.5KW 7.5HP MS132S-4 0

IEC Standard 380V Three Phase Electric Motor Aluminum 5.5KW 7.5HP MS132S-4 1







Technical data


Model Power (V) (HZ) Current (A) Power Factor

Eff

(%)

 Speed (r/min)

Tstart/

Tn

Tmax/

Tn

Ist/

In
HP KW
MS561-2 0.12 0.09 380 50 0.3 0.76 60 2750 2.3 2.4 6
MS562-2 0.16 0.12 0.37 0.78 63 2750 2.3 2.4 6
MS631-2 0.25 0.18 0.53 0.75 69 2800 2.2 2.4 4.5
MS632-2 0.33 0.25 0.68 0.78 72 2800 2.2 2.4 4.5
MS711-2 0.5 0.37 0.98 0.8 73 2800 2.2 2.4 4.5
MS712-2 0.75 0.55 1.35 0.82 75 2800 2.2 2.4 4.5
MS801-2 1 0.75 1.75 0.85 76 2800 2.2 2.4 4.5
MS802-2 1.5 1.1 2.55 0.85 77 2800 2.2 2.4 4.5
MS90S-2 2 1.5 3.36 0.87 78 2800 2.2 2.4 4.5
MS90L-2 3 2.2 4.93 0.87 78 2800 2.2 2.4 5
MS100L-2 4 3 6.31 0.87 83 2880 2.3 2.4 7
MS112M-2 5.5 4 8.12 0.88 85 2890 2.3 2.4 7
MS132S1-2 7.5 5.5 11 0.88 86 2900 2.3 2.4 7
MS132S2-2 10 7.5 14.9 0.88 87 2900 2.3 2.4 7
MS160L-2 25 18.5 34.7 0.9 90 2930 2.3 2.4 7
MS561-4 0.08 0.06 0.27 0.68 50 1300 2.2 2.3 5.5
MS562-4 0.12 0.09 0.36 0.7 54 1300 2.2 2.3 5.5
MS631-4 0.16 0.12 0.48 0.63 60 1400 2.2 2.4 4.5
MS632-4 0.25 0.18 0.65 0.66 64 1400 2.2 2.4 4.5
MS711-4 0.33 0.25 0.83 0.68 67 1400 2.2 2.4 4.5
MS712-4 0.5 0.37 1.12 0.72 69 1400 2.2 2.4 4.5
MS801-4 0.75 0.55 1.56 0.73 73 1400 2.2 2.4 4.5
MS802-4 1 0.75 2.01 0.75 75 1400 2.2 2.4 4.5
MS90S-4 1.5 1.1 2.83 0.78 76 1400 2.3 2.4 5
MS90L-4 2 1.5 3.84 0.78 76 1400 2.2 2.4 5
MS100L1-4 3 2.2 4.2 0.75 75 1400 2.2 2.4 5
MS100L2-4 4 3 6.78 0.82 82 1410 2.3 2.4 7
MS112M-4 5.5 4 8.82 0.82 84 1435 2.3 2.4 7
MS132S-4 7.5 5.5 11.8 0.83 85.5 1445 2.3 2.4 7
MS132M-4 10 7.5 15.6 0.84 87 1445 2.3 2.4 7
MS711-6 0.24 0.18 0.74 0.66 56 900 2 2.2 5.5
MS712-6 0.33 0.25 0.95 0.68 59 900 2 2.2 5.5
MS801-6 0.5 0.37 1.3 0.7 62 900 2 2.2 5.5
MS802-6 0.75 0.55 1.79 0.72 65 900 2 2.2 5.5
MS90S-6 1 0.75 2.29 0.72 69 910 2.1 2.2 5.5
MS90L-6 1.5 1.1 3.18 0.73 72 910 2.1 2.2 5.5
MS100L-6 2 1.5 3.89 0.76 76 940 2.1 2.2 5.5
MS112M-6 3 2.2 5.57 0.76 79 940 2.2 2.3 6.5
MS132S-6 4 3 7.4 0.76 81 960 2.2 2.3 6.5
MS132M1-6 5.5 4 9.75 0.76 82 960 2.2 2.3 6.5
MS132M2-6 7.5 5.5 12.9 0.77 84 960 2.2 2.3 6.5





IEC Standard 380V Three Phase Electric Motor Aluminum 5.5KW 7.5HP MS132S-4 2



IEC Standard 380V Three Phase Electric Motor Aluminum 5.5KW 7.5HP MS132S-4 3 IEC Standard 380V Three Phase Electric Motor Aluminum 5.5KW 7.5HP MS132S-4 4 IEC Standard 380V Three Phase Electric Motor Aluminum 5.5KW 7.5HP MS132S-4 5
IEC Standard 380V Three Phase Electric Motor Aluminum 5.5KW 7.5HP MS132S-4 6 IEC Standard 380V Three Phase Electric Motor Aluminum 5.5KW 7.5HP MS132S-4 7 IEC Standard 380V Three Phase Electric Motor Aluminum 5.5KW 7.5HP MS132S-4 8
IEC Standard 380V Three Phase Electric Motor Aluminum 5.5KW 7.5HP MS132S-4 9 IEC Standard 380V Three Phase Electric Motor Aluminum 5.5KW 7.5HP MS132S-4 10 IEC Standard 380V Three Phase Electric Motor Aluminum 5.5KW 7.5HP MS132S-4 11

IEC Standard 380V Three Phase Electric Motor Aluminum 5.5KW 7.5HP MS132S-4 12



3 Phase Induction Motor



Guarantee:
Guarantee for one year from shipped on board date. During the guarantee period, our company will provide free easy-damaged spare parts for problems caused by our quality of production or raw material, except the damageable spare parts caused by customer's incorrect artificial operation. In addition, after expiration, our company provides cost spare parts for maintenance.



Our service:

1. Directly factory sale
2. Quick response to 2-8hours, response rates over 92%
3. 24 hours phone call is available. Feel free to contact us.
4. We provide one-stop services for all goods produced by ourselves, from designing printing to processing. Customers can provide the design according to your request and sample making. Also, we can advise how to make the products according to customers' target prices.



FAQ:

1. Q: What's the MOQ?
    A: We accept one piece.
2. Q: Are you a factory or trading company?
    A: We are a manufacturer.
3. Q: Can you accept using our logo?
    A: Yes, we can do OEM for you.
4. Q: What's the warranty period?
    A: 1 year.
5. Q: What are the terms of payment?
    A: T/T. 30% deposit and 70% against the BL copy or 100% LC at sight.
