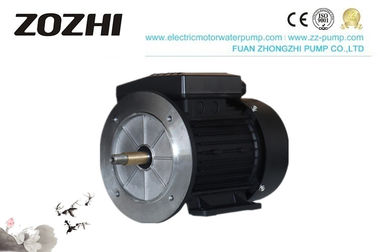

Low Noise Single Phase Induction Motor 2 Pole For Inground Swimming Pool Pump
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Single Phase Induction Motor | Application | Swimming Pool Pump |
|---|---|---|---|
| Output | 2HP/1.5KW | Pole | 2 |
| Efficiency | IE1,IE2 | Performance | High Reliability |
| Capacitor Type | Capacitor Running | Phase | Single Phase |
| Housing | Aluminium | ||
| High Light | single phase capacitor start motor,single phase asynchronous motor |
||
Product Description
Low Noise Single Phase Induction Motor 2 Pole For Inground Swimming Pool Pump
Single Phase Induction Motor
Description
High performance, the energy-saving motor with stainless steel shaft could stand wear and tear High efficiency, low maintenance, and reliability Rugged weather-resistant construction Hushed operation.
Note: The water pump motor enters water or pumps operating environment is excessively humid, causing the motor to short-circuit and burn.
Operating Conditions:
1. Ambient temperature: -15℃≦0≦40℃
2. Cooling method: IC0141
3. Rated voltage: 220V
4. Rated frequency: 50Hz/60Hz
5. Duty: Continuous(S1)
6. Insulation class: Class B/F
7. Protection class: IP44/IP54/IP55
Production data
| Model | Power | Voltage(V) | Frequency (HZ) | Current (A) | Power Factor | Eff(%) | Speed (r/min) | T start/Tn | Tmax/Tn | |
| HP | KW | |||||||||
| MYT711-2 | 0.75 | 0.55 | 220 | 50 | 3.88 | 0.92 | 70 | 2800 | 0.35 | 1.7 |
| MYT712-2 | 1 | 0.75 | 5.15 | 0.92 | 72 | 2800 | 0.35 | 1.7 | ||
| MYT801-2 | 1.5 | 1.1 | 7.02 | 0.95 | 75 | 2800 | 0.33 | 1.7 | ||
| MYT802-2 | 2 | 1.5 | 9.44 | 0.95 | 76 | 2800 | 0.33 | 1.7 |
General data
| Frame size | 80 |
| Housing material | Aluminum |
| Install model | According to the standard |
| Type of feet | Removable feet |
| Net weight | 8.7kg |
| Insulation class | FH(Standard)(Optional) |
| Protection degree | IP 55IP 56(Standard)(Optional) |
| Thermal protection | WithoutCustomizable(Standard)(Optional) |
| Rotation direction | ClockwiseCounter clockwise(Standard)(Optional) |
| Service duty | S1 |
| Vibration level | A |
| Balance | Half-key balanced |
| Cable glands | 1 - M20 × 1.5 |
| Cooling | IC 411 |
| Painting color | RAL 7024Customizable(Standard)(Optional) |
| Regulations | IEC / DIN / ISO / VDE / EN |
| Standard | IEC 60034 |
| Environmental conditions | |
| Ambient temperature | From -20°C to +40°C |
| Maximum altitude | 1000 m above sea level |
Application
The Single-phase induction water pump motor has an excellent structure, beautiful appearance, low noise, high efficiency, high protection level, and increased insulation grade. It is the best choice for swimming pool pumps.
The electric motor so is careful while you use the pump that the water should not exceed.
