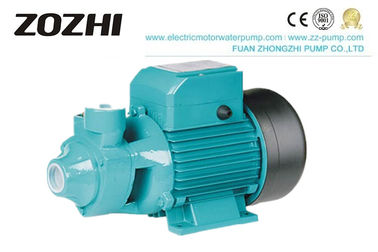

Electrical Peripheral Water Pump , Micro Vortex Water Pump 1/2 Hp For Household

China Electrical Peripheral Water Pump , Micro Vortex Water Pump 1/2 Hp For Household supplier
Electrical Peripheral Water Pump , Micro Vortex Water Pump 1/2 Hp For Household supplier

Large Image :  Electrical Peripheral Water Pump , Micro Vortex Water Pump 1/2 Hp For Household

Product Details:

Place of Origin: China
Brand Name: ZOZHI
Certification: CE/SGS/ISO
Model Number: QB series

Payment & Shipping Terms:

Minimum Order Quantity: 1pc
Price: negotiated
Packaging Details: Packed in cartons , overall size:330x180x220mm/pc, N.W.: 9.5kgs
Delivery Time: 25 working days after received your payment
Payment Terms: T/T, L/C
Supply Ability: 30000pcs per month
Contact Now
Detailed Product Description
Product Name: Electric Water Pump Application: Boosting
Power: 1.0HP /0.75KW Flow Max: 50L/Min
Head Max: 55M Suction Max: 9M
Warranty: 12 Months Speed: 2850RPM
High Light:

peripheral impeller pump

,

domestic water pump

Peripheral Electrical Micro Vortex Water Pump 1/2 hp For Household Application



Peripheral Water Pump Description



Applied to pump such liquid which is clean, no solid matter or frictional matter, low viscous, noncorrosive, no-crystallizable, chemically neutral and close to water. Such as:1. Tank filling. 2. Domestic water supply. 3. Water transfer. 4 Pressure boosting. 5. Irrigation



Features

1. 100% copper wire, and automatic wiring

2. Cold-rolled silicon steel sheet, with high-speed punching, improve the efficiency and precision

3. Demagnetization of stainless steel nuts

4. Anti-rust treatment castings and electrophoresis

5. New testing equipment.



Character
Low noise, no leakage, low energy consumption, easy installation, environment-friendly



Material and working limits

Pump body: Cast iron

Impeller: Brass

Motor housing: Aluminum

Motor wire: Copper

Mechanical seal: Ceramic & Graphite

Shaft: 45#steel

Bearing: China

Insulation class: B

Protection class: IP 44

Rated Voltage: 220V/380V

Frequency: 50Hz



Peripheral Water Pump Application



It can be used to transfer clean water or other liquid similar to water in physical and chemical properties . It is suitable for lifting water from the well, sprinking irrigation in garden, pressure boosting of running water and supporting equipment



hollow shaft electric motor



Peripheral Water Pump Data ( 220V/50HZ )

Model Output A R.P.M. Q.Max H.Max S.Head Pipe Dia LxWxH N.W.
HP / KW 1~220V (l/min) (m) (M) (mm) (Kg)
QB60 0.5 / 0.37 1.6 2850 35 35 9 1"x1" 280x145x180 5.3
QB70 0.75 / 0.55 3.6 2850 45 50 9 1"x1" 330x180x220 9.5
QB80 1 / 0.75 4.8 2850 50 55 9 1½ "x1½" 330x180x220 10
QB90 1.5 / 1.1 6.2 2850 90 60 9 1½ "x1½" 425x200x220 22


Other voltages and frequencies available on request



Electrical Peripheral Water Pump , Micro Vortex Water Pump 1/2 Hp For Household




STRUCTURAL CHARACTERISTICS



Main Specification Standard Optional
Transmission medium Clean Water
Pump body Cast Iron
Impeller Brass
Motor housing Aluminum
Stator&Rotor 1.Cold-rolled silicon steel sheet by high-speed punching machine. 2. 100% high-quality copper wire
Front cover Cast Iron Brass plate embedded to avoid impeller jam
Bearing Chinese Best Quality Bearing NSK, SKF or on request
Mechanical seal Graphene/Ceramic Silicon Carbon
Shaft Carbon Steel Stainless Steel
Insulation Class B Class F
Protection IP44 IP54
Voltage 220-240V Single Phase On Request
Frequency 50HZ 60HZ
thermal protection No Yes
Automatic Pressure Control System No Yes
Cooling Type External Ventilation
Max. Suction lift 9M
Max. Fluid Temperature +60℃
Max. Environment Temperature +40℃
Installation Horizontal
Connect Type Thread
CONSTRUCTION AND SAFETY STANDARDS in compliance with IEC





Electrical Peripheral Water Pump , Micro Vortex Water Pump 1/2 Hp For Household



HOLLOW SHAFT MOTOR SWIMMING POOL PUMP ELECTRIC MOTOR
PRESSURE SWITH PRESSURE SWITCH Electrical Peripheral Water Pump , Micro Vortex Water Pump 1/2 Hp For Household
water pump water pump mechnical seal



GUARANTEE

Guarantee for one year from shipped on board date. During the guarantee period, our company will provide the free easy-damaged spare part for problems caused by our quality of production or raw material, except the damageable spare parts caused by customer's incorrect man-made operation. After expiration, our company provides cost spare parts for maintenance.

OUR SERVICE

1. Directly factory sale
2. Quick response to 2-8hours, response rates over 92%
3. 24 hours phone call is available, feel free to contact us.
4. All goods produced by ourselves, we provide one-stop services from designing, printing to processing. Customers can provide the design according to your request and samples making, also we can advise how to make the products according to customers' target prices.


FAQ
1. Q: What’s the MOQ?
A: Trial sample order is ok.
2. Q: Are you a factory or trading company?
A: We are a manufacturer.
3. Q: Can you accept to use our logo?
A: Yes, we can do OEM for you.
4. Q: How can I get the pump?
A: Usually we suggest express for samples, if the volume reaches 1m³, the Seaway will be better.
5. Q: What’s the warranty period?
A: 1 year.
