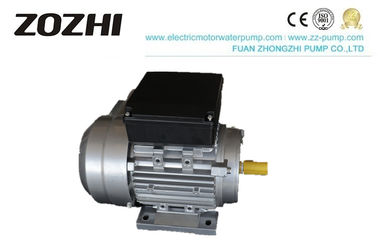

ML Series Single Phase Induction Motor Capacitor Start 3KW For Agricultural Machinery

  • ML Series Single Phase Induction Motor Capacitor Start 3KW For Agricultural Machinery
Place of Origin China
Brand Name ZOZHI
Certification ISO
Model Number ML100L-2
Minimum Order Quantity 1pc
Price negotiated
Packaging Details Packed in cartons,veneer case or wooden case.
Delivery Time 25 working days after received your payment
Payment Terms T/T, L/C
Supply Ability 10000pcs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Single Phase Induction Motor Application General Driving
Output 3KW Pole 2
Protection Class IP54 Frequency 50Hz
Insulation Class H
Highlight

Agricultural Machinery Single Phase Induction Motor

,

ML Series Single Phase Induction Motor

,

3KW Single Phase Capacitor Start Motor
Leave a Message
Product Description

ML Series Capacitor Start Single Phase Induction Motor For Agricultural Machinery

Single Phase Induction Motor

ML Series Single-Phase Induction Motor Description



ML series single-phase induction motors start by a capacitor, is so-called two-value capacitor induction motor with the advantages of the capacitor start motor and capacitor running motor, high efficiency, energy saving, low noise, little vibration, lightweight, convenient operation, and maintenance. Widely used in many places, combustible, explosive, or corrosive gas do not exist, and without any special requirements, such as machine tools, pumps, fans, transport machinery, mixer, agriculture machinery and food machines, air compressor, etc.





ML Series Single-Phase Induction Motor Application

ML series aluminum housing motor has good performance and is widely used in electroplating, rice, flour, ceramic, cutting, and other industrial and mechanical industries.

ML Series Single Phase Induction Motor Capacitor Start 3KW For Agricultural Machinery 0



ML Series Single-Phase Induction Motor Data



Model Power
(KW)
(V)
(A)		 Speed
(r/min)		 Eff.
(%)		 P.F. Tstart/Tn Tmax/Tn Ist/In (A)
ML711-2 0.37 220 2.73 2800 67 0.92 2.3 1.8 16
ML712-2 0.55 220 3.88 2800 70 0.92 2.5 1.8 21
ML801-2 0.75 220 5.15 2800 72 0.92 2.5 1.8 30
ML802-2 1.10 220 7.02 2800 75 0.95 2.5 1.8 40
ML90S-2 1.50 220 9.44 2800 76 0.95 2.5 1.8 55
ML90L-2 2.20 220 13.67 2800 77 0.95 2.5 1.8 80
ML100L-2 3.00 220 18.2 2800 79 0.95 2.5 1.8 110
ML711-4 0.25 220 1.99 1400 62 0.92 2.5 1.8 12
ML712-4 0.37 220 2.81 1400 65 0.92 2.5 1.8 16
ML801-4 0.55 220 4.0 1400 68 0.92 2.5 1.8 21
ML802-4 0.75 220 5.22 1400 71 0.92 2.5 1.8 30
ML90S-4 1.10 220 7.2 1400 73 0.95 2.5 1.8 40
ML90L-4 1.50 220 9.57 1400 75 0.95 2.5 1.8 55
ML100L1-4 2.20 220 13.9 1400 76 0.95 2.5 1.8 80
ML100L2-4 3.00 220 18.6 1400 77 0.95 2.5 1.8 110



ML Series Single-Phase Induction Motor Feature

utilize IP 54/IP55
multiple feet locations
aluminum frame, end shields, and base
high strength cable gland
shaft key and protector supplied
superior paint finish
motors made to heavy-duty service factors
can be made with stainless steel shaft
motors made for continuous S1 duty
utilize vacuum impregnated Class B or Class F insulation
others insulation on request
high performance and efficiency





Single Phase Induction Motor GUARANTEE:



Guarantee for one year from shipped on board date. During the guarantee period, our company will provide free easy-damaged spare parts for problems caused by our quality of production or raw material, except the damageable spare parts caused by customer's incorrect artificial operation. In addition, after expiration, our company provides cost spare parts for maintenance.



OUR SERVICE:

1. Directly factory sale
2. Quick response to 2-8hours, response rates over 92%
3. 24 hours phone call is available. Feel free to contact us.
4. All goods produced by ourselves, we provide one-stop services from designing, printing to processing. Customers can provide the design according to your request and the samples making. Also, we can advise how to make the products according to customers' target prices.


FAQ:


1. Q: What’s the MOQ?
A: We accept one piece.

2. Q: Are you a factory or trading company?
A: We are a manufacturer.

3. Q: Can you accept using our logo?
A: Yes, we can do OEM for you.

4. Q: What’s the warranty period?
A: 1 year.



5. Q: What are the terms of payment?

A: T/T. 30% deposit and 70% against the BL copy or 100% LC at sight.
