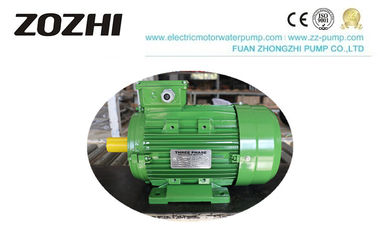

Premium Efficiency IE3 Motor Three Phase Capacitor Running For Floor Grinding Machine

  • Premium Efficiency IE3 Motor Three Phase Capacitor Running For Floor Grinding Machine
Place of Origin China
Brand Name ZOZHI
Certification ISO
Model Number IE3 MS132S-4
Minimum Order Quantity 1pc
Price negotiated
Packaging Details Packed in cartons,veneer case or wooden case.
Delivery Time 25 working days after received your payment
Payment Terms T/T, L/C
Supply Ability 10000pcs/month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name IE3 MS132S-4 Application Floor Grinding Machine
Output 5.5KW/7.5HP Pole 4
Efficiency IE3 Performance High Reliability
Capacitor Type Capacitor Running Phase Three Phase
Highlight

3 phase electric motor

,

ie3 premium efficiency motors
Leave a Message
Product Description

IE3 Premium Efficiency Three Phase Motor For Floor grinding machine



IE3 Motor Description

IE3 Series Premium efficiency motors are enclosed, three-phase squirrel cage type, built to comply with international IEC and EN standards. Engines conforming to other national and international specifications are also available on request.
All production units are certified to ISO 9001 international quality standards and ISO 1 4OO0 environmental standards and conform to all applicable E.U. Directives.

three phase motor for floor grinding machine

Application

The latest design, all made of selected quality materials. It can be widely used as a Floor grinding machine.

Premium Efficiency IE3 Motor Three Phase Capacitor Running For Floor Grinding Machine 1



Operating conditions



Ambient temperature: -15°C~40°C
Altitude: Altitude should be higher than 1000 meters above sea level.
Rated voltage: 380V,400V,415V,440V. Rated frequency: 50Hz,60Hz.
Connection: Y Star-connection for 3kw or less whereas and delta-connection.
Duty/Rating: Continuous (S1)
Insulation class: F, the temperature rise of the stator winding is examined at 80K
(by resistance method).
Protection class: IP55.
Cooling method: IC411.



Production line
 Premium Efficiency IE3 Motor Three Phase Capacitor Running For Floor Grinding Machine 2



Production data



 IE3 Premium Efficiency

Model Power (V) (A)

Spee

d r/min

 Eff. (%) P.F. Tstart/Tn Ist/In
Kw HP 50% 75% 100%
IE3 MS801-2 0.75 1 230/400 2.82/1.63 2820 79.7 81.0 80.7 0.831 2.3 6.0
IE3 MS802-2 1.1 1.5 4.0/2.3 2820 81.5 82.9 82.7 0.836 2.3 7.5
IE3 MS90S-2 1.5 2 5.23/3.02 2840 84.0 85.0 84.2 0.857 2.4 7.5
IE3 MS90L-2 2.2 3 7.44/4.3 2840 86.0 86.5 85.9 0.865 2.4 7.5
IE3 MS100L-2 3 4 9.9/5.72 2850 88.2 87.3 87.1 0.873 2.4 8.0
IE3 MS112M-2 4 5.5 400/690 7.48/4.32 2870 88.0 88.4 88.1 0.880 2.4 8.5
IE3 MS132S1-2 5.5 7.5 10/5.8 2900 89.1 89.6 89.2 0.890 2.2 7.5
IE3 MS132S2-2 7.5 10 13.5/7.8 2900 90.0 90.5 90.1 0.892 2.2 7.5
IE3 MS160M1-2 11 15 19.5/11.3 2920 89.8 91.3 91.2 0.896 2.2 8.5
IE3 MS160M2-2 15 20 26.2/15.1 2920 91.6 92.0 91.9 0.805 2.2 8.5
IE3 MS160L-2 18.5 25 31.9/18.4 2920 92.1 92.5 92.4 0.910 2.2 8.5
IE3 MS802-4 0.75 1 230/400 2.97/1.72 1400 81.0 82.7 82.5 0.770 2.4 7.0
IE3 MS90S-4 1.1 1.5 4.25/2.45 1420 82.6 84.3 84.1 0.775 2.4 7.5
IE3 MS90L-4 1.5 2 5.68/3.28 1420 83.8 85.4 85.3 0.778 2.4 8.0
IE3 MS100L1-4 2.2 3 8.0/4.62 1440 84.3 86.7 86.7 0.798 2.4 8.0
IE3 MS100L2-4 3 4 10.8/6.2 1440 86.0 87.6 87.7 0.801 2.4 8.0
IE3 MS112M-4 4 5.5 400/690 7.97/4.6 1450 88.3 88.8 88.6 0.821 2.4 7.5
IE3 MS132S-4 5.5 7.5 10.8/6.2 1450 89.0 89.7 89.6 0.825 2.3 7.5
IE3 MS132M-4 7.5 10 14.4/8.32 1450 90.1 90.6 90.4 0.834 2.3 7.5
IE3 MS160M-4 11 15 20.8/12.0 1460 90.5 91.5 91.4 0.838 2.2 7.0
IE3 MS160L-4 15 20 27.9/16.1 1460 91.5 92.5 92.1 0.847 2.2 7.0
IE3 MS90S-6 0.75 1 230/400 3.42/1.97 910 77.5 94.4 78.9 0.700 2 4.0
IE3 MS90L-6 1.1 1.5 4.8/2.78 910 80.2 81.3 81.0 0.710 2 4.0
IE3 MS100L1-6 1.5 2 6.35/3.66 930 81.3 82.6 82.5 0.720 2 5.0
IE3 MS112M-6 2.2 3 8.98/5.2 940 83.2 85.0 84.3 0.730 2 5.0
IE3 MS132S-6 3 4 11.9/6.87 960 84.5 85.8 85.6 0.740 2.2 6.5
IE3 MS132M1-6 4 5.5 400/690 9.0/5.2 960 85.3 86.9 86.8 0.745 2.2 7.0
IE3 MS132M2-6 5.5 7.5 12.1/7.0 960 86.9 88.2 88.0 0.750 2.2 7.0
IE3 MS160M-6 7.5 10 16.1/9.3 970 87.5 89.0 89.1 0.760 2.2 7.0
IE3 MS160L-6 11 15 22.9/13.2 970 89.0 90.2 90.3 0.770 2.2 7.0



IE2 High Efficiency

Model Power (V) (A) (r/min) Eff. (%) P.F. Ist/In Tmax/Tn
Kw HP 50% 75% 100%
IE2 MS801-2 0.75 1 230/400 3.0/1.73 2800 76.5 77.3 77.4 0.813 2.2 2.3
IE2 MS802-2 1.1 1.5 4.2/2.43 2800 79.0 80.0 79.6 0.825 2.2 2.3
IE2 MS90S-2 1.5 2 5.53/3.19 2820 80.2 81.5 81.3 0.837 2.2 2.3
IE2 MS90L-2 2.2 3 7.93/4.58 2820 82.2 83.5 83.2 0.837 2.2 2.3
IE2 MS100L-2 3 4 10.5/6.06 2830 84.0 85.1 84.6 0.848 2.2 2.3
IE2 MS112M-2 4 5.5 400/690 7.97/4.6 2850 85.4 86.8 85.8 0.848 2.2 2.3
IE2 MS132S1-2 5.5 7.5 10.65/6.15 2870 86.7 87.3 87.0 0.860 2 2.3
IE2 MS132S2-2 7.5 10 14.35/8.28 2870 87.6 88.3 88.1 0.860 2 2.3
IE2 MS160M1-2 11 15 20.74/11.97 2900 89.0 89.8 89.4 0.860 2 2.3
IE2 MS160M2-2 15 20 27.99/16.16 2900 90.0 90.5 90.3 0.860 2 2.3
IE2 MS160L-2 18.5 25 33.83/19.53 2900 90.3 91.0 90.9 0.872 2 2.2
IE2 MS802-4 0.75 1 230/400 3.28/1.9 1380 77.3 79.8 79.6 0.720 2.3 2.3
IE2 MS90S-4 1.1 1.5 4.57/2.64 1400 79.9 81.7 81.4 0.743 2.3 2.3
IE2 MS90L-4 1.5 2 6.02/3.48 1400 82.1 83.5 82.8 0.755 2.3 2.3
IE2 MS100L1-4 2.2 3 8.42/4.86 1420 82.6 84.5 84.3 0.778 2.2 2.3
IE2 MS100L2-4 3 4 11.32/6.54 1420 84.2 85.7 85.5 0.778 2.2 2.3
IE2 MS112M-4 4 5.5 400/690 8.47/4.89 1430 85.8 87.0 86.6 0.790 2.2 2.3
IE2 MS132S-4 5.5 7.5 11.18/6.45 1450 87.4 88.3 87.7 0.813 2.2 2.3
IE2 MS132M-4 7.5 10 14.85/8.58 1450 88.2 89.0 88.7 0.825 2.2 2.3
IE2 MS160M-4 11 15 21.84/12.61 1460 89.1 90.0 89.8 0.813 2.2 2.3
IE2 MS160L-4 15 20 29.08/16.79 1460 90.2 91.1 90.6 0.825 2.2 2.3
IE2 MS90S-6 0.75 1 230/400 3.82/2.2 910 73.4 76.3 75.9 0.650 2 2.2
IE2 MS90L-6 1.1 1.5 5.25/3.03 910 77.0 78.8 78.1 0.673 2 2.2
IE2 MS100L-6 1.5 2 6.77/3.91 940 79.6 80.8 79.8 0.697 2 2.2
IE2 MS112M-6 2.2 3 9.69/5.59 940 80.4 81.6 81.8 0.697 2 2.2
IE2 MS132S-6 3 4 12.56/7.25 960 81.0 83.4 83.3 0.720 2 2.2
IE2 MS132M1-6 4 5.5 400/690 9.36/5.4 960 82.7 84.5 84.6 0.732 2 2.2
IE2 MS132M2-6 5.5 7.5 12.47/7.2 960 84.8 86.2 86.0 0.743 2 2.2
IE2 MS160M-6 7.5 10 16.78/9.69 970 86.4 87.5 87.2 0.743 2 2
IE2 MS160L-6 11 15 24.19/13.97 970 88.2 89.2 88.7 0.743 2 2



IE1 Standard Efficiency

Model Power
(V)
(A)		 P.F. Eff.(%) Speed
(r/min)		 Tstart/Tn Tmax/Tn Ist/In(A)
kW HP
MS561-2 0.09 0.12 220/380 0.57/0.33 0.68 62 2800 2.3 2.4 6
MS562-2 0.12 0.16 220/380 0.67/0.38 0.71 67 2800 2.3 2.4 6
MS631-2 0.18 0.24 220/380 0.91/0.53 0.75 69 2800 2.2 2.4 6
MS632-2 0.25 0.33 220/380 1.17/0.68 0.78 72 2800 2.2 2.4 6
MS711-2 0.37 0.5 220/380 1.65/0.95 0.80 73.5 2800 2.2 2.4 6
MS712-2 0.55 0.75 220/380 2.33/1.35 0.82 75.5 2800 2.2 2.4 6
MS801-2 0.75 1 220/380 3.03/1.75 0.85 76.5 2800 2.2 2.4 6
MS802-2 1.1 1.5 220/380 4.42/2.55 0.85 77 2800 2.2 2.4 6
MS90S-2 1.5 2 220/380 6.01/3.84 0.85 77 2800 2.2 2.4 6
MS90L-2 2.2 3 220/380 8.61/4.98 0.86 78 2800 2.2 2.4 6
MS100L-2 3 4 220/380 11.1/6.4 0.87 82 2870 2.2 2.3 7
MS112M-2 4 5.5 380/660 8.2/4.7 0.87 85.5 2890 2.2 2.3 7
MS132S1-2 5.5 7.5 380/660 11/6.4 0.88 85.5 2900 2.0 2.2 7
MS132S2-2 7.5 10 380/660 15/8.6 0.88 86.2 2900 2.0 2.2 7
MS160M1-2 11 15 380/660 21.3/12.2 0.88 88 2930 2.0 2.2 7
MS160M2-2 15 20 380/660 28.7/16.4 0.89 89 2930 2.0 2.2 7
MS160L-2 18.5 25 380/660 34.6/19.8 0.90 90 2930 2.0 2.2 7
MS180M-2 22 30 380/660 40.9/23.4 0.90 90.5 2930 2.0 2.2 7
MS561-4 0.06 0.08 220/380 0.49/0.28 0.58 56 1400 2.3 2.4 6
MS562-4 0.09 0.12 220/380 0.67/0.39 0.61 58 1400 2.3 2.4 6
MS631-4 0.12 0.16 220/380 0.84/0.48 0.63 60 1400 2.2 2.4 6
MS632-4 0.18 0.24 220/380 1.12/0.65 0.66 64 1400 2.2 2.4 6
MS711-4 0.25 0.33 220/380 1.44/0.83 0.68 67 1400 2.2 2.4 6
MS712-4 0.37 0.5 220/380 0.94/1.12 0.72 69.5 1400 2.2 2.4 6
MS801-4 0.55 0.75 220/380 2.69/1.56 0.73 73.5 1400 2.2 2.4 6
MS802-4 0.75 1 220/380 3.48/2.01 0.75 75.5 1400 2.2 2.4 6
MS90S-4 1.1 1.5 220/380 4.74/2.75 0.78 78 1400 2.2 2.4 6
MS90L-4 1.5 2 220/380 6.31/3.65 0.79 79 1400 2.2 2.3 7
MS100L1-4 2.2 3 220/380 8.6/5.0 0.82 81 1430 2.2 2.3 7
MS100L2-4 3 4 220/380 11.7/6.8 0.81 82.5 1430 2.2 2.3 7
MS112M-4 4 5.5 380/660 8.8/5.1 0.82 84.5 1440 2.2 2.2 7
MS132S-4 5.5 7.5 380/660 12/6.9 0.84 85.5 1440 2.2 2.2 7
MS132M-4 7.5 10 380/660 15/8.6 0.85 87 1440 2.2 2.2 7
MS160M-4 11 15 380/660 22.3/12.7 0.85 88 1460 2.2 2.2 7
MS160L-4 15 20 380/660 30/17.1 0.85 89 1460 2.0 2.2 7
MS180M-4 18.5 25 380/660 36.4/20.8 0.85 90.5 1470 2.2 2.2 7.5
MS180L-4 22 30 380/660 43.1/24.6 0.85 91 1470 2.2 2.2 7.5
MS90S-6 0.75 1 220/380 4.0/2.3 0.70 72.5 910 2.2 2.2 5.5
MS90L-6 1.1 1.5 220/380 5.5/3.2 0.72 73.5 910 2.2 2.2 5.5
MS100L-6 1.5 2 220/380 6.9/4.0 0.74 77.5 940 2.2 2.2 6
MS112M-6 2.2 3 220/380 9.7/5.6 0.74 80.5 940 2.2 2.2 6
MS132S-6 3 4 220/380 12.4/7.2 0.76 83 960 2.2 2.0 6.5
MS132M1-6 4 5.5 380/660 9.4/5.4 0.77 84 960 2.0 2.0 6.5
MS132M2-6 5.5 7.5 380/660 13/7.5 0.78 85.3 960 2.0 2.0 6.5
MS160M-6 7.5 10 380/660 16.5/9.43 0.80 87.5 970 2.0 2.0 6.5
MS160L-6 11 15 380/660 24.1/13.8 0.79 89 970 2.0 2.0 6.5
MS180L-6 15 20 380/660 31.5/18 0.81 86 970 2.0 2.0 7.0
MS132S-8 2.2 3 220/380 10/5.8 0.71 85.5 710 2.0 2.0 5.5
MS132M-8 3 4 220/380 13.3/7.7 0.72 82 710 2.0 2.0 5.5
MS160M1-8 4 5.5 380/660 10.2/5.8 0.73 81 720 2.0 2.0 6.0
MS180M2-8 5.5 7.5 380/660 13.6/7.8 0.74 83 720 2.0 2.0 6.0
MS160L-8 7.5 10 380/660 17.7/10.1 0.75 85.5 720 2.0 2.0 6.0
MS180L-8 11 15 380/660 25.1/14.3 0.76 87.5 730 2.0 2.0 6.5




IE3 Motor Guarantee

Guarantee for one year from shipped on board date. During the guarantee period, our company will provide free easy-damaged spare parts for problems caused by our quality of production or raw material, except the damageable spare parts caused by the customer's incorrect artificial operation. In addition, after expiration, our company provides cost spare parts for maintenance.
1. Directly factory sale
2. Quick response to 2-8hours, response rates over 92%
3. 24 hours phone call is available. Feel free to contact us.
4. We provide one-stop services for all goods produced by ourselves, from designing, printing to processing. Customers can provide the design according to your request and sample making. Also, we can advise how to make the products according to customers' target prices.
