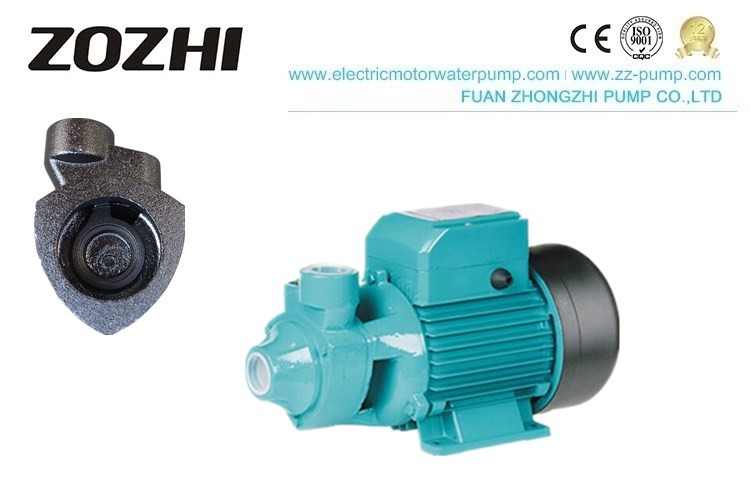

Cataphoretic Coating QB Series Vortex Aquarium Pump For Domestic / Industrial

China Cataphoretic Coating QB Series Vortex Aquarium Pump For Domestic / Industrial supplier
Cataphoretic Coating QB Series Vortex Aquarium Pump For Domestic / Industrial supplier Cataphoretic Coating QB Series Vortex Aquarium Pump For Domestic / Industrial supplier

Large Image :  Cataphoretic Coating QB Series Vortex Aquarium Pump For Domestic / Industrial

Product Details:

Place of Origin: China
Brand Name: ZOZHI
Certification: CE/SGS/ISO
Model Number: QB series

Payment & Shipping Terms:

Minimum Order Quantity: 1pc
Price: negotiated
Packaging Details: Packed in cartons , overall size:330x180x220mm/pc, N.W.: 9.5kgs
Delivery Time: 25 working days after received your payment
Payment Terms: T/T, L/C
Supply Ability: 30000pcs per month
Contact Now
Detailed Product Description
Product Name: Electric Water Pump Application: Boosting
Power: 1.0HP /0.75KW Flow Max: 50L/Min
Head Max: 55M Suction Max: 9M
Warranty: 12 Months Speed: 2850RPM

Cataphoretic Coating QB Series Water Pumps Peripheral Water Pump,Vortex Pump For Domestic/Industrial



Peripheral Water Pump Description



QB series water pumps are a vortex pump with cataphoretic coating, suitable for both domestic and industrial applications to convey clean liquids and non-aggressive chemical fluids. The hydraulic characteristic is with a higher head and bigger capacity.



Peripheral Water Pump Application



These products are mainly used in dry regions for agriculture, it can be used for the tank, domestic water supply, water transfer, pressure boosting, irrigation, drinking water, and living water. The living condition could be much improved.





QB  electrophoresis



Peripheral Water Pump Data ( 220V/50HZ )

Model Output A R.P.M. Q.Max H.Max S.Head Pipe Dia LxWxH N.W.
HP / KW 1~220V (l/min) (m) (M) (mm) (Kg)
QB60 0.5 / 0.37 1.6 2850 35 35 9 1"x1" 280x145x180 5.3
QB70 0.75 / 0.55 3.6 2850 45 50 9 1"x1" 330x180x220 9.5
QB80 1 / 0.75 4.8 2850 50 55 9 1½ "x1½" 330x180x220 10
QB90 1.5 / 1.1 6.2 2850 90 60 9 1½ "x1½" 425x200x220 22


Other voltages and frequencies available on request



Cataphoretic Coating QB Series Vortex Aquarium Pump For Domestic / Industrial




STRUCTURAL CHARACTERISTICS



Main Specification Standard Optional
Transmission medium Clean Water
Pump body Cast Iron
Impeller Brass
Motor housing Aluminum
Stator&Rotor 1.Cold-rolled silicon steel sheet by high-speed punching machine. 2. 100% high-quality copper wire

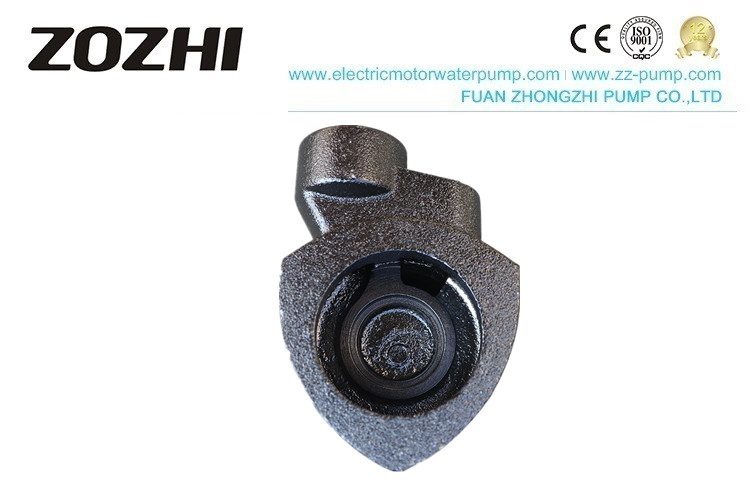

Front cover Cast Iron Brass plate embedded to avoid impeller jam
Bearing Chinese Best Quality Bearing NSK, SKF or on request
Mechanical seal Graphene/Ceramic Silicon Carbon
Shaft Carbon Steel Stainless Steel
Insulation Class B Class F
Protection IP44 IP54
Voltage 220-240V Single Phase On Request
Frequency 50HZ 60HZ
thermal protection No Yes
Automatic Pressure Control System No Yes
Cooling Type External Ventilation
Max. Suction lift 9M
Max. Fluid Temperature +60℃
Max. Environment Temperature +40℃
Installation Horizontal
Connect Type Thread
CONSTRUCTION AND SAFETY STANDARDS in compliance with IEC





Cataphoretic Coating QB Series Vortex Aquarium Pump For Domestic / Industrial



HOLLOW SHAFT MOTOR SWIMMING POOL PUMP ELECTRIC MOTOR
PRESSURE SWITH PRESSURE SWITCH Cataphoretic Coating QB Series Vortex Aquarium Pump For Domestic / Industrial
water pump water pump mechnical seal



GUARANTEE

Guarantee for one year from shipped on board date. During the guarantee period, our company will provide the free easy-damaged spare part for problems caused by our quality of production or raw material, except the damageable spare parts caused by customer's incorrect man-made operation. After expiration, our company provides cost spare parts for maintenance.

OUR SERVICE

1. Directly factory sale
2. Quick response to 2-8hours, response rates over 92%
3. 24 hours phone call is available, feel free to contact us.
4. All goods produced by ourselves, we provide one-stop services from designing, printing to processing. Customers can provide the design according to your request and samples making, also we can advise how to make the products according to customers' target prices.


FAQ
1. Q: What’s the MOQ?
A: Trial sample order is ok.
2. Q: Are you a factory or trading company?
A: We are a manufacturer.
3. Q: Can you accept to use our logo?
A: Yes, we can do OEM for you.
4. Q: How can I get the pump?
A: Usually we suggest express for samples, if the volume reaches 1m³, the Seaway will be better.
5. Q: What’s the warranty period?
A: 1 year.
