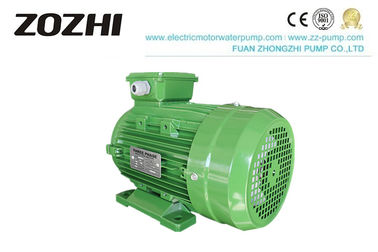

IEC Standard IE2 Motor High-Efficiency Motor FUAN ZOZHI MS90L-2 2.2KW

IE2 High-Efficiency Motor



IE2 Motor Description

IE2 series high-efficiency induction motors are energy-saving products designed by energy efficiency requirements under China's GB 18613-2012 and IEC 60034-30 standards. This series motors with a new lamination design, applied with high permeability cold-rolled silicon steel and oxygen-free copper wire, also the new design to reduce stray loss of winding. Motor with nice appearance, high efficiency, class F grade insulation, IP55 protection, low electrical noise, slight vibration, reliable operation, IC411 cooling method, and all the installation size and efficiency class follow both IEC standard and DIN 42673 standards.

Cooling method IC411, protection class IP55, F class insulation, Class B temperature rise

Other Optional Specifications

Application

The product is suitable for economic lake farms, such as machine tools, pumps, fans, compressors, etc. It can also mix, print, rice machinery, food, and other types without flammable, explosive, corrosive gases.

Operating conditions
Ambient temperature: -15°C~40°C
Altitude: Altitude should be higher than 1000 meters above sea level.
Rated voltage: 380V,400V,415V,440V. Rated frequency: 50Hz,60Hz.
Connection: Y Star-connection for 3kw or less whereas and delta-connection.
Duty/Rating: Continuous (S1)
Insulation class: F, the temperature rise of the stator winding is examined at 80K
(by resistance method).
Protection class: IP55.
Cooling method: IC411.


Technical Data

Performance comparison chart:

IE2 Motor GUARANTEE:
Guarantee for one year from shipped on board date. During the guarantee period, our company will provide free easy-damaged spare parts for problems caused by our quality of production or raw material, except the damageable spare parts caused by the customer's incorrect artificial operation. In addition, after expiration, our company provides cost spare parts for maintenance.


IE2 Motor OUR SERVICE:

1. Directly factory sale
2. Quick response to 2-8hours, response rates over 92%
3. 24 hours phone call is available. Feel free to contact us.
4. We provide one-stop services for all goods produced by ourselves, from designing, printing to processing. Customers can provide the design according to your request and sample making. Also, we can advise how to make the products according to customers' target prices.

FAQ:
1. Q: What's the MOQ?
A: We accept one piece.
2. Q: Are you a factory or trading company?
A: We are a manufacturer.
3. Q: Can you accept using our logo?
A: Yes, we can do OEM for you.
4. Q: What's the warranty period?
A: 1 year.

5. Q: What are the terms of payment?
A: T/T. 30% deposit and 70% against the BL copy or 100% LC at sight.
